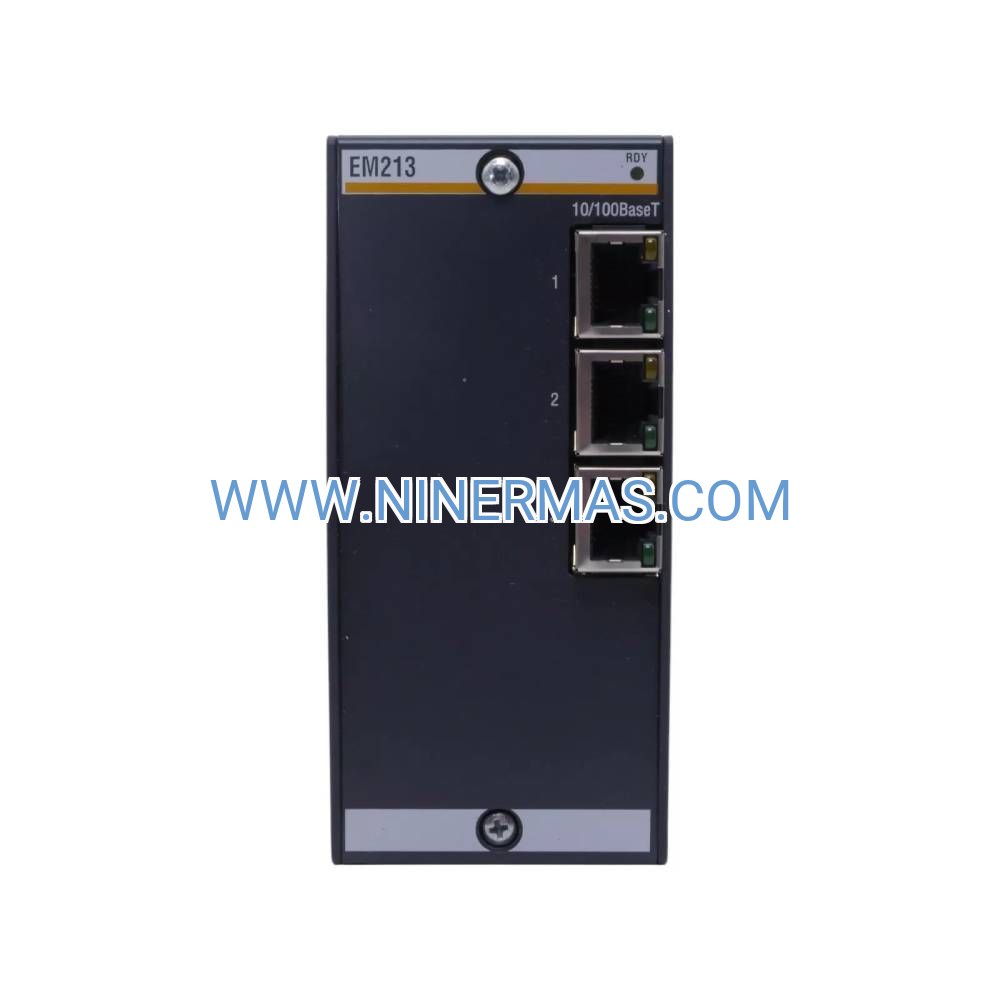

EM213 Triple-Port Ethernet Master (Industrial-Grade Network Interface)

The EM213 represents a purpose-built Ethernet communication gateway engineered for M1-series automation platforms. This compact network master delivers three independent 10/100 Mbps RJ45 interfaces, enabling simultaneous connectivity between engineering workstations, remote I/O substations, and supervisory control systems within a single module footprint.

Designed for manufacturers requiring deterministic data exchange in process automation, the EM213 eliminates network bottlenecks through dedicated port architecture. Each interface operates independently with auto-negotiation and auto-crossover detection, reducing commissioning time by up to 40% compared to traditional switch-based topologies.

Whether you're integrating legacy FASTBUS networks with modern Ethernet infrastructure or building greenfield automation systems, the EM213 provides the protocol flexibility and environmental resilience demanded by chemical processing, water treatment, and power generation facilities. Certified for Zone 2 hazardous locations with MTBF exceeding 150,000 hours.

Core Features & Benefits

→ Triple Independent Ethernet Ports
Three 10/100 Mbps RJ45 interfaces with galvanic isolation enable parallel connections to HMI panels, SCADA servers, and field devices without network congestion. Eliminates single-point-of-failure risks inherent in daisy-chain configurations.

→ Multi-Protocol Industrial Communication
Native support for Modbus TCP, EtherNet/IP, and TCP/UDP protocols allows seamless integration with third-party PLCs, drives, and instrumentation. Protocol conversion handled internally without external gateways.

→ Extended Temperature Performance
Operates reliably from -40°C to +70°C ambient temperature range. Conformal-coated PCB and industrial-grade components ensure stable operation in high-vibration, high-humidity environments where commercial Ethernet switches fail.

✓ Plug-and-Play M1 Integration
Direct backplane mounting on BS206/BS210 chassis with automatic module recognition. Hot-swappable design minimizes downtime during maintenance—replace modules without powering down the entire control system.

✓ Real-Time Diagnostic Visibility
Front-panel LEDs provide instant status feedback for link activity, data transmission, and fault conditions. Advanced diagnostics accessible via M-Base engineering software for predictive maintenance and network troubleshooting.

Typical Application Scenarios

Distributed Manufacturing Execution Systems
Connect multiple production cells across factory floors using the EM213's multi-port architecture. In automotive assembly plants, one port links to the MES server, the second to local HMI terminals, and the third to robotic welding controllers—all synchronized with microsecond precision. Reduces cabling costs by 35% versus star-topology Ethernet switches.

Water & Wastewater Treatment Networks
Establish reliable communication between remote pump stations and central SCADA systems. The EM213's extended temperature rating and EMI immunity make it ideal for outdoor control cabinets in municipal water facilities. Pair with analog I/O modules for real-time flow monitoring and chemical dosing control.

Energy Management & Building Automation
Integrate HVAC controllers, lighting systems, and power meters into unified building management platforms. The EM213 handles simultaneous BACnet/IP and Modbus TCP traffic, enabling cross-vendor interoperability without protocol converters. Typical installations achieve 99.97% network uptime.

Pharmaceutical Batch Processing
Meet FDA 21 CFR Part 11 compliance requirements with deterministic Ethernet communication. The EM213 provides audit-trail-ready data logging when combined with Bachmann MX-series processors. Supports redundant network topologies for critical batch reactors and sterile filling lines.

Oil & Gas Pipeline Monitoring
Deploy in ATEX Zone 2 certified control panels for remote terminal units (RTUs). The EM213's low power consumption (max 5W) enables solar-powered installations in off-grid locations. Three ports support primary/backup SCADA links plus local maintenance laptop access.

Technical Parameters & Selection Guide

Selection Criteria:
Choose the EM213 when your application requires dedicated Ethernet communication without PLC processing. For combined controller + network functions, consider the MP213/E module. Systems needing more than three Ethernet ports should use multiple EM213 modules or external managed switches. Verify backplane slot availability—the EM213 occupies one standard M1 slot.

Extended Functions

Redundant Network Topologies
Deploy dual EM213 modules in hot-standby configurations for mission-critical applications. Automatic failover occurs within 200ms when primary network path fails. Compatible with Rapid Spanning Tree Protocol (RSTP) for loop-free redundancy.

Remote Monitoring & Diagnostics
Integrate with SNMP-based network management systems for centralized monitoring. The EM213 exposes MIB-II variables including port statistics, error counters, and module temperature. Supports syslog event forwarding to external logging servers.

Cybersecurity Enhancements
Implement MAC address filtering and VLAN tagging (802.1Q) to segment industrial networks from enterprise IT infrastructure. Firmware updates delivered via secure bootloader prevent unauthorized code execution.

Custom Protocol Development
Bachmann provides SDK for developing proprietary communication protocols. Ideal for OEMs requiring specialized machine-to-machine interfaces or legacy equipment integration.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations (firmware variants, extended testing) require 2-3 weeks. Expedited delivery available for critical downtime situations.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty plans (24/36 months) available at time of purchase. Warranty includes advance replacement service—receive replacement module before returning defective unit.

Technical Support: Lifetime email/phone support included. Access to Bachmann's global application engineering team for system design consultation, commissioning assistance, and troubleshooting. Average response time: 4 hours for critical issues.

Documentation Package: Each module ships with installation manual, quick-start guide, and M-Base software configuration examples. CAD drawings (STEP/DXF) and 3D models available for panel design integration.

Frequently Asked Questions

How does the EM213 Ethernet master handle network traffic prioritization?
The module supports IEEE 802.1p Quality of Service (QoS) tagging, allowing prioritization of time-critical control data over non-urgent diagnostic traffic. Configure priority levels via M-Base software to ensure deterministic response times for safety-related communications.

What cable specifications are required for industrial Ethernet installations?
Use Cat5e or Cat6 shielded twisted-pair (STP) cables with maximum length of 100 meters per segment. For high-EMI environments (near VFDs or welding equipment), specify double-shielded Cat6A cables with 360° connector grounding. Avoid running Ethernet cables parallel to AC power lines.

Can I mix EM213 modules with other Bachmann communication interfaces?
Yes, the M1 backplane supports heterogeneous module configurations. Common setups combine EM213 Ethernet masters with CAN bus modules (CM202) and serial communication modules (RS232/RS485) for multi-protocol gateway applications. Total backplane current consumption must not exceed power supply capacity.

Does the EM213 support Power over Ethernet (PoE) for connected devices?
No, the EM213 does not provide PoE functionality. For powering IP cameras or wireless access points, use external PoE injectors or PoE-capable Ethernet switches. The module itself draws power exclusively from the M1 backplane.

What network security features protect against cyber threats?
The EM213 implements port-level MAC filtering (up to 16 addresses per port) and supports VLAN segmentation to isolate industrial networks. For advanced firewall capabilities, deploy the module behind industrial Ethernet switches with deep packet inspection. Regular firmware updates address emerging vulnerabilities.

How do I troubleshoot intermittent network connectivity issues?
Check front-panel LEDs: solid green indicates link established, flashing green shows data activity, amber signals errors. Use M-Base diagnostics to monitor packet loss, CRC errors, and collision rates. Common causes include damaged cables, incorrect duplex settings, or EMI interference—verify cable shielding and grounding.
