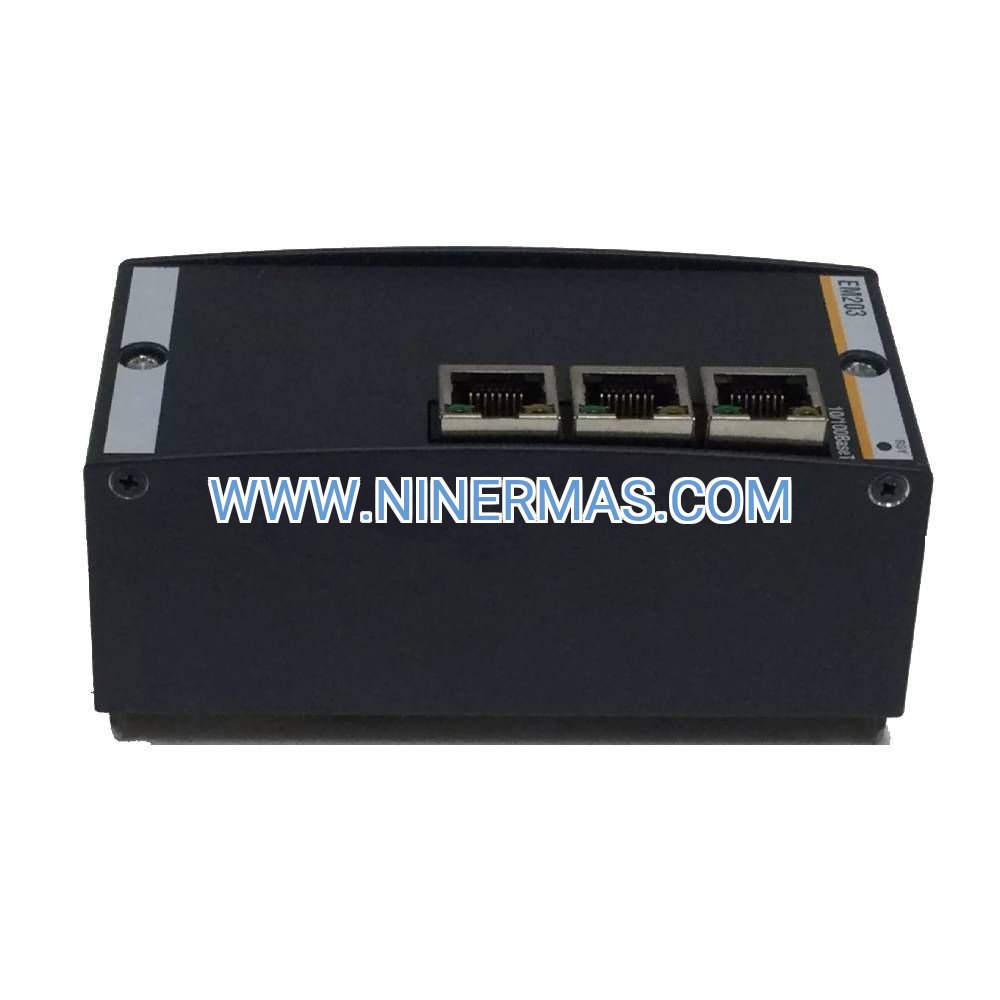

EM203 Ethernet Master Module (Industrial-Grade Network Expansion)

The EM203 Ethernet Master Module is a triple-port communication interface engineered for Bachmann M1 automation platforms. Designed to bridge field-level devices with supervisory networks, this module delivers deterministic FASTBUS communication across three independent 10/100 Mbit Ethernet channels. Whether you're scaling distributed control systems or integrating legacy infrastructure with modern Ethernet backbones, the EM203 provides the reliability and flexibility demanded by mission-critical industrial environments.

Built for process automation engineers and system integrators, the EM203 solves connectivity challenges in multi-node architectures where real-time data exchange is non-negotiable. From chemical processing plants to power generation facilities, this module ensures seamless communication between PLCs, HMIs, and remote I/O—even in harsh conditions ranging from -40°C to +70°C.

Key advantages include plug-and-play backplane mounting, native FASTBUS protocol support for low-latency messaging, and triple-port architecture that enables ring topologies and network redundancy. The EM203 transforms complex network expansion projects into straightforward installations, reducing commissioning time while maximizing uptime.

Core Features & Benefits

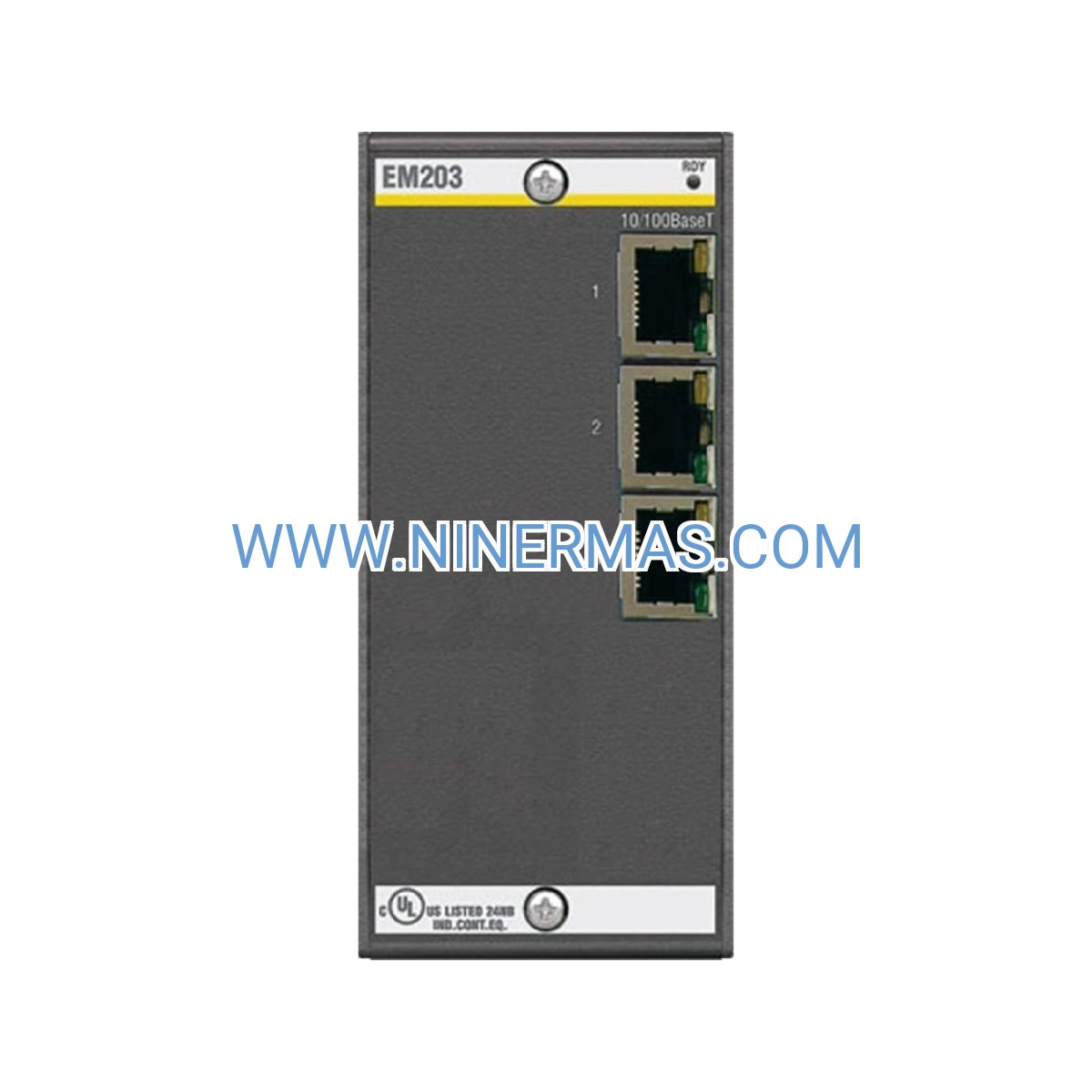

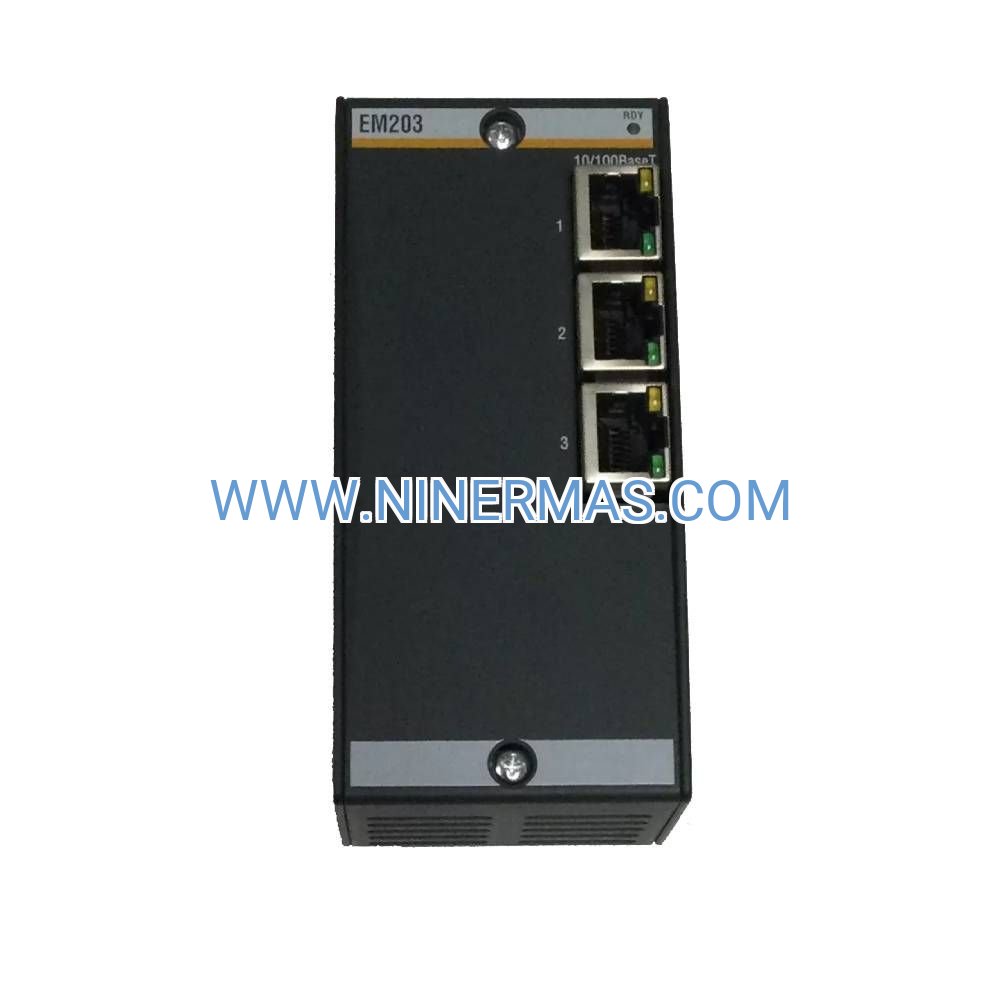

✓ Triple Independent Ethernet Ports
Three 10/100 Mbit RJ45 interfaces allow simultaneous connections to multiple network segments. Deploy star, ring, or daisy-chain topologies without external switches—ideal for redundant architectures where failover capability is critical.

✓ FASTBUS Protocol Optimization
Native support for Bachmann's deterministic FASTBUS ensures sub-millisecond response times in time-sensitive applications. Achieve predictable cycle times for closed-loop control without the overhead of generic TCP/IP stacks.

✓ M1 System Integration
Direct compatibility with Bachmann MX213, MP213/E processors and all M1 backplane configurations. Auto-discovery and configuration eliminate manual IP addressing—simply insert the module and power on.

✓ Extended Environmental Range
Operates reliably from -40°C to +70°C with CE, UL, and ATEX certifications. Conformal coating and robust EMC shielding protect against electrical noise, vibration, and corrosive atmospheres common in heavy industry.

✓ Hot-Swappable Design
Replace or add modules without shutting down the entire system. Front-panel LEDs provide instant diagnostics for link status, activity, and fault conditions—reducing troubleshooting time during maintenance windows.

✓ Scalable Architecture
Combine multiple EM203 modules on a single backplane to create high-density communication hubs. Support for up to 12 modules per BS212 backplane enables networks with 36+ Ethernet ports in a compact footprint.

Typical Application Scenarios

→ Multi-Zone Process Control
Chemical reactors, distillation columns, and blending systems require coordinated control across distributed zones. The EM203 connects zone-level controllers to a central SCADA server while maintaining local FASTBUS communication for safety interlocks. Pain Point Solved: Eliminates bottlenecks caused by single-port controllers. Value Delivered: 40% faster data refresh rates improve batch consistency and reduce off-spec production.

→ Power Generation SCADA Networks
Turbine control systems, generator protection relays, and auxiliary equipment demand high-availability communication. Deploy EM203 modules in redundant ring configurations to ensure zero downtime during network failures. Pain Point Solved: Prevents loss of visibility during switch failures. Value Delivered: Meets IEC 61850 availability requirements with automatic failover under 50ms.

→ Water Treatment Automation
Pump stations, filtration skids, and chemical dosing systems spread across large facilities need reliable long-distance connectivity. Use EM203 ports to segment networks by process area while maintaining centralized monitoring. Pain Point Solved: Reduces cabling costs versus home-run wiring to central cabinets. Value Delivered: 60% reduction in installation labor through distributed architecture.

→ Manufacturing Line Integration
Robotic cells, conveyor systems, and quality inspection stations require synchronized motion control. The EM203 aggregates data from servo drives, vision systems, and safety PLCs onto a unified Ethernet backbone. Pain Point Solved: Simplifies wiring in retrofit projects with existing M1 infrastructure. Value Delivered: Enables predictive maintenance through continuous vibration and temperature monitoring.

→ Oil & Gas Pipeline Monitoring
Remote pump stations and valve actuators in hazardous areas benefit from ATEX-certified communication modules. The EM203's extended temperature range and rugged construction withstand desert heat and arctic cold. Pain Point Solved: Eliminates need for climate-controlled enclosures at remote sites. Value Delivered: Reduces OPEX by $15K+ annually per site through passive cooling.

Technical Parameters & Selection Guide

Selection Criteria: Choose the EM203 when your application requires more than two Ethernet connections per controller slot. For single-port needs, consider the EM201 variant. If fiber optic connectivity is required for long-distance runs (>100m), evaluate the EM204-FO model with SFP cages. Always verify backplane power budget—each EM203 consumes 6W maximum; ensure your NT255 or NT250 power supply has sufficient headroom for the full module complement.

Extended Functions

IoT Gateway Capability: The EM203 supports MQTT and OPC UA client functionality via firmware updates, enabling direct cloud connectivity for Industry 4.0 initiatives. Stream real-time process data to AWS IoT Core, Azure IoT Hub, or on-premises historians without intermediate gateways.

Network Diagnostics: Built-in packet capture and port mirroring features assist with troubleshooting. Access diagnostic web interface via any connected port to view traffic statistics, error counters, and cable quality metrics—no external tools required.

Customization Options: Factory-configurable MAC addresses and IP ranges available for OEM integrators. Custom firmware builds support proprietary protocols or specialized encryption requirements—contact engineering for NDA-protected development.

Delivery & Service Assurance

Lead Time: Standard EM203 modules ship within 3-5 business days from regional distribution centers. Custom-configured units require 2-3 weeks for programming and testing. Expedited delivery available for critical outages—contact our 24/7 support line.

Warranty Coverage: 24-month manufacturer's warranty covers defects in materials and workmanship. Extended 5-year coverage available through our Premium Support program, including advance replacement and on-site commissioning assistance.

Technical Support: Lifetime access to our automation specialists via phone, email, and remote desktop support. Average response time under 2 hours for critical issues. Quarterly firmware updates include security patches and protocol enhancements.

Documentation Package: Each module includes quick-start guide, full technical manual (PDF), AutoCAD DWG drawings, EPLAN macros, and sample ladder logic for common integration scenarios. Online knowledge base provides 200+ application notes and video tutorials.

Frequently Asked Questions

Q: Can the EM203 operate as a managed Ethernet switch with VLAN support?
A: The EM203 functions as a communication interface, not a managed switch. For VLAN segmentation and QoS prioritization, connect to an industrial Ethernet switch like the Allen-Bradley Stratix 5700 or Siemens Scalance X-200 series downstream.

Q: What is the maximum network cable length between EM203 ports and connected devices?
A: Standard Cat5e/Cat6 Ethernet supports up to 100 meters per segment. For longer distances, use fiber media converters or specify the EM204-FO variant with built-in SFP slots supporting single-mode fiber up to 20km.

Q: Does the EM203 support Power over Ethernet (PoE) for connected devices?
A: No, the EM203 does not provide PoE. Use external PoE injectors or midspan devices if powering IP cameras, wireless access points, or VoIP phones from the network.

Q: How do I configure IP addresses for the three Ethernet ports?
A: Use Bachmann's SolutionCenter software to assign static IPs or enable DHCP per port. Each port operates independently with its own MAC address and can reside on different subnets for network segmentation.

Q: Is the EM203 compatible with non-Bachmann PLCs via Modbus TCP or EtherNet/IP?
A: Yes, the EM203 supports standard Modbus TCP and can communicate with third-party controllers. EtherNet/IP requires additional gateway functionality—consider the Bachmann GIO212 module for native Allen-Bradley protocol support.

Q: What cybersecurity features protect against unauthorized network access?
A: The EM203 includes MAC address filtering, port-level access control lists (ACLs), and support for IEEE 802.1X authentication. For defense-in-depth strategies, deploy behind industrial firewalls and implement network segmentation per IEC 62443 guidelines.

Ready to Expand Your Control Network?

The EM203 Ethernet Master Module delivers proven performance in thousands of installations worldwide. Whether you're upgrading legacy systems or designing greenfield projects, our team provides expert guidance from specification through commissioning.

Next Steps: Contact our sales engineers for application-specific recommendations, pricing for volume orders, or to request evaluation units. Download the full datasheet and integration manual from our technical library, or schedule a live demo of the EM203 in our test lab.
