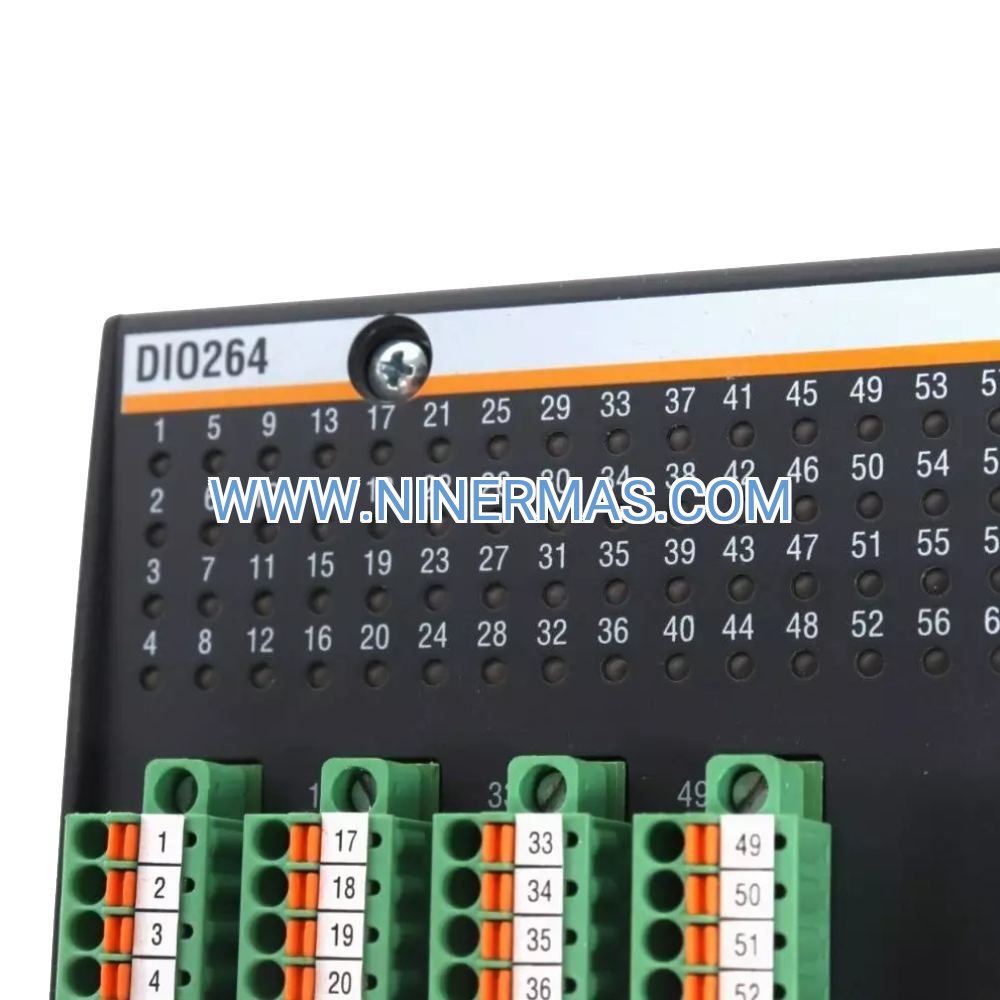

DIO264 Digital I/O Module (Industrial-Grade Multi-Channel Interface)

The DIO264 digital I/O module represents a versatile solution for industrial control applications requiring high-density signal processing. This configurable interface delivers 24 to 40 programmable input/output channels, combining robust construction with intelligent interrupt and counting capabilities. Designed for integration within M1 automation platforms and compatible control systems, the DIO264 addresses the growing demand for flexible, reliable digital signal management in modern manufacturing and process environments.

Industrial facilities face mounting pressure to maximize control cabinet efficiency while maintaining signal integrity across diverse sensor and actuator networks. The DIO264 module solves this challenge by consolidating multiple discrete I/O points into a compact, DIN-rail mountable package. Its wide input voltage acceptance (5-30V DC) eliminates the need for signal conditioning in mixed-voltage installations, while galvanic isolation protects sensitive control electronics from field-level electrical disturbances.

Whether you're upgrading legacy systems, expanding production lines, or implementing new automation projects, the DIO264 provides the adaptability and performance required for mission-critical control applications. With sub-millisecond response times and configurable channel functionality, this module serves as the essential bridge between your control logic and physical processes.

Core Features & Benefits

→ Configurable Channel Architecture
Each of the 24-40 channels can be independently programmed as either input or output, allowing precise matching to your application requirements. This eliminates the waste of unused channels and reduces overall system costs compared to fixed-configuration modules.

→ Intelligent Interrupt Processing
Per-channel interrupt capability enables immediate response to critical events without continuous polling. This reduces CPU overhead by up to 40% while ensuring sub-millisecond reaction to emergency stops, safety interlocks, and process alarms.

→ Integrated High-Speed Counting
Built-in counter functions handle encoder feedback, production tallying, and flow measurement without external hardware. Supports pulse frequencies suitable for conveyor speed monitoring and batch counting applications.

✓ Universal Input Compatibility
Accepts 5-30V DC signals from PNP/NPN sensors, mechanical contacts, and solid-state switches. Single module interfaces with diverse field devices, simplifying inventory management and reducing spare parts requirements.

✓ Protected Output Circuits
Electronic short-circuit and overload protection on all 24V DC outputs prevents damage from wiring faults. Automatic recovery after fault clearance minimizes downtime and maintenance interventions.

✓ Space-Optimized Footprint
100 x 80 x 60mm dimensions deliver maximum I/O density per cabinet volume. Standard 35mm DIN rail mounting enables rapid installation and reconfiguration during system modifications.

Typical Application Scenarios

Chemical Processing & Batch Control
Monitor valve limit switches, level sensors, and temperature alarms across reactor vessels and storage tanks. The DIO264's interrupt functions provide immediate notification of out-of-range conditions, while counter capabilities track batch cycles and ingredient additions. Galvanic isolation protects control systems from electrical noise in hazardous area installations.

Packaging & Material Handling Lines
Interface with photoelectric sensors, proximity switches, and pneumatic actuators on high-speed packaging equipment. Configure channels as inputs for product detection and jam monitoring, while output channels control diverters, reject gates, and conveyor motors. High-speed counting tracks production quantities for quality assurance and inventory management.

Water & Wastewater Treatment
Control pump stations, valve actuators, and chemical dosing systems while monitoring flow switches, pressure sensors, and alarm contacts. The module's wide operating temperature range (-25°C to +60°C) suits outdoor installations and unheated equipment rooms. Interrupt-driven alarm handling ensures rapid response to overflow conditions and equipment failures.

Building Energy Management
Manage HVAC damper actuators, fan contactors, and lighting circuits across commercial facilities. Input channels monitor occupancy sensors, thermostat contacts, and safety switches. The DIO264's low 5W power consumption reduces heat generation in densely populated control panels.

Machine Tool & CNC Integration
Connect to limit switches, tool changers, coolant pumps, and spindle brakes on machining centers. Counter functions track tool usage for predictive maintenance scheduling, while interrupt inputs handle emergency stop circuits and guard door interlocks with guaranteed response times.

Technical Parameters & Selection Guide

Selection Criteria: Calculate total I/O requirements including 15-20% spare capacity for future modifications. For applications requiring >40 points, combine multiple DIO264 modules on a common backplane. Verify that output current demands do not exceed 0.5A per channel; use external relays for higher-current loads. Ensure cabinet ambient temperature remains within -25°C to +60°C range, considering heat from adjacent equipment.

Extended Functions

IoT & Remote Monitoring Integration
When paired with Ethernet-enabled controller modules, the DIO264 enables cloud-based monitoring of I/O status and diagnostic data. Configure email or SMS alerts for critical input state changes, supporting predictive maintenance and remote troubleshooting initiatives.

Advanced Diagnostics
Built-in self-test functions continuously monitor channel health, detecting open circuits, short circuits, and out-of-range voltages. Diagnostic LEDs and software-accessible status registers simplify commissioning and fault isolation.

Customization Options
Factory configuration services available for pre-programmed channel assignments, custom labeling, and application-specific firmware. Consult with technical support to discuss specialized requirements for unique industrial environments.

Delivery & Service Assurance

Lead Times:
• Standard configurations: 3-5 business days (stock permitting)
• Custom configurations: 10-15 business days
• Express shipping available for urgent requirements

Warranty Coverage:
12-month comprehensive warranty covering manufacturing defects and component failures under normal operating conditions. Extended warranty programs available for critical applications.

Technical Support:
Direct access to application engineers for system design assistance, troubleshooting guidance, and integration support. Phone, email, and remote desktop support options ensure rapid resolution of technical questions.

Documentation Package:
Each module ships with installation manual, wiring diagrams, configuration software, and sample ladder logic programs. Additional resources including CAD drawings and 3D models available for download.

Frequently Asked Questions

What wiring methods are compatible with the DIO264 terminal blocks?
The module accepts 0.5-2.5mm² (20-14 AWG) wire with ferrules or bare conductors. Spring-cage terminals enable tool-free insertion and provide vibration-resistant connections. Maximum torque specifications and wire strip lengths are detailed in the installation manual.

How many DIO264 modules can operate on a single backplane?
Backplane capacity depends on the specific model, but typical M1 system backplanes support 8-12 I/O modules. Total current draw must not exceed backplane power supply ratings (consult power budget calculations in system documentation).

Does the DIO264 support hot-swap replacement during operation?
Yes, when installed on compatible backplanes with hot-swap capability. The controller automatically detects module insertion/removal and reinitializes communication. However, active I/O signals will be interrupted during the swap process.

What energy efficiency improvements does this module provide?
At 5W maximum consumption, the DIO264 uses 60-70% less power than equivalent relay-based I/O systems. Reduced heat generation lowers cooling requirements, contributing to overall facility energy savings of 3-5% in typical installations.

Can the module interface with legacy 110V AC control circuits?
Direct connection to AC circuits is not supported. Use external AC/DC interface relays or signal converters to adapt 110V AC signals to the module's 5-30V DC input range. Consult application notes for recommended interface relay specifications.

How do I configure interrupt priorities for multiple channels?
Interrupt priority assignment is performed through the controller programming environment. Most platforms support priority levels 1-8, with level 1 being highest priority. Configure safety-critical inputs (emergency stops, guard doors) at highest priority levels.

Take the Next Step

Ready to enhance your automation system with flexible, reliable digital I/O? Contact our technical sales team to discuss your specific application requirements, receive customized configuration recommendations, and obtain project pricing. Request a detailed datasheet or schedule a virtual demonstration to see the DIO264 in action.
