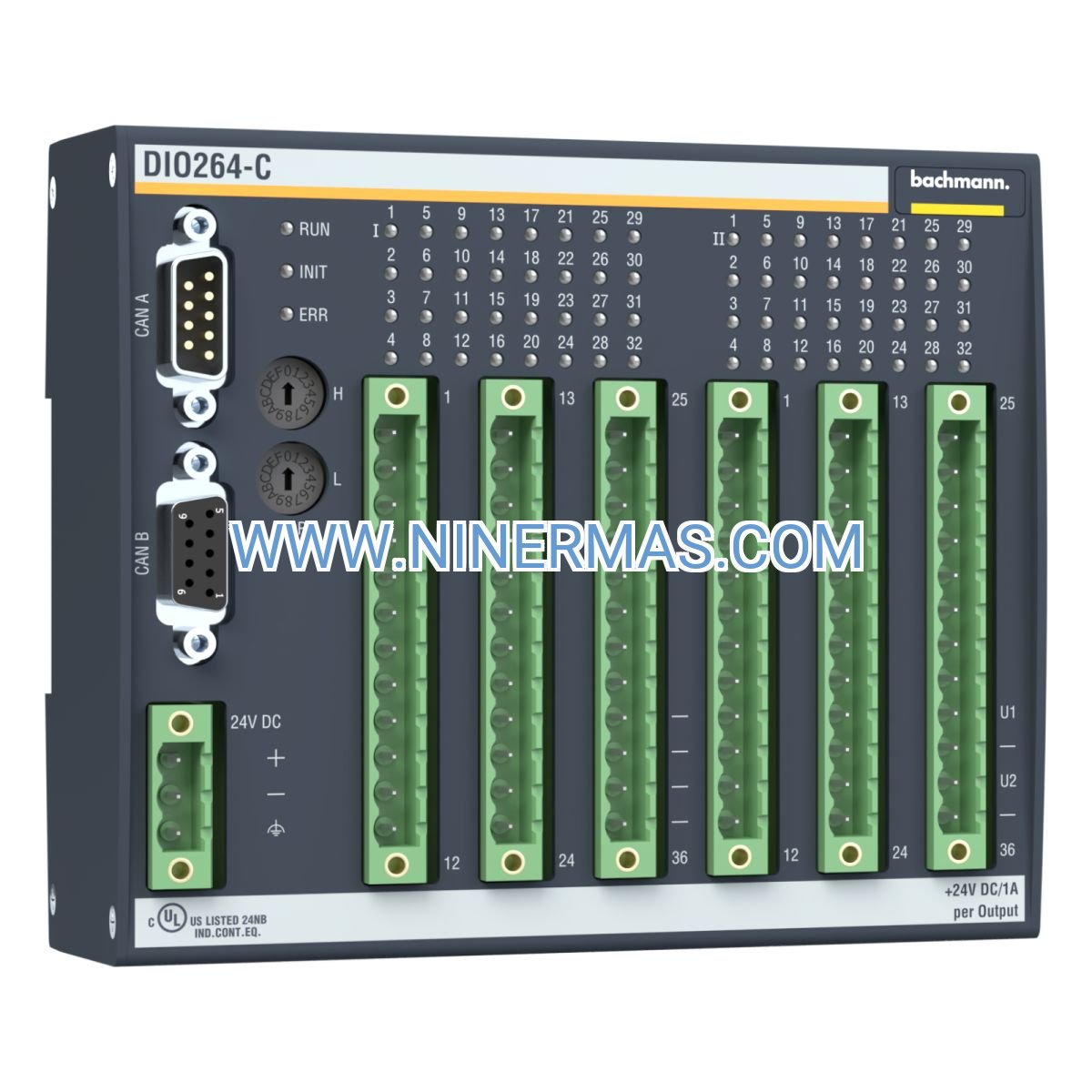

DIO264-C-A60 CANopen Digital I/O Module (Industrial-Grade 64-Channel Solution)

The DIO264-C-A60 represents a breakthrough in distributed I/O architecture, delivering 64 discrete control points through a single CANopen slave interface. Engineered for manufacturers who demand maximum channel density without sacrificing reliability, this module transforms complex wiring challenges into streamlined automation networks.

Industrial facilities face mounting pressure to reduce installation costs while expanding control capabilities. Traditional hardwired I/O systems consume valuable panel space, increase labor hours, and complicate troubleshooting. The DIO264-C-A60 addresses these pain points by consolidating 32 dedicated digital inputs and 32 software-configurable I/O channels into one compact, DIN-rail mountable package.

Automation engineers, system integrators, and plant managers choose this module when projects require flexible I/O expansion, CANopen network compatibility, and proven industrial durability. With galvanic isolation, wide operating temperature range (-25°C to +60°C), and CE/UL certifications, the DIO264-C-A60 delivers consistent performance across manufacturing, process control, and building automation applications.

Core Features & Benefits

→ Dual-Mode Channel Architecture
Combines 32 fixed digital inputs with 32 reconfigurable I/O points, enabling real-time adaptation to changing process requirements. Eliminate costly hardware swaps when production lines evolve—simply reprogram channel assignments through CANopen configuration tools.

→ CANopen Native Integration
Seamless compatibility with industry-standard CANopen networks ensures plug-and-play connectivity to PLCs, HMIs, and distributed control systems. Supports baud rates from 10 kbit/s to 1 Mbit/s with automatic bit-timing detection.

→ Space-Optimized Footprint
Achieves 64 I/O points in 40% less panel space compared to traditional terminal block solutions. Ideal for retrofit projects where cabinet real estate is limited or expensive.

→ Industrial Hardening
24V DC operation with 19-30V input tolerance protects against voltage fluctuations. Galvanic isolation between field channels and communication bus prevents ground loop interference and electrical noise propagation.

✓ Diagnostic Intelligence
Multi-color LED indicators provide instant visual feedback on power status, CANopen communication health, and individual channel states. Remote diagnostics via CANopen registers enable predictive maintenance strategies.

✓ Rapid Deployment Design
Toolless DIN-rail mounting and removable terminal blocks accelerate installation. Pre-configured EDS files and sample code reduce commissioning time by up to 60% compared to custom I/O development.

Typical Application Scenarios

Pharmaceutical Batch Processing
Monitor valve positions, pump statuses, and safety interlocks across multi-stage reactors. The DIO264-C-A60's configurable channels adapt to recipe changes without rewiring, while galvanic isolation ensures signal integrity in electrically noisy cleanroom environments. Typical installations reduce validation documentation by consolidating I/O into fewer network nodes.

Automotive Assembly Lines
Control pneumatic actuators, conveyor sensors, and quality inspection gates in high-speed production cells. CANopen's deterministic communication guarantees sub-millisecond response times for safety-critical interlocks. Pair with robotic controllers and vision systems on a unified network backbone.

Water Treatment Facilities
Interface with level sensors, flow switches, chemical dosing pumps, and alarm panels across distributed pump stations. The module's wide temperature range handles outdoor enclosures, while IP20 rating suits indoor control rooms. Reduce copper wiring costs by 40% through CANopen trunk-and-drop topology.

Packaging Machinery
Manage product detection sensors, reject mechanisms, label applicators, and case erectors on modular packaging lines. Reconfigure I/O assignments when switching between product formats—no electrical panel modifications required. Supports hot-standby redundancy when paired with dual CANopen master controllers.

HVAC Energy Management
Coordinate damper actuators, fan status inputs, occupancy sensors, and setpoint override switches in commercial buildings. CANopen's multi-master capability allows BMS integration alongside dedicated HVAC controllers, enabling advanced demand-response strategies.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DIO264-C-A60 when your application requires more than 48 I/O points per CANopen node, demands field-reconfigurable channels, or operates in temperature extremes beyond standard commercial ratings. For lower channel counts, consider the DIO216 (16-channel) or DIO248 (48-channel) variants. Projects requiring analog signal processing should evaluate the AIO288 mixed-signal module.

Extended Functions

IoT Gateway Integration: Connect to Bachmann's webMI visualization platform for cloud-based monitoring and mobile HMI access. Export I/O states to MQTT brokers or OPC UA servers for enterprise MES/ERP integration.

Advanced Diagnostics: Access per-channel wire-break detection, overcurrent flags, and communication error counters through CANopen object dictionary. Configure email alerts or SMS notifications when diagnostic thresholds are exceeded.

Customization Options: Factory-programmable node IDs and baud rates available for high-volume OEM orders. Custom terminal block labeling and conformal coating for harsh environments offered on request (MOQ applies).

Delivery Cycle & Service Guarantee

Standard Lead Time: 3-5 business days for in-stock units (North America/Europe). Express 24-hour shipping available for critical downtime situations.

Custom Configurations: 10-15 business days for pre-programmed modules or special terminal arrangements. Consult our engineering team for project-specific requirements.

Warranty Coverage: 12-month manufacturer defect warranty from shipment date. Extended 36-month coverage available with annual calibration service contracts.

Technical Support: Lifetime application engineering assistance via phone, email, or remote desktop. Access to CANopen configuration examples, wiring diagrams, and troubleshooting flowcharts through customer portal.

Documentation Package: Each module ships with quick-start guide, EDS file, CANopen object dictionary, and dimensional drawings. Full user manual and safety instructions available for download in 12 languages.

Frequently Asked Questions

How do I configure the 32 flexible I/O channels as inputs versus outputs?
Channel direction is set through CANopen SDO writes to object 0x6200 (input configuration) and 0x6206 (output configuration). Most CANopen configuration tools provide graphical interfaces for this task. Changes take effect immediately without power cycling.

What is the maximum CANopen network cable length for this module?
Cable length depends on baud rate selection: 1000m at 50 kbit/s, 500m at 125 kbit/s, 250m at 250 kbit/s, 100m at 500 kbit/s, or 40m at 1 Mbit/s. Use shielded twisted-pair cable (120Ω impedance) with proper termination resistors at network endpoints.

Can the DIO264-C-A60 operate in redundant CANopen networks?
Yes, when paired with dual-port CANopen master controllers. The module supports seamless failover through CANopen NMT heartbeat monitoring. Consult application note AN-2047 for redundancy configuration examples.

Does this module require external power supplies for field devices?
The module's 24V DC supply powers internal logic only. Field sensors and actuators require separate 24V DC sources rated for total connected load. Use isolated power supplies to maintain galvanic separation between I/O zones.

What diagnostic information is available for remote monitoring?
The module exposes CANopen objects for supply voltage, internal temperature, communication error counters, and per-channel status. Integrate with SCADA systems via CANopen-to-Modbus gateways or native CANopen drivers in platforms like Ignition, WinCC, or FactoryTalk.

How does the DIO264-C-A60 compare to EtherNet/IP or PROFINET I/O modules?
CANopen offers lower hardware costs, simpler wiring (two-wire trunk), and deterministic performance for applications under 1000 I/O points. Choose Ethernet-based protocols when integrating with IT networks, requiring gigabit bandwidth, or exceeding 64 nodes per segment.

Order Your DIO264-C-A60 Today

Streamline your next automation project with proven CANopen I/O technology. Our inventory includes factory-sealed Bachmann modules with full traceability documentation. Contact our sales team for volume pricing, technical pre-sales support, or custom integration services.

Request a quote now: Provide your project specifications, and receive a detailed proposal within 4 business hours. Mention code "CANIO64" for complimentary configuration file templates.
