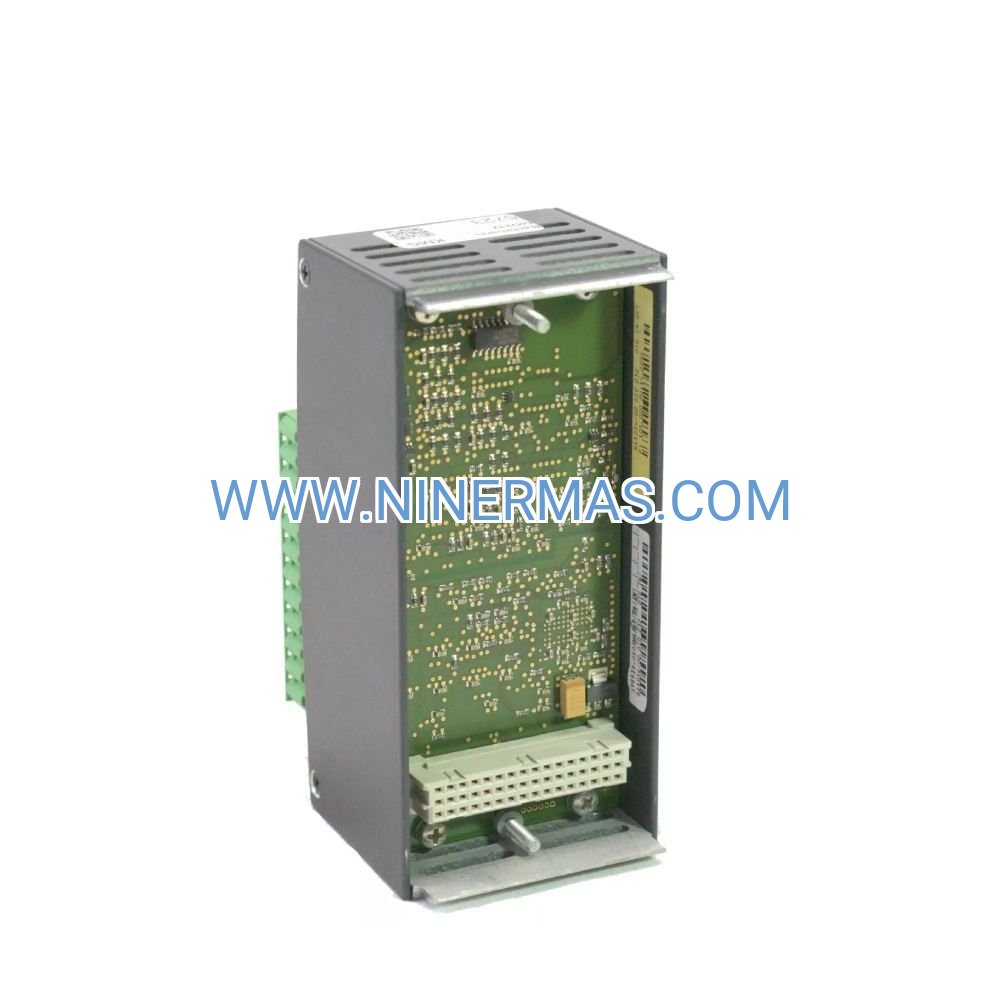

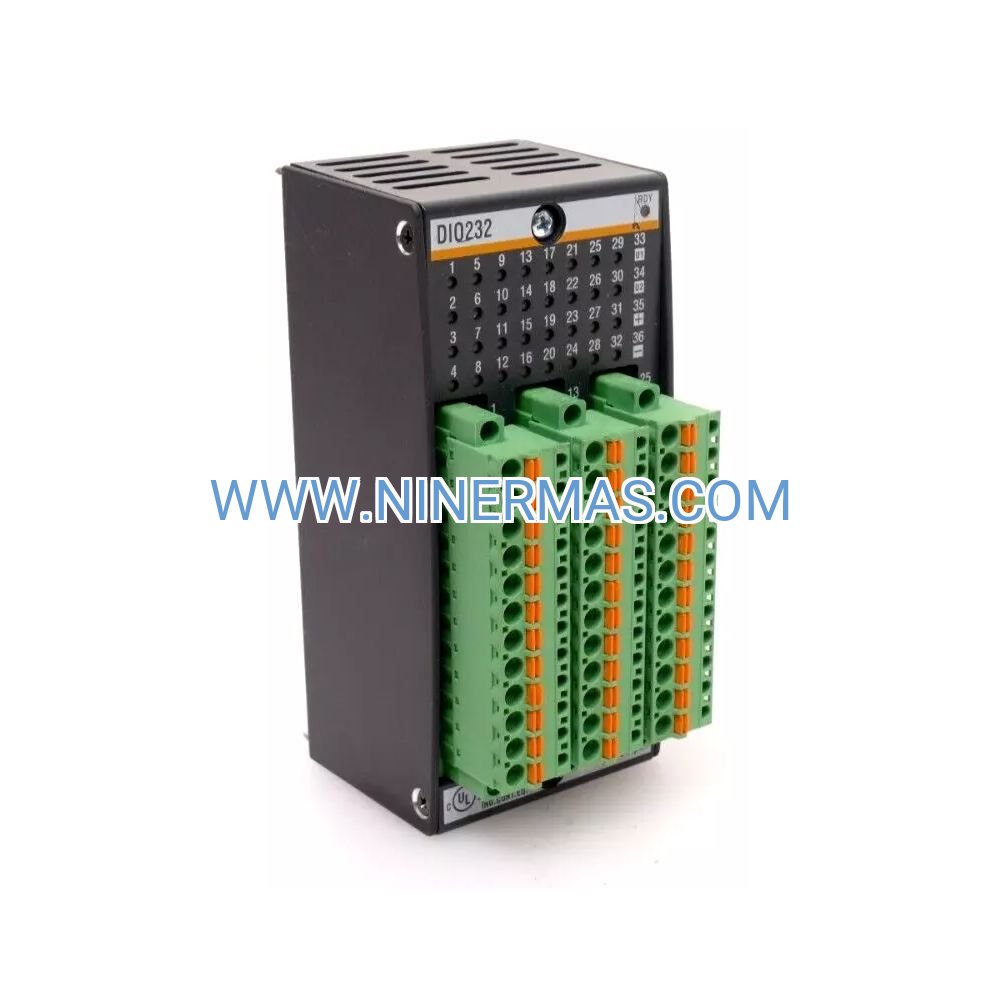

DIO232 Configurable Digital I/O Module (Industrial-Grade Signal Processing)

The DIO232 represents a breakthrough in flexible industrial I/O architecture, delivering 16 to 32 software-configurable digital channels with dedicated interrupt processing capabilities. Engineered for manufacturers and system integrators who demand adaptable control solutions, this module eliminates the need for separate input and output hardware while providing robust signal conditioning, wide voltage tolerance, and comprehensive channel protection. Whether you're retrofitting legacy equipment or designing next-generation automation systems, the DIO232 adapts to your evolving requirements without costly hardware replacements.

Built for harsh industrial environments, the DIO232 operates reliably across -40°C to +70°C temperature ranges while maintaining galvanic isolation and individual channel protection. Its compact DIN-rail design integrates seamlessly with Bachmann M1 control platforms, offering scalable I/O expansion for applications ranging from discrete manufacturing to continuous process control. With sub-millisecond response times and eight dedicated interrupt inputs, the module ensures critical events are captured and processed without delay.

System integrators appreciate the DIO232's plug-and-play compatibility with standard IEC 61131-3 programming environments, comprehensive diagnostic capabilities, and proven reliability in thousands of installations worldwide. From coordinating multi-axis motion systems to managing complex batch processes, the DIO232 delivers the performance, flexibility, and longevity your operations demand.

Key Features & Technical Advantages

→ Software-Configurable Channel Architecture
Each of the 16-32 channels can be programmed as input or output via software, eliminating guesswork during system design and enabling rapid reconfiguration as production requirements evolve. This flexibility reduces spare parts inventory and simplifies maintenance planning.

→ Real-Time Interrupt Processing
Eight dedicated interrupt inputs provide deterministic event detection with priority-based handling, ensuring critical alarms, emergency stops, and high-speed counting applications receive immediate controller attention without polling delays.

→ Wide Input Voltage Acceptance (15-34V DC)
Accommodates voltage fluctuations common in industrial power distribution systems and interfaces directly with sensors operating anywhere within the 15-34V range, reducing the need for external signal conditioning.

✓ Individual Channel Protection
Every output features independent short-circuit and overload protection, preventing single-point failures from cascading through your control system. Diagnostic feedback identifies fault conditions at the channel level for rapid troubleshooting.

✓ Extended Environmental Specifications
Certified for -40°C to +70°C operation with 500V galvanic isolation, the DIO232 thrives in outdoor installations, unheated facilities, and high-EMI environments where standard I/O modules fail.

✓ Compact, Space-Efficient Design
At just 100 x 75 x 58mm, the module maximizes I/O density in crowded control cabinets while maintaining easy access to terminal blocks and status indicators. Standard 35mm DIN-rail mounting ensures compatibility with existing infrastructure.

Industrial Application Scenarios

Discrete Manufacturing & Assembly Lines
Coordinate multi-station assembly processes by interfacing with proximity sensors, photoelectric switches, and limit switches while controlling pneumatic valves, conveyor motors, and stack lights. The DIO232's interrupt inputs capture high-speed part detection events, while configurable outputs manage sequencing logic across work cells. Typical installations reduce wiring complexity by 30-40% compared to fixed I/O architectures, with one module replacing multiple dedicated input and output cards.

Chemical Processing & Batch Control
Monitor tank level switches, pressure transmitters, and flow indicators while managing isolation valves, agitator motors, and dosing pump contactors. The wide input voltage range ensures compatibility with diverse field instrumentation, while galvanic isolation protects sensitive controller electronics from ground loops and electrical noise. Integration with Bachmann controller modules enables recipe-driven batch sequencing with full audit trail capabilities.

Water Treatment & Municipal Infrastructure
Deploy in pump stations, lift stations, and filtration plants where outdoor enclosures and temperature extremes challenge conventional I/O hardware. Interface with float switches, pressure transducers, and chlorine analyzers while controlling VFD run commands, valve actuators, and alarm annunciators. The DIO232's extended temperature rating and robust protection features deliver years of maintenance-free operation in demanding municipal applications.

Material Handling & Warehouse Automation
Manage conveyor networks, sortation systems, and automated storage/retrieval equipment with flexible I/O that adapts to changing facility layouts. Monitor package presence sensors, barcode scanner triggers, and safety interlocks while controlling diverter gates, pusher mechanisms, and status indicators. Interrupt inputs enable high-speed package counting and tracking without missing events during peak throughput periods.

HVAC & Building Management Systems
Implement zone-based climate control, lighting management, and access control with scalable I/O that grows with building occupancy. Interface with occupancy sensors, temperature switches, and door contacts while managing damper actuators, fan contactors, and electromagnetic locks. The DIO232's low power consumption (max 4.5W) and compact footprint make it ideal for distributed control architectures in commercial facilities.

Technical Specifications & Selection Guide

Selection Criteria: Choose the DIO232 when your application requires flexible I/O allocation, interrupt-driven event processing, or the ability to reconfigure channel assignments without hardware changes. For applications with fixed input/output requirements, consider dedicated input or output modules. When planning system capacity, allocate 20-30% spare channels to accommodate future expansion without backplane modifications.

Advanced Integration & IoT Capabilities

Seamless M1 Platform Integration: The DIO232 mounts directly onto Bachmann BS210 backplanes and communicates via the high-speed M1 internal bus, eliminating external wiring between modules. System configuration, diagnostics, and real-time I/O mapping are managed through standard IEC 61131-3 development environments including CODESYS, providing familiar programming interfaces for control engineers.

Remote Monitoring & Diagnostics: When paired with Bachmann controller modules featuring Ethernet connectivity, the DIO232's channel status, fault conditions, and operational statistics become accessible via OPC UA, Modbus TCP, or proprietary protocols. This enables predictive maintenance strategies, remote troubleshooting, and integration with enterprise MES/SCADA systems.

Customization Options: Field-replaceable terminal blocks, custom firmware configurations for specialized timing requirements, and application-specific labeling are available for OEM integrators and high-volume installations. Contact our engineering team to discuss project-specific requirements and volume pricing.

Delivery, Warranty & Technical Support

Standard Delivery: 3-5 business days for stock items; 2-3 weeks for custom configurations or volume orders requiring factory programming.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship under normal industrial operating conditions. Extended warranty programs available for critical infrastructure applications.

Technical Support: Our application engineering team provides pre-sale system design consultation, configuration assistance, and post-installation troubleshooting support via phone, email, and remote desktop sessions. On-site commissioning services available for complex installations.

Documentation Package: Each module ships with installation manual, wiring diagrams, IEC 61131-3 function block libraries, and sample application code. CAD drawings, 3D STEP models, and EPLAN macros available for download from our technical resource center.

Frequently Asked Questions

What is the maximum recommended cable length for digital inputs on the DIO232?
For reliable operation, limit input cable runs to 100 meters when using shielded twisted-pair cable with proper grounding. Longer distances may require signal repeaters or consideration of analog input modules with 4-20mA transmitters.

Can the DIO232 interface with both PNP and NPN sensor types?
The DIO232 is optimized for PNP (sourcing) sensor configurations, which are standard in European and Asian industrial equipment. For NPN (sinking) sensors common in North American applications, consult our application engineers for wiring recommendations or consider complementary input modules designed for NPN compatibility.

How are interrupt priorities assigned and managed?
Interrupt priorities are configured through the controller programming environment, allowing you to define which events take precedence during simultaneous occurrences. The system supports up to 8 priority levels with deterministic response times documented in the technical manual.

Is the module suitable for outdoor installations in extreme climates?
Yes, when installed in NEMA 4X or IP65-rated enclosures with appropriate thermal management. The -40°C to +70°C operating range covers most global climates, though direct sunlight exposure should be avoided through proper enclosure placement and ventilation design.

What diagnostic information is available for troubleshooting?
The DIO232 provides channel-level diagnostics including input state, output state, short-circuit detection, overload conditions, and communication health. These diagnostics are accessible through the controller interface and can trigger alarms or automated responses based on your programming logic.

Can multiple DIO232 modules be installed on the same backplane?
Absolutely. The M1 architecture supports multiple I/O modules on a single backplane, with each module independently addressable. System capacity is limited only by backplane slot count and total power budget, allowing scalable expansion as your application grows.

Ready to Optimize Your Control System?

Contact our technical sales team to discuss your specific application requirements, receive customized system recommendations, and obtain project quotations. We're here to ensure the DIO232 delivers maximum value for your automation investment.
