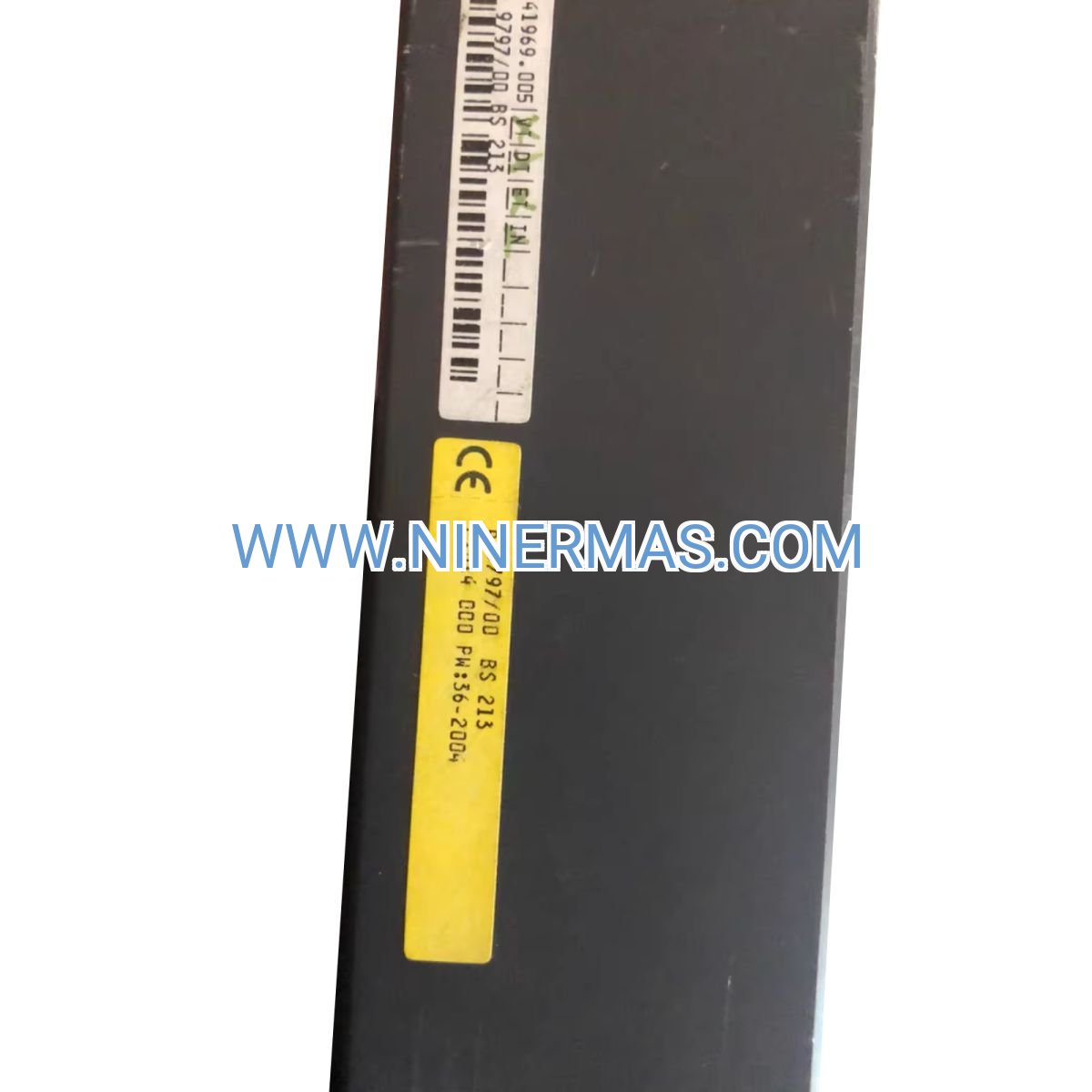

BS213 Industrial-Grade Backplane (13-Slot M200 Control System Hub)

The Bachmann BS213 backplane serves as the structural and electrical foundation for M200 distributed control systems, providing 13 module slots for power supplies, CPUs, and I/O modules. Engineered for harsh industrial environments, this backplane combines vibration-resistant module retention with seamless expandability, enabling reliable automation infrastructure in manufacturing plants, marine vessels, and process control facilities. With DIN rail mounting and wide temperature tolerance, the BS213 delivers the mechanical stability and electrical integrity required for mission-critical control applications.

Designed for system integrators and automation engineers managing complex control architectures, the BS213 eliminates single-point-of-failure risks through robust connector design and modular scalability. Whether you're building a new M200 system or expanding existing capacity, this backplane provides the proven platform for long-term operational continuity. Its compact 715mm width and vibration-proof locking mechanism ensure secure module installation even in high-vibration environments such as offshore platforms and heavy industrial machinery.

Key advantages include tool-free module installation, hot-swappable capability for maintenance without downtime, and certified compliance across CE, cULus, and seven marine classification societies. The BS213 represents Bachmann's commitment to industrial-grade reliability, offering the foundation for control systems that demand 24/7 uptime and decades of service life.

Core Features & Benefits

✓ 13-Slot Modular Capacity
Accommodates up to 13 M200 series modules (PSU, CPU, digital/analog I/O) in a single backplane, reducing cabinet footprint while maximizing I/O density. Business value: Lower installation costs and simplified wiring compared to distributed I/O architectures.

✓ Vibration-Proof Module Retention
Spring-loaded locking mechanism secures modules against shock and vibration per IEC 60068-2-6 standards, preventing intermittent connections in mobile or high-vibration applications. Business value: Eliminates unplanned downtime from loose module connections in demanding environments.

✓ Seamless Expansion Architecture
K-BS240 expansion cables enable daisy-chaining multiple backplanes for systems requiring 26, 39, or more module slots without compromising signal integrity. Business value: Future-proof scalability without system redesign or controller replacement.

→ DIN Rail Mounting (EN 60715)
Standard 35mm DIN rail compatibility allows installation in any industrial control cabinet without custom mounting hardware. Business value: Faster commissioning and compatibility with existing infrastructure.

→ Extended Temperature Range
Operates reliably from -30°C to +60°C (horizontal mounting) without derating, supporting applications in unheated facilities, outdoor enclosures, and extreme climates. Business value: Eliminates need for climate control in remote installations, reducing energy costs.

→ Multi-Certification Compliance
CE, UKCA, cULus, plus ABS/BV/DNV/KR/LR/NK/RINA marine approvals ensure global regulatory acceptance. Business value: Single part number for worldwide projects, simplifying procurement and inventory management.

Typical Application Scenarios

Manufacturing Automation & Process Control
In pharmaceutical batch processing, food & beverage production lines, and chemical plants, the BS213 provides the backbone for distributed control systems managing hundreds of I/O points. The vibration-proof design withstands continuous operation near motors, pumps, and conveyors, while the -30°C to +60°C range supports installation in non-climate-controlled production areas. System integrators achieve 40% faster commissioning through standardized DIN rail mounting and pre-wired module installation.

Marine & Offshore Platforms
Offshore oil rigs, cargo vessels, and cruise ships demand control systems that survive salt spray, vibration, and temperature extremes. The BS213's marine certifications (ABS, DNV, LR, etc.) and corrosion-resistant construction meet classification society requirements, while the vibration-proof module locking prevents failures during rough seas. Operators reduce maintenance costs by 60% compared to legacy relay-based systems through hot-swappable module replacement.

Building Automation & HVAC
Commercial buildings, data centers, and hospitals use M200 systems on BS213 backplanes to control HVAC, lighting, and energy management. The compact 715mm width fits standard 19-inch racks, while the 13-slot capacity handles mixed I/O requirements (analog temperature sensors, digital damper controls, Modbus gateways) in a single chassis. Facility managers achieve 25% energy savings through precise zone control and real-time monitoring.

Water & Wastewater Treatment
Municipal water treatment plants and industrial wastewater facilities deploy BS213-based systems for pump control, chemical dosing, and SCADA integration. The extended temperature range supports outdoor installations in pump houses and lift stations, while the expandable architecture scales from small lift stations (1 backplane) to regional treatment plants (4+ backplanes). Operators reduce chemical costs by 15% through precise flow-proportional dosing control.

Renewable Energy & Power Distribution
Solar farms, wind turbines, and microgrid controllers rely on M200 systems for inverter control, battery management, and grid synchronization. The BS213's wide temperature tolerance (-30°C to +60°C) supports installation in unheated equipment shelters, while the vibration-proof design withstands wind-induced cabinet resonance. Energy operators achieve 99.7% uptime through redundant controller configurations on dual backplanes.

Technical Parameters & Selection Guide

Selection Criteria:

• I/O Count: Choose BS213 (13 slots) for systems requiring 10-13 modules. For smaller systems, consider BS206 (6 slots). For larger systems, use K-BS240 expansion cables to link multiple BS213 backplanes.
• Environment: Standard BS213 suits most industrial environments. For marine applications, verify module certifications match backplane approvals (ABS, DNV, etc.).
• Mounting Orientation: Horizontal mounting supports full -30°C to +60°C range. Vertical mounting reduces upper limit to +55°C—critical for high-ambient installations.
• Expansion Planning: Reserve 2-3 empty slots for future I/O additions. Each K-BS240 cable adds 13 slots; plan cable routing during initial installation.

Extended Functions

IoT Integration & Remote Monitoring
When paired with Bachmann M200 CPUs featuring Ethernet/IP or Modbus TCP, the BS213 enables cloud-based SCADA integration for remote diagnostics, predictive maintenance, and OEE tracking. Third-party HMI systems (Ignition, Wonderware, etc.) connect via standard industrial protocols without proprietary gateways.

Redundant Controller Configurations
Deploy dual BS213 backplanes with redundant CPUs and I/O modules for high-availability applications (pharmaceutical clean rooms, data center cooling, etc.). Hot-standby failover occurs in <50ms, maintaining process continuity during controller faults.

Custom I/O Configurations
Mix analog input modules (4-20mA, RTD, thermocouple), digital I/O (24VDC, relay outputs), and specialty modules (HART, Profibus, DeviceNet) in any slot arrangement. No fixed slot assignments simplify system design and troubleshooting.

Harsh Environment Variants
For extreme conditions (corrosive atmospheres, explosive zones), Bachmann offers conformal-coated modules and ATEX/IECEx certified components compatible with BS213 backplanes. Consult factory for application-specific configurations.

Delivery & Service Assurance

Lead Time:
→ Standard stock items: 3-5 business days (Asia-Pacific region)
→ Custom configurations: 2-3 weeks for factory assembly and testing
→ Expedited shipping available for critical projects

Warranty & Support:
→ 24-month manufacturer warranty covering materials and workmanship
→ Technical support via email/phone (English, Mandarin) during business hours
→ On-site commissioning assistance available for large projects (10+ backplanes)

Documentation Package:
→ Installation manual with DIN rail mounting instructions
→ Module compatibility matrix and slot assignment guidelines
→ CAD drawings (DWG, STEP) for panel layout design
→ Compliance certificates (CE, cULus, marine approvals)

After-Sales Service:
→ Spare parts availability guaranteed for 10+ years
→ Firmware updates and security patches for compatible CPU modules
→ Application engineering support for system design optimization

Frequently Asked Questions

Q: Can I mix different M200 module types on a single BS213 backplane?
A: Yes, the BS213 supports any combination of M200 series modules (power supplies, CPUs, digital I/O, analog I/O, communication modules) in any slot order. The only requirement is that slot 1 must contain a power supply module (PSU200 or PSU201) to distribute backplane power.

Q: What is the maximum system capacity when using expansion cables?
A: Each K-BS240 expansion cable connects two BS213 backplanes, supporting up to 4 backplanes (52 modules total) in a single M200 system. For larger systems, use multiple CPU modules with distributed I/O architectures.

Q: Does the BS213 require external cooling or ventilation?
A: No active cooling is required. The backplane operates passively within its -30°C to +60°C temperature range. Ensure adequate cabinet ventilation to dissipate heat from high-power modules (relay outputs, power supplies). Maintain 50mm clearance above/below for convection airflow.

Q: How do I replace a faulty module without shutting down the system?
A: M200 modules support hot-swap replacement when using redundant I/O configurations. For non-redundant systems, power down the backplane, remove the faulty module by releasing the top/bottom locking tabs, insert the replacement module, and restore power. Configuration data persists in the CPU module.

Q: Is the BS213 compatible with legacy Bachmann M1 or MX200 systems?
A: No, the BS213 is designed exclusively for M200 series modules. M1 and MX200 modules use different connector pinouts and are not mechanically or electrically compatible. Contact our team for migration strategies from legacy systems.

Q: What certifications are required for marine installations?
A: The BS213 holds approvals from ABS, BV, DNV, KR, LR, NK, and RINA classification societies. Ensure all installed modules (CPU, I/O, PSU) also carry matching marine certifications. Provide vessel classification society and notation during ordering for compliance verification.

Get Your BS213 Backplane Today

Ready to build a reliable M200 control system? Contact our technical sales team for application-specific recommendations, volume pricing, and integration support. We provide pre-configured backplane assemblies, custom cable lengths, and turnkey panel solutions to accelerate your project timeline.

Request a quote: Share your I/O requirements, environmental conditions, and project timeline for a tailored proposal within 24 hours.
