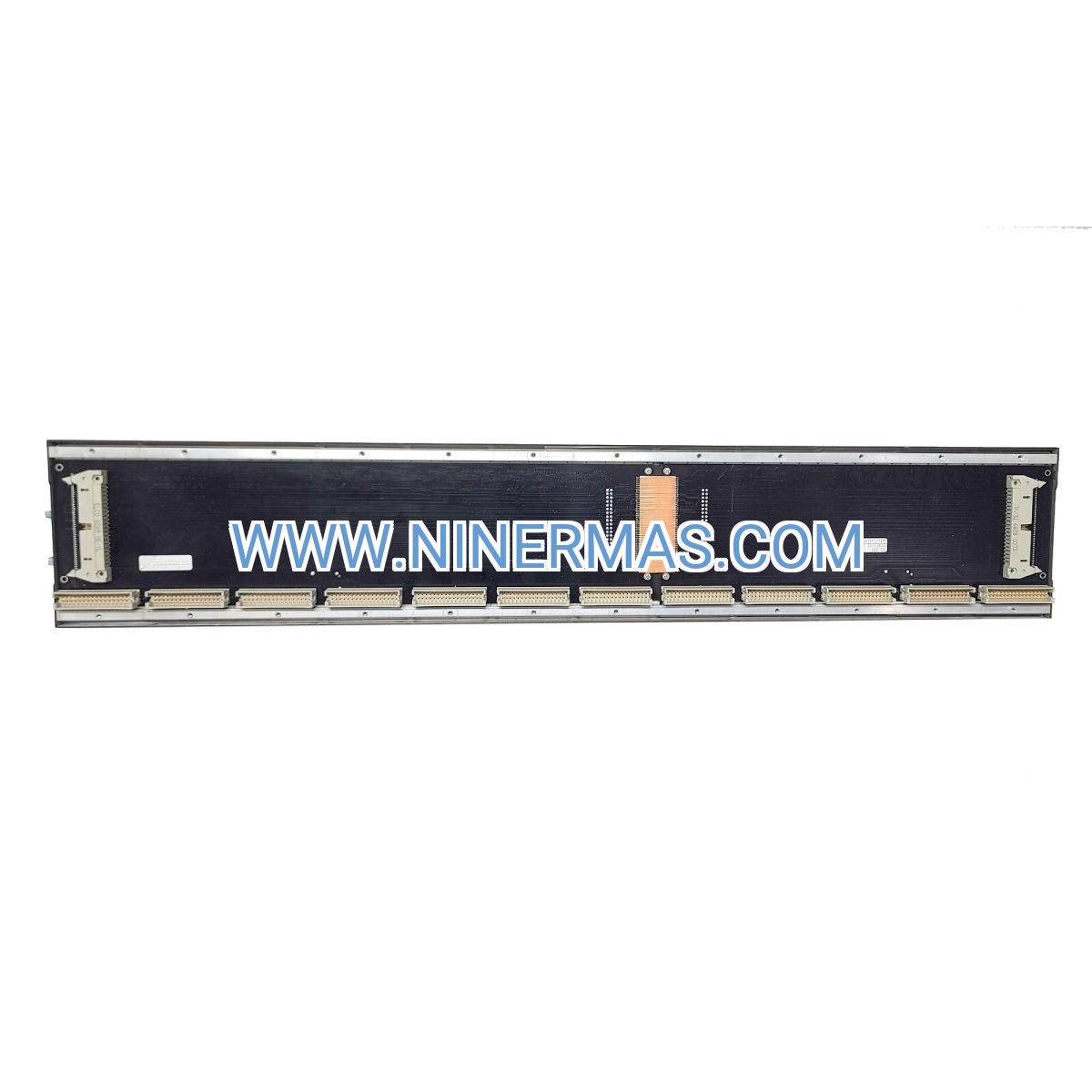

BS212 Modular Backplane System (Industrial-Grade 12-Position Module Carrier)

The BS212 backplane delivers a robust foundation for scalable M1 automation architectures, enabling seamless integration of up to twelve Bachmann modules within a single unified chassis. Engineered for industrial environments demanding high reliability and flexible configuration, this backplane serves as the central communication and power distribution hub for distributed control systems, safety instrumented systems, and motion control applications across manufacturing, process automation, and infrastructure sectors.

Built to withstand harsh operating conditions from -25°C to +60°C, the BS212 ensures uninterrupted system performance in challenging thermal environments while maintaining signal integrity across its high-speed parallel bus architecture. Whether you're designing a compact machine controller or a complex multi-zone process automation system, this backplane provides the mechanical stability and electrical performance required for mission-critical industrial operations.

With integrated overcurrent protection, CE/UL/cUL certification, and proven MTBF exceeding 500,000 hours, the BS212 represents a future-proof investment in automation infrastructure that adapts to evolving production requirements through modular expansion and standardized M1 platform compatibility.

Core Capabilities & Technical Advantages

→ 12-Position Modular Architecture
Accommodates any combination of M1 controllers, I/O modules, communication interfaces, and specialty function cards with hot-swap capability for non-critical modules, enabling system reconfiguration without complete shutdown.

→ High-Speed Parallel Bus Communication
Propriety backplane bus delivers deterministic data exchange between modules with sub-millisecond cycle times, ensuring real-time control performance for time-sensitive automation tasks and synchronized multi-axis motion applications.

→ Integrated Power Distribution Network
Built-in power rails with overcurrent protection circuitry distribute regulated DC power to all installed modules, supporting total system loads up to 12A while protecting against short-circuit conditions and voltage transients.

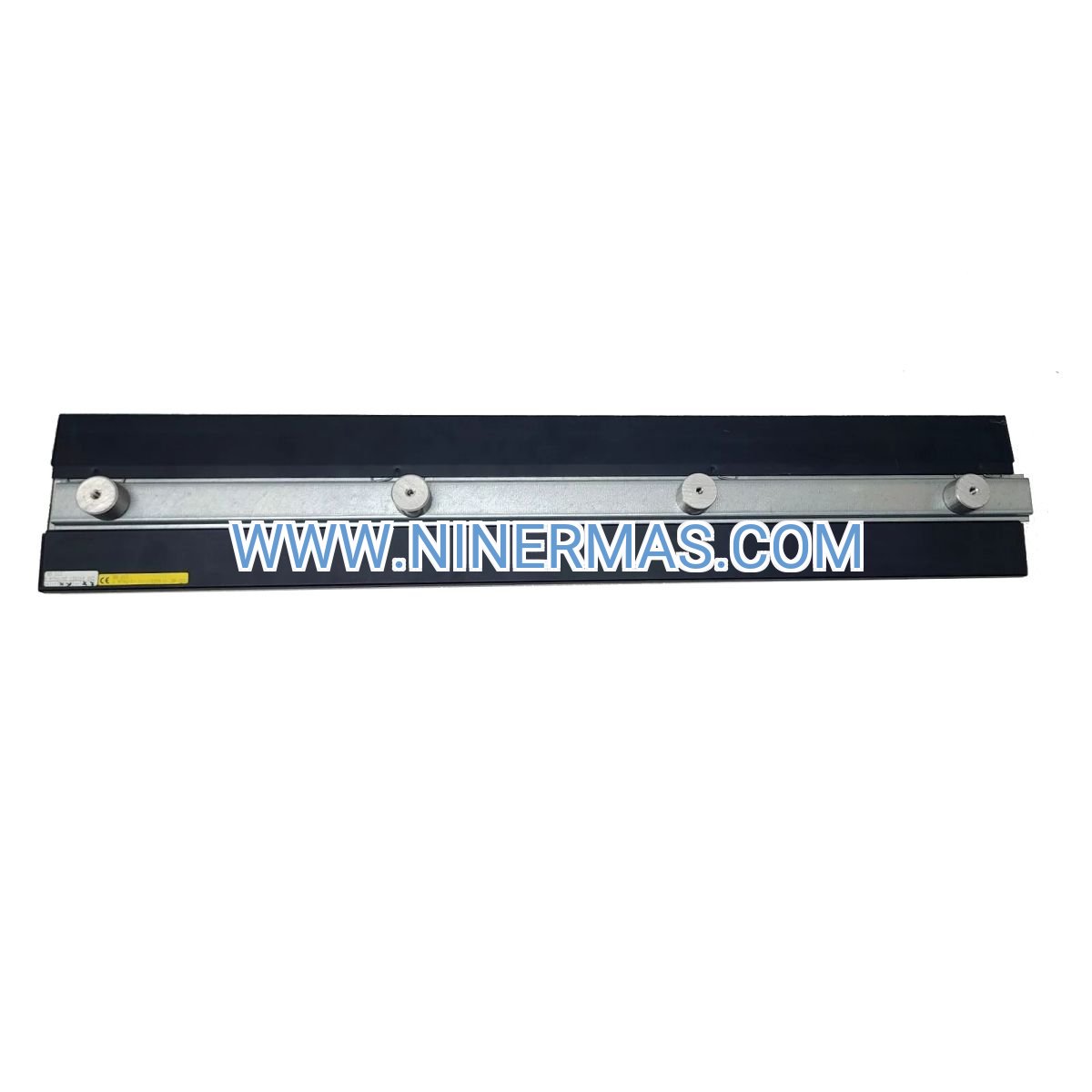

→ Dual Mounting Configuration
Factory-supplied DIN rail clips enable standard 35mm rail installation, while optional panel-mount hardware (sold separately) supports direct enclosure mounting for custom cabinet designs and space-constrained applications.

→ Extended Temperature Operation
Qualified for continuous operation from -25°C to +60°C ambient temperature, making it suitable for outdoor enclosures, unheated facilities, and thermally challenging industrial environments without derating or forced cooling.

→ Industrial-Grade Construction
IP20-rated enclosure with robust connector design resists vibration, shock, and electromagnetic interference common in factory automation environments, backed by comprehensive CE/UL/cUL/RoHS compliance for global deployment.

Application Scenarios & Industry Solutions

✓ Distributed Process Control Systems
Challenge: Chemical processing plants require centralized monitoring of temperature, pressure, and flow across multiple reaction vessels with fail-safe shutdown capability.
Solution: Deploy BS212 with controller module, analog I/O cards, and safety-rated digital outputs to create SIL-capable control loops with redundant safety logic and SCADA integration via Ethernet communication modules.
Value: Reduces wiring complexity by 40%, enables centralized diagnostics, and meets IEC 61508 safety requirements for critical process control.

✓ Packaging Machine Automation
Challenge: High-speed packaging lines demand synchronized servo control, product detection, and quality inspection with minimal downtime for format changeovers.
Solution: Configure BS212 with motion controller modules, high-speed digital I/O for sensor integration, and PC card storage for recipe management across multiple product formats.
Value: Achieves format changeover in under 5 minutes, supports up to 200 packages/minute throughput, and provides comprehensive production data logging.

✓ Building Automation & HVAC Control
Challenge: Commercial facilities need integrated control of lighting, climate systems, and access control with energy optimization and remote monitoring.
Solution: Utilize BS212 as central controller platform with mixed analog/digital I/O for sensor integration, communication modules for BACnet/Modbus connectivity, and web-based HMI access.
Value: Delivers 25-35% energy savings through optimized scheduling, enables predictive maintenance via continuous monitoring, and scales from single-building to campus-wide deployments.

✓ Water Treatment & Pumping Stations
Challenge: Municipal water systems require reliable control of pumps, valves, and chemical dosing with remote telemetry and alarm notification.
Solution: Implement BS212-based control system with analog inputs for level/flow measurement, relay outputs for pump control, and cellular communication for remote SCADA access.
Value: Reduces operator site visits by 60%, prevents overflow conditions through predictive level control, and maintains 99.9% uptime in unmanned installations.

✓ Material Handling Conveyors
Challenge: Distribution centers need coordinated control of multiple conveyor zones with barcode tracking, diverter control, and emergency stop integration.
Solution: Deploy BS212 with high-speed digital I/O modules for sensor/actuator interface, safety input modules for e-stop circuits, and Ethernet modules for warehouse management system integration.
Value: Handles 3,000+ parcels/hour throughput, provides real-time tracking accuracy >99.5%, and meets Category 3 safety requirements for personnel protection.

Technical Specifications & Selection Guide

Selection Criteria: Choose the BS212 when your application requires 8-12 module positions with standard industrial temperature range. For smaller systems (4-8 modules), consider compact backplane variants. For extreme cold environments below -25°C, specify cold-climate rated backplanes. Systems exceeding 12 modules should implement distributed I/O architecture with network-based expansion rather than attempting to chain multiple backplanes.

Advanced Integration & Expansion Options

Controller Module Compatibility: The BS212 supports all M1 controller variants including entry-level MC206 units for basic logic control, mid-range MPC240 controllers with 64MB memory for complex automation tasks, and high-performance redundant controller pairs for safety-critical applications requiring SIL 2/3 certification.

I/O Module Diversity: Mix and match digital input/output modules (DIO216, DIO264-C, SDI208, SDO204), analog I/O cards (AI208/SI, AIO288/3), specialty modules (ACR222/2 motion controllers), and communication interfaces (Ethernet, Profibus, Modbus) within the same backplane to create application-specific control solutions.

Data Logging & Recipe Management: Install PCC201 32MB PC Card modules in compatible controllers to enable local storage of production recipes, alarm histories, trend data, and firmware backups—essential for FDA-regulated industries and quality management systems requiring full traceability.

Network Integration: Combine BS212-based local control with Ethernet communication modules to integrate with plant-wide SCADA systems, cloud-based analytics platforms, and mobile HMI applications for remote monitoring and predictive maintenance capabilities.

Delivery Timeline & Support Services

Standard Lead Time: In-stock BS212 backplanes ship within 3-5 business days via express courier with full tracking. Custom configurations with pre-installed modules require 7-10 business days for assembly and testing.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship under normal operating conditions. Extended warranty programs available for critical infrastructure applications.

Technical Support: Pre-sales engineering assistance for system design and module selection, installation guidance including DIN rail mounting procedures and power supply sizing, troubleshooting support via phone/email, and rapid replacement service to minimize production downtime.

Documentation Package: Each BS212 ships with installation manual, dimensional drawings, electrical specifications, module compatibility matrix, and safety certifications. CAD files and 3D models available for download to support enclosure design and panel layout planning.

Frequently Asked Questions

Q: What total power budget should I allocate for a fully populated BS212 backplane?
A: Calculate individual module consumption from datasheets—typical digital I/O modules draw 150-300mA, analog modules 200-400mA, and controller modules 800-1200mA. The BS212 bus supports 12A total, but practical systems rarely exceed 8-9A. Always include 20% margin when sizing your power supply.

Q: Can I install modules while the backplane is powered?
A: Hot-swap capability depends on module type. Standard I/O modules generally support hot insertion, but controller modules and certain specialty cards require power-down for safe installation. Consult individual module documentation for hot-swap ratings.

Q: How do I expand beyond 12 module positions for larger systems?
A: Multiple backplanes cannot be directly connected. For systems requiring >12 modules, implement distributed I/O architecture using communication modules and remote I/O stations connected via Ethernet, Profibus, or Modbus networks. This approach also improves system resilience through geographic distribution.

Q: Is the BS212 suitable for outdoor installation in weatherproof enclosures?
A: Yes, when installed in NEMA 4X or IP65-rated enclosures with appropriate environmental sealing. The backplane's -25°C to +60°C operating range covers most outdoor conditions, but ensure enclosure provides adequate thermal management to prevent exceeding temperature limits during summer months.

Q: What diagnostic capabilities does the BS212 backplane provide?
A: The backplane itself is passive infrastructure without built-in diagnostics. System-level diagnostics are provided by the controller module, which monitors bus communication, module presence detection, power supply status, and individual module health through the M1 platform's integrated diagnostic framework.

Q: Are legacy M1 modules from 10+ years ago compatible with current BS212 backplanes?
A: The M1 platform maintains excellent backward compatibility. Older modules will physically install and communicate, but verify firmware compatibility between controller and I/O modules to ensure proper operation. Some advanced features in newer controllers may not be available when using legacy I/O modules.

Ready to Build Your M1 Automation System?

Contact our automation specialists for personalized system configuration assistance, module compatibility verification, and technical consultation. We'll help you design the optimal BS212-based solution for your specific application requirements, ensuring proper module selection, power budget planning, and compliance with industry standards.

Request a detailed quotation including backplane, recommended modules, power supply, and mounting hardware—or order your BS212 backplane today to begin building your next-generation industrial control system.
