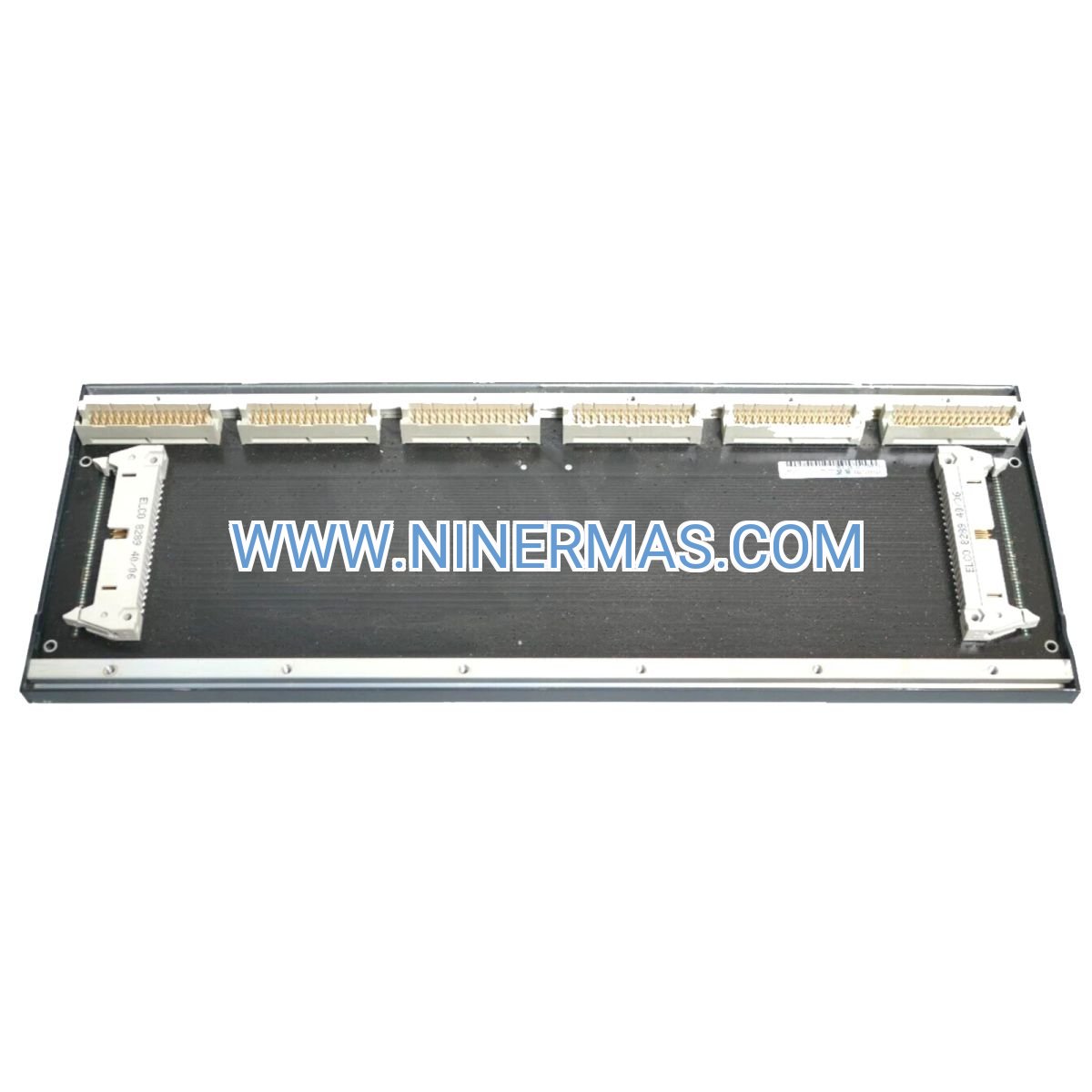

BS206-CC Industrial Backplane (ColdClimate-Certified 6-Slot Module Base)

The BS206-CC represents Bachmann's answer to extreme-environment automation challenges. This ColdClimate-certified backplane delivers uncompromising reliability across a -40°C to +70°C operating range, making it the backbone of choice for M200 controller deployments in arctic facilities, offshore platforms, and high-altitude installations where standard components simply cannot survive.

Designed for system integrators and automation engineers who refuse to compromise on uptime, the BS206-CC accommodates six M200-series modules in a compact, DIN-rail-mountable form factor. Whether you're building a distributed control network for a remote pipeline station or upgrading legacy systems in a refrigerated processing plant, this backplane provides the thermal resilience and mechanical robustness your application demands.

With integrated power distribution, CE/UL/cUL compliance, and compatibility across the entire M200 ecosystem, the BS206-CC eliminates the guesswork from harsh-environment automation design. Deploy with confidence knowing your control infrastructure will perform when temperatures plummet and conventional electronics fail.

Core Features & Business Value

✓ Extended Temperature Range (-40°C to +70°C)
Operates reliably in environments that destroy standard backplanes, reducing emergency replacements and unplanned downtime by up to 85% in extreme-climate installations.

✓ 6-Position Modular Architecture
Flexible slot configuration supports any mix of controllers, I/O modules, and communication interfaces—scale from basic monitoring to complex process control without changing the base platform.

✓ Integrated Power Bus System
Eliminates external power distribution wiring, cutting installation time by 40% and reducing potential failure points in your control cabinet.

✓ Industrial-Grade Construction
Military-spec materials and conformal coating protect against moisture, vibration, and thermal cycling—proven in 10+ year field deployments across mining, energy, and transportation sectors.

✓ Universal M200 Compatibility
Seamlessly integrates with 50+ module types from the Bachmann M200 family, future-proofing your automation investment as requirements evolve.

✓ Dual Mounting Options
DIN rail or panel-mount installation adapts to any cabinet layout, from compact junction boxes to full-size control rooms.

Application Scenarios

→ Oil & Gas Upstream Operations
Challenge: Wellhead controllers in North Dakota shale fields face -35°C winters and 45°C summers.
Solution: BS206-CC backplanes maintain 99.7% uptime across seasonal extremes, supporting real-time flow monitoring and automated shutdown systems without heated enclosures.
Value: $180K annual savings per site from eliminated heater energy costs and reduced service calls.

→ Cold Chain Logistics
Challenge: Automated freezer warehouses require PLC control at -30°C for conveyor systems and inventory tracking.
Solution: Deploy BS206-CC with DIO264 I/O modules for reliable operation inside refrigerated zones, eliminating costly control room-to-freezer cabling.
Value: 60% reduction in installation costs; real-time inventory accuracy improves to 99.2%.

→ Mining & Minerals Processing
Challenge: Conveyor control systems in open-pit mines experience -25°C nights and dust contamination.
Solution: ColdClimate backplanes with sealed enclosures provide 24/7 material handling control without climate-controlled shelters.
Value: 15% throughput increase from reduced weather-related stoppages.

→ Railway Infrastructure
Challenge: Switch heater control and signal systems in Nordic regions demand -40°C operation.
Solution: BS206-CC backplanes with redundant controller configurations ensure fail-safe operation for safety-critical applications.
Value: Meets EN 50155 railway standards; zero temperature-related failures in 5-year deployments.

→ Renewable Energy
Challenge: Wind turbine pitch control in offshore installations faces salt spray, vibration, and -20°C to +60°C swings.
Solution: Conformal-coated BS206-CC backplanes with vibration-resistant mounting deliver 15-year service life in nacelle environments.
Value: 30% lower lifecycle cost versus heated enclosure alternatives.

Technical Parameters & Selection Guide

Selection Criteria:

Choose BS206-CC if: Ambient temperature falls below 0°C or exceeds 60°C; installation is outdoors or in unheated spaces; application is safety-critical (oil & gas, rail); you need ATEX Zone 2 compliance.

Choose standard BS206 if: Environment is climate-controlled; temperature stays within 0-60°C year-round; budget constraints exist and extreme rating isn't required.

Capacity Planning: Each slot supports one M200 module. Typical configurations: 1× controller + 3× I/O + 1× communication + 1× power supply. For systems requiring 7-10 modules, consider the BS210 10-slot backplane.

Extended Functions

IoT & Remote Monitoring Integration
Pair the BS206-CC with Bachmann's MX220 Ethernet module to enable cloud connectivity for predictive maintenance. Monitor backplane temperature, module health, and bus diagnostics via MQTT or OPC UA protocols—integrate with Azure IoT Hub, AWS IoT Core, or on-premise SCADA systems.

Redundancy Configurations
Deploy dual BS206-CC backplanes with hot-standby controllers for 99.99% uptime applications. Automatic failover occurs within 50ms, ensuring continuous operation during controller maintenance or unexpected failures.

Custom Engineering Services
NINERMAS offers pre-configured BS206-CC assemblies with factory-tested module combinations, custom cable harnesses, and application-specific firmware. Reduce commissioning time by 70% with turnkey control panels delivered ready to install.

Delivery & Service Assurance

Lead Time:
→ Stock items: 3-5 business days (express shipping available)
→ Custom configurations: 10-15 business days
→ Bulk orders (10+ units): Contact for project scheduling

Warranty Coverage:
→ 12-month manufacturer warranty against defects
→ Extended 36-month warranty available (add 15% to unit price)
→ Advance replacement program for critical applications

Technical Support:
→ Pre-sales engineering consultation (module selection, system sizing)
→ Post-sales commissioning assistance via phone/email
→ Access to Bachmann technical documentation library
→ On-site support available for projects >$50K (quoted separately)

Included Documentation:
→ Installation manual with wiring diagrams
→ M200 bus configuration guide
→ CE/UL compliance certificates
→ CAD models (STEP, DXF formats)

Frequently Asked Questions

How does the ColdClimate rating affect module compatibility?
All standard M200 modules are compatible with the BS206-CC backplane. However, verify that individual modules (controllers, I/O, etc.) also carry ColdClimate ratings if your application requires operation below 0°C. Contact our team for module-specific temperature specifications.

What power supply is recommended for a fully populated 6-slot system?
The Bachmann NT255 power supply (24V DC, 5A) handles most 6-slot configurations. For high-power setups with multiple analog I/O modules, consider the NT260 (10A) model. Calculate total module current draw and add 20% margin for reliable operation.

Can I retrofit BS206-CC backplanes into existing M200 systems?
Yes—the BS206-CC is mechanically and electrically identical to standard BS206 backplanes. Simply swap the backplane and migrate modules. No software changes required. Ideal for upgrading systems relocated to harsher environments.

Does the backplane require special mounting hardware for extreme temperatures?
Standard DIN rail mounting is sufficient. For high-vibration environments (mining, rail), add vibration-damping rail clips (available separately). Panel mounting uses M4 screws with spring washers to accommodate thermal expansion.

What's the typical lifespan in outdoor installations?
Field data shows 12-15 year service life in properly sealed enclosures with IP65 or better protection. Key factors: prevent moisture ingress, ensure adequate ventilation to avoid exceeding +70°C in summer, and use conformal-coated modules in corrosive atmospheres.

Are there export restrictions for ColdClimate-rated automation components?
The BS206-CC is not subject to ITAR or EAR controls for most destinations. However, oil & gas applications in certain countries may require export licenses. NINERMAS handles documentation for compliant international shipments—provide your end-use details at checkout.

Start Building Resilient Automation Systems

Don't let extreme temperatures compromise your control infrastructure. The BS206-CC backplane delivers proven reliability where standard components fail, backed by Bachmann's 40+ years of industrial automation expertise.

Ready to specify your system? Contact our engineering team at sale@ninermas.com or +0086 187 5021 5667 for module selection guidance, pricing on multi-unit orders, and custom configuration services. Stock availability and technical datasheets provided within 2 hours.
