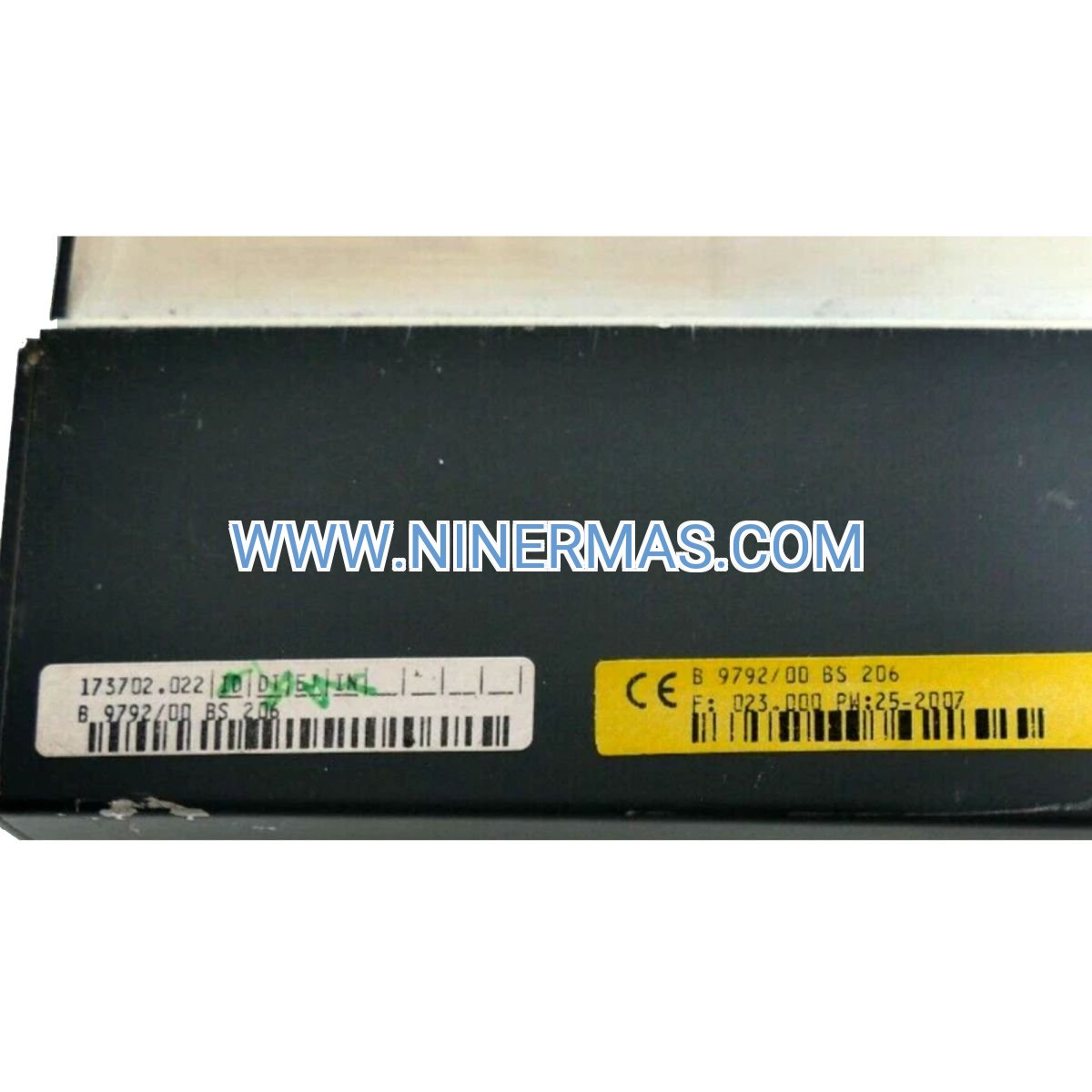

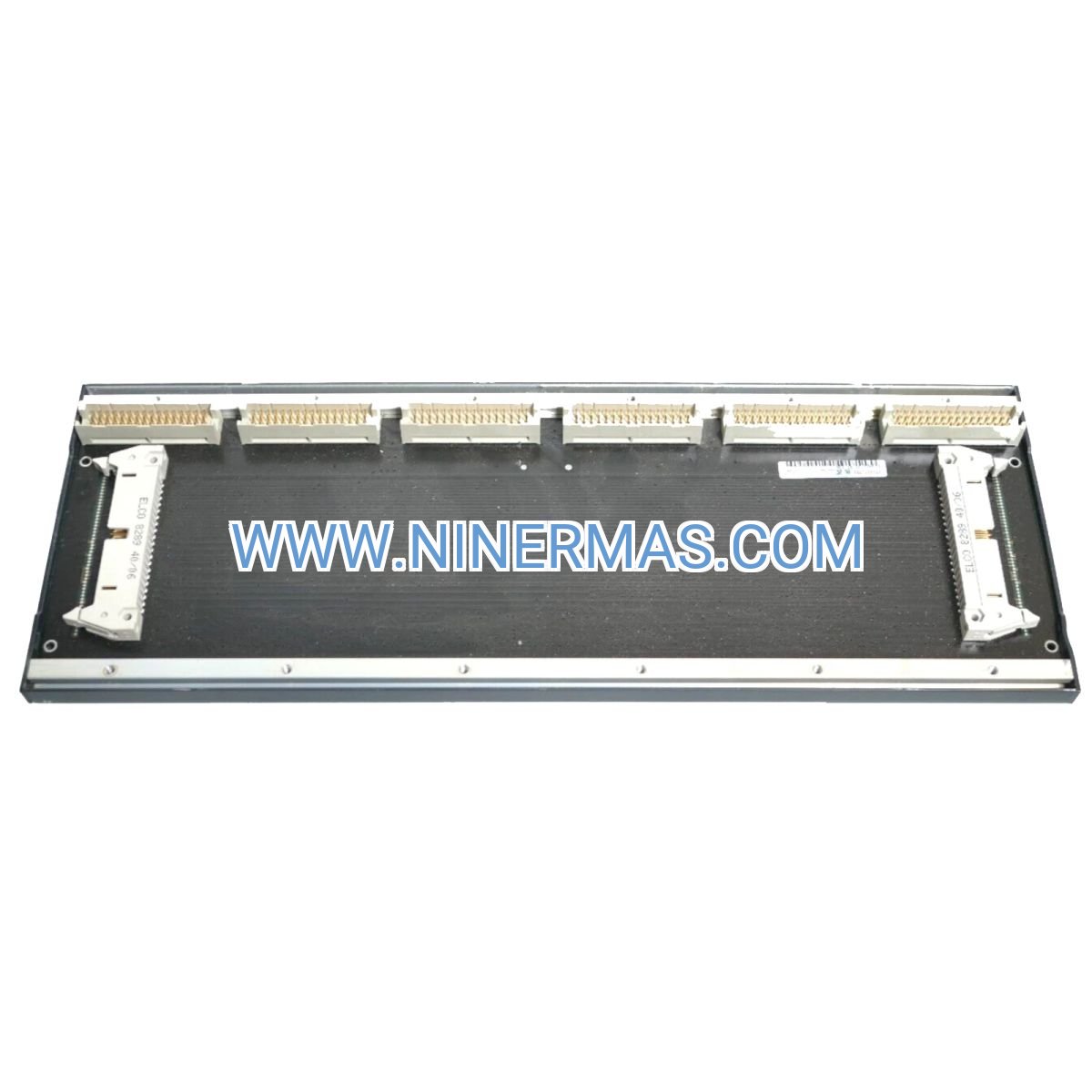

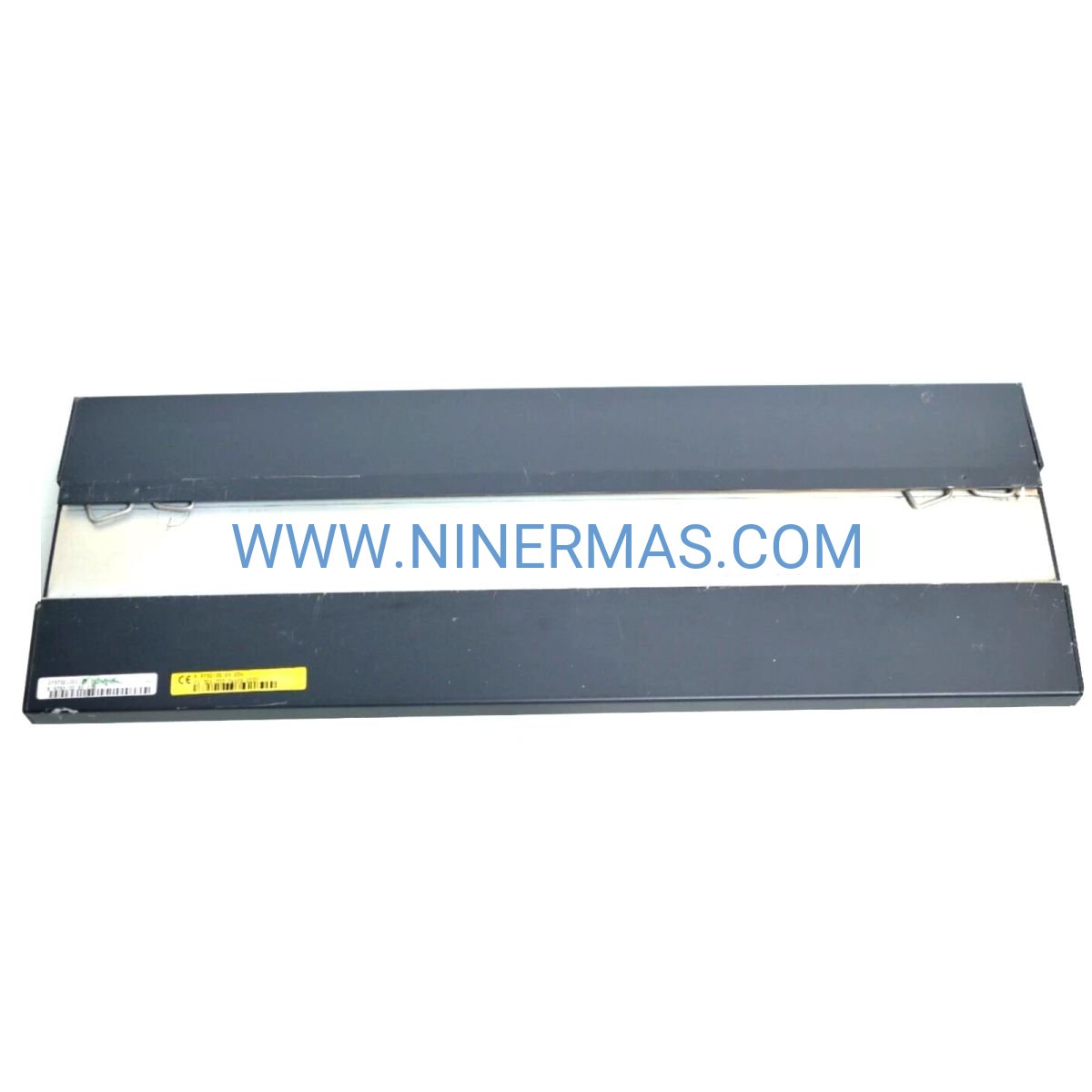

BS206 Industrial-Grade Backplane (6-Slot M1 System Integration)

The BS206 represents a purpose-built mounting infrastructure for M1-based automation architectures where cabinet real estate demands intelligent space utilization. This 6-position backplane delivers deterministic inter-module communication, mechanical stability, and thermal management in a footprint optimized for compact machinery control, remote I/O stations, and distributed process nodes.

Engineered for integrators facing panel space constraints without compromising system capability, the BS206 accommodates full-featured controller configurations alongside mixed I/O topologies. Industrial-grade PCB construction and conformal coating ensure reliable operation across temperature extremes, vibration profiles, and electromagnetic environments typical of manufacturing floors, utility substations, and mobile equipment installations.

Whether deploying standalone machine controllers or building multi-node SCADA networks, the BS206 provides the electrical backbone and physical platform for scalable M1 system implementations. Compatibility with current and legacy module generations protects capital investment while enabling incremental technology adoption.

Technical Parameters & Selection Guide

Selection Criteria: Choose the BS206 when your application requires 4-5 functional modules (after allocating slots for power supply and controller). For systems demanding 6+ I/O or communication modules, evaluate the BS208 or BS209 variants. Extreme cold environments (-40°C) necessitate the BS206-CC ColdClimate specification.

Key Capabilities & Business Value

→ Space-Optimized Architecture: 6-slot design reduces panel footprint by 30-40% compared to traditional 10-slot backplanes while maintaining essential system functionality—critical for OEM machinery and retrofit installations with fixed enclosure dimensions.

→ Deterministic Performance: High-speed backplane bus architecture guarantees predictable scan cycles and sub-millisecond inter-module latency, enabling precise motion control, synchronized I/O operations, and time-critical safety functions.

→ Environmental Resilience: Conformal-coated PCB assemblies and industrial-grade connectors withstand shock loads up to 15g, continuous vibration, and EMI exposure per IEC 61131-2 standards—proven in mobile equipment, outdoor enclosures, and heavy industrial environments.

→ Installation Flexibility: Dual mounting system (DIN rail clip + panel holes) adapts to wall-mount enclosures, swing-out panels, and 19-inch rack installations without custom brackets or adapters.

→ Serviceability Design: Hot-swap capability for I/O and communication modules minimizes downtime during maintenance windows; module extraction/insertion requires no tools and completes in under 30 seconds.

→ Investment Protection: Full backward compatibility with M1 module generations spanning 15+ years ensures existing inventory remains deployable; forward compatibility roadmap extends through 2030+ product lifecycle.

Industrial Application Scenarios

OEM Machinery Integration: Packaging equipment manufacturers embed the BS206 in compact control panels for cartoning machines, labelers, and case packers. The 6-slot configuration accommodates a controller, dual digital I/O modules, Ethernet interface, and power supply—delivering complete machine control in a 300mm-wide footprint that fits standard 400mm enclosures with room for power distribution and safety relays.

Distributed Process Control: Chemical plants deploy BS206-based remote I/O stations throughout process areas, connecting field instruments to central SCADA systems via industrial Ethernet. Each station handles 50-80 I/O points with local intelligence for alarm pre-processing and data buffering, reducing network traffic by 60% compared to simple I/O blocks.

Building Automation Nodes: HVAC contractors install BS206 systems as zone controllers in commercial buildings, managing VAV boxes, fan coil units, and lighting circuits. The compact backplane fits inside ceiling-mounted junction boxes, eliminating the need for dedicated equipment rooms while providing BACnet/IP and Modbus TCP connectivity.

Mobile Equipment Control: Construction equipment OEMs integrate the BS206 into excavator, crane, and material handler control systems. The backplane's vibration resistance and wide temperature range (-25°C to +60°C) ensure reliable operation in mobile applications where traditional rack-mount PLCs fail within months.

Renewable Energy Systems: Solar inverter manufacturers use the BS206 as the control backbone for 100-500kW inverter stations, managing MPPT algorithms, grid synchronization, and safety interlocks. The deterministic backplane enables 10ms control loops required for anti-islanding protection and reactive power compensation.

Core Features & Operational Advantages

✓ Compact Footprint Engineering: 6-slot configuration delivers 67% space efficiency compared to 10-slot alternatives—critical for retrofit projects and space-constrained OEM designs.

✓ High-Speed Backplane Bus: Deterministic communication architecture supports 1ms scan cycles with full I/O refresh, enabling precision motion control and synchronized multi-axis applications.

✓ Industrial Hardening: Conformal coating, robust connectors, and reinforced PCB construction ensure 100,000+ hour MTBF in harsh industrial environments.

✓ Flexible Mounting: Standard 35mm DIN rail clip or M4 panel mounting holes accommodate diverse enclosure types without custom hardware.

✓ Hot-Swap I/O Modules: Replace field I/O and communication modules during operation without system shutdown—reducing maintenance downtime by 80%.

✓ Multi-Generation Compatibility: Supports M1 modules from 2010-present, protecting existing inventory and enabling phased system upgrades.

Extended Functions

IoT Integration: Pair the BS206 with Bachmann's webMI visualization modules to enable browser-based HMI access without dedicated operator panels. Built-in web server supports HTML5 dashboards accessible from tablets and smartphones for remote monitoring and diagnostics.

Redundancy Options: While the 6-slot BS206 typically serves non-redundant applications, it supports redundant I/O configurations using dual-channel safety modules. For controller redundancy, migrate to BS210 or larger backplanes that accommodate dual CPU architectures.

Customization Services: Factory customization programs offer pre-configured BS206 assemblies with customer-specified module populations, tested and documented to your application requirements. Custom firmware configurations and pre-loaded application programs reduce commissioning time by 50-70%.

Delivery & Service Assurance

Lead Time: Standard BS206 backplanes ship within 3-5 business days from regional distribution centers. Custom-configured assemblies require 2-3 weeks for factory integration and testing. Expedited delivery available for critical projects.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs (24/36 months) available through authorized service partners. Warranty includes advance replacement service with 48-hour shipment of replacement units.

Technical Support: Access to Bachmann's global support network includes phone/email assistance, remote diagnostics via VPN, and on-site commissioning services. Support packages range from basic email support to 24/7 hotline access with 4-hour response guarantees.

Documentation Package: Each BS206 ships with installation manual, dimensional drawings, electrical schematics, and module compatibility matrix. Digital resources include CAD models (STEP/DXF), configuration software, and sample application programs.

Frequently Asked Questions

Q: How many I/O points can a BS206 backplane support?
A: With one slot for power supply and one for controller, four slots remain for I/O modules. Using high-density modules like the DIO280 (28 channels), you can achieve 112 digital I/O points. Mixed analog/digital configurations typically support 40-60 I/O points with signal conditioning.

Q: Can I mix analog and digital I/O modules on the same backplane?
A: Yes, the BS206 supports any combination of M1-compatible modules—digital I/O, analog I/O, temperature inputs, communication interfaces, and specialty modules—within the 6-slot capacity. Module placement is flexible except power supply (typically slot 1) and controller (typically slot 2).

Q: What environmental protection does the BS206 provide?
A: The BS206 carries IP20 rating for indoor use within appropriate enclosures. For outdoor installations, mount in NEMA 4X or IP65-rated cabinets with environmental controls. The standard BS206 operates -25°C to +60°C; specify BS206-CC for -40°C to +60°C extended range.

Q: How do I expand if my application outgrows 6 slots?
A: Add distributed I/O nodes using additional BS206 backplanes connected via Ethernet/IP or Modbus TCP, or migrate to larger backplanes (BS208/BS209/BS210) and transfer existing modules without reprogramming. Distributed architecture often proves more cost-effective than single large backplanes.

Q: Does the BS206 support safety-rated applications?
A: The BS206 backplane itself is not safety-rated, but it accommodates safety-rated controller and I/O modules certified to IEC 61508 SIL 2/3 and ISO 13849 PLd/PLe. Consult Bachmann's safety system design guide for proper architecture and module selection.

Q: What programming environment is required for M1 systems?
A: Bachmann M1 systems use SolutionCenter development software, supporting IEC 61131-3 languages (Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart). The software includes integrated simulation, diagnostics, and commissioning tools. Free runtime licenses available for evaluation.

Deploy the BS206 6-slot backplane for your next compact automation project—where space efficiency meets industrial reliability.
