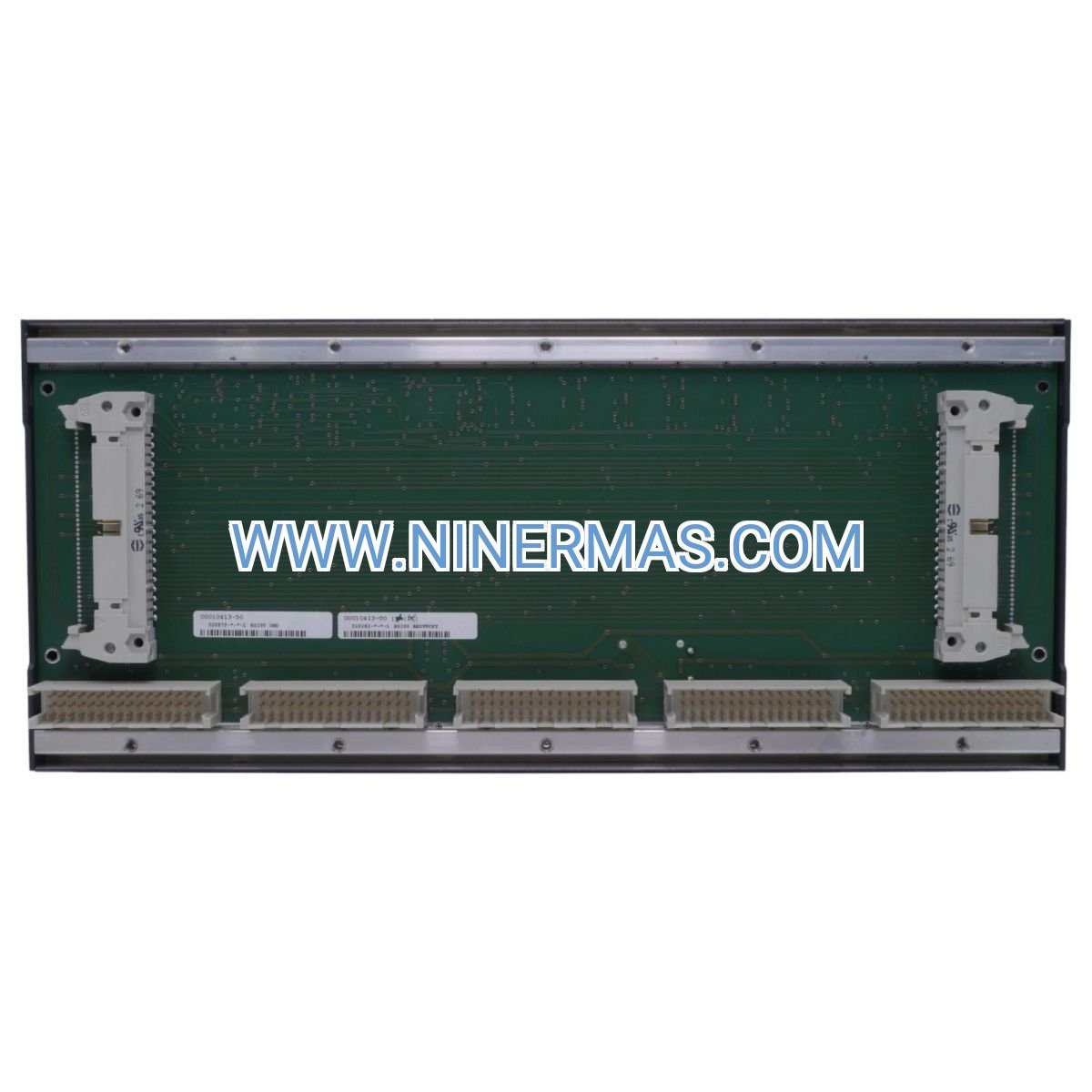

BS205 Backplane System (Industrial-Grade 5-Slot Expansion Base)

The BS205 represents a precision-engineered mounting infrastructure for Bachmann M1 distributed control platforms, offering five expansion positions for controller, I/O, and communication modules. Built to withstand industrial temperature extremes and mechanical stress, this backplane forms the electrical and mechanical foundation for scalable automation architectures in manufacturing, energy, and process industries.

Designed for system integrators and automation engineers who demand reliable module interconnection, the BS205 eliminates single-point-of-failure risks through robust bus architecture and certified construction. Whether you're deploying new control systems or retrofitting legacy installations, this backplane provides the structural backbone for mission-critical operations.

With proven compatibility across the entire M1 ecosystem and compliance with international safety standards, the BS205 accelerates commissioning timelines while ensuring long-term operational stability in harsh industrial environments.

Core Features & Benefits

→ Five-Position Modular Architecture
Expand your control system incrementally from basic configurations to complex multi-module setups, accommodating CPU, analog/digital I/O, specialty function modules, and network interfaces within a single compact chassis.

→ Extended Temperature Performance
Operates reliably from -25°C to +60°C ambient conditions, making it suitable for outdoor enclosures, unheated facilities, and thermally challenging environments where standard electronics fail.

→ Universal M1 Platform Compatibility
Seamlessly integrates with all Bachmann M1 series components including MP-series processors, DIO/AIO modules, communication gateways, and power supplies without firmware updates or adapter hardware.

✓ Certified Safety & Compliance
CE, UL, and cUL approvals ensure global deployment readiness, reducing certification overhead for OEMs and system builders targeting international markets.

✓ Dual Mounting Flexibility
Install via standard 35mm DIN rail for quick cabinet integration or use integrated mounting holes for permanent panel-mount applications in custom enclosures.

✓ High-Integrity Backplane Bus
Gold-plated connectors and controlled-impedance traces deliver stable inter-module communication, minimizing data errors in electrically noisy industrial settings.

Typical Application Scenarios

Automated Production Lines
Manufacturing facilities deploy the BS205 as the control hub for assembly stations, coordinating robotic pick-and-place operations, conveyor sequencing, and quality inspection systems. The backplane hosts CPU modules alongside digital I/O for sensor integration and relay outputs for actuator control, reducing wiring complexity compared to distributed architectures.

HVAC & Climate Control Networks
Commercial buildings and data centers utilize BS205-based systems for multi-zone temperature regulation, integrating analog input modules for RTD sensors and output modules for valve positioning. The compact 5-slot design fits standard electrical panels while providing sufficient expansion for typical 4-8 zone applications.

Water & Wastewater Treatment
Municipal treatment plants rely on BS205 backplanes to coordinate pump control, flow monitoring, and chemical dosing systems. The IP20-rated construction protects electronics in control rooms adjacent to wet process areas, while the extended temperature range handles seasonal variations in unheated pump houses.

Renewable Energy Systems
Wind turbine control cabinets and solar tracking systems leverage the BS205's vibration-resistant design and wide operating temperature for outdoor installations, hosting specialized modules for pitch control, yaw positioning, and grid synchronization.

Material Handling & Logistics
Warehouse automation systems use BS205 backplanes to manage sortation equipment, automated storage/retrieval systems, and conveyor networks, with communication modules enabling integration into warehouse management software via Ethernet/IP or Modbus TCP.

Technical Parameters & Selection Guide

Selection Criteria: Choose the BS205 when your application requires 3-5 modules total (including CPU). For smaller systems with 2-3 modules, consider the BS203 3-slot variant to reduce cabinet space. Applications needing 6-10 modules should evaluate the BS206, BS208, BS209, or BS210 backplanes. Always reserve one slot for the controller module and one for the power supply, leaving 3 slots available for I/O and communication modules in a BS205 configuration.

Extended Functions

Distributed Control Networking: The BS205 supports multi-backplane architectures via EtherCAT, PROFINET, or Modbus TCP communication modules, enabling geographically distributed control nodes within a single automation system. This topology reduces wiring costs in large facilities while maintaining centralized programming and diagnostics.

Redundancy Options: Pair dual BS205 backplanes with redundant CPU modules for high-availability applications in critical infrastructure, pharmaceutical manufacturing, and continuous process industries where unplanned downtime results in significant financial or safety consequences.

IoT Gateway Integration: Install communication modules supporting MQTT, OPC UA, or RESTful APIs to connect M1 control systems to cloud-based analytics platforms, enabling predictive maintenance, remote monitoring, and production optimization through machine learning algorithms.

Delivery & Service Assurance

Lead Time: Standard configurations ship within 3-5 business days from our distribution center. Custom-configured systems with pre-installed modules ship within 7-10 business days after order confirmation.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship under normal industrial operating conditions. Extended warranty programs available for critical applications.

Technical Support: Our automation specialists provide pre-sales system design consultation, post-sales integration assistance, and troubleshooting support via phone, email, and remote desktop sessions. Average response time: 4 hours during business hours.

Documentation Package: Each BS205 ships with installation manual, dimensional drawings, electrical specifications, and compliance certificates. CAD models (STEP/IGES) and EPLAN macros available for download from our technical library.

Frequently Asked Questions

How many I/O modules can the BS205 backplane accommodate in a typical configuration?
With one slot occupied by the CPU module and one by the power supply, you have three remaining slots for I/O, communication, or specialty function modules. Each slot can host high-density modules like the DIO280 (32 digital I/O points), allowing 96 total I/O points in a compact 5-slot system.

Does the BS205 support hot-swappable module replacement during operation?
Hot-swap capability varies by module type. Most I/O modules support hot insertion/removal, while CPU and power supply modules require controlled shutdown. Always consult specific module documentation and follow lockout/tagout procedures when servicing energized systems.

What power supply module is required for the BS205 backplane?
The NT255 24V DC power supply module is the standard choice, providing sufficient current for the backplane and up to four additional modules. For systems with high I/O density or power-hungry communication modules, consider the NT260 higher-capacity power supply.

Can I mix different generations of M1 modules on the same BS205 backplane?
Yes, the BS205 maintains backward compatibility with legacy M1 modules and forward compatibility with newer releases, protecting your automation investment during phased system upgrades and allowing gradual technology migration without complete system replacement.

What environmental protection does the BS205 provide in dusty or humid conditions?
The IP20 rating protects against solid objects larger than 12.5mm but does not provide dust-tight or moisture protection. For harsh environments, install the BS205 in a NEMA 4/4X or IP65-rated enclosure with appropriate climate control and filtration.

How do I expand beyond five slots if my application grows?
Upgrade to larger backplanes (BS206/BS208/BS209/BS210) or implement a distributed architecture using communication modules to network multiple BS205 backplanes across your facility, creating a scalable control system that grows with your operational needs.

Order Your BS205 Backplane Today

Secure your automation infrastructure with the BS205 5-slot backplane—engineered for reliability, designed for scalability, and backed by comprehensive technical support. Whether you're building new control systems or modernizing existing installations, this backplane delivers the performance and flexibility your operations demand.

Contact our automation specialists for system design assistance, volume pricing, or technical specifications. We maintain ready stock for immediate shipment and offer expedited delivery for urgent project requirements.
