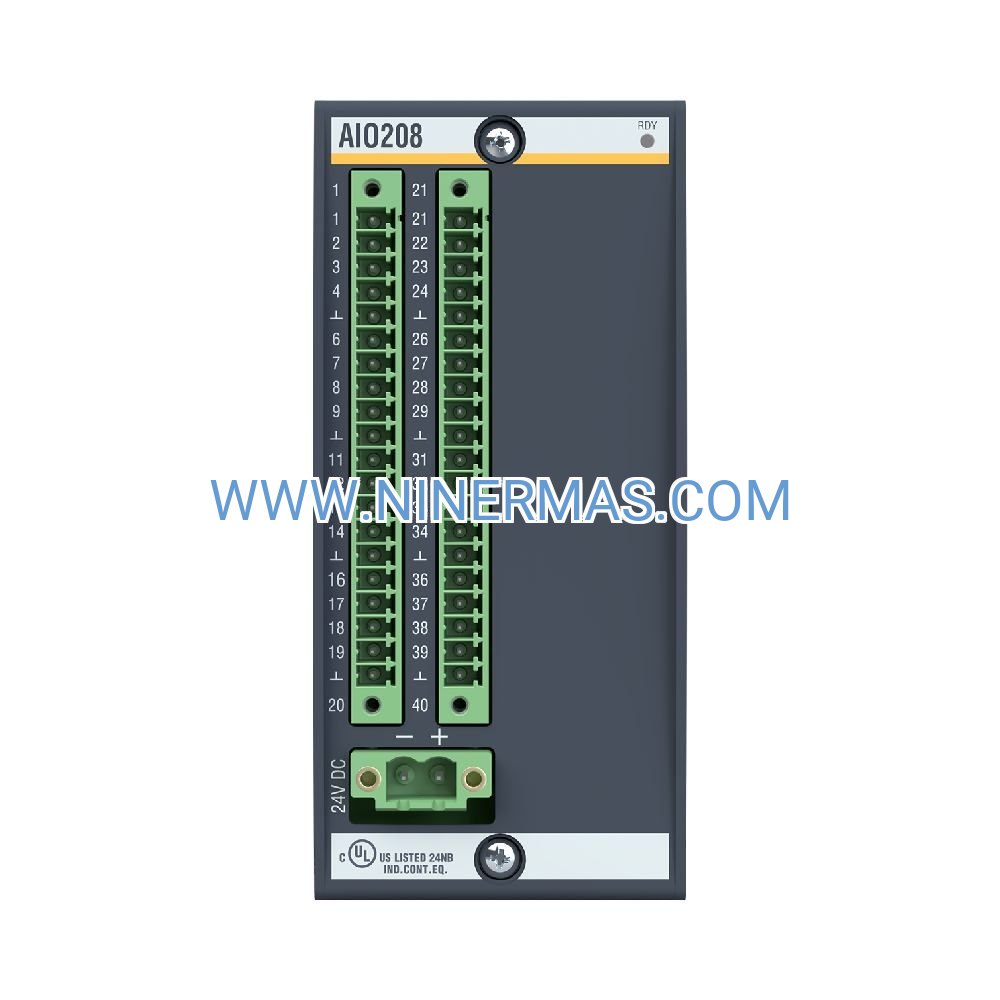

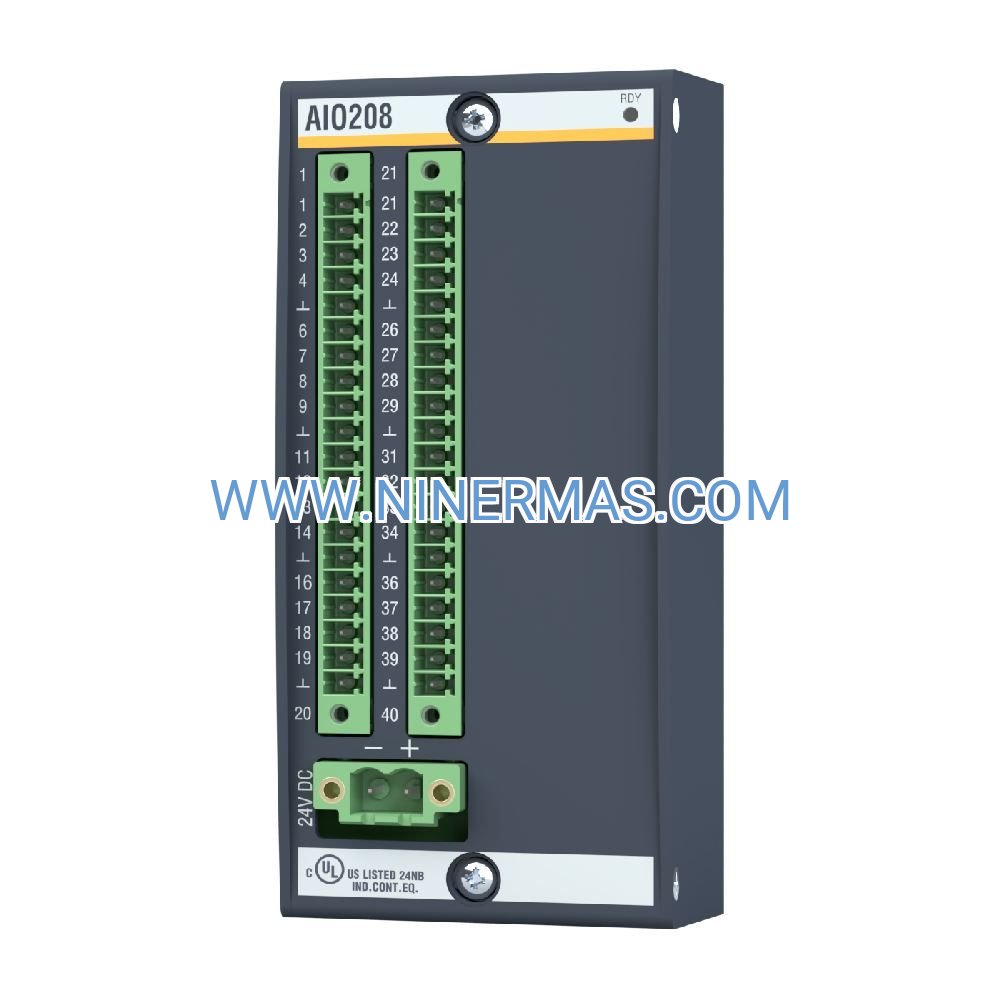

AIO208 Analog I/O Interface (Industrial-Grade 8-Channel Signal Processor)

The Bachmann AIO208 delivers precision analog signal conversion for industrial control systems demanding reliable data acquisition and output control. This 8-channel module combines 16-bit resolution with flexible configuration options, enabling seamless integration into process automation, energy management, and manufacturing execution systems where accurate analog signal handling directly impacts operational efficiency and product quality.

Designed for engineers managing complex control architectures, the AIO208 eliminates signal conditioning complexity through integrated filtering and diagnostics. Whether you're retrofitting legacy systems or deploying greenfield automation projects, this module provides the signal fidelity and environmental resilience required for 24/7 industrial operations across chemical processing, power generation, water treatment, and building automation sectors.

With independent channel configuration supporting voltage (0-10V, ±10V), current (0-20mA, 4-20mA), and mixed I/O topologies, the AIO208 adapts to diverse sensor and actuator requirements without external signal converters. Hot-swappable architecture and comprehensive diagnostics minimize downtime while maintaining system integrity in mission-critical applications.

Key Capabilities & Business Value

→ Universal Channel Flexibility: Each of 8 channels independently operates as voltage input, current input, voltage output, or current output—eliminating the need for multiple specialized modules and reducing spare parts inventory by up to 40%.

→ True 16-Bit Signal Fidelity: 65,536 discrete measurement steps ensure precise process variable monitoring and control loop stability, directly improving product consistency and reducing material waste in batch and continuous processes.

→ Integrated Diagnostics & Predictive Maintenance: Real-time wire-break detection, over-range alerts, and channel health monitoring enable proactive maintenance scheduling, reducing unplanned downtime by identifying sensor failures before process disruption occurs.

✓ High-Speed Data Acquisition: 1 kHz sampling rate per channel captures fast-changing process dynamics in applications like vibration monitoring, pressure transient analysis, and rapid temperature profiling.

✓ Industrial Environmental Resilience: -25°C to +60°C operating range with optional conformal coating withstands harsh chemical exposure, high humidity, and temperature cycling common in outdoor installations and heavy industrial environments.

✓ Simplified System Architecture: Direct mounting on Bachmann M1 backplanes with integrated bus communication eliminates external wiring complexity, reducing installation time by 30-50% compared to traditional marshalling cabinet approaches.

Application Scenarios & Problem-Solving

Chemical & Pharmaceutical Manufacturing: In reactor temperature control and pH regulation systems, the AIO208 interfaces with RTD transmitters and analytical sensors to maintain tight process tolerances. The module's 16-bit resolution enables ±0.1°C temperature control accuracy, critical for polymerization reactions and sterile pharmaceutical production where temperature deviations cause batch rejection.

Power Generation & Substation Automation: Monitor generator bearing temperatures, transformer oil levels, and switchgear current with the AIO208's isolated inputs. The 500V channel-to-bus isolation protects control systems from electrical transients, while 4-20mA current loop support enables long-distance sensor connections across sprawling power plant facilities without signal degradation.

Water & Wastewater Treatment: Automate chemical dosing pumps and monitor dissolved oxygen, turbidity, and flow rates with a single module. The AIO208's configurable outputs drive variable frequency drives (VFDs) controlling aeration blowers and recirculation pumps, optimizing energy consumption while maintaining effluent quality compliance.

HVAC & Building Energy Management: Create multi-zone climate control systems by connecting the AIO208 to temperature sensors, humidity transmitters, and damper actuators. The module's low power consumption (2.8W typical) and compact footprint enable distributed control cabinet designs that reduce copper wiring costs in large commercial buildings.

Food & Beverage Processing: In pasteurization and fermentation control, the AIO208 provides the signal accuracy required for HACCP compliance and recipe consistency. Interface with pressure transmitters monitoring CIP (clean-in-place) systems and temperature sensors tracking cold chain integrity throughout production and packaging lines.

Technical Specifications & Selection Criteria

Selection Criteria: Choose the AIO208 when your application requires 8 or fewer analog points with mixed voltage/current I/O. For higher channel density (16+ points), consider the AIO288. When direct thermocouple or RTD inputs are needed without transmitters, the PTAI216 temperature module offers specialized measurement capabilities. For safety-instrumented systems (SIS), consult factory for SIL-rated alternatives.

Extended Functionality & IoT Integration

Remote Monitoring & Cloud Connectivity: When paired with Bachmann M1 controllers featuring Ethernet/IP or Modbus TCP interfaces, the AIO208's data streams to SCADA systems, cloud historians, and IIoT platforms. Enable predictive analytics by feeding analog sensor data to machine learning models that identify process drift patterns before quality issues emerge.

Customization & Application-Specific Firmware: Bachmann offers custom scaling algorithms, specialized filtering profiles, and application-specific diagnostic routines. For OEM integrators building proprietary equipment, factory-programmed AIO208 modules can include pre-configured channel assignments and calibration data, reducing commissioning time.

Redundancy & High-Availability Architectures: Deploy dual AIO208 modules in hot-standby configurations for critical control loops. Automatic failover logic in Bachmann M1 controllers ensures seamless transition if primary module diagnostics detect faults, maintaining process continuity in pharmaceutical clean rooms and semiconductor fabrication facilities.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock AIO208 modules ship within 1-2 business days via express courier. Typical transit time to major industrial centers: 3-5 business days (Asia-Pacific), 5-7 business days (North America/Europe).

Custom Configuration: Factory-programmed modules with pre-loaded calibration data or custom firmware require 2-3 weeks lead time. Expedited engineering services available for urgent project deadlines.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and calibration drift beyond published specifications. Extended warranty programs available for critical infrastructure applications.

Technical Support: Unlimited access to application engineers for configuration assistance, troubleshooting, and system integration guidance. Support includes wiring diagrams, sample PLC code, and SCADA tag databases for common platforms (Siemens TIA Portal, Rockwell Studio 5000, Schneider Unity Pro).

Documentation Package: Each module includes installation manual, calibration certificate, CE/UL compliance declarations, and CAD drawings (DXF/STEP formats) for panel layout design.

Frequently Asked Questions

What cable specifications are recommended for 4-20mA current loop wiring?
Use 18 AWG (0.75 mm²) shielded twisted-pair cable with drain wire. Maximum cable resistance: 1000Ω (supports up to 1000m runs with 24V loop power). Shield should be grounded at one end only to prevent ground loops. For outdoor installations or high-EMI environments, specify double-shielded cable with aluminum-polyester foil plus tinned copper braid.

Can the AIO208 interface directly with thermocouples or RTDs?
No. The AIO208 accepts voltage and current signals only. For direct thermocouple (Type J/K/T) or RTD (Pt100/Pt1000) connections, use the Bachmann PTAI216 temperature input module or install field-mounted transmitters that convert temperature signals to 4-20mA output compatible with the AIO208.

How does channel configuration work—hardware jumpers or software settings?
All channel configuration is software-based through Bachmann M1 programming tools (SolutionCenter or M-Base Engineering). No physical jumpers or DIP switches required. Channel parameters including input/output mode, signal range, filtering, and scaling are stored in non-volatile memory and persist through power cycles.

What is the maximum update rate for control loops using AIO208 outputs?
With 1 kHz sampling and typical M1 controller scan times of 5-10ms, you can achieve control loop update rates of 50-100 Hz. This is adequate for flow control, pressure regulation, and temperature loops. For high-speed servo positioning or vibration damping requiring >1 kHz loop rates, consider specialized motion control modules.

Does the module support HART protocol for smart transmitter communication?
No. The AIO208 processes analog 4-20mA signals only and does not decode HART digital data superimposed on the current loop. For HART device integration, use Bachmann communication modules with HART modem functionality or install HART multiplexers that present analog values to the AIO208.

What power supply voltage is required and how is it distributed?
The AIO208 receives 24V DC power through the M1 backplane from a Bachmann NT255 or NT250 power supply module. No external power connections to the AIO208 are required. Ensure power supply capacity accounts for all modules on the backplane: AIO208 draws 2.8W typical (120mA at 24V).

Take the Next Step

Upgrade your analog signal processing infrastructure with the Bachmann AIO208 and experience the precision, flexibility, and reliability that industrial automation professionals worldwide trust for mission-critical applications. Our technical team is ready to assist with module selection, system architecture design, and integration planning.

Request a quotation today: Contact our sales engineers with your project specifications for competitive pricing, volume discounts, and delivery scheduling tailored to your commissioning timeline.
