ATOTECH MG330TD40-B Service-Ready Spare Part for Industrial Maintenance

ATOTECH MG330TD40-B Service-Ready Spare Part for Industrial Maintenance

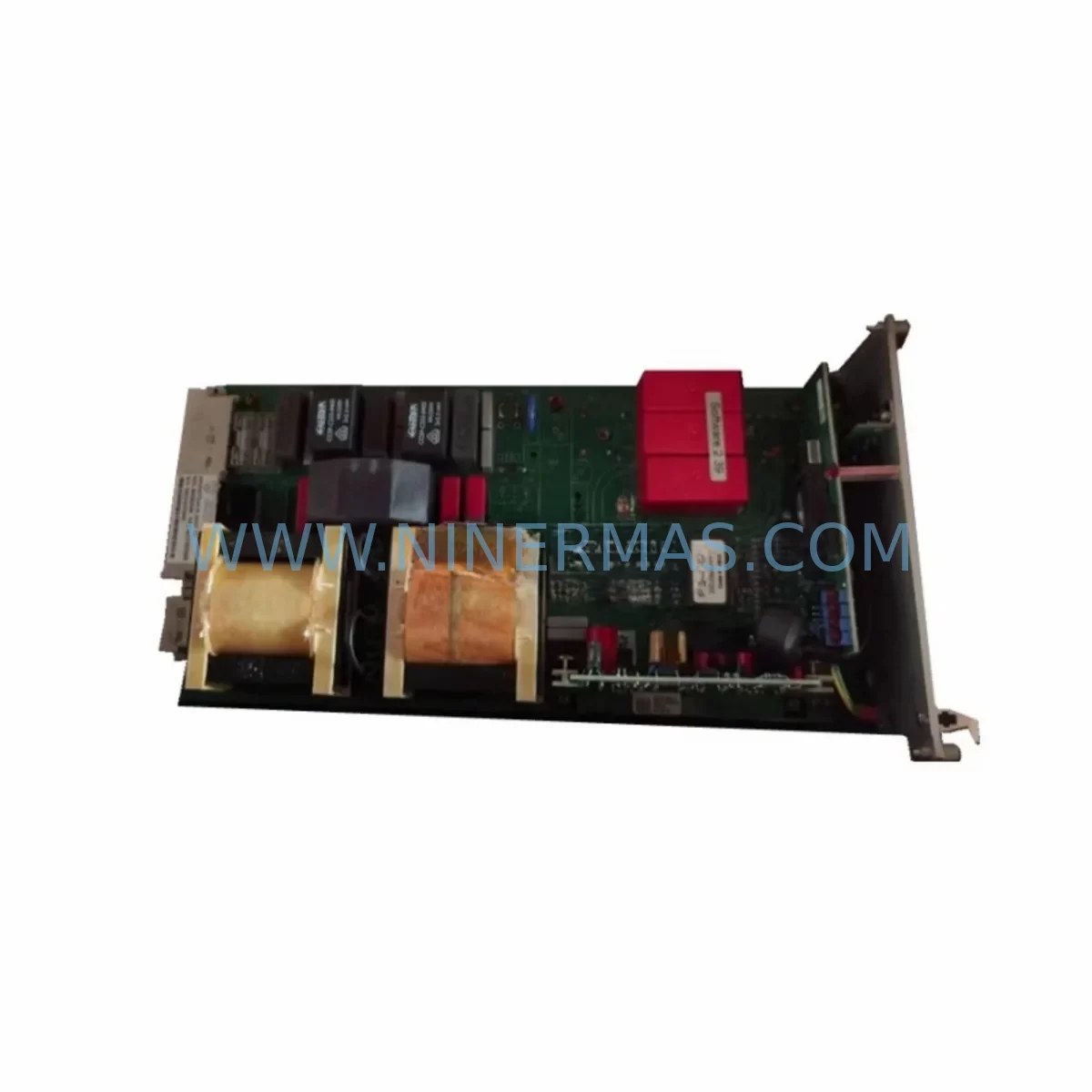

The ATOTECH MG330TD40-B is an original control card designed for industrial process automation and surface finishing control systems. For maintenance engineers managing electroplating lines, chemical process controllers, or legacy ATOTECH rectifier and dosing systems, sourcing a verified, service-ready MG330TD40-B spare is critical to minimising unplanned downtime and protecting production continuity. NINERMAS maintains stock of the MG330TD40-B to support rapid field replacement, emergency procurement, and planned annual overhaul schedules — backed by a 12-month warranty and pre-shipment functional testing.

The MG330TD40-B control card serves as a core signal processing and regulation component within ATOTECH process control cabinets. Its failure or degradation directly impacts bath chemistry regulation, current density control, and process sequencing. When this card is flagged during routine inspection or fault isolation, a like-for-like replacement with an original ATOTECH part eliminates compatibility risk and avoids the extended commissioning time associated with third-party substitutes.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the MG330TD40-B in an ATOTECH process control cabinet is rarely an isolated task. Maintenance engineers and procurement teams should treat this replacement as an opportunity to audit the surrounding electrical and control infrastructure to prevent repeat failures and reduce the risk of secondary faults emerging shortly after the primary repair.

When the MG330TD40-B is removed for replacement, the control cabinet power supply rail should be verified — ATOTECH systems typically rely on a 24 VDC regulated SMPS module to power the control card tier. A degraded or out-of-tolerance power supply is a common root cause of control card failure and should be tested or replaced proactively. Similarly, the backplane or card rack assembly should be inspected for oxidised contacts, bent connector pins, or mechanical damage that could cause intermittent communication faults with the replacement card.

The I/O terminal blocks and field wiring connected to the MG330TD40-B should be checked for loose terminations, insulation breakdown, or corrosion — particularly in humid or chemically aggressive electroplating environments. If the system includes signal isolators or analogue signal conditioners on the input channels, these should be verified for correct output range and zero-drift, as a faulty isolator can damage a newly installed control card within hours of commissioning.

For systems using communication modules — whether RS-485, Profibus, or proprietary ATOTECH fieldbus — the network termination resistors and cable shielding should be inspected. A communication fault on the bus can cause the replacement MG330TD40-B to log errors or fail to initialise correctly, leading to misdiagnosis of the new card as defective. Alongside the control card, engineers should also review the condition of relay output modules and solid-state relay (SSR) assemblies that the MG330TD40-B drives, as these components are subject to wear and may have been stressed by the same fault event that caused the original card failure.

Fuse protection on the 24 VDC supply rail and individual I/O channels should be inspected and replaced as part of the maintenance cycle. Miniature circuit breakers (MCBs) protecting the control cabinet supply should also be tested for correct trip characteristics. If the ATOTECH system includes an HMI panel or operator terminal, the communication link between the HMI and the MG330TD40-B should be verified after card replacement to confirm that process parameters, setpoints, and alarm configurations are correctly loaded and displayed. For older installations, the EEPROM or parameter memory of the replacement card may need to be programmed with site-specific process recipes — ensure backup copies of all process parameters are available before commencing replacement work.

Site Replacement Workflow

The MG330TD40-B is designed as a direct replacement for the same part number within the ATOTECH MG330 series control architecture. Before commencing replacement, the maintenance team should confirm the exact firmware or hardware revision of the installed card against the replacement unit to ensure full functional compatibility. In most cases, original ATOTECH spare parts are backward-compatible within the same series, but revision-level differences should be documented and reported to the process engineer.

The recommended replacement sequence is: isolate the control cabinet from mains supply and verify de-energisation using a calibrated voltage tester; photograph all wiring and connector positions before disconnection; remove the faulty MG330TD40-B by releasing the card locking mechanism and extracting from the backplane slot; inspect the slot connector for damage; insert the replacement card firmly until the connector is fully seated; reconnect all field wiring per the original configuration; restore power and verify the card initialises correctly via the HMI or status LEDs; run a short process cycle under supervision to confirm correct regulation and I/O response before returning the line to full production.

This workflow minimises the risk of wiring errors, reduces total downtime to the shortest achievable window, and ensures the replacement is documented for maintenance records and warranty purposes. NINERMAS provides pre-shipment test reports on request to support site acceptance procedures.

Spare Parts Support FAQ

Q1: Is the MG330TD40-B available as a new original part or only as a refurbished unit?
NINERMAS sources the MG330TD40-B as original ATOTECH spare parts. Stock condition — new or tested refurbished — is confirmed at the time of order. All units undergo functional verification before dispatch, and the 12-month warranty applies regardless of condition grade.

Q2: How do I confirm compatibility between the MG330TD40-B and my installed ATOTECH system?
Compatibility is confirmed by matching the part number and hardware revision on the installed card against the replacement unit. Provide your system model, cabinet serial number, or existing card label photograph to the NINERMAS technical team and we will verify compatibility before shipment.

Q3: What is the lead time and can NINERMAS support emergency procurement?
Lead time depends on current stock availability. NINERMAS maintains buffer stock of high-demand ATOTECH spare parts to support emergency and unplanned downtime scenarios. Contact our team directly for real-time stock confirmation and expedited shipping options.

Q4: Does the 12-month warranty cover field installation failures?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the specified operating range. NINERMAS provides installation guidance and pre-shipment test documentation to support warranty claims.
