ASYMTEK ASM7211930G Control Motherboard: Spare Replacement & Downtime Risk Control

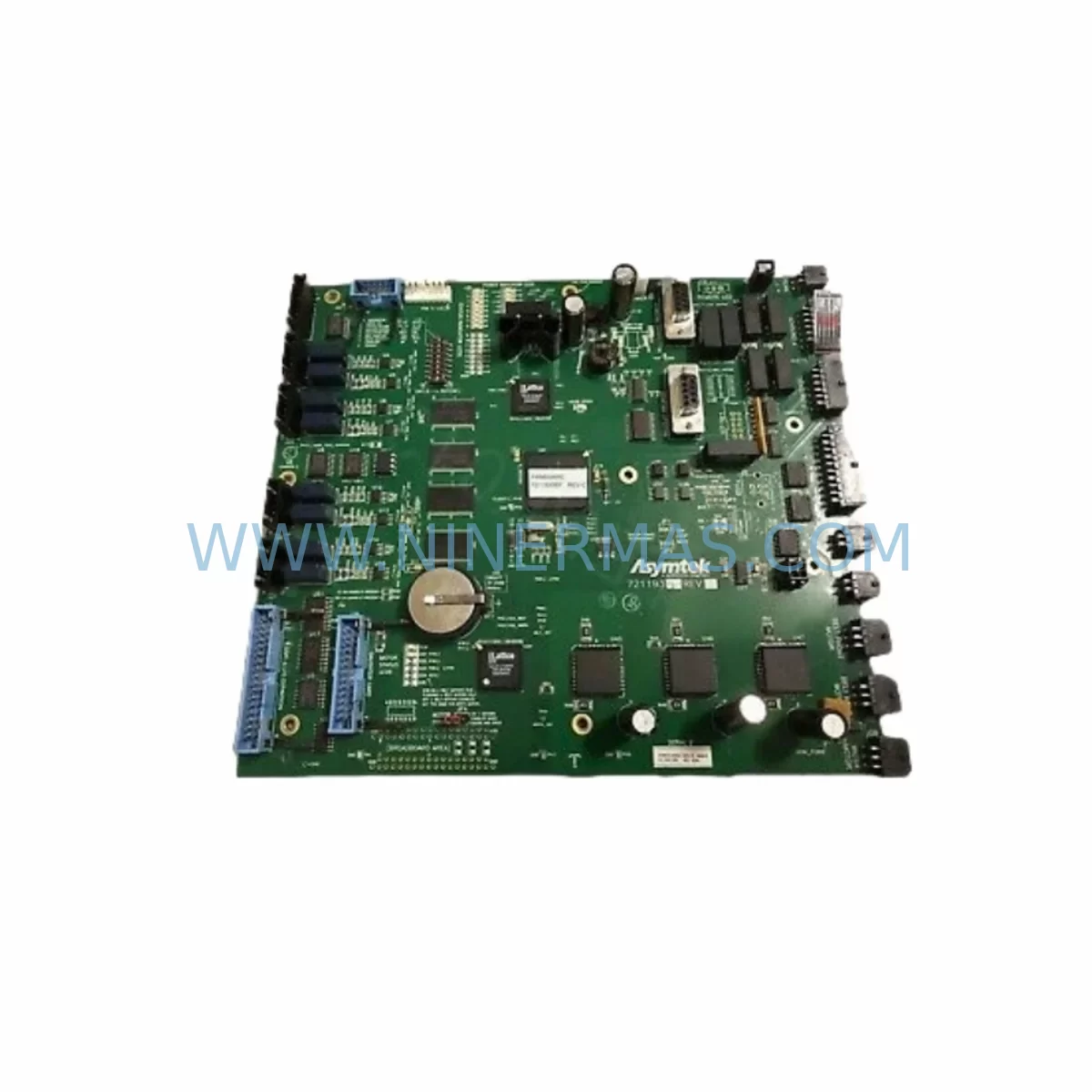

The ASYMTEK ASM7211930G (Part No. 7211930) is an original-specification control motherboard designed for ASYMTEK fluid dispensing and conformal coating systems. As the central processing and I/O coordination board within the dispensing controller cabinet, this motherboard governs motion sequencing, dispense valve timing, sensor feedback loops, and communication between the host PC and the machine’s servo drives. When this board fails or degrades, the entire dispensing line halts — making rapid access to a verified spare unit the single most effective strategy for minimizing unplanned downtime.

At NINERMAS, every ASM7211930G unit is sourced from original supply channels, subjected to pre-shipment functional verification, and shipped with a 12-month warranty. Our inventory is maintained specifically to support maintenance engineers and procurement teams who cannot afford extended lead times on critical control hardware.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A control motherboard failure in an ASYMTEK dispensing system rarely occurs in isolation. The board interfaces with multiple subsystems simultaneously, and a degraded or failed ASM7211930G will often produce cascading fault conditions across the entire controller cabinet. Maintenance engineers performing a board replacement should treat the event as a full cabinet inspection opportunity.

Begin by verifying the system backplane — the passive bus board that carries power and data signals to the ASM7211930G and all co-installed cards. Backplane connector oxidation or cracked traces are a common root cause of intermittent motherboard faults that are misdiagnosed as board failure. Simultaneously, inspect the cabinet power supply unit (typically a multi-rail industrial PSU providing +5 V, +12 V, and −12 V) for output voltage drift; an out-of-tolerance rail will damage a replacement board within weeks if left uncorrected.

The servo drive interface cards and motion control daughter boards that communicate with the ASM7211930G over the backplane bus should be reseated and visually inspected for burnt components or swollen capacitors. If the system uses a dedicated dispense valve controller card (common in multi-valve Spectrum configurations), confirm that its firmware version remains compatible with the replacement motherboard revision.

On the I/O side, check all digital I/O terminal blocks and signal isolation modules connected to the motherboard’s I/O headers. Loose or corroded terminal connections are a frequent source of nuisance faults that appear as motherboard errors. If the system includes pneumatic pressure transducers or fluid level sensors wired back to the controller, verify signal integrity at the terminal strip before powering up the replacement board.

For systems with an integrated HMI panel PC or operator interface terminal, confirm that the communication cable (typically RS-232 or USB-to-serial) between the HMI and the ASM7211930G is undamaged and that the HMI software version is compatible with the board’s firmware. A firmware mismatch between the HMI and the replacement motherboard is a common cause of post-replacement communication errors.

Procurement engineers building a spare parts kit around the ASM7211930G should also consider stocking the ASYMTEK dispense valve solenoid driver board, the system fuse block assembly, and a set of backplane edge connector spares. For sites running multiple ASYMTEK machines, a single pooled spare of the servo amplifier module and the pneumatic manifold solenoid assembly provides additional downtime protection at manageable inventory cost.

Site Replacement Workflow

Step 1 — Fault Isolation: Record all active fault codes from the HMI or host PC software before powering down. Document the machine’s last known good configuration, including recipe parameters and axis calibration data, which may need to be reloaded after board replacement.

Step 2 — Safe Power-Down: Follow ASYMTEK’s lockout/tagout procedure. Discharge any residual capacitor voltage on the backplane by waiting a minimum of 60 seconds after main power removal before opening the controller cabinet.

Step 3 — Board Removal: Note the slot position and orientation of the ASM7211930G before removal. Photograph all cable connections to the board’s I/O headers. Remove the board using an anti-static wrist strap and place it in an ESD-safe bag for return or failure analysis.

Step 4 — Inspection & Cleaning: Before installing the replacement ASM7211930G, clean the backplane slot contacts with isopropyl alcohol and inspect for bent pins. Verify that the replacement board’s revision level is compatible with the installed firmware on co-resident cards.

Step 5 — Installation & Power-Up: Seat the replacement board firmly into the backplane slot. Reconnect all I/O cables per the documented configuration. Power up the system and monitor the HMI for initialization errors. Reload recipe and calibration data as required.

Step 6 — Functional Verification: Run a dry-cycle (no fluid) dispense sequence to confirm motion control, valve timing, and sensor feedback are operating correctly before returning the machine to production.

This structured replacement workflow minimizes re-work risk and ensures the replacement ASM7211930G is validated in the actual production environment before the line resumes operation.

Spare Parts Support FAQ

Q1: Is the ASM7211930G compatible with all ASYMTEK dispensing system models?
The ASM7211930G is the primary control motherboard for the ASYMTEK C-720 and S-820 series and related Spectrum platform variants. Compatibility with specific machine serial number ranges should be confirmed against the machine’s controller cabinet documentation or the ASYMTEK system bill of materials. Contact our technical team with your machine model and serial number for confirmation before ordering.

Q2: What pre-shipment testing is performed on each unit?
Every ASM7211930G shipped by NINERMAS undergoes power-on functional verification, including backplane bus communication checks and I/O port continuity testing. Units that do not pass verification are not shipped. A test report summary is available upon request for quality-controlled procurement processes.

Q3: What is the warranty coverage and what does it include?
All units carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified operating environment. Warranty claims are processed with a replacement-first policy to minimize your downtime.

Q4: Can NINERMAS support long-term or repeat procurement of the ASM7211930G?
Yes. NINERMAS maintains standing inventory of the ASM7211930G and related ASYMTEK spare parts to support multi-site maintenance programs and annual inspection schedules. Volume pricing and priority allocation are available for customers with recurring procurement requirements. Contact us at sale@ninermas.com to discuss a supply agreement.
