Arroyo 5400-15-28 Retrofit TEC Controller for Legacy Systems

Arroyo 5400-15-28 Retrofit TEC Controller for Legacy Systems

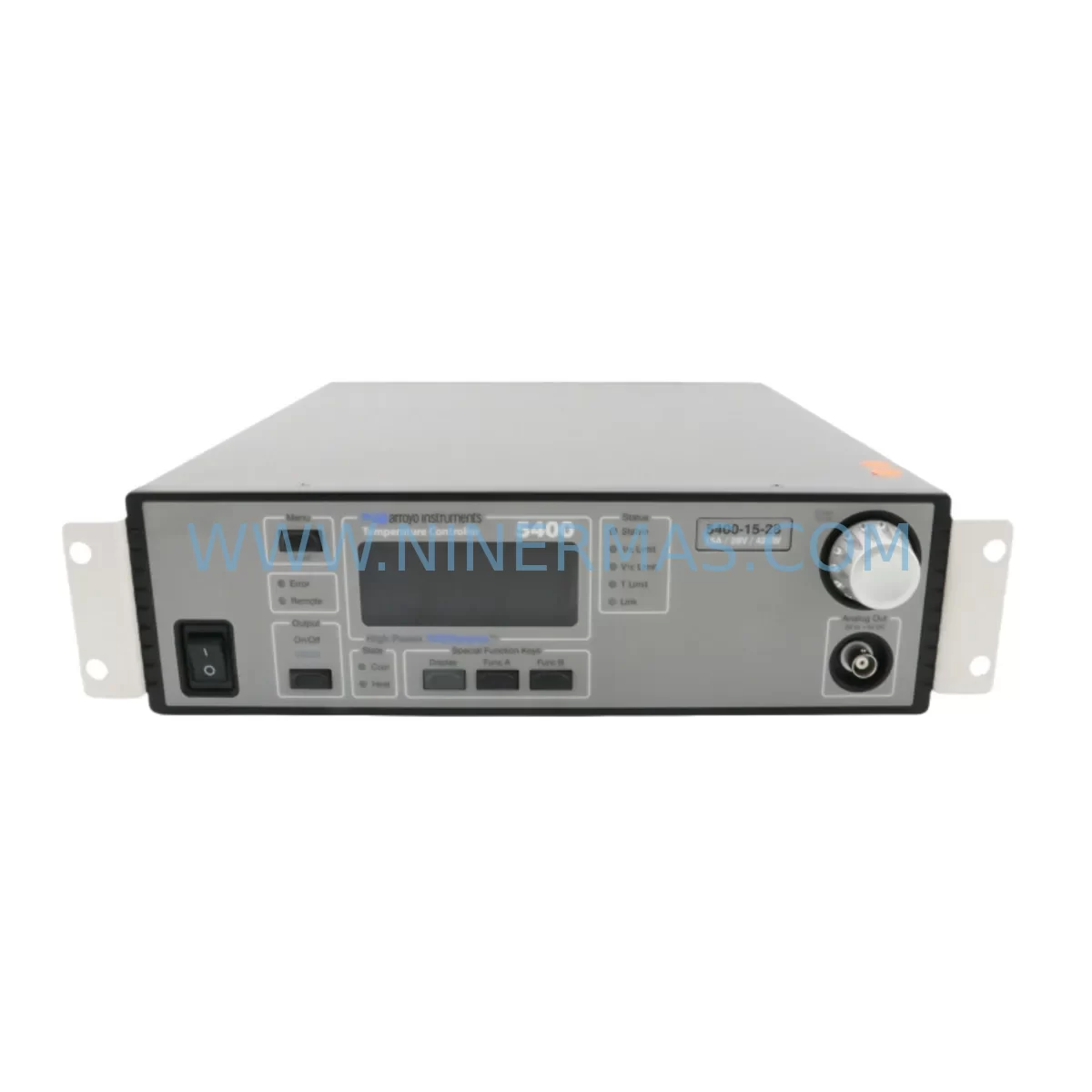

The Arroyo Instruments 5400-15-28 is a high-performance thermoelectric controller (TEC controller) from the TECSource 5400 series, rated at 15A output current and 28V compliance voltage. Designed for precision temperature control of thermoelectric modules, laser diode mounts, photonic devices, and optical bench assemblies, this unit is a proven retrofit-compatible replacement for discontinued or end-of-life TEC controllers in legacy laboratory, industrial, and OEM automation systems. Whether you are upgrading an aging temperature control loop, replacing a failed unit in a production line, or migrating a legacy control cabinet to a modern platform, the 5400-15-28 provides a reliable, drop-in-compatible solution with minimal re-engineering.

For procurement engineers and maintenance teams managing spare parts lifecycles, the 5400-15-28 is available from verified stock with pre-shipment functional testing and a 12-month warranty covering both parts and workmanship. Lead times are confirmed at order placement, and reserved inventory agreements are available for high-volume or mission-critical applications.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the Arroyo 5400-15-28 into an existing automation or laboratory system, a structured retrofit plan significantly reduces risk and downtime. The following workflow reflects best practices for replacing end-of-life TEC controllers in production and R&D environments.

Power Supply and Capacity Verification: Before installation, confirm that the existing DC power supply can deliver the full 15A at 28V required by the 5400-15-28. Many legacy systems were sized for older, lower-current controllers such as the Arroyo 5400-08-28 (8A variant) or the compact 5310 TECSource. If the existing supply is undersized, a parallel supply or a higher-capacity unit must be provisioned. Verify terminal block ratings and wire gauge on the power distribution rail — 15A continuous current requires minimum 14 AWG wiring in most industrial installations.

TEC Mount and Mechanical Interface: The 5400-15-28 is commonly paired with Arroyo Instruments Model 286 TEC mounts and Model 260 butterfly laser mounts. When replacing a legacy controller, confirm that the TEC mount’s connector pinout matches the 5400-15-28 output terminal block. Some older OEM mounts use non-standard pin assignments that require a wiring adapter harness. Document the original wiring before disconnection.

Sensor and Signal Chain Compatibility: The 5400-15-28 accepts NTC thermistor inputs (10kΩ nominal at 25°C). If the legacy system used a different sensor type — such as a PT100 RTD or an AD590 current-output sensor — a signal conditioning module must be inserted in the measurement chain. Verify the thermistor beta value and update the controller’s sensor calibration table accordingly. Incorrect sensor configuration is the most common cause of temperature offset errors after retrofit.

Communication and Software Integration: The 5400-15-28 communicates via RS-232 serial at standard baud rates. For integration with modern automation controllers, SCADA systems, or PC-based LabVIEW or Python control scripts, a USB-to-RS-232 adapter is required. If the legacy system used GPIB (IEEE-488) communication — common in older Arroyo 5240 LaserSource and 4320 LaserSource installations — a GPIB-to-serial bridge or a GPIB-capable variant of the 5400 series should be specified. Confirm the command set compatibility with the existing control software; the Arroyo Instruments ASCII command protocol is consistent across the TECSource 5400 series, simplifying software migration.

I/O Expansion and System Integration: In multi-channel temperature control cabinets, the 5400-15-28 may operate alongside other Arroyo instruments such as the 585-2 ComboSource (combined laser driver and TEC controller) or multiple 5400-15-40 high-voltage variants for different TEC module types. Confirm that the control cabinet’s I/O wiring plan accommodates the additional RS-232 port and that address conflicts are resolved if multiple instruments share a serial bus via a multiplexer.

Installation Space and Rack Layout: The 5400-15-28 occupies 2U of rack space in a standard 19-inch enclosure. In dense control cabinets, verify that adequate ventilation clearance exists above and below the unit. Forced-air cooling is recommended when ambient temperatures exceed 30°C or when the unit operates at sustained high current. Confirm that the rack’s power distribution unit (PDU) has a free IEC C14 or C20 inlet for the instrument’s AC power connection.

Downtime Control During System Migration

Minimizing production downtime during a TEC controller replacement requires careful pre-staging and a disciplined changeover procedure. The following approach is recommended for maintenance teams replacing the 5400-15-28 or migrating from a legacy equivalent:

Pre-Staging: Configure and bench-test the replacement 5400-15-28 before the scheduled maintenance window. Load the original PID parameters, thermistor calibration constants, and current limit settings from the legacy unit’s logbook or configuration backup. Verify stable temperature control on a test load before installation in the production system.

Program Logic Preservation: If the TEC controller is integrated with a PLC or automation controller — such as a Siemens S7-300, Allen-Bradley ControlLogix, or Beckhoff CX series — confirm that the PLC program’s serial communication routine is compatible with the 5400-15-28 command set. No changes to PLC ladder logic should be required if the command protocol is consistent, but a dry-run communication test is recommended before live operation.

Changeover Sequence: Power down the legacy controller and disconnect the TEC module leads and sensor wiring. Install the 5400-15-28, reconnect wiring per the documented pinout, and power up in current-limited mode before enabling temperature control. Ramp the setpoint gradually to the operating temperature to avoid thermal shock to the TEC module or optical component.

Post-Installation Verification: Confirm stable temperature regulation at the target setpoint, verify sensor readback accuracy against a calibrated reference thermometer, and log the commissioning data. Update the maintenance record with the new unit’s serial number, installation date, and warranty expiry. The 12-month warranty period begins at the date of delivery.

Retrofit Support FAQ

Q1: Is the 5400-15-28 a direct replacement for my existing Arroyo TEC controller?
The 5400-15-28 is a direct replacement for units of the same model number and is functionally compatible with other TECSource 5400 series variants (e.g., 5400-08-28, 5400-15-40) subject to current and voltage rating verification. For OEM-branded or third-party TEC controllers, cross-reference the output current, compliance voltage, sensor input type, and communication interface before ordering. Our technical team can assist with compatibility assessment based on your legacy unit’s datasheet or nameplate data.

Q2: What pre-shipment testing is performed on the 5400-15-28?
Each unit undergoes functional testing prior to shipment, including output current calibration verification, thermistor sensor input accuracy check, RS-232 communication test, and visual inspection for physical damage. A test report is included with shipment. Units are shipped in anti-static packaging with foam protection to prevent transit damage.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects in parts and workmanship from the date of delivery. It does not cover damage resulting from incorrect installation, overvoltage, reverse polarity connection, or operation outside the specified environmental limits. Warranty claims are processed with return authorization; replacement or repair is completed within the agreed lead time.

Q4: Is stock available for immediate shipment?
The 5400-15-28 is maintained in verified stock for prompt shipment. Lead times are confirmed at order placement. For critical applications requiring guaranteed availability, reserved inventory agreements are available. Contact our sales team to discuss volume pricing and stock reservation terms.
