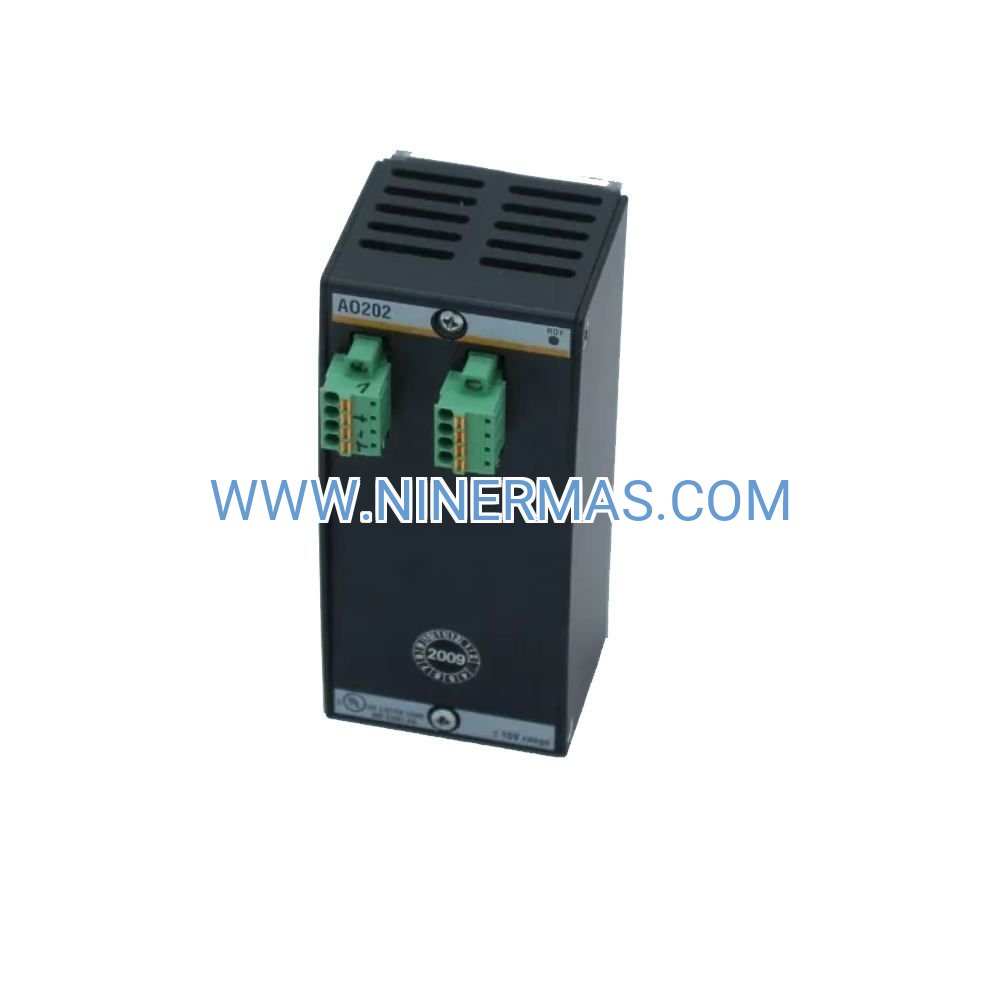

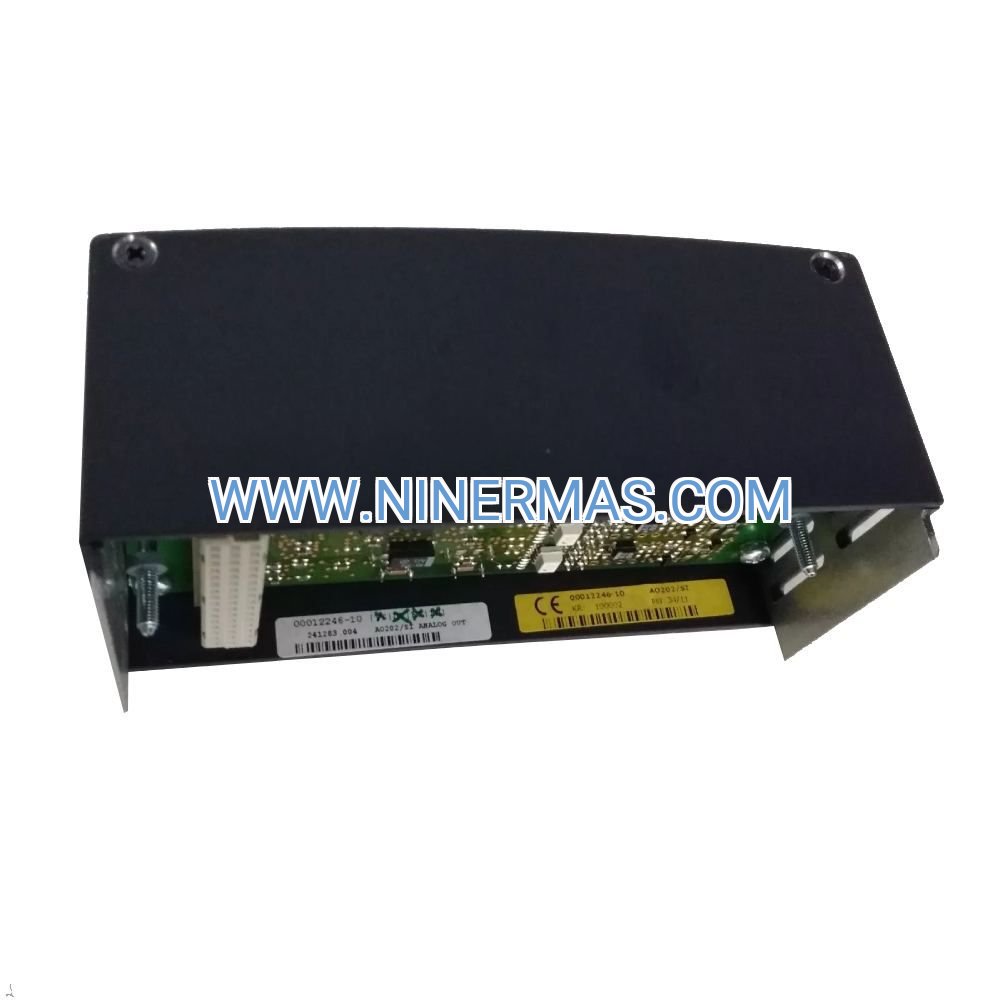

BACHMANN AO202 Analog Output Module (Industrial-Grade Precision Control)

The BACHMANN AO202 represents a professional-grade analog output solution engineered for mission-critical industrial environments. Featuring true 16-bit digital-to-analog conversion with ±10V output capability, this module delivers the precision and reliability demanded by modern process control, manufacturing automation, and instrumentation systems.

Designed for seamless integration within BACHMANN M1 controller ecosystems, the AO202 combines high-speed signal processing with robust electrical isolation to ensure stable operation in electrically noisy industrial settings. Whether you're controlling valve actuators, variable frequency drives, or precision instrumentation, this module provides the accuracy and repeatability your applications require.

With an extended operating temperature range and industrial-grade construction, the AO202 stands ready to perform in the harshest production environments while maintaining ±0.1% full-scale accuracy across its entire operational envelope.

Core Features & Benefits

→ True 16-Bit Resolution
Achieve 65,536 discrete output levels for ultra-precise analog control. This high resolution enables smooth valve positioning, accurate motor speed regulation, and fine-tuned process parameter adjustment that directly translates to improved product quality and reduced waste.

→ Dual-Channel ±10V Output
Two independent analog output channels provide flexible system architecture options. Control multiple actuators or split-range applications from a single module, reducing hardware costs and simplifying cabinet layouts while maintaining complete channel independence.

→ 500V Galvanic Isolation
Electrical isolation protects sensitive controller circuitry from ground loops, voltage spikes, and electromagnetic interference common in industrial power distribution systems. This isolation barrier ensures system reliability and extends equipment lifespan in challenging electrical environments.

✓ 1ms Update Rate Per Channel
Rapid signal refresh enables responsive control loops for dynamic processes. Fast update rates improve system stability, reduce settling time, and enable precise control of high-speed manufacturing operations.

✓ Extended Temperature Operation (-30°C to +60°C)
Operate reliably in outdoor installations, cold storage facilities, foundries, and other extreme-temperature environments without performance degradation. This wide temperature range eliminates the need for costly climate control in many industrial applications.

✓ M1 Platform Integration
Plug-and-play compatibility with BACHMANN M1 backplane systems ensures rapid deployment and simplified configuration. Leverage existing M1 infrastructure investments while benefiting from unified programming environments and diagnostic tools.

Application Scenarios

Process Control & Regulation
Deploy the AO202 in chemical processing, water treatment, and pharmaceutical manufacturing for precise control of flow rates, pressure regulation, and temperature management. The module's high accuracy ensures consistent product quality while minimizing raw material consumption and energy costs.

Manufacturing Automation
Control conveyor speeds, robotic positioning systems, and assembly line equipment with the precision required for modern lean manufacturing. The dual-channel architecture enables coordinated motion control and synchronized multi-axis operations.

HVAC & Building Management
Regulate damper positions, valve actuators, and variable air volume systems in commercial and industrial facilities. The extended temperature range supports rooftop installations and mechanical room environments without additional environmental protection.

Energy & Utilities
Implement in power generation facilities, substations, and renewable energy systems for generator excitation control, load management, and grid synchronization applications. The module's isolation and accuracy meet the stringent requirements of utility-grade control systems.

Test & Measurement Systems
Provide precision stimulus signals for automated test equipment, calibration systems, and quality control instrumentation. The 16-bit resolution and low drift characteristics ensure repeatable test results and regulatory compliance.

Technical Parameters & Selection Guide

Selection Criteria: Choose the AO202 when your application requires two high-precision analog outputs with voltage-mode control. For current-loop applications (4-20mA), consider alternative modules with current output capability. If your system requires more than two channels, evaluate the AO204 four-channel variant or deploy multiple AO202 modules across available backplane slots.

Extended Functions

Diagnostic Capabilities: The AO202 provides comprehensive self-diagnostics including output short-circuit detection, overload monitoring, and communication status reporting. These diagnostic features integrate with M1 system monitoring tools for predictive maintenance and rapid fault isolation.

Configuration Flexibility: Software-configurable output ranges, slew rate limiting, and fail-safe output states enable customization for specific application requirements without hardware modifications. This flexibility reduces spare parts inventory and simplifies system modifications.

Industrial Networking: When paired with M1 communication modules, the AO202 integrates seamlessly into Ethernet/IP, PROFINET, and Modbus TCP networks, enabling distributed control architectures and remote monitoring capabilities.

Delivery & Service Assurance

Lead Time: Standard delivery within 3-5 business days for in-stock units. Custom configurations and volume orders typically ship within 7-10 business days. Expedited shipping options available for urgent project requirements.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Access to experienced automation engineers for pre-sales consultation, system design assistance, and post-installation troubleshooting. Support available via email, phone, and remote diagnostic sessions.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration software, and sample application code. Complete technical specifications and CAD drawings available for download.

Frequently Asked Questions

What backplane compatibility does the AO202 analog output module require?
The AO202 installs in any BACHMANN M1 system backplane including BS209 (9-slot) and BS210 (10-slot) configurations. The module auto-configures upon insertion and requires no manual addressing when used with M1 processor modules.

Can I achieve 4-20mA current loop output with this module?
The AO202 provides voltage output (±10V) only. For current loop applications, use external voltage-to-current converters or select BACHMANN modules specifically designed for 4-20mA output. Consult our technical team for current-output module recommendations.

What cable specifications are recommended for analog output connections?
Use shielded twisted-pair cable with 18-22 AWG conductors for optimal noise immunity. Maximum recommended cable length is 100 meters for voltage-mode outputs. Shield should be grounded at the controller end only to prevent ground loops.

How does the module perform in high-vibration environments?
The AO202 meets industrial vibration standards for DIN rail and backplane mounting. For extreme vibration applications (mobile equipment, heavy machinery), use additional mechanical securing methods and verify compliance with your specific vibration profile.

Is hot-swap capability supported for maintenance operations?
Yes, the AO202 supports hot-swap replacement when installed in compatible M1 backplanes. The system automatically detects module insertion/removal and re-initializes the channel configuration without requiring controller restart.

What output protection features prevent damage from wiring errors?
Each output channel includes short-circuit protection and overload detection. The module automatically disables affected channels and reports fault conditions to the M1 controller, preventing damage while maintaining operation of unaffected channels.

Take the Next Step

Ready to enhance your industrial control system with precision analog output capability? Contact our automation specialists today for technical consultation, system design assistance, and competitive project pricing. We maintain extensive inventory for immediate shipment and offer volume discounts for multi-module deployments.

Request a quote now or speak with our technical team to discuss your specific application requirements and integration strategy.
