AMAT 0100-09032 Service-Ready Spare for Industrial Maintenance

AMAT 0100-09032 Service-Ready Spare for Industrial Maintenance

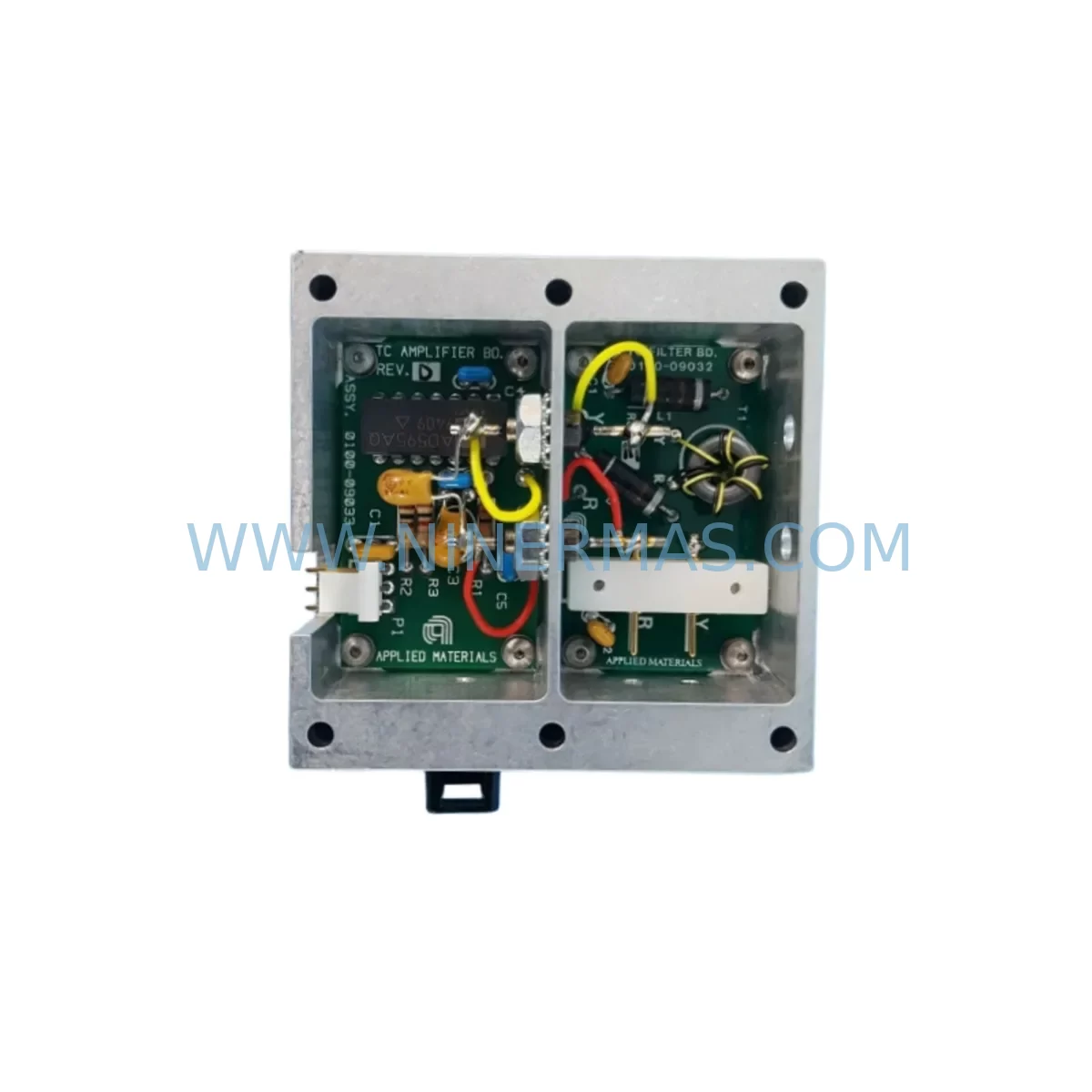

The AMAT 0100-09032 TC Filter Board is a critical spare part for Applied Materials CVD and Etch process systems deployed across semiconductor fabrication facilities worldwide. When this board fails, the entire process chamber can be taken offline, resulting in costly unplanned downtime that disrupts wafer throughput and production schedules. Sourcing a verified, service-ready replacement from a reliable supplier is the fastest path to restoring chamber operation and protecting your fab’s output commitments. NINERMAS maintains pre-tested stock of the 0100-09032 to support emergency replacement, planned maintenance cycles, and strategic spare parts inventory programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The 0100-09032 TC Filter Board sits at the intersection of temperature measurement and process control in Applied Materials CVD and Etch chambers. During routine point inspections and annual overhauls, maintenance engineers should treat this board as part of a broader signal integrity audit. Thermocouple signal drift or intermittent faults are rarely isolated to a single component — the root cause often involves adjacent boards and interconnects throughout the same control loop.

When replacing the 0100-09032, it is standard practice to simultaneously inspect the companion 0100-09033 TC Filter Board, which handles a parallel thermocouple channel in the same chassis. Both boards share the same backplane connector interface and are subject to identical thermal and electrical stress cycles. If one board shows signs of capacitor aging or trace corrosion, the other is likely approaching the same failure threshold.

The 0020-10758 interface board, which routes analog signals between the TC filter stage and the main process controller, should be bench-tested whenever the 0100-09032 is replaced. Signal contamination from a degraded 0020-10758 can cause the new TC filter board to report erroneous temperature readings, masking the true chamber condition and triggering false process alarms.

Power integrity is equally important. The 0100-00396 DC power supply module feeding the analog signal boards should be load-tested and its output ripple measured before the replacement board is commissioned. Excessive ripple on the 5 V or 15 V rails is a known cause of premature TC filter board failure in high-uptime Endura and Centura platforms.

I/O connectivity should not be overlooked. The 0100-01321 digital I/O board, which manages interlock signals and chamber status flags, shares the same controller backplane as the TC filter assembly. A loose or oxidized backplane connector on the I/O board can introduce ground noise that corrupts thermocouple readings even after a clean board swap. Inspect and reseat all backplane connectors as part of the replacement workflow.

For systems running extended process recipes, the 0190-35087 cable assembly connecting the thermocouple junction to the filter board input should be inspected for insulation cracking, connector pin corrosion, and continuity. A degraded cable is the most common cause of recurring TC filter board replacements in high-cycle chambers.

Communication integrity between the process module and the host system controller depends on the 0100-20012 serial communication interface board. If the host is logging intermittent temperature data gaps coinciding with the TC filter board fault, the communication board should be included in the fault isolation checklist before the chamber is returned to production.

Finally, procurement engineers building annual spare parts kits for Applied Materials platforms should consider stocking the 0100-09104 analog signal conditioning board and the 0100-00335 relay output board alongside the 0100-09032. These three components form the core of the temperature measurement and control chain and are the most frequently replaced boards during scheduled chamber maintenance across Endura and Centura fleets.

Site Replacement Workflow

Replacing the AMAT 0100-09032 TC Filter Board on-site follows a structured sequence designed to minimize chamber downtime and eliminate re-work caused by incomplete fault isolation.

Step 1 — Fault Confirmation: Before ordering a replacement, confirm the fault is board-level by running the AMAT diagnostic utility to log TC channel error codes. A persistent TC open-circuit or out-of-range alarm that does not clear after cable reseating is a reliable indicator of board failure.

Step 2 — ESD-Safe Removal: Power down the controller chassis and follow AMAT’s lockout/tagout procedure. Remove the 0100-09032 using an ESD wrist strap and anti-static tray. Document the slot position and connector orientation before extraction.

Step 3 — Visual Inspection of Adjacent Components: Inspect the backplane connector, the 0020-10758 interface board, and the TC cable assembly for visible damage before installing the replacement. Address any secondary issues before proceeding.

Step 4 — Installation and Commissioning: Seat the replacement 0100-09032 firmly into the backplane slot. Power up the chassis and run the TC channel self-test. Verify that all thermocouple channels report within the expected temperature range before resuming process recipes.

Step 5 — Documentation: Record the replaced part number, serial number, installation date, and technician ID in the chamber maintenance log. Retain the failed board for failure analysis if the fault recurs within the warranty period.

This workflow is compatible with legacy Applied Materials system configurations and does not require firmware updates or system recalibration when replacing a like-for-like 0100-09032 board.

Spare Parts Support FAQ

Q1: Is the NINERMAS 0100-09032 an original OEM part or a third-party replacement?
The 0100-09032 supplied by NINERMAS is sourced from original Applied Materials production runs or certified refurbishment channels. Each unit undergoes functional testing prior to shipment to verify signal filtering performance and backplane connector integrity. A 12-month warranty is provided from the date of shipment.

Q2: How should I manage 0100-09032 inventory for a multi-chamber fab?
For fabs operating three or more Applied Materials CVD or Etch chambers, we recommend maintaining a minimum of two 0100-09032 boards in on-site spare stock. Given the board’s role in temperature measurement, a single unplanned failure can idle a chamber for 24–72 hours if a replacement is not immediately available. NINERMAS supports long-term supply agreements and reserved inventory programs to ensure consistent availability.

Q3: Can the 0100-09032 be used as a direct replacement for the 0100-09033?
The 0100-09032 and 0100-09033 are related TC filter board variants designed for different thermocouple channel assignments within the same controller chassis. They are not interchangeable without verifying the slot assignment and channel mapping in the system’s wiring documentation. Contact NINERMAS technical support with your system model and slot configuration for compatibility confirmation before ordering.

Q4: What testing is performed before the 0100-09032 ships?
Each 0100-09032 board is tested for signal filtering accuracy, backplane connector continuity, and component-level integrity before dispatch. Test records are available upon request. Boards that do not meet functional thresholds are quarantined and not shipped. All units are packed in ESD-safe anti-static bags with foam cushioning to prevent transit damage.
