AMAT 0050-41494 Retrofit Pressure Control for Legacy Systems

AMAT 0050-41494 Retrofit Pressure Control for Legacy Systems

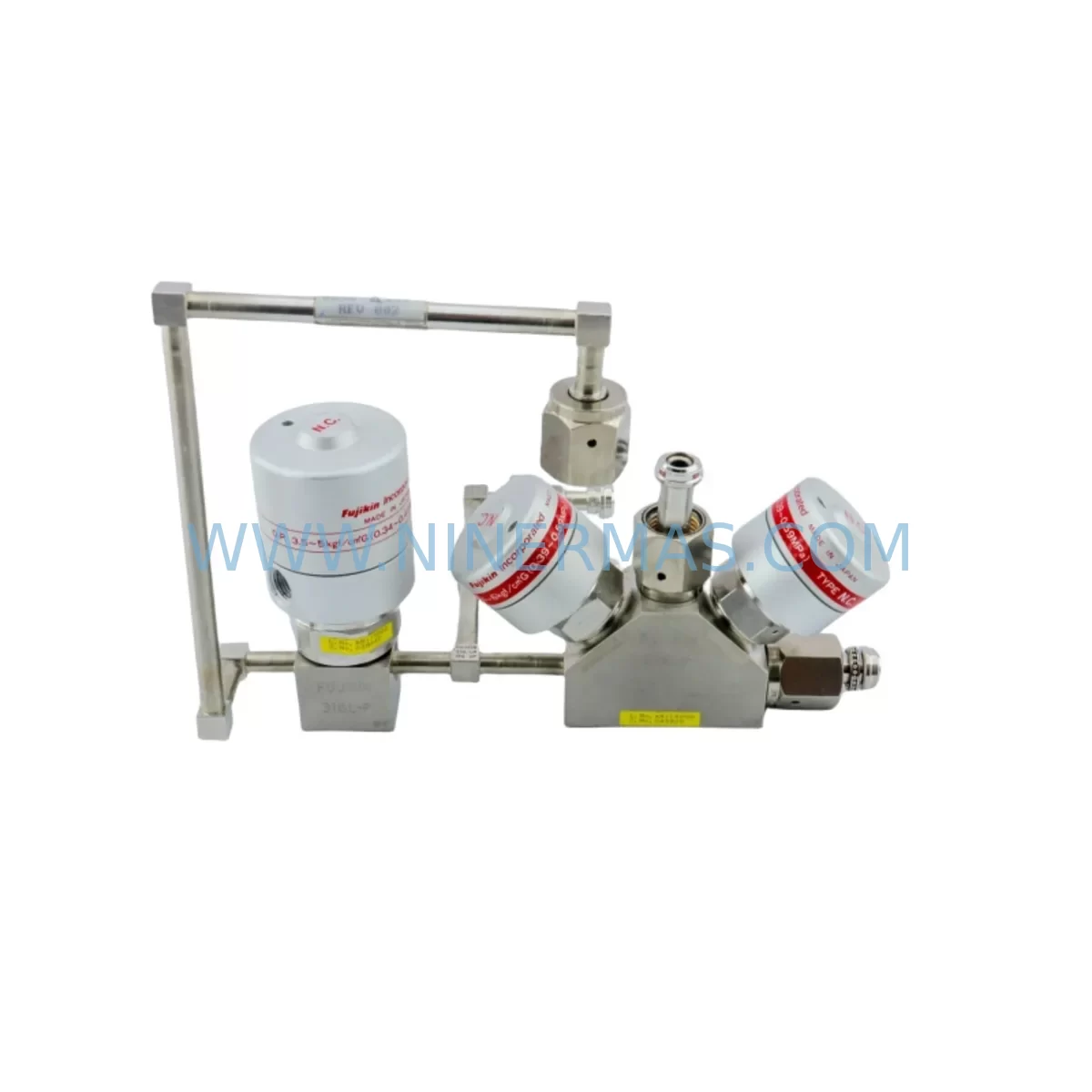

The Applied Materials 0050-41494 is a ruggedized pressure control module originally designed for use in semiconductor process equipment platforms, including legacy Endura and Centura deposition systems. As these platforms age and original spare parts reach end-of-life, facilities engineering teams face increasing pressure to source verified replacement modules that maintain process integrity without requiring full chamber redesign. The 0050-41494 addresses this need directly, offering a retrofit-compatible solution for pressure regulation in harsh vacuum and process gas environments where reliability and repeatability are non-negotiable.

This module carries the internal designation TYPE N.C. O.P. 0.39~0.59MPA and is cross-referenced under assembly code 543573 and sub-assembly 0021-21779, confirming its role within Applied Materials’ gas delivery and pressure management architecture. For facilities managing aging Endura PVD or Centura CVD chambers, this module represents a critical spare that directly supports uptime continuity and process repeatability across multi-chamber tool sets.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 0050-41494 in an operational semiconductor fab environment requires careful coordination across multiple subsystems. Before removing the existing module, engineers should document the current pressure setpoints logged in the chamber controller and verify that the upstream gas panel — typically incorporating mass flow controllers such as the 0190-35534 MFC assembly — is isolated and purged. Failure to confirm upstream isolation before module removal is one of the most common causes of unplanned downtime during pressure control retrofits.

The 0050-41494 is typically located within the gas delivery section of the process module, adjacent to components such as the 0050-41493 and 0050-41495 pressure assemblies, which serve complementary roles in the same pressure regulation circuit. When one module in this series shows signs of drift or mechanical wear, it is standard practice to inspect the adjacent assemblies simultaneously to avoid repeat maintenance events within a short interval.

Downstream of the pressure control module, the process gas flow path connects to chamber body components and isolation valve assemblies. In Endura platform configurations, the 0020-34572 valve actuator assembly and 0010-36202 chamber body interface components are frequently involved in the same retrofit scope. Technicians should confirm that the replacement 0050-41494 is compatible with the existing valve timing sequences programmed in the chamber controller before resuming process runs.

Power supply integrity is another critical checkpoint. The 0040-38574 DC power distribution assembly, commonly found in Endura mainframe configurations, must be verified for stable output voltage before the new pressure control module is energized. Voltage fluctuations during initial power-up can cause false interlock trips and complicate commissioning. Similarly, the 0150-76947 backplane interface assembly should be inspected for connector wear and secure seating, as intermittent backplane contact is a known source of pressure control instability in aging tool sets.

For facilities running multi-chamber configurations, the 0620-02552 communication harness and 1350-01365 signal conditioning assembly may also require inspection during the retrofit window. These components support the interlock and status signal chain that connects the pressure control module to the tool’s central controller. Ensuring signal continuity across this chain before returning the chamber to production is essential for maintaining process safety and avoiding nuisance alarms during the first qualification run after replacement.

Installation space confirmation is mandatory before ordering. The 0050-41494 occupies a defined envelope within the gas panel enclosure, and any modifications to adjacent plumbing or bracket assemblies since the original installation may affect fit. Measure the available clearance and compare against the module’s physical dimensions before scheduling the maintenance window.

Downtime Control During System Migration

Minimizing downtime during a pressure control module replacement on a production semiconductor tool requires a structured pre-maintenance checklist and a clearly defined rollback plan. Begin by scheduling the replacement during a planned preventive maintenance window rather than responding reactively to a module failure, as reactive replacements under production pressure increase the risk of procedural errors and extended outages.

Before the maintenance window opens, stage all required components at the tool: the replacement 0050-41494, appropriate gaskets and fittings, calibrated torque tools, and a portable leak detector. Having all materials on-site before the chamber is vented eliminates the most common source of unplanned downtime extension — waiting for parts or tools during an open chamber event.

Preserve the original program logic by exporting the current chamber recipe set and interlock configuration from the tool controller before beginning any hardware work. This backup ensures that if the replacement module requires setpoint adjustment, the original parameters are available as a reference baseline. Do not rely on operator memory or informal documentation for this step.

After installation, perform a controlled pump-down sequence and monitor the pressure response curve against the historical baseline for this chamber. A replacement module that is functioning correctly should reproduce the original pressure profile within the normal process tolerance band. Any deviation outside this band should be investigated before the chamber is returned to production, as it may indicate a plumbing issue, a setpoint mismatch, or a problem with an adjacent component rather than a defect in the replacement module itself.

Field commissioning support is available for customers who require on-site guidance during the replacement and qualification process. Contact the technical support team before scheduling the maintenance window to confirm availability and coordinate any required documentation.

Retrofit Support FAQ

Q: Is the 0050-41494 a direct drop-in replacement for the original Applied Materials part?
A: Yes. The 0050-41494 supplied by NINERMAS is sourced and tested to match the original Applied Materials specification, including the TYPE N.C. O.P. 0.39~0.59MPA pressure rating and the mechanical interface defined by assembly code 543573. No modification to the existing mounting position or plumbing connections is required for a standard replacement.

Q: What pre-shipment testing is performed on each unit?
A: Every 0050-41494 unit undergoes pressure response testing and mechanical integrity inspection before dispatch. Test records are available upon request. Each unit is shipped with a 12-month warranty covering defects in materials and workmanship from the date of shipment.

Q: How do I confirm compatibility with my specific tool configuration?
A: Provide your tool serial number, chamber type (Endura, Centura, or Producer platform), and the existing part number visible on the installed module. The NINERMAS technical team will cross-reference this information against the applicable Applied Materials bill of materials to confirm compatibility before order confirmation.

Q: What is the typical lead time and stock availability?
A: The 0050-41494 is maintained in reserved inventory to support urgent replacement requirements. Standard lead time for in-stock units is 3–5 business days for international shipments. For facilities with recurring demand, long-term supply agreements and reserved stock programs are available to eliminate lead time uncertainty and support planned maintenance schedules.
