AMAT 0150-23121 Retrofit-Compatible Cable for Legacy Systems

AMAT 0150-23121 Retrofit-Compatible Cable Assembly for Legacy Semiconductor Systems

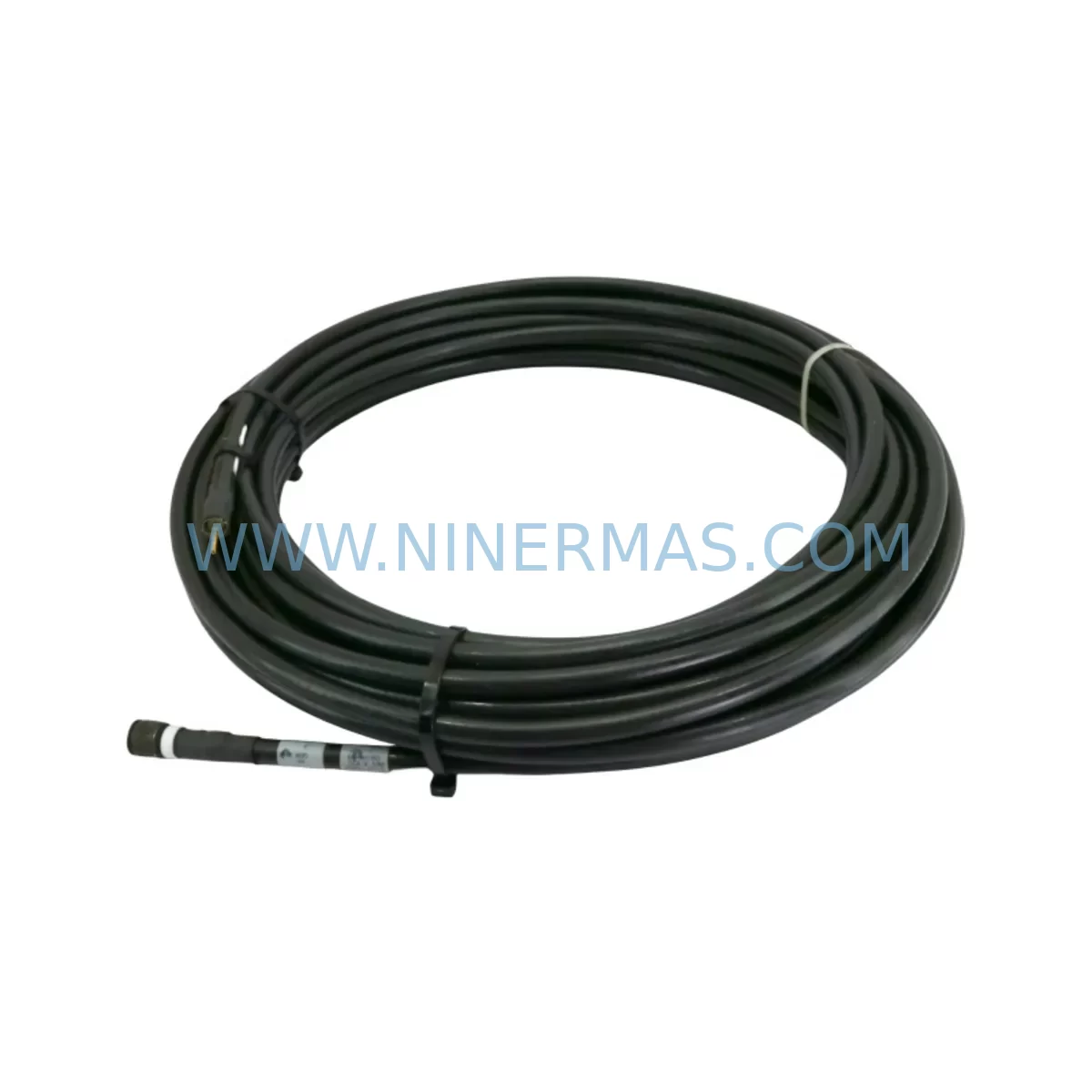

The Applied Materials 0150-23121 (cross-reference: 4022.192.71178 / 0010-75433) is a precision cable assembly engineered for semiconductor process equipment retrofit and legacy system restoration. As Applied Materials continues to evolve its platform architecture, many fabs operating older CVD, etch, and implant systems face the challenge of sourcing discontinued interconnect components. This cable assembly serves as a direct retrofit-compatible replacement, enabling maintenance teams and system integrators to restore full electrical continuity without redesigning the control cabinet or modifying the existing wiring harness layout.

Whether you are upgrading an aging AL203 BWCVD chamber, restoring a legacy Centura platform, or performing a scheduled preventive maintenance cycle on a Producer or P5000 system, the 0150-23121 cable assembly provides the connector geometry, conductor gauge, and shielding specification required to maintain signal integrity across the process module interface. The cross-reference part numbers 4022.192.71178 and 0010-75433 confirm compatibility across multiple AMAT equipment generations, reducing procurement risk during critical tool recovery operations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 0150-23121 cable assembly into an existing semiconductor tool requires a structured retrofit plan that accounts for the full scope of the electrical and mechanical interface. Before removing the legacy cable, maintenance engineers should document the existing wiring path, label all mating connectors, and photograph the routing through the cable management tray. This prevents re-installation errors and reduces commissioning time significantly.

In many AL203 BWCVD retrofit scenarios, the 0150-23121 is replaced alongside related interconnect components such as the 0150-22817 RF power cable, the 0150-09429 chamber signal harness, and the 0190-series AC power distribution cables that feed the process module. If the control cabinet also requires attention, the 0100-series chamber interface boards and 0040-series electronic control modules may need inspection for corrosion or connector fatigue. For systems where the 0620-series PCB assemblies govern the I/O signal routing, verifying that the new cable assembly’s pinout matches the board’s terminal block layout is essential before powering up.

When the retrofit involves a communication protocol migration — for example, transitioning from legacy RS-232 host interfaces to SECS/GEM over TCP/IP — the 0150-23121 cable assembly must be verified against the updated signal chain. In such cases, signal isolation modules and shielded cable routing become critical to prevent ground loop interference. The 9090-series sensor modules and 0020-series mechanical interface components that share the same cable tray should also be inspected for wear, as bundled cable assemblies in high-cycle environments often degrade at similar rates.

Power capacity verification is another mandatory step. Confirm that the power supply feeding the process module — typically a 0190-series or equivalent AC/DC distribution unit — can sustain the load after the cable replacement. Terminal block torque values should be re-verified to OEM specification, and any crimped terminals showing signs of heat discoloration should be replaced before the new cable assembly is installed. Backplane connector seating should be confirmed with a gentle pull-test after insertion to ensure full engagement.

Downtime Control During System Migration

Minimizing unplanned downtime during a cable assembly replacement on a semiconductor process tool requires preparation, spare parts staging, and a clear rollback plan. Before the maintenance window begins, the 0150-23121 replacement unit should be on-site and pre-inspected. Confirm that the replacement cable’s length, connector types, and shielding match the original by comparing against the tool’s BOM or the existing cable’s label markings.

During the swap, preserve the original program logic by ensuring the host computer remains connected and the recipe files are backed up. If the tool uses a local HMI panel — common in older Centura and P5000 configurations — verify that the HMI screen mapping remains intact after the cable replacement, as some interface cables carry display or touchscreen signals that can affect panel responsiveness if improperly seated.

To maintain field control continuity, isolate only the affected process module rather than shutting down the entire tool cluster where possible. This approach allows adjacent chambers to continue processing wafers while the cable replacement is performed, reducing the impact on fab throughput. After re-installation, run the tool’s built-in diagnostic sequence and verify all I/O signals are within specification before releasing the chamber back to production. A controlled test wafer run is recommended before resuming full production to confirm process stability.

Retrofit Support FAQ

Q: Is the 0150-23121 a direct replacement for 4022.192.71178 and 0010-75433?
A: Yes. All three part numbers refer to the same cable assembly specification. The cross-reference numbers originate from different AMAT documentation revisions and regional procurement systems. Our team verifies cross-reference compatibility before shipment.

Q: What pre-shipment testing is performed on this cable assembly?
A: Each unit undergoes continuity testing, insulation resistance measurement, and connector seating verification before dispatch. A test report is available upon request and is included with the shipment documentation.

Q: How do I confirm the cable will fit my existing installation without modification?
A: Provide your tool model number and chamber configuration when placing your order. Our technical team will cross-check the cable routing path, connector orientation, and length against the known BOM for your platform. We maintain records for AL203 BWCVD, Centura, Producer, and P5000 series tools.

Q: What warranty and stock availability can I expect?
A: All units ship with a 12-month warranty covering manufacturing defects and electrical performance. We maintain ready stock for the 0150-23121 and its cross-reference equivalents to support urgent tool recovery situations. Lead time for in-stock units is typically 3–5 business days for international shipments.
