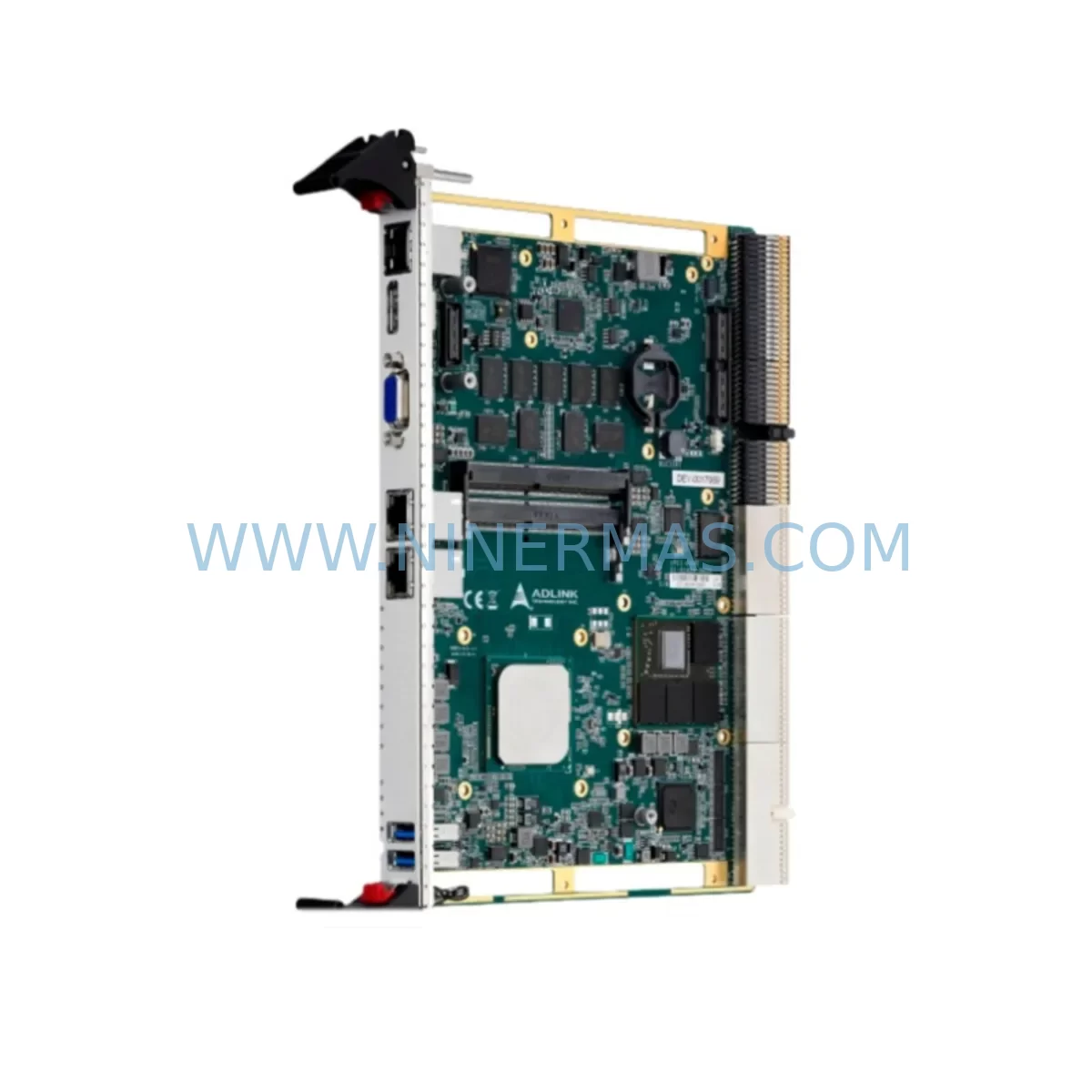

ALPHA CPCI-2IPC-6U Service-Ready Spare Part for Industrial Maintenance

ALPHA CPCI-2IPC-6U Service-Ready Spare Part for Industrial Maintenance

The ALPHA CPCI-2IPC-6U is a CompactPCI 6U industrial computing module designed for mission-critical automation environments where system uptime is non-negotiable. As a service-ready original spare part, this unit is sourced, inspected, and dispatched to support rapid field replacement, emergency downtime recovery, and planned annual maintenance cycles. Whether you are managing a legacy control cabinet, executing a scheduled overhaul, or responding to an unplanned line stoppage, the CPCI-2IPC-6U provides the compatibility and reliability that maintenance engineers and procurement teams depend on.

Industrial facilities running ALPHA CompactPCI 6U architectures face increasing pressure to maintain aging infrastructure without the luxury of full system upgrades. The CPCI-2IPC-6U addresses this challenge directly — it slots into existing 6U CompactPCI backplanes without requiring firmware reconfiguration or mechanical modification, making it the preferred choice for site engineers who need to restore production with minimal intervention.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the CPCI-2IPC-6U in a live industrial environment is rarely an isolated task. Experienced maintenance engineers understand that a CompactPCI module failure is often a symptom of broader stress within the control cabinet. When scheduling a replacement, a thorough inspection of the surrounding system is essential to prevent repeat failures and ensure long-term stability.

Begin by auditing the ALPHA CompactPCI 6U backplane itself — inspect for bent pins, oxidized connectors, and signs of thermal stress before inserting the new module. The backplane power rails should be verified using a calibrated multimeter; voltage deviations beyond ±5% on the 3.3V or 5V lines indicate a failing CompactPCI power supply module that should be replaced concurrently. Many sites stock a dedicated ALPHA 6U chassis power unit as a companion spare precisely for this reason.

Next, evaluate the I/O interface cards installed in adjacent slots. CompactPCI systems in process control applications frequently pair the IPC module with digital I/O expansion boards and analog signal conditioning modules. If the CPCI-2IPC-6U failure was preceded by erratic I/O behavior, inspect these boards for capacitor bulge, burnt traces, or loose rear-panel connectors. Signal isolators on field wiring inputs are another common failure point — a degraded isolator can inject noise that accelerates IPC module wear.

Communication integrity must also be verified. Systems using the CPCI-2IPC-6U as a controller hub often rely on CompactPCI communication modules — including PROFIBUS DP, CANbus, or Ethernet-based fieldbus cards — installed in the same chassis. These should be tested for proper enumeration and data throughput after the IPC replacement. If the system interfaces with a Modbus RTU or PROFINET network, confirm that the new module’s firmware revision is compatible with the existing network configuration before going live.

For facilities managing HMI-integrated control loops, verify the connection between the CPCI-2IPC-6U and the operator panel or industrial HMI terminal. Display communication faults are frequently misdiagnosed as HMI hardware failures when the root cause is a degraded IPC module — replacing the CPCI-2IPC-6U often resolves these symptoms. Additionally, inspect terminal blocks and field wiring connectors on the rear transition module (RTM) for corrosion or loose terminations, as these are a leading cause of intermittent faults in 6U CompactPCI installations.

Procurement engineers building annual spare parts lists for ALPHA CompactPCI 6U systems should consider stocking the CPCI-2IPC-6U alongside fuse holders and blade fuses rated for the chassis power input, relay output modules used in interlock circuits, and battery-backed SRAM or CF card storage modules that retain system configuration data. A well-structured spare parts inventory reduces mean time to repair (MTTR) and protects production continuity across multi-shift operations.

Site Replacement Workflow

Replacing the CPCI-2IPC-6U on-site follows a structured sequence designed to minimize downtime and eliminate configuration errors. Before beginning, confirm that the replacement unit’s hardware revision matches or is backward-compatible with the installed system — ALPHA CompactPCI 6U series modules are generally revision-tolerant, but firmware version alignment should be verified against the system’s existing software baseline.

Step 1 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the CompactPCI chassis and allow capacitors to discharge for a minimum of 60 seconds before opening the card cage.

Step 2 — Module Extraction: Release the ejector handles on the CPCI-2IPC-6U card and slide it out of the backplane slot. Avoid touching the PCB edge connectors. Place the removed module in an ESD-safe bag for return or failure analysis.

Step 3 — Slot and Backplane Inspection: Visually inspect the vacated backplane slot for debris, bent pins, or discoloration. Use compressed air to clear any particulate contamination before inserting the replacement.

Step 4 — Module Installation: Align the CPCI-2IPC-6U replacement with the guide rails and slide it firmly into the slot until both ejector handles engage. Do not force the module — resistance indicates misalignment.

Step 5 — Power-Up and Verification: Re-energize the chassis and monitor the system POST sequence. Confirm that the module is recognized by the system controller and that all I/O channels report correctly. Run a functional test against the process baseline before returning the line to production.

This workflow is applicable whether you are replacing a failed unit during an emergency shutdown or performing a proactive swap during a planned maintenance window. Sites that pre-stage a tested CPCI-2IPC-6U spare can typically complete the replacement within 30–45 minutes, significantly reducing unplanned downtime costs.

Spare Parts Support FAQ

Q1: Is the CPCI-2IPC-6U compatible with all ALPHA CompactPCI 6U chassis models?
The CPCI-2IPC-6U is designed for ALPHA’s CompactPCI 6U series and is compatible with standard PICMG 2.0 compliant 6U backplanes. Compatibility with specific chassis configurations should be confirmed against your system’s hardware revision documentation. Our technical team can assist with compatibility verification prior to order placement.

Q2: What testing is performed before shipment?
Every CPCI-2IPC-6U unit undergoes pre-shipment functional testing to verify power-up integrity, backplane interface continuity, and basic I/O response. Units that do not pass testing are not dispatched. A test report is available upon request for quality-critical procurement processes.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental contamination beyond the module’s rated operating range. Warranty claims are processed with a target response time of 5 business days.

Q4: Can you support long-term or repeat supply of the CPCI-2IPC-6U for ongoing maintenance programs?
Yes. NINERMAS maintains sourcing relationships that support repeat and scheduled procurement of the CPCI-2IPC-6U for facilities running multi-year maintenance contracts. Volume pricing and reserved stock arrangements are available for qualified accounts. Contact our team to discuss your annual spare parts requirements.
