Allen-Bradley VPL-B1003T-PK12AA Retrofit Servo Motor for Legacy Systems

Allen-Bradley VPL-B1003T-PK12AA Retrofit Servo Motor for Legacy Systems

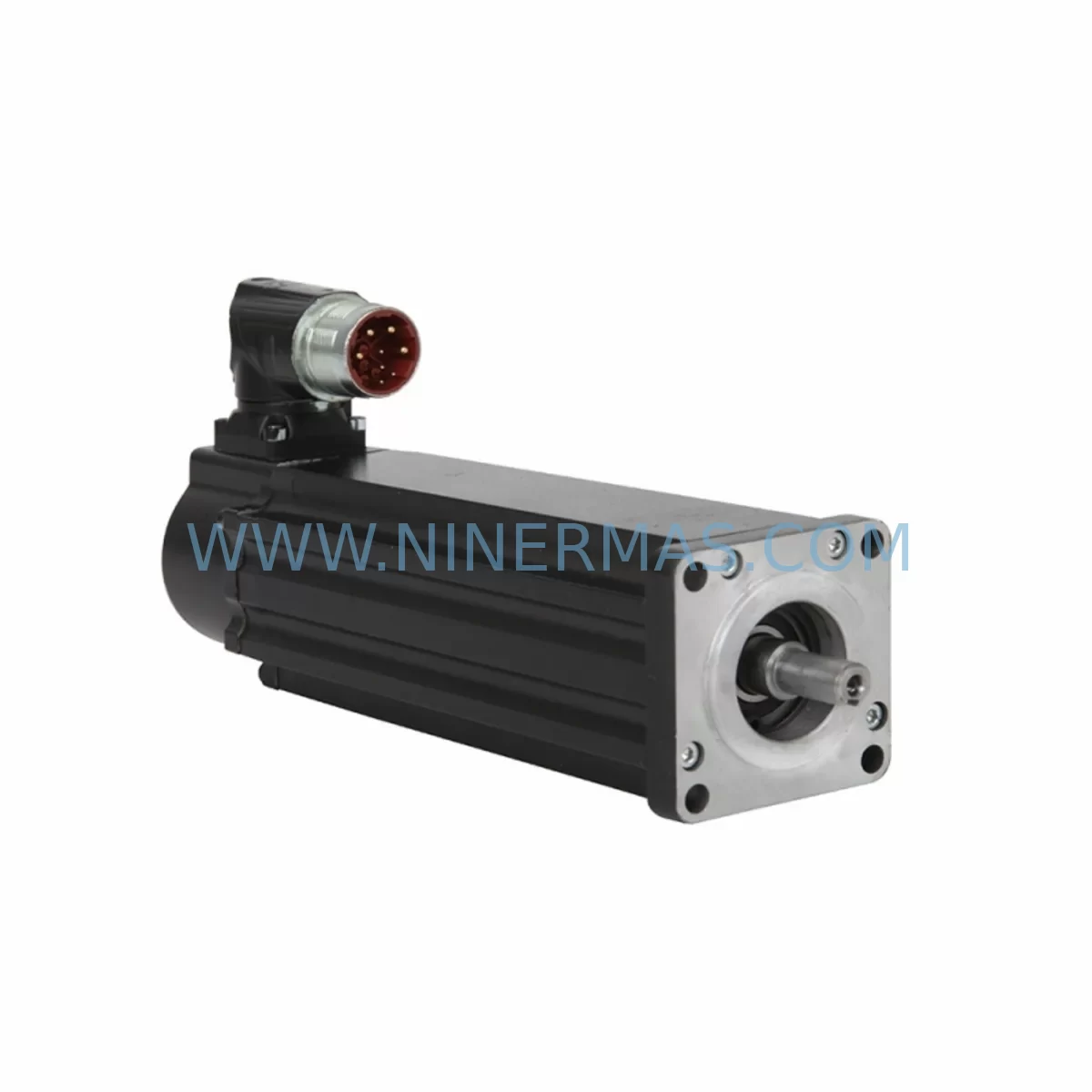

The Allen-Bradley VPL-B1003T-PK12AA is a Kinetix VP low-inertia servo motor engineered for high-dynamic motion control applications across a wide range of industrial automation platforms. As production lines age and original equipment manufacturers discontinue legacy servo components, the VPL-B1003T-PK12AA has become a critical retrofit solution for maintenance engineers and system integrators managing end-of-life Kinetix servo systems. Whether you are replacing a failed motor in a packaging line, upgrading a legacy Kinetix 6000 or Kinetix 6500 servo axis, or migrating an entire motion control cabinet to a modern Kinetix 5500 or Kinetix 5700 platform, this motor delivers the dimensional compatibility, feedback resolution, and torque characteristics required for a smooth, low-risk transition.

NINERMAS maintains ready inventory of the VPL-B1003T-PK12AA with pre-shipment functional testing and a 12-month warranty, ensuring that your retrofit project is supported from procurement through commissioning. Our global shipping capability means that critical spare parts reach your facility with minimal lead time, reducing unplanned downtime and protecting production continuity.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the VPL-B1003T-PK12AA into an existing automation system requires a structured pre-installation review. Begin by auditing the servo drive axis module — typically a 2198-H040-ERS Kinetix 5500 single-axis drive or a 2198-D020-ERS3 Kinetix 5700 dual-axis module — to confirm that the continuous and peak current ratings are compatible with the VPL-B1003T-PK12AA motor specifications. Mismatched current ratings are the most common cause of axis faults during initial commissioning after a motor swap.

Next, inspect the power and feedback cabling. The VPL-B1003T-PK12AA uses a T-style rotating power connector, and the corresponding motor power cable — such as the 2090-CPBM7DF-16AA — must be verified for length, shielding integrity, and connector condition. The feedback cable, typically a 2090-UXNFBMP-S09 or equivalent multi-turn absolute encoder cable, should be inspected for any damage to the connector shell or internal conductors, as encoder signal errors will prevent the axis from homing correctly after replacement.

At the controller level, confirm that the 1769-L33ER CompactLogix or 1756-L83E ControlLogix processor running the motion program has the correct axis configuration stored in the Studio 5000 project file. The motor catalog number must be updated in the axis properties to reflect the VPL-B1003T-PK12AA, and the motor feedback node address must be re-verified if the system uses a shared feedback bus. If the control cabinet includes a 1756-IB16 digital input module for home or overtravel limit switches, verify that the wiring terminations at the motor junction box remain intact after the mechanical swap.

For systems that include a PanelView Plus 7 HMI displaying axis status, jog controls, or fault codes, confirm that the HMI screen logic references the correct axis tag names. A motor replacement does not typically require HMI screen modifications, but if the axis was renamed during the upgrade, tag bindings must be updated accordingly. Similarly, if the system uses a 1756-EN2T EtherNet/IP communication module to connect the motion controller to upstream SCADA or MES systems, verify that the axis data published over EtherNet/IP remains consistent after the motor swap and autotune cycle.

Where the retrofit involves migrating from an older Kinetix 6000 or Kinetix 6500 platform to a Kinetix 5500 architecture, additional steps are required: the 1756-PA75 power supply capacity must be recalculated to account for the new drive bus architecture, and the backplane slot assignments in the 1756 chassis must be updated in the Studio 5000 hardware configuration. Signal isolators may be required if analog reference signals from legacy third-party controllers are being retained during a phased migration.

Downtime Control During System Migration

Minimizing production downtime during a servo motor replacement or platform migration is a primary concern for any maintenance team. The recommended approach for replacing the VPL-B1003T-PK12AA in a live production environment is to complete all pre-installation verification steps — including drive firmware review, cable inspection, and Studio 5000 project backup — before the scheduled maintenance window begins. A full offline backup of the controller program, including motion group configuration and axis parameters, must be saved to a secure location before any hardware is disturbed.

During the physical swap, tag all disconnected cables with their terminal designations before removal. The T-style power connector on the VPL-B1003T-PK12AA is keyed, but the feedback connector orientation must be confirmed against the original installation photograph or wiring diagram. After mechanical installation, perform a visual inspection of all cable connections before energizing the drive.

On first power-up, clear any existing axis faults in Studio 5000 and run the motor autotune routine with the load decoupled where possible. Verify that the absolute encoder position is correctly initialized and that the axis homes to the expected position. If the system uses a multi-axis coordinated motion group, test each axis independently before re-enabling coordinated motion. This staged commissioning approach protects the original program logic, prevents cascading faults across the motion group, and allows the maintenance team to confirm full axis functionality before returning the line to production.

Retrofit Support FAQ

Q: Is the VPL-B1003T-PK12AA a direct drop-in replacement for other Kinetix VP frame B motors?
A: The VPL-B1003T-PK12AA shares the frame B mounting envelope with other VPL-B series motors, but the specific torque rating, feedback type, and connector style (PK12, T-style) must be matched to the original axis configuration in Studio 5000. Always verify the motor catalog number in the axis properties before ordering a replacement.

Q: What pre-shipment testing does NINERMAS perform on the VPL-B1003T-PK12AA?
A: Each unit undergoes functional verification including encoder signal integrity testing, insulation resistance measurement, and visual inspection of connectors and shaft condition. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q: Can the VPL-B1003T-PK12AA be used with a Kinetix 5700 dual-axis drive?
A: Yes, provided the 2198-D series axis module current rating is compatible with the motor’s continuous stall and peak current specifications. Confirm the axis module selection in the Kinetix 5700 system design guide and update the motor catalog number in the Studio 5000 axis configuration after installation.

Q: What is the typical lead time and stock availability for the VPL-B1003T-PK12AA?
A: NINERMAS maintains in-stock inventory of the VPL-B1003T-PK12AA to support urgent retrofit and breakdown replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipments. Contact our team for current stock levels and expedited shipping options.
