Allen-Bradley 80190-600-01-R Safety-Reliable OIBB for Critical Control

Allen-Bradley 80190-600-01-R Safety-Reliable OIBB for Critical Control Sites

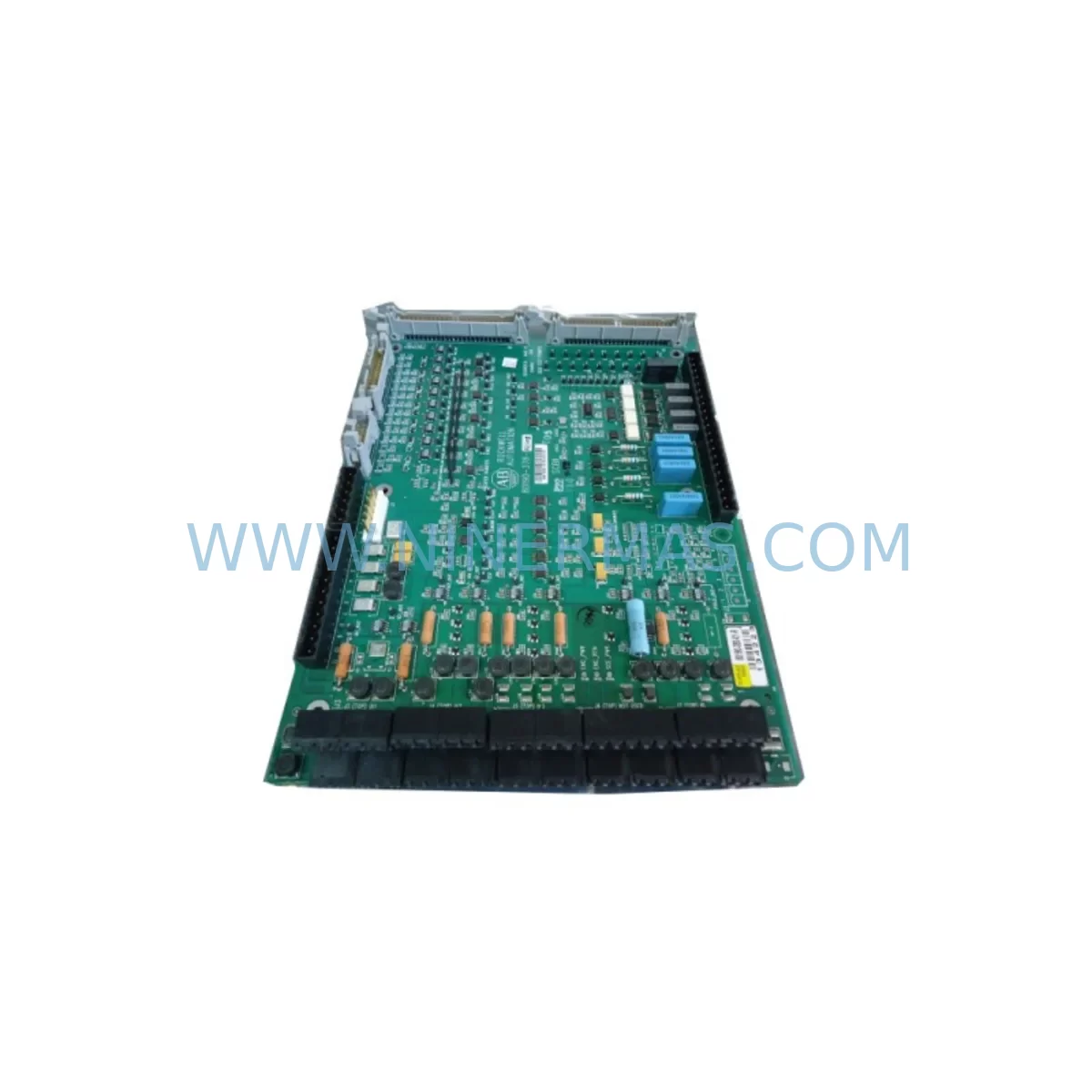

The Allen-Bradley 80190-600-01-R is an Original I/O Bypass Board (OIBB) option module designed for the SMC Flex smart motor controller platform. Engineered to meet the demanding requirements of continuous production environments, this module delivers the control circuit integrity and bypass reliability that critical industrial sites depend on. Whether deployed in petrochemical processing, power generation, mining conveyors, water treatment pump stations, or heavy metallurgical operations, the 80190-600-01-R provides a proven, safety-oriented solution for motor starting and protection circuits where unplanned downtime is simply not acceptable.

In high-stakes control cabinets where the SMC Flex is integrated into motor control centers (MCCs), the OIBB module plays a decisive role in maintaining operational continuity. When a bypass condition is required — such as during a soft-starter fault or scheduled maintenance — the 80190-600-01-R enables the motor to run across-the-line without removing the drive from the circuit, preserving the integrity of the safety interlock chain and reducing the risk of control interruption. This architecture is particularly valuable in applications where stopping a motor unexpectedly could trigger cascading process failures or safety incidents.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered motor control cabinet built around the SMC Flex platform, the 80190-600-01-R OIBB does not operate in isolation. Its bypass function is most effective when the surrounding control architecture is equally robust. The Allen-Bradley 150-C85NBD SMC Flex controller serves as the core soft-starter unit, and its reliable operation depends on a stable 24VDC control power supply — typically sourced from a Rockwell Automation 1606-XLP power supply or equivalent DIN-rail mounted unit rated for industrial environments. Voltage fluctuations or power interruptions at the control supply level are a leading cause of nuisance trips and unexpected motor stops; a properly sized power supply with surge protection is therefore a non-negotiable element of the safety architecture.

Signal integrity within the control loop is equally critical. The Allen-Bradley 1492-CABLE series wiring systems and pre-terminated I/O cables reduce the risk of loose connections and signal drift that can cause false trips or missed interlock signals. For applications where the SMC Flex communicates over DeviceNet or EtherNet/IP, the 150-SM4 DeviceNet communication module or the 150-SE7P EtherNet/IP module must be properly configured and shielded to prevent communication anomalies in high-EMI environments such as variable frequency drive (VFD) rooms or arc furnace facilities.

Surge protection is another layer of risk reduction that is frequently overlooked. Installing Phoenix Contact TRABTECH surge protection devices or equivalent transient voltage suppressors on the incoming power lines and control signal cables protects the SMC Flex and the 80190-600-01-R OIBB from voltage spikes caused by switching operations, lightning strikes, or capacitor bank switching — all common in heavy industrial facilities. Similarly, Allen-Bradley 1492-SPM series fuse holders with appropriate fuse ratings provide overcurrent protection that prevents a single fault from propagating through the control cabinet.

For facilities operating in dusty, humid, or chemically aggressive environments — such as cement plants, offshore platforms, or chemical processing units — the control cabinet housing the SMC Flex system should be rated at minimum IP54, with the Allen-Bradley 80190-600-01-R installed per Rockwell Automation’s environmental guidelines. Thermal management within the enclosure, achieved through Rittal or Hoffman enclosure cooling units, ensures that the OIBB and associated components remain within their rated operating temperature range even during peak summer ambient conditions or high-load motor starting cycles.

Critical Industrial Safety Applications

The Allen-Bradley 80190-600-01-R OIBB module finds its most critical applications in industries where motor control reliability directly impacts process safety and production continuity.

In petrochemical and refinery operations, the SMC Flex with OIBB bypass is deployed on cooling water pumps, compressor pre-lube motors, and emergency firewater pump starters. The bypass capability ensures that if the soft-starter requires servicing, the motor can continue running across-the-line without breaking the safety interlock, preventing a potentially hazardous process upset.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the 80190-600-01-R supports auxiliary motor control for boiler feed pumps, induced draft fans, and cooling tower motors. These are classified as critical loads where any unplanned stop triggers automatic load shedding and potential grid instability.

In underground and open-pit mining, conveyor belt drives, slurry pump motors, and ventilation fan starters equipped with SMC Flex controllers rely on the OIBB module to maintain continuous operation during high-dust, high-vibration conditions. The bypass function is particularly valued during belt conveyor emergency run modes where stopping is not permitted by safety protocol.

In municipal and industrial water treatment, the module supports reliable starting and bypass for raw water intake pumps, filter backwash pumps, and effluent transfer pumps — applications where motor failure can result in regulatory non-compliance or public health risk.

In port and maritime operations, crane hoist motors, ship-to-shore conveyor drives, and ballast pump systems benefit from the SMC Flex OIBB’s ability to maintain motor operation during soft-starter diagnostics, reducing vessel turnaround delays and cargo handling interruptions.

Safety and Quality FAQ

Q1: What warranty does the 80190-600-01-R carry?
All 80190-600-01-R units supplied by NINERMAS carry a 12-month warranty covering functional failure under normal operating conditions. Warranty claims are processed promptly with replacement or repair options, minimizing your site’s exposure to extended downtime.

Q2: How is each unit tested before shipment?
Every 80190-600-01-R OIBB module undergoes pre-shipment functional verification to confirm board integrity, connector condition, and compatibility with the SMC Flex platform. Units are inspected for physical damage, component integrity, and revision marking (Rev R) before packaging and dispatch.

Q3: Is this module compatible with all SMC Flex controller variants?
The 80190-600-01-R is designed as the Original I/O Bypass Board for the Allen-Bradley SMC Flex family. It is compatible with standard SMC Flex controllers across the supported current range. Always verify your specific SMC Flex catalog number and firmware revision against Rockwell Automation’s compatibility documentation or contact our technical team for confirmation before installation.

Q4: Can NINERMAS guarantee long-term supply for ongoing MRO and spare parts programs?
Yes. NINERMAS maintains stock of the 80190-600-01-R and other SMC Flex option modules to support maintenance, repair, and operations (MRO) programs for industrial facilities with long equipment lifecycles. We provide consistent supply, competitive lead times, and technical support for replacement planning — ensuring your critical motor control infrastructure is never left without a qualified spare.
