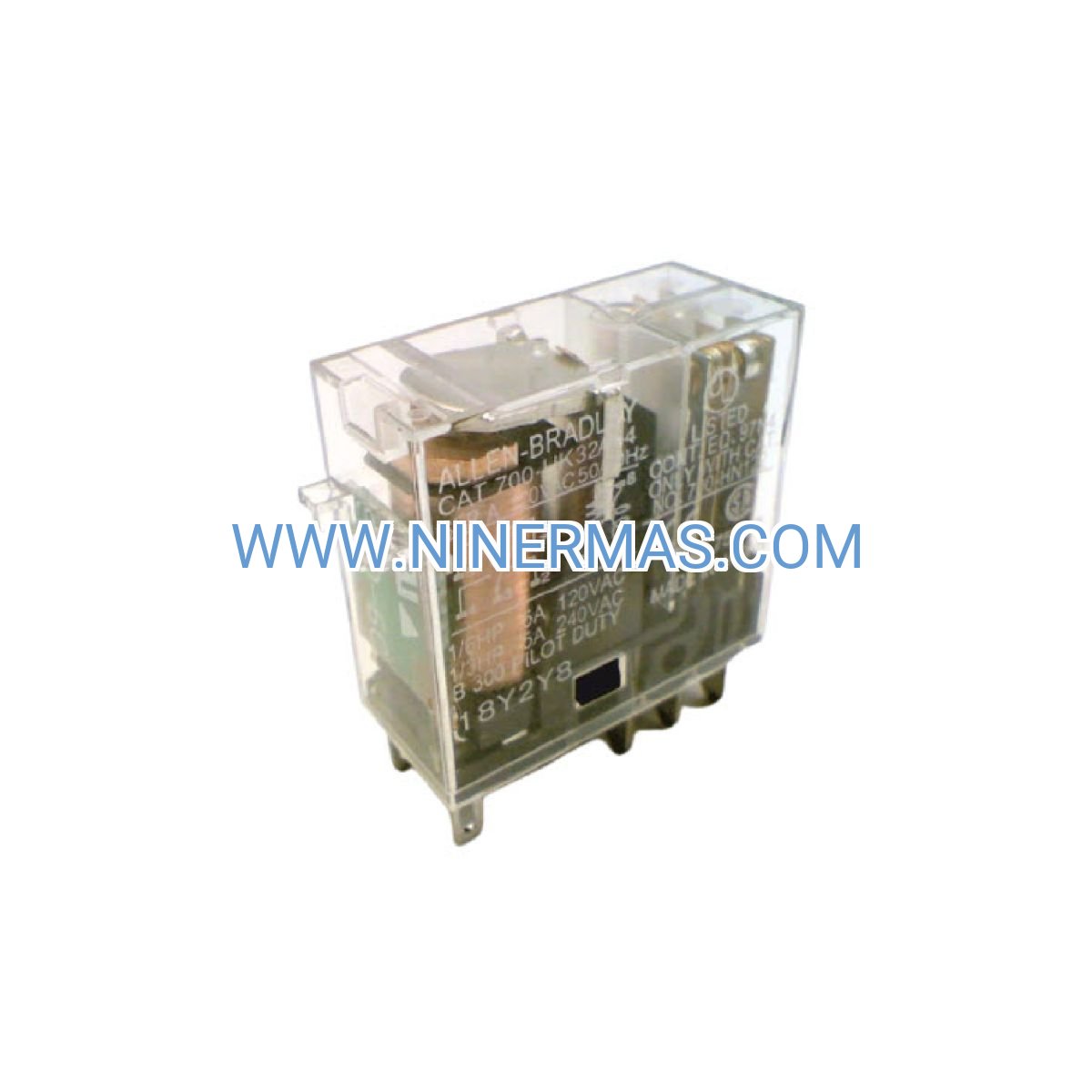

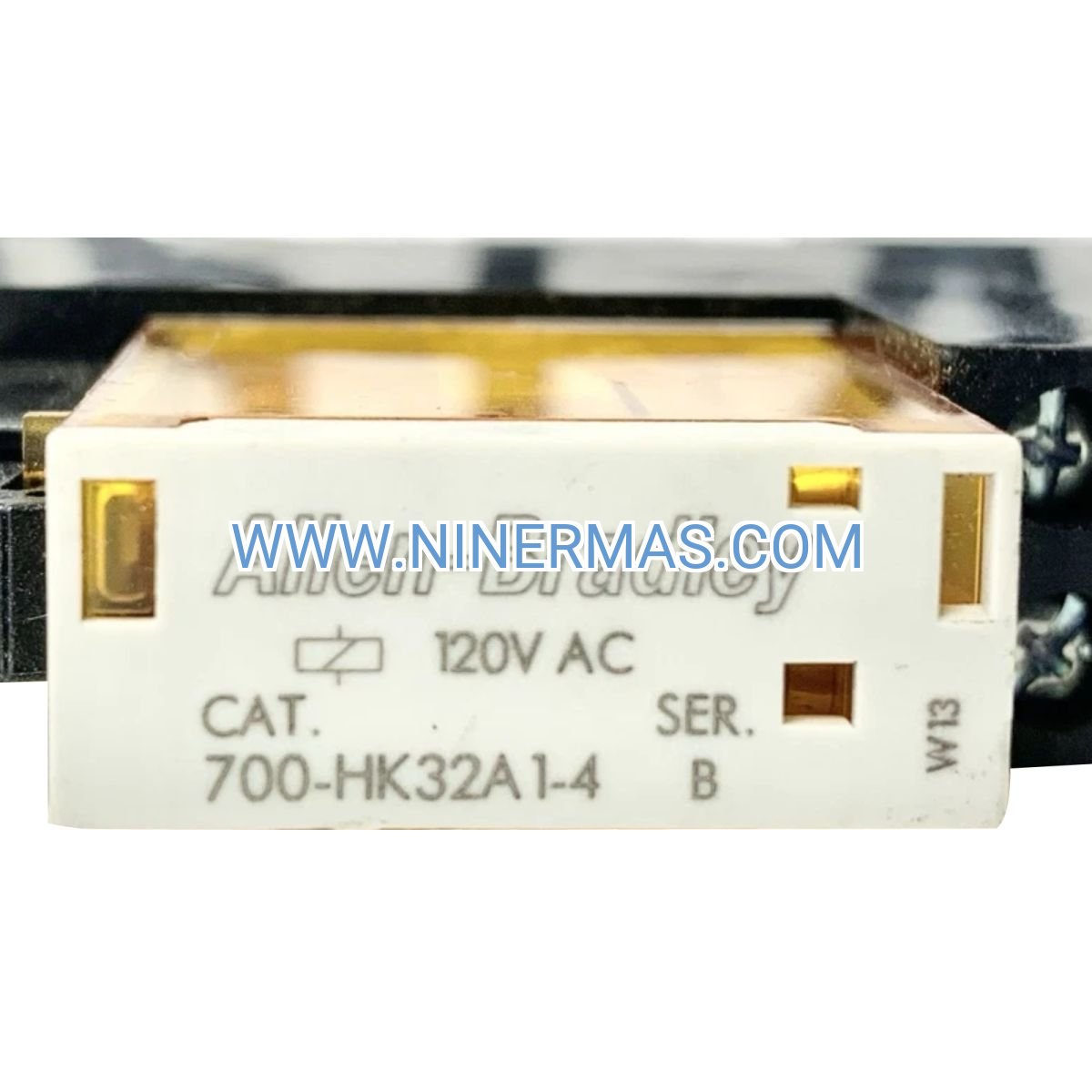

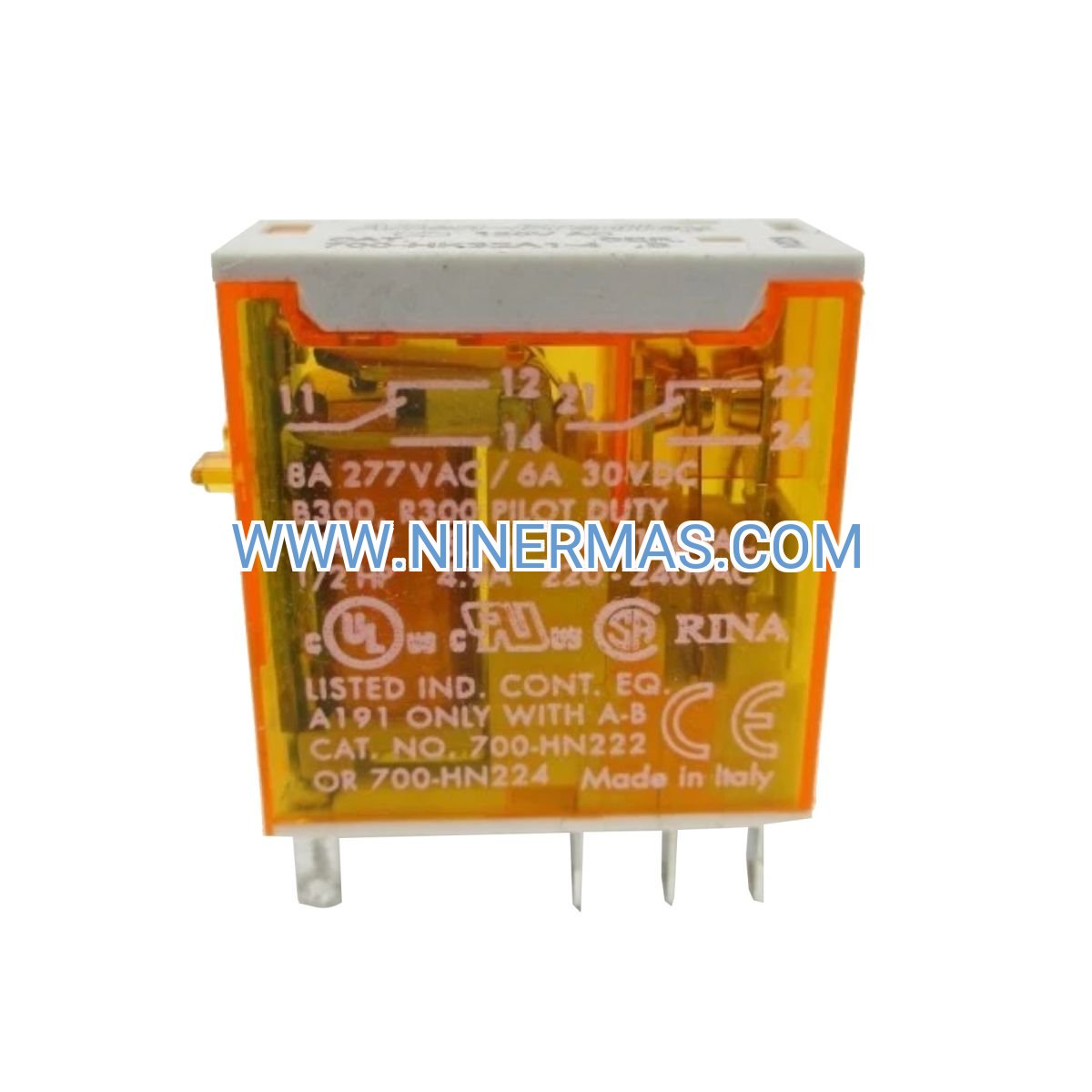

700-HK32A1-4 Industrial-Grade DPDT Control Relay

The 700-HK32A1-4 represents a proven solution for demanding industrial switching applications where space optimization meets performance reliability. This slim-profile DPDT relay combines 8-ampere contact capacity with integrated visual diagnostics, delivering dependable control across motor circuits, process automation, and safety interlock systems.

Designed for engineers and system integrators managing complex control panels, this relay addresses the critical challenge of maximizing switching density without compromising operational integrity. The built-in LED pilot light eliminates guesswork during commissioning and troubleshooting, reducing downtime in mission-critical environments.

With UL and CSA certifications backing every unit, the 700-HK32A1-4 ensures compliance-ready installations across North American industrial facilities. Whether you're retrofitting legacy systems or designing new automation architectures, this relay delivers the switching precision your operations demand.

Core Capabilities & Technical Advantages

✓ Dual-Pole Switching Architecture
DPDT configuration enables simultaneous control of two independent circuits, ideal for reversing motor applications or multi-zone lighting systems. Reduces component count and panel footprint compared to single-pole alternatives.

✓ 8-Ampere Resistive Load Rating
Handles substantial current demands while maintaining compact dimensions. Silver alloy contacts ensure low contact resistance and superior arc suppression across 100,000+ operational cycles.

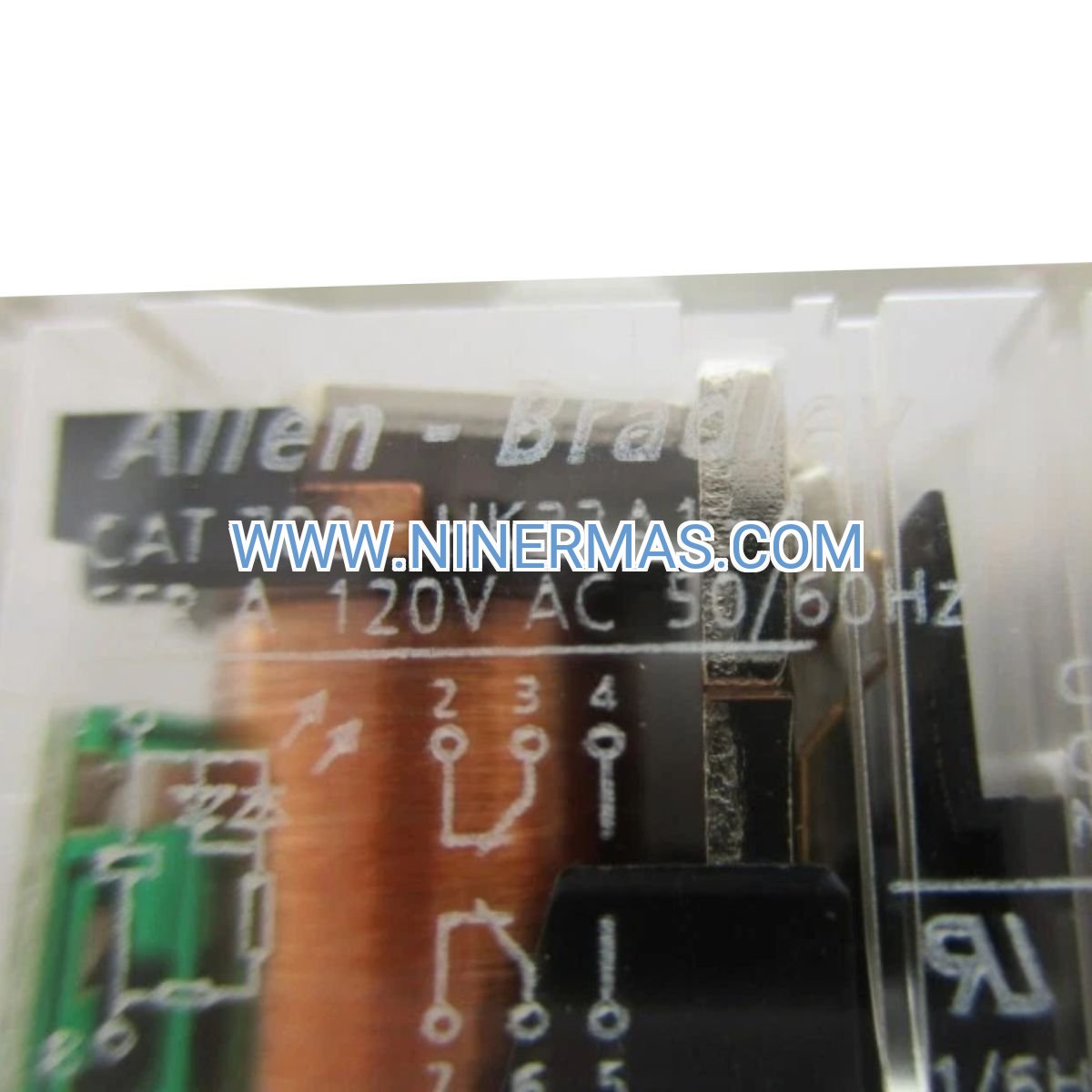

✓ Integrated LED Status Indicator
Real-time coil energization feedback accelerates fault diagnosis by 40-60% compared to non-illuminated relays. Visible from multiple angles for easy inspection in dense panel layouts.

→ 120VAC Coil with Wide Frequency Tolerance
50/60 Hz compatibility ensures global deployment flexibility. Operates reliably across ±10% voltage variations common in industrial power distribution systems.

→ Dual Mounting Flexibility
DIN rail clip and panel-mount screw terminals accommodate diverse installation requirements. Tool-free DIN rail attachment reduces installation time by 30%.

→ Extended Temperature Performance
-40°C to +70°C operational range supports outdoor enclosures, refrigerated environments, and high-ambient manufacturing zones without derating.

Industrial Application Scenarios

Motor Control & Reversing Circuits
Manage forward/reverse operations in conveyor systems, hoists, and material handling equipment. The DPDT configuration eliminates the need for dual contactors in reversing applications, cutting installation costs by 25-35% while improving panel space utilization.

HVAC Zone Control Systems
Coordinate damper actuators, fan stages, and heating elements across multi-zone climate systems. The relay's pilot light provides instant verification of zone activation during seasonal changeovers and maintenance procedures.

Process Automation Interlocks
Implement safety sequences in chemical processing, food production, and pharmaceutical manufacturing. The 2000V dielectric strength between coil and contacts ensures isolation integrity in high-voltage control environments.

Machine Safety Circuits
Create redundant safety loops for emergency stop systems and guard door interlocks. UL/CSA certification streamlines compliance documentation for OSHA and NFPA 79 requirements.

Lighting Control Panels
Switch high-wattage lighting banks in warehouses, parking structures, and sports facilities. The slim 22.5mm width allows 30% more relay positions per linear foot of DIN rail compared to standard-width relays.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose this relay when your application requires dual-circuit switching in space-constrained panels. For inductive loads (motors, solenoids), apply a 30-40% derating factor and consider RC snubber networks to extend contact life. If your system operates on 24VDC control voltage, explore the 700-HK32Z24 variant for optimal coil efficiency.

Advanced Integration Features

Modular Expansion Compatibility
Pairs seamlessly with Allen-Bradley 700-HN series auxiliary contact blocks to expand switching capacity up to 6 poles. Add-on blocks snap directly onto the relay base without additional wiring modifications.

Suppression Network Options
Factory-available RC suppression modules (700-HA series) protect sensitive electronic controls from voltage transients generated during inductive load switching. Reduces EMI by 60-80% in PLC-controlled systems.

Custom Coil Voltages
Special-order coil configurations available for 24VAC, 240VAC, and DC voltage requirements. Consult factory for lead times on non-standard specifications (typically 4-6 weeks).

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 1-2 business days via expedited carrier. Most North American destinations receive orders within 3-5 business days from order confirmation.

Custom Configurations: Special coil voltages and contact arrangements require 4-6 weeks manufacturing lead time. Rush processing available for critical projects (contact sales for expedited options).

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship under normal operating conditions. Warranty excludes damage from overvoltage, environmental contamination, or improper installation.

Technical Support: Our application engineers provide pre-sale consultation, wiring diagram verification, and troubleshooting assistance throughout the product lifecycle. Support available via email, phone, and live chat during business hours (EST).

Documentation Package: Every relay ships with installation instructions, dimensional drawings, and wiring diagrams. CAD files (DXF, STEP) and 3D models available for download from our technical library.

Frequently Asked Questions

What inductive load derating should I apply for motor control applications?
For AC motor loads, reduce the 8A resistive rating by 35-40% (effective capacity: 4.8-5.2A). Install RC snubbers across coil terminals to suppress back-EMF and extend contact life. For DC inductive loads, use diode suppression and derate by 50%.

Can the integrated pilot light be replaced if it fails?
The LED indicator is a sealed, non-serviceable component engineered for 50,000+ hour operational life. If the pilot light fails prematurely within the warranty period, the entire relay qualifies for replacement under our defect coverage policy.

What wire gauge and termination method work best with these terminals?
Terminals accept 14-22 AWG solid or stranded copper conductors. For stranded wire, use insulated ferrules (Phoenix Contact AI-series or equivalent) to prevent strand fraying and ensure gas-tight connections. Torque screws to 7-9 lb-in (0.8-1.0 Nm).

How does this relay perform in high-vibration environments?
The relay meets IEC 60068-2-6 vibration standards (10-55 Hz, 0.35mm amplitude). For severe vibration applications (mobile equipment, reciprocating machinery), consider socket-mount installation with vibration-dampening bases or upgrade to solid-state relay alternatives.

Is remote monitoring or IoT integration possible with this relay?
Direct IoT connectivity is not available on this electromechanical model. For remote status monitoring, interface the pilot light circuit with a PLC digital input or add auxiliary contacts connected to SCADA systems. Alternatively, explore Allen-Bradley Bulletin 700S solid-state relays with built-in diagnostics.

What's the recommended maintenance interval for industrial installations?
Inspect terminals for tightness and signs of overheating every 6 months in high-cycle applications (>10,000 operations/month). Replace relays proactively after 80,000-100,000 cycles in critical safety circuits. Contact bounce or delayed switching indicates approaching end-of-life.

Ready to Optimize Your Control System?

Contact our technical sales team for application-specific recommendations, volume pricing, or custom configuration options. We provide same-day quotations and can expedite delivery for urgent project requirements.

Request a Quote: Email your panel layout and load specifications to our engineering team for tailored relay selection guidance.
