Allen-Bradley 5069-L340ERMS2 Retrofit-Compatible Safety Controller

Allen-Bradley 5069-L340ERMS2 Retrofit-Compatible Safety Controller: Legacy System Compatibility & Smooth Upgrade Path

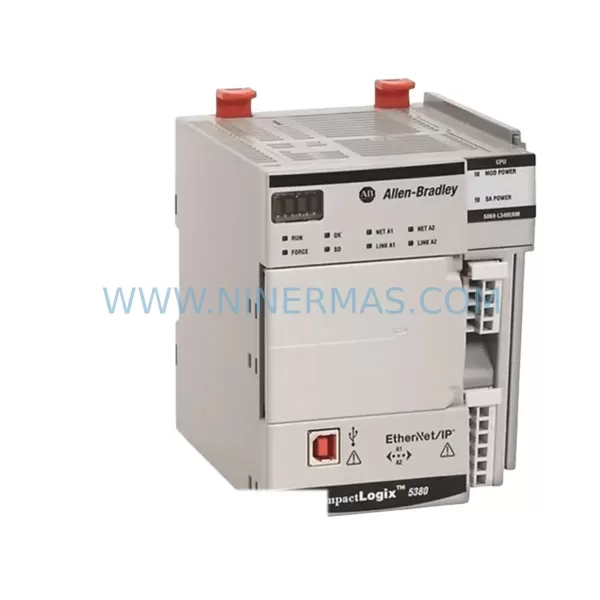

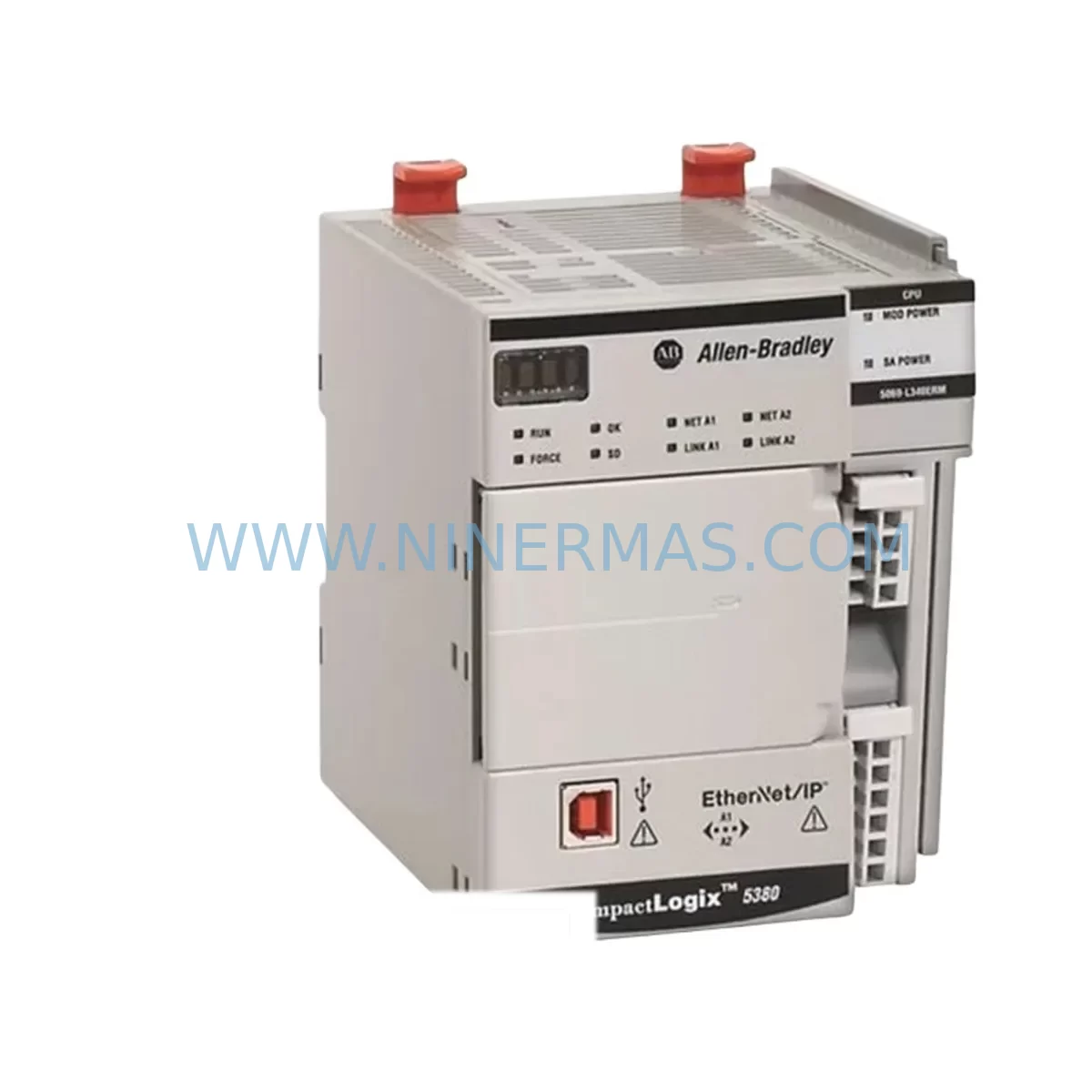

The Allen-Bradley 5069-L340ERMS2 is a ruggedized, dual-port EtherNet/IP safety controller from Rockwell Automation’s CompactLogix 5380 Safety series, purpose-built for demanding industrial environments where vibration, temperature extremes, and continuous operation are the norm. For automation engineers and maintenance teams managing aging control infrastructure, this module represents one of the most viable retrofit solutions available for replacing end-of-life ControlLogix, CompactLogix 5370, and earlier SLC 500-era safety systems. Whether you are upgrading a legacy production line, restoring a decommissioned control cabinet, or extending the operational life of a critical process cell, the 5069-L340ERMS2 provides a well-supported migration path with minimal disruption to existing program logic and field wiring.

When planning a retrofit around the 5069-L340ERMS2, engineers must carefully evaluate several compatibility dimensions before committing to a cutover. Power supply capacity is the first checkpoint: the 5069-L340ERMS2 draws from the Compact 5000 I/O backplane power bus, and existing 5069-PA300 or 5069-PB300 power supplies must be verified against the total module load, particularly when the rack also houses high-density digital I/O modules such as the 5069-IB16 or 5069-OB16. Backplane slot assignments and module addressing must be re-mapped if migrating from a 1769 CompactLogix rack, as the Compact 5000 platform uses a different slot-based addressing scheme that affects both the Studio 5000 Logix Designer project tree and any associated HMI tag bindings.

Terminal wiring compatibility is another critical consideration. Legacy systems built around the 1769-L33ERM or 1769-L36ERM controllers often use 1769-series I/O modules with spring-clamp or screw-terminal wiring bases. When transitioning to the 5069 platform, field wiring must be re-terminated to match the 5069-series I/O module connector styles. In many retrofit projects, this is managed by pre-wiring new 5069-IB16F or 5069-OB16F modules on a temporary sub-panel, allowing parallel testing before the final cutover. Safety I/O wiring, particularly for dual-channel emergency stop circuits and light curtain inputs, must be re-validated against the 5069-L340ERMS2’s integrated safety task configuration and CIP Safety connection parameters.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centered on the 5069-L340ERMS2 typically begins with a full audit of the existing control cabinet. Engineers should document every module currently installed in the legacy rack — including any 1769-IF4 analog input modules, 1769-OF4 analog output modules, 1769-SDN DeviceNet scanner modules, and 1769-ASCII serial communication modules — before determining which functions will be replicated on the new Compact 5000 platform and which will be consolidated or eliminated. In many older installations, DeviceNet-based field devices are migrated to EtherNet/IP during the same project, using the 5069-L340ERMS2’s native dual-port Ethernet backbone to connect drives, safety relays, and remote I/O adapters without requiring a separate scanner module.

For installations where the legacy controller communicates with a SCADA system or historian via DF1 serial or DH+ protocol, a protocol gateway such as a ProSoft Technology MVI56E-MNETC or similar device may be required to bridge the existing supervisory network to the new EtherNet/IP infrastructure. This is a common requirement in water treatment, oil and gas, and discrete manufacturing environments where the SCADA layer cannot be upgraded simultaneously with the PLC hardware. The 5069-L340ERMS2’s dual Ethernet ports simplify this by allowing the controller to participate in both a Device Level Ring for field I/O and a separate supervisory network segment simultaneously.

Panel space and thermal management must also be assessed. The 5069-L340ERMS2 is physically larger than some legacy CompactLogix controllers, and the Compact 5000 rack system requires adequate clearance above and below the modules for airflow. In tight retrofit scenarios, engineers sometimes replace the entire control panel enclosure rather than attempting to fit the new hardware into the original cabinet. Where space is constrained, consolidating I/O using high-density 5069-IB16F or 5069-OB16F modules — rather than replicating the original one-to-one module count — can significantly reduce the overall rack footprint. Signal isolators and terminal block assemblies from manufacturers such as Phoenix Contact or Weidmuller are frequently used to adapt existing field wiring to the new I/O module connector styles without re-pulling cables.

Programming cable and laptop configuration is another practical consideration. The 5069-L340ERMS2 is programmed exclusively over EtherNet/IP using Studio 5000 Logix Designer; there is no serial programming port. Engineers migrating from older SLC 500 or MicroLogix systems that relied on a 1747-PIC or 1761-CBL-PM02 programming cable must ensure their laptop is configured with a compatible Ethernet adapter and that the Studio 5000 version supports the 5069-L340ERMS2 firmware revision being deployed. A 1784-U2DHP USB-to-DH+ adapter may still be needed if the legacy system’s program backup was stored on a DH+ network device.

Downtime Control During System Migration

Minimizing unplanned downtime is the central concern in any live-system retrofit. For the 5069-L340ERMS2 migration, the most effective strategy is a parallel build approach: the new Compact 5000 rack is fully assembled, wired, and tested on a bench or temporary sub-panel while the legacy system continues to run production. The Studio 5000 project is developed and simulated offline, with all tag names, safety task configurations, and HMI screen bindings verified before the cutover window is scheduled.

During the cutover itself, the sequence typically follows this pattern: the legacy controller is placed in Program mode, field power is isolated at the terminal block level (not at the breaker), the old rack is disconnected, the new 5069 rack is connected to field wiring, and the 5069-L340ERMS2 is downloaded with the pre-tested program. Safety I/O connections — including any 5069-IB8S safety input modules or 5069-OBV8S safety output modules in the new rack — must be re-commissioned individually, with each CIP Safety connection verified and the safety task signature confirmed before the system is released to Run mode. This process is non-negotiable for SIL 3 / PLe applications and must be documented in the project’s functional safety assessment.

HMI screens built in FactoryTalk View ME or SE must be updated to reflect the new controller tag paths. If the original HMI application used indirect tag addressing or global object libraries, the update scope can be minimized by remapping only the controller alias tags rather than editing individual screen objects. PanelView Plus 7 terminals connected to the 5069-L340ERMS2 over EtherNet/IP will require a new RSLinx Enterprise data server configuration pointing to the new controller IP address. Testing all HMI alarm setpoints, trend displays, and operator control buttons before returning the line to production is essential to avoid post-cutover incidents.

Retrofit Support FAQ

Q: Is the 5069-L340ERMS2 a direct drop-in replacement for the 1769-L36ERMS2?
A: Not a direct drop-in — the 5069-L340ERMS2 uses the Compact 5000 (5069) backplane and rack system, which is physically and electrically different from the 1769 CompactLogix platform. A new rack, power supply, and I/O modules are required. However, the Studio 5000 project can be converted using Rockwell’s migration tools, and the EtherNet/IP and CIP Safety communication architecture is compatible, significantly reducing the software re-engineering effort.

Q: What pre-shipment testing does NINERMAS perform on the 5069-L340ERMS2?
A: Each unit undergoes power-on functional verification, firmware version confirmation, and communication port testing before shipment. Units are inspected for physical damage, connector integrity, and label accuracy. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q: Can the 5069-L340ERMS2 communicate with legacy SCADA systems using DF1 or Modbus?
A: The 5069-L340ERMS2 natively supports EtherNet/IP and CIP Safety. For legacy SCADA integration over DF1 serial or Modbus TCP/RTU, a protocol gateway is required. NINERMAS can advise on compatible gateway options based on your specific SCADA platform and communication requirements.

Q: What is the stock availability and lead time for the 5069-L340ERMS2?
A: NINERMAS maintains inventory of the 5069-L340ERMS2 to support urgent retrofit and breakdown replacement requirements. Standard orders ship within 1–3 business days. For large-quantity or project-based procurement, please contact our sales team to confirm availability and arrange inspection before shipment. All units carry a 12-month warranty.
