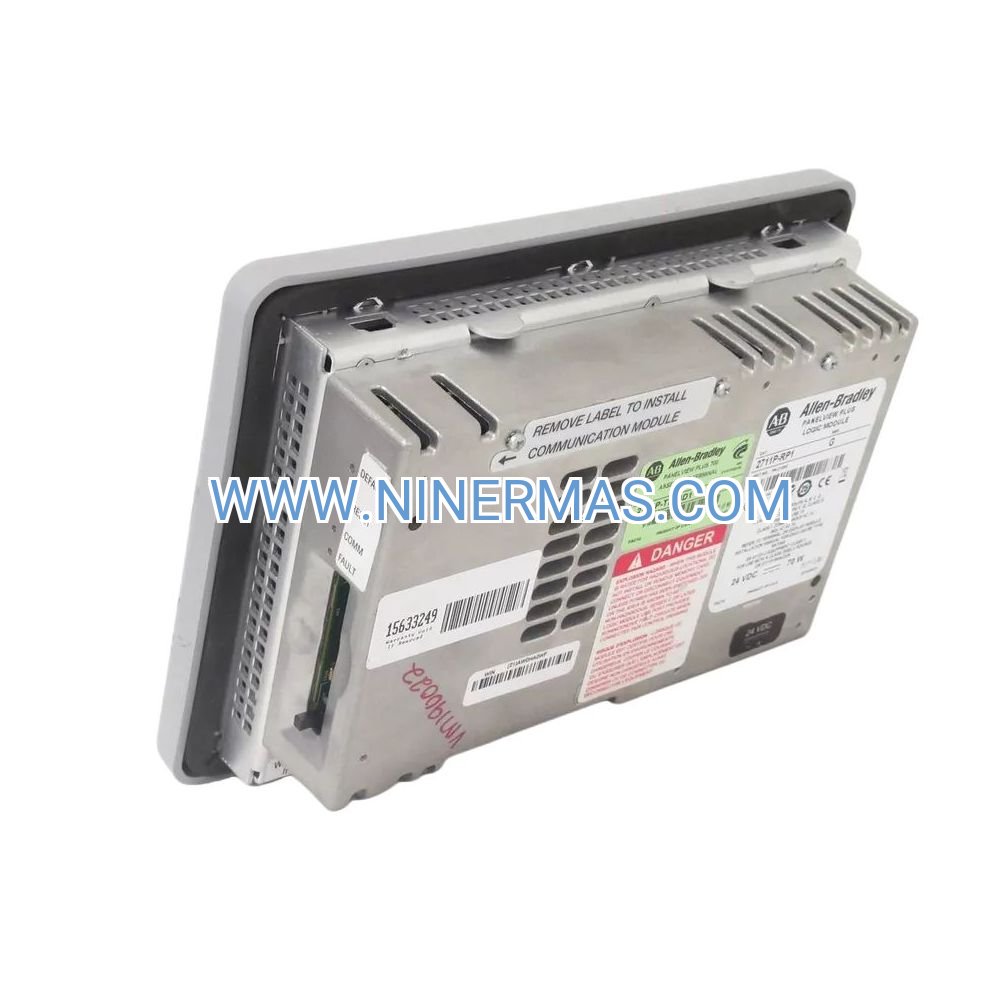

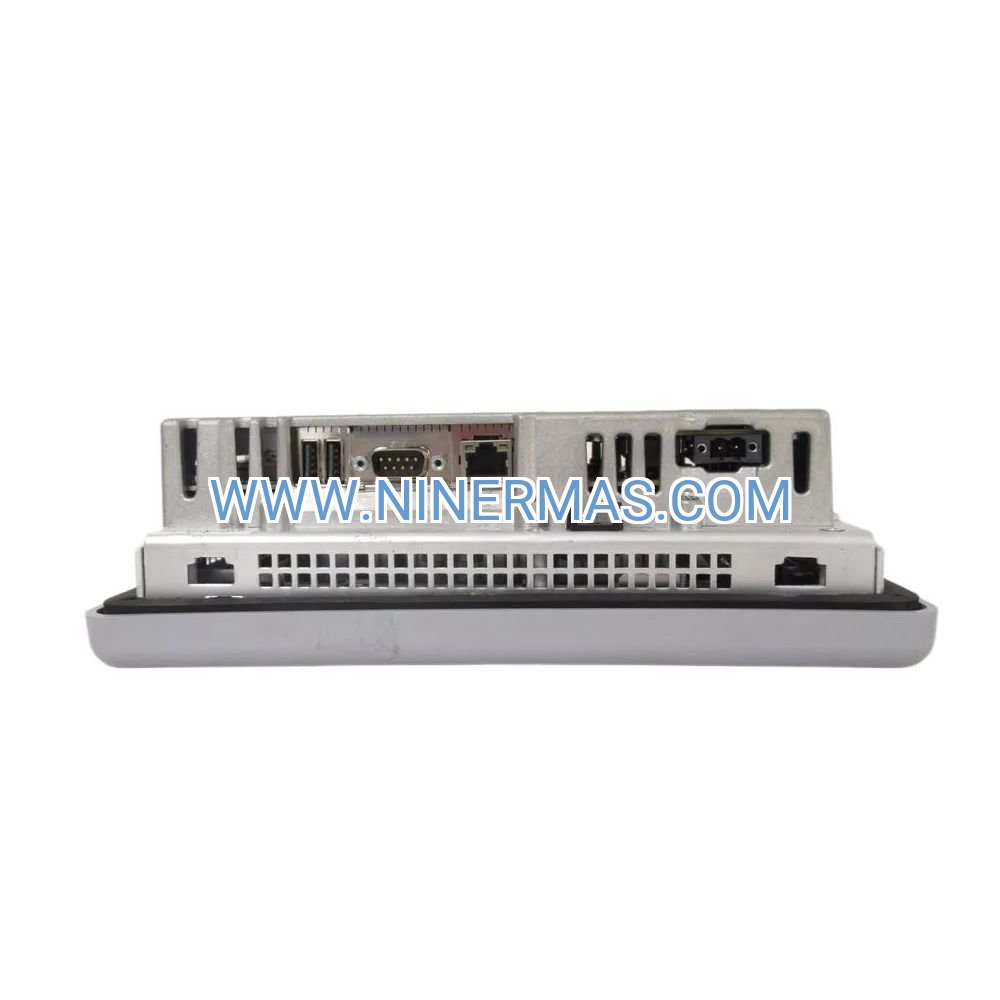

2711P-T7C4D1 PanelView Plus 6 Terminal – Industrial-Grade Operator Interface

The 2711P-T7C4D1 represents Allen-Bradley's proven approach to machine-level visualization, combining a 6.5-inch analog resistive touchscreen with Windows CE 6.0 architecture. This compact HMI terminal delivers reliable operator control for manufacturing equipment, process systems, and automated machinery through native EtherNet/IP connectivity and FactoryTalk View ME software compatibility.

Designed for panel-mount installation in space-constrained applications, the terminal features NEMA 4X/IP65 front-panel protection, 64 MB RAM, and 128 MB flash storage. The resistive touch interface ensures consistent performance with gloved hands or stylus input across demanding industrial environments where capacitive screens prove unreliable.

Integration with Rockwell Automation's Integrated Architecture enables seamless communication with ControlLogix, CompactLogix, and legacy controller platforms. The 400 MHz ARM9 processor supports real-time data visualization, alarm management, and recipe handling for production-critical applications requiring immediate operator response and process transparency.

Core Capabilities & Business Value

→ Glove-Compatible Touch Interface
Analog resistive technology maintains full functionality with work gloves, wet hands, or stylus operation – eliminating the touch-response failures common with capacitive screens in oil-contaminated or high-humidity production areas. Reduces operator frustration and maintains productivity during critical production windows.

→ Native EtherNet/IP Integration
10/100 Mbps Ethernet port connects directly to Allen-Bradley controllers without protocol converters or gateways. Simplifies network architecture, reduces installation costs by 30-40%, and enables real-time tag updates for process monitoring and control applications.

→ Compact Panel Footprint
189 × 138 mm cutout dimensions fit standard enclosure knockouts and legacy HMI mounting locations. Facilitates equipment retrofits and machine upgrades without panel modifications, reducing downtime from 8 hours to under 2 hours for typical installations.

→ Extended Backlight Lifespan
50,000-hour LED backlight specification translates to 5.7 years of continuous operation before brightness degradation. Minimizes maintenance interventions and replacement costs compared to CCFL-backlit displays requiring service every 18-24 months.

✓ NEMA 4X Environmental Sealing
Oil-tight, dust-tight front bezel withstands washdown procedures, chemical exposure, and particulate contamination in food processing, pharmaceutical, and heavy manufacturing environments. Protects internal electronics while maintaining IP65 ingress protection standards.

✓ USB Expandability
Type A USB 2.0 port supports flash drives for data logging, application backup, and recipe transfer. Enables operators to export production reports, update HMI applications, and archive historical trends without network dependencies or IT infrastructure requirements.

Industrial Application Scenarios

Packaging Line Control
Monitor conveyor speeds, reject counts, and product changeovers on high-speed packaging equipment. The 2711P-T7C4D1 provides operators with real-time visibility into line efficiency metrics, enabling immediate adjustments to minimize material waste and maintain target throughput rates. Integrates with CompactLogix controllers managing servo drives, vision systems, and safety circuits for coordinated machine operation.

Chemical Batch Processing
Display tank levels, valve positions, temperature profiles, and batch recipes for pharmaceutical and specialty chemical production. Operators execute multi-step procedures through guided workflows that enforce sequence logic, reducing formulation errors by 85% compared to paper-based batch sheets. EtherNet/IP connectivity enables direct communication with ControlLogix process controllers and distributed I/O networks.

Water Treatment Facilities
Visualize pump status, flow rates, chlorine dosing, and filtration cycles across municipal and industrial water systems. The terminal's NEMA 4X rating ensures reliable operation in high-humidity pump rooms and outdoor control panels. Alarm screens notify operators of equipment failures, enabling rapid response to prevent service disruptions or regulatory violations.

Material Handling Systems
Control automated storage/retrieval systems, sortation conveyors, and robotic palletizers through intuitive graphical interfaces. Operators track inventory movements, acknowledge fault conditions, and adjust system parameters without accessing controller programming. USB data logging captures throughput statistics for continuous improvement analysis and capacity planning.

Machine Tool Operations
Provide operator interface for CNC machining centers, injection molding presses, and automated assembly stations. Display part counts, cycle times, tool life indicators, and quality metrics that empower operators to maintain production schedules and identify process variations before defect rates escalate. RS-232 port supports legacy equipment integration where Ethernet connectivity is unavailable.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 2711P-T7C4D1 for applications requiring compact HMI footprints (under 8-inch diagonal), glove-compatible touch operation, and proven Windows CE stability. For larger visualization areas, consider 10.4-inch or 12.1-inch PanelView Plus 6 models. Applications demanding advanced graphics, video playback, or Windows 7 features should evaluate PanelView Plus 7 terminals with enhanced processing capabilities.

Extended Functions & IoT Integration

Remote Access Capabilities: Deploy VNC server functionality for remote troubleshooting and application updates via secure Ethernet connections. Maintenance personnel diagnose HMI issues and modify screens without travel to remote sites, reducing service response times from days to hours.

Data Logging & Trending: Configure embedded data logging to USB flash drives for production tracking, quality documentation, and regulatory compliance. Trend displays visualize process variables over configurable time periods, enabling operators to identify gradual drift conditions before they impact product quality.

Recipe Management: Store multiple product recipes on CompactFlash cards with one-touch loading capabilities. Operators switch between production runs without manual parameter entry, eliminating transcription errors and reducing changeover times by 60-75% compared to manual setpoint adjustments.

Multi-Language Support: FactoryTalk View ME enables runtime language switching for multinational facilities or diverse workforces. Operators select preferred languages from on-screen menus, improving comprehension and reducing training requirements for non-native speakers.

Customization Options: OEM machine builders can brand HMI applications with custom logos, color schemes, and navigation structures. Locked-down operator access levels prevent unauthorized parameter changes while maintaining visibility into machine status and performance metrics.

Delivery Timeline & Service Guarantee

Standard Delivery: In-stock 2711P-T7C4D1 terminals ship within 1-2 business days via express courier services. Typical transit times range from 3-5 days for domestic shipments and 7-10 days for international destinations, with tracking information provided at dispatch.

Custom Configuration: Pre-loaded HMI applications or specialized mounting hardware extend lead times to 5-7 business days. Our technical team coordinates application transfer, testing, and documentation to ensure plug-and-play installation at your facility.

Warranty Coverage: All terminals include a comprehensive 12-month manufacturer warranty covering component defects, backlight failures, and touchscreen malfunctions. Warranty service includes advance replacement options to minimize production downtime during repair cycles.

Technical Support: Access application engineering assistance for FactoryTalk View development, network configuration, and controller integration. Our support team provides email and phone consultation during business hours, with emergency support available for production-critical issues.

Documentation Package: Each terminal ships with installation instructions, wiring diagrams, and quick-start guides. Downloadable resources include CAD drawings for panel cutouts, user manuals, and FactoryTalk View sample applications to accelerate project deployment.

Frequently Asked Questions

How does the 2711P-T7C4D1 compare to newer PanelView Plus 7 models?
PanelView Plus 6 terminals utilize Windows CE 6.0 and FactoryTalk View ME, offering proven stability for standard visualization tasks. PanelView Plus 7 models feature Windows Embedded Standard 7, faster processors, and enhanced graphics capabilities suited for video integration and complex animations. Choose Plus 6 for cost-effective, reliable HMI applications; select Plus 7 when advanced multimedia or future-proofing justifies higher investment.

Can this terminal communicate with Siemens or Mitsubishi PLCs?
The RS-232 serial port supports Modbus RTU and other industry-standard protocols, enabling communication with third-party controllers. However, EtherNet/IP connectivity is optimized for Rockwell Automation platforms. For non-Rockwell applications, verify protocol compatibility and consider terminals with native support for your controller family.

What is the recommended method for application backup and recovery?
Copy HMI applications to USB flash drives through the terminal's file manager, or use FactoryTalk View Studio to download applications to your development PC. Store backup copies on network drives and maintain version control documentation. For critical applications, keep pre-configured spare terminals with loaded applications to enable rapid replacement during hardware failures.

Does the touchscreen require calibration after installation?
Resistive touchscreens typically require initial calibration during commissioning and periodic recalibration if touch accuracy degrades. Access calibration utilities through the terminal's system menu or FactoryTalk View runtime settings. Calibration takes 30-60 seconds and should be performed after panel mounting to account for mechanical stress on the touch overlay.

What cable types are required for EtherNet/IP connections?
Use standard Cat5e or Cat6 Ethernet cables with RJ45 connectors. For industrial environments, specify shielded cables (STP) to minimize electromagnetic interference from VFDs, welders, or high-current switching devices. Maximum cable length follows standard Ethernet specifications: 100 meters between terminal and switch/controller without repeaters.

Can I upgrade the terminal's memory or storage capacity?
The 2711P-T7C4D1 features fixed 64 MB RAM and 128 MB flash storage that cannot be upgraded. For applications requiring larger memory footprints, consider PanelView Plus 7 models with expandable storage options. Alternatively, utilize USB flash drives or CompactFlash cards for data logging and recipe storage to extend effective capacity.

How do I transfer FactoryTalk View applications to the terminal?
Transfer applications via Ethernet using FactoryTalk View Studio's download function, copy .MER files to USB flash drives for manual installation, or pre-load applications onto CompactFlash cards. Ethernet transfer is fastest for development iterations; USB/CF methods suit field installations without network access or security restrictions.

What is the expected service life for industrial HMI terminals?
PanelView Plus 6 terminals typically provide 7-10 years of reliable service with proper maintenance. Backlight replacement (50,000-hour lifespan) represents the most common service intervention. Touchscreen overlays may require replacement after 1-5 million touches depending on usage intensity. Plan for technology refresh cycles every 8-12 years to maintain software support and parts availability.

Order Your 2711P-T7C4D1 Terminal Today

Transform your machine interface with the 2711P-T7C4D1 PanelView Plus 6 Terminal – a proven HMI solution combining compact design, industrial durability, and seamless Rockwell Automation integration. Our technical team stands ready to support your application requirements, from initial specification through commissioning and beyond.

Contact our sales team for volume pricing, custom configuration options, or technical consultation on your specific automation project. Experience the reliability and performance that has made PanelView Plus the industry standard for machine-level visualization across manufacturing, process control, and infrastructure applications worldwide.
