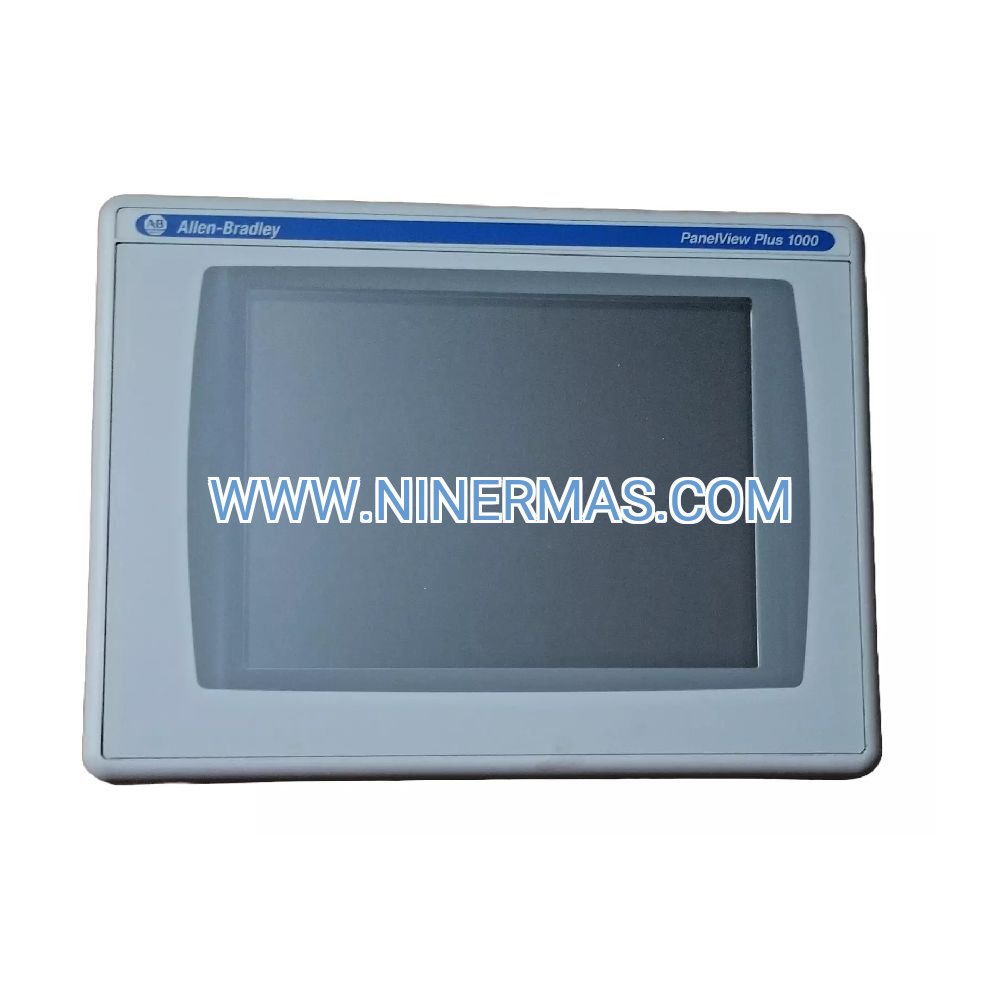

2711P-T10C4D2 Industrial Touchscreen Terminal (Professional-Grade HMI Solution)

The 2711P-T10C4D2 represents a proven operator interface platform engineered for continuous-duty industrial applications. Built on the PanelView Plus 1000 architecture, this 10.4-inch touchscreen terminal delivers reliable visualization and control capabilities across manufacturing, processing, and material handling operations. Designed for integration with Allen-Bradley control ecosystems, it provides operators with intuitive access to machine parameters, process data, and diagnostic information.

Manufacturing facilities face mounting pressure to reduce downtime, improve operator efficiency, and maintain production visibility. Traditional control panels with discrete indicators and mechanical switches limit operational flexibility and complicate troubleshooting. The 2711P-T10C4D2 addresses these challenges by consolidating multiple control functions into a single, programmable interface that adapts to evolving production requirements without hardware modifications.

This terminal serves process engineers, automation technicians, and production managers who require dependable human-machine communication in demanding environments. With NEMA 4X front-panel sealing, industrial temperature tolerance, and proven Windows CE stability, the 2711P-T10C4D2 maintains operational integrity where consumer-grade devices fail—delivering consistent performance in applications ranging from food processing to automotive assembly.

Core Capabilities & Technical Advantages

→ High-Resolution Visual Feedback: 10.4-inch color TFT display (640×480 VGA) provides clear visibility of process graphics, trend data, and alarm conditions under variable lighting conditions. Anti-glare coating reduces operator eye strain during extended shifts.

→ Dual-Protocol Connectivity: Integrated Ethernet 10/100 port enables EtherNet/IP communication with ControlLogix and CompactLogix processors, while RS-232 serial interface maintains compatibility with legacy equipment and barcode scanners.

→ Environmental Hardening: NEMA 4X/IP65-rated front bezel withstands washdown procedures, chemical exposure, and particulate ingress. Operating temperature range of 0-55°C accommodates non-climate-controlled production areas.

✓ Expandable Memory Architecture: CompactFlash card slot supports application storage up to 2GB, enabling complex graphics libraries, recipe databases, and historical data logging without network dependency.

✓ Multi-Language Localization: Runtime language switching accommodates multinational workforces without application recompilation—critical for global manufacturers standardizing equipment across facilities.

✓ Certified Safety Compliance: UL Listed, CE marked, and C-Tick approved for installation in North American, European, and Asia-Pacific jurisdictions, streamlining multinational equipment deployment.

Industry-Specific Deployment Scenarios

Packaging Line Supervision: Bottling and cartoning operations utilize the 2711P-T10C4D2 for real-time speed monitoring, product changeover management, and reject tracking. Operators adjust fill volumes, sealing temperatures, and conveyor speeds through intuitive touchscreen controls, reducing changeover time by 40% compared to mechanical adjustment methods.

Water Treatment Monitoring: Municipal and industrial water facilities deploy these terminals for SCADA visualization of pump stations, filtration systems, and chemical dosing equipment. Alarm annunciation and trend analysis capabilities enable operators to identify process deviations before regulatory excursions occur.

Material Handling Coordination: Warehouse automation systems integrate the 2711P-T10C4D2 for conveyor network control, sortation logic adjustment, and throughput monitoring. Ethernet connectivity enables centralized reporting while local touchscreen access supports rapid troubleshooting without PLC programming tools.

Batch Process Control: Chemical blending and pharmaceutical manufacturing applications leverage recipe management features for repeatable production sequences. Operators select formulations, initiate automated batch cycles, and document process parameters for regulatory compliance—all through a single interface.

Machine Tool Integration: CNC machining centers and robotic work cells employ the terminal for part program selection, tool offset entry, and cycle count tracking. Compact footprint preserves valuable control cabinet space while providing operators with essential production data.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the 2711P-T10C4D2 when your application requires a balance between screen real estate and panel space constraints. The 10.4-inch display accommodates detailed process graphics and multi-zone layouts without the footprint demands of 12-inch or 15-inch models. Ethernet connectivity is essential for modern EtherNet/IP networks, while the serial port provides backward compatibility with existing RS-232 devices. For applications requiring keypad entry in addition to touchscreen operation, consider the 2711P-K10C4D8 variant.

Advanced Integration Features

FactoryTalk View ME Compatibility: Develop sophisticated HMI applications using Rockwell's FactoryTalk View Machine Edition software. Pre-built faceplates for motor control, valve operation, and PID loops accelerate development while maintaining visual consistency across equipment lines.

Data Logging & Trending: Capture process variables to CompactFlash storage for post-shift analysis and regulatory documentation. Built-in trending objects display historical data directly on the terminal without external historian software.

Alarm Management System: Configurable alarm priorities, acknowledgment requirements, and notification escalation ensure critical events receive appropriate operator attention. Alarm history buffers support root-cause analysis during production investigations.

Remote Diagnostics Access: VNC server functionality enables authorized personnel to view and interact with the terminal display over Ethernet networks—valuable for off-shift support and multi-site troubleshooting.

Recipe & Formula Handling: Store multiple production recipes with parameter sets that operators select via dropdown menus or barcode scans. Version control features prevent unauthorized recipe modifications.

Delivery Timelines & Service Commitments

Standard Fulfillment: In-stock units ship within 1-2 business days via expedited carriers. International orders clear customs with full commercial documentation and HS code classification (8537.10.90).

Warranty Coverage: 12-month manufacturer warranty protects against component defects and workmanship issues. Warranty includes advance replacement service to minimize production interruptions.

Technical Support: Our automation specialists provide pre-sale application consultation, post-sale configuration assistance, and troubleshooting guidance. Support includes network setup verification, FactoryTalk View licensing clarification, and firmware update procedures.

Documentation Package: Each terminal includes installation instructions, quick-start guide, and dimensional drawings. Complete user manuals, communication driver specifications, and sample applications available via download portal.

Frequently Asked Questions

What communication protocols does the 2711P-T10C4D2 support for PLC connectivity?
The terminal communicates via EtherNet/IP (primary protocol for ControlLogix/CompactLogix), DF1 serial (for MicroLogix/SLC 500), and Modbus RTU/TCP. Protocol selection occurs during FactoryTalk View application development based on target controller type.

Can this HMI terminal operate in outdoor or high-humidity environments?
The NEMA 4X front-panel rating provides protection against water ingress and corrosion when properly installed in a sealed enclosure. However, the terminal requires ambient temperature control (0-55°C) and is not rated for direct sunlight exposure or condensing humidity without additional environmental protection.

How does the 2711P-T10C4D2 compare to newer PanelView 5000 series terminals?
The PanelView Plus 1000 series offers proven stability and broad compatibility with legacy systems at a lower price point. PanelView 5000 models provide faster processors, higher-resolution displays, and modern HTML5 development tools—recommended for new projects requiring advanced graphics or mobile device integration.

What is the maximum application size supported by this terminal?
Internal flash memory supports applications up to 128 MB. For larger projects with extensive graphics libraries or data logging requirements, CompactFlash cards up to 2 GB expand available storage. Application performance depends on object count and update rates rather than absolute file size.

Does the terminal support secure remote access for off-site monitoring?
Built-in VNC server enables remote viewing over Ethernet networks. For secure internet access, deploy the terminal behind a VPN gateway or industrial firewall with appropriate port forwarding and authentication. Direct internet exposure is not recommended due to cybersecurity risks.

What mounting hardware is included with the 2711P-T10C4D2?
Each terminal ships with panel-mount retention clips and a gasket for NEMA 4X sealing. Cutout template and torque specifications are provided in the installation documentation. Mounting screws and panel preparation are customer-supplied based on enclosure material.

Get Started with Your HMI Upgrade

Ready to modernize your operator interface? Contact our automation team for application-specific recommendations, FactoryTalk View licensing options, and volume pricing. We provide technical pre-sales support to ensure the 2711P-T10C4D2 meets your performance requirements before purchase.

Request a quote: Share your project details for customized pricing and delivery timelines.
Technical consultation: Discuss communication requirements, panel layout, and integration challenges with our engineers.
Sample applications: Review demonstration projects showcasing typical HMI functionality and best practices.
