Allen-Bradley 2711P-RP3 Retrofit-Compatible Logic Module

Allen-Bradley 2711P-RP3 Retrofit-Compatible Logic Module: Legacy HMI System Upgrade & Replacement

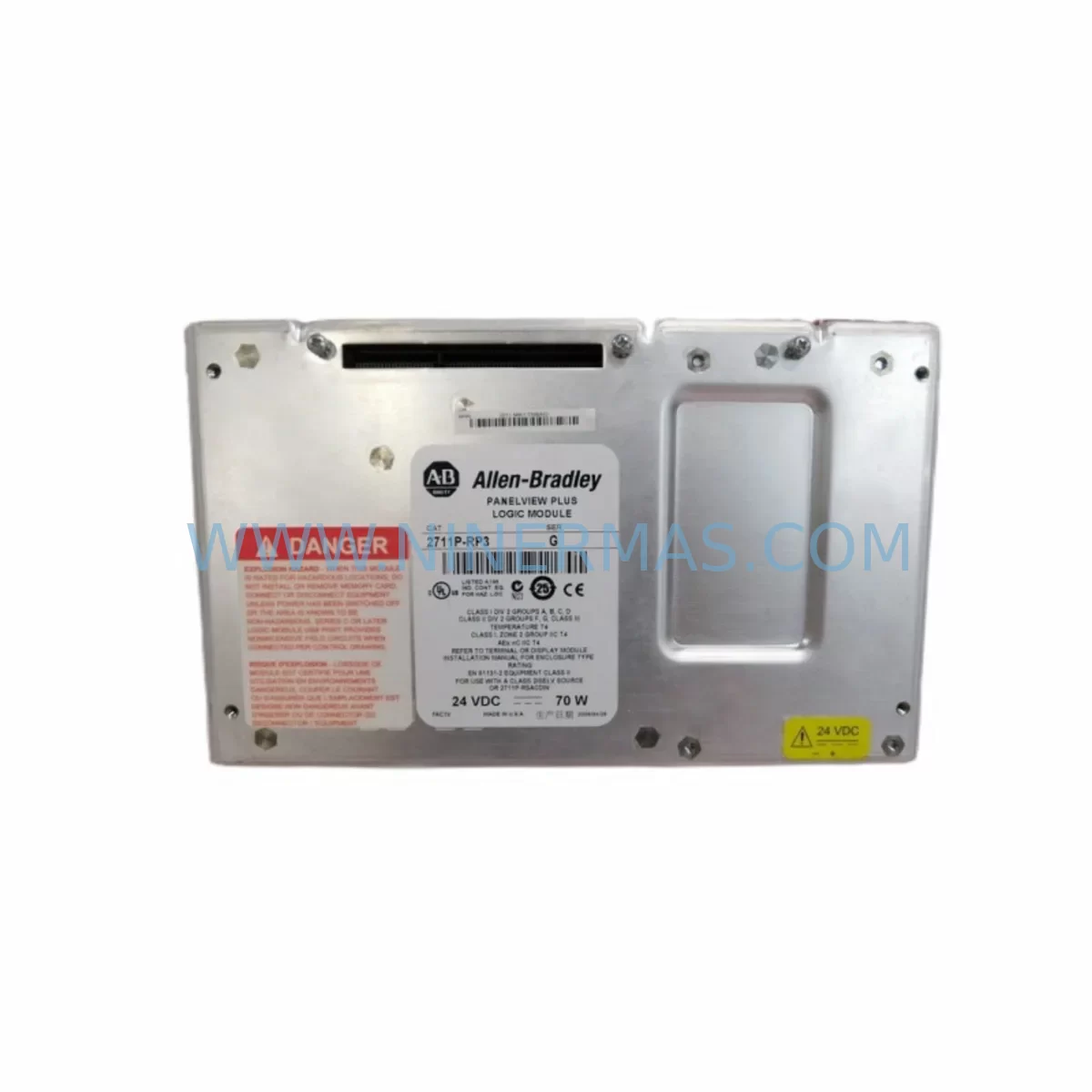

The Allen-Bradley 2711P-RP3 is a ruggedized logic module designed for the PanelView Plus 6 and PanelView Plus 7 series of operator interface terminals. As legacy HMI platforms age out of production support cycles, the 2711P-RP3 has become a critical retrofit component for facilities seeking to extend the operational life of existing control panels without committing to a full system overhaul. Whether you are replacing a failed logic module in a running production line, upgrading from an earlier PanelView Plus 1000 or PanelView Plus 1250 terminal, or consolidating a multi-panel control cabinet, the 2711P-RP3 provides a direct-fit, firmware-compatible solution that minimizes engineering rework and reduces unplanned downtime.

NINERMAS maintains verified stock of the 2711P-RP3 with full functional testing prior to shipment. Each unit ships with a 12-month warranty covering manufacturing defects and operational failures under normal industrial conditions. Our inventory is sourced through authorized distribution channels and subject to incoming inspection to confirm firmware revision, hardware revision, and physical integrity before dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 2711P-RP3 into an existing control architecture requires a structured pre-installation review. Before removing the legacy logic module, engineers should document the current firmware version displayed on the terminal’s startup screen and export the active .mer application file to a USB drive or CompactFlash card using the FactoryTalk View ME Station runtime menu. This backup step is non-negotiable: if the replacement module ships with a different firmware revision, the application file may require a compatibility check before it can be loaded.

In control cabinets where the PanelView Plus terminal communicates with a ControlLogix or CompactLogix controller via EtherNet/IP, the IP address configuration stored in the logic module must be re-entered after the swap. Technicians should record the existing IP address, subnet mask, gateway, and any RSLinx Enterprise communication shortcut definitions before beginning the replacement. For installations using a 1756-ENBT or 1756-EN2T EtherNet/IP bridge module in the ControlLogix rack, the communication path defined in the .mer file must match the slot addressing of the controller after the retrofit is complete.

In older installations where the terminal connects to a MicroLogix 1100 or SLC 500 controller via DF1 or DH-485 using a 2711P-CBL-EX04 or 2711P-CBL-EX16 serial cable, the baud rate, parity, and station address settings must be verified against the controller’s channel configuration. These parameters are stored in the logic module and will need to be reconfigured on the replacement 2711P-RP3 if they are not embedded in the .mer file itself.

For facilities upgrading from a PanelView 550 or PanelView 900 (non-Plus generation) to a PanelView Plus 6 platform using the 2711P-RP3, the application must be rebuilt in FactoryTalk View ME from the original PanelView Builder source file. The legacy .pvp format is not directly importable, and screen layouts, tag references, and alarm configurations must be recreated. In these cases, the 2711P-RP3 is typically paired with a new 2711P-T10C4D8 or 2711P-T12W21D8S display assembly, and the control program in the connected PLC — whether a 1769-L33ER CompactLogix or a 1756-L71 ControlLogix — may require tag renaming to align with the new HMI tag database.

Where I/O expansion is part of the modernization scope, the retrofit may also involve adding a 1734-AENT Point I/O EtherNet/IP adapter or a 1769-ECR CompactLogix end cap to accommodate additional analog or digital I/O modules. Signal isolators may be required at field termination points where legacy 4–20 mA loops interface with new I/O cards that have different input impedance characteristics. In these scenarios, the 2711P-RP3 serves as the HMI anchor of a broader system upgrade that touches the controller, the I/O subsystem, and the field wiring simultaneously.

Downtime Control During System Migration

The primary risk in any logic module replacement is unplanned extension of the maintenance window. To control downtime, the replacement 2711P-RP3 should be pre-staged before the production line is taken offline. This means loading the correct firmware version onto the module using a USB programming cable and a laptop running FactoryTalk View ME Studio, and pre-loading the .mer application file so that the terminal boots directly into the operator interface without requiring on-site configuration steps.

Where the terminal is part of a networked SCADA or DCS architecture, the system integrator should coordinate with the control room to suppress alarms on the affected node during the swap window. If the PanelView Plus terminal is configured as a data acquisition point — logging production counts, batch totals, or alarm history to a FactoryTalk Historian or a third-party SQL database — the logging service should be paused and the data buffer flushed before the module is removed to prevent data corruption or gap records in the historian.

Physical installation of the 2711P-RP3 is straightforward: the module slides into the rear of the PanelView Plus chassis and locks with a quarter-turn fastener. No additional tools are required for the mechanical swap. The terminal should power up within 60 seconds of module insertion, and the operator should verify that the communication status LED on the logic module is solid green before releasing the panel back to production. If the LED flashes amber, the communication path configuration requires review before the line is restarted.

Post-installation, a brief functional verification should confirm that all HMI screens navigate correctly, all PLC tags are updating in real time, all alarm setpoints are active, and any recipe or data logging functions are operating as expected. This verification step typically takes 10–20 minutes and should be completed before the maintenance window is formally closed.

Retrofit Support FAQ

Q: Is the 2711P-RP3 a direct drop-in replacement for the 2711P-RP1 and 2711P-RP2?
A: In most cases, yes. The 2711P-RP3 is physically and electrically compatible with PanelView Plus 6 terminals that previously used the 2711P-RP1 or 2711P-RP2 logic modules. However, you should verify the firmware revision of your existing .mer application file against the firmware supported by the 2711P-RP3 before installation. NINERMAS can advise on firmware compatibility based on your terminal’s serial number and current software version.

Q: Does NINERMAS test the 2711P-RP3 before shipment?
A: Yes. Every 2711P-RP3 unit undergoes functional power-on testing and visual inspection before dispatch. Units are verified for correct boot behavior, communication port functionality, and physical connector integrity. A test report is available upon request. All units ship with a 12-month warranty.

Q: What information do I need to provide to confirm compatibility with my existing terminal?
A: Please provide the full catalog number of your PanelView Plus terminal (e.g., 2711P-T10C4D8), the current firmware version displayed on the terminal, and the communication protocol in use (EtherNet/IP, DF1, DH-485, etc.). If you have the .mer file version number, that is also helpful. Contact our technical team at sale@ninermas.com with these details for a compatibility confirmation before ordering.

Q: What is the typical lead time and do you maintain stock?
A: NINERMAS maintains ready stock of the 2711P-RP3 for immediate dispatch. Standard orders ship within 1–3 business days. For urgent breakdown situations, expedited shipping options are available. Contact us at +0086 187 5021 5667 to confirm current inventory levels and arrange priority dispatch.
