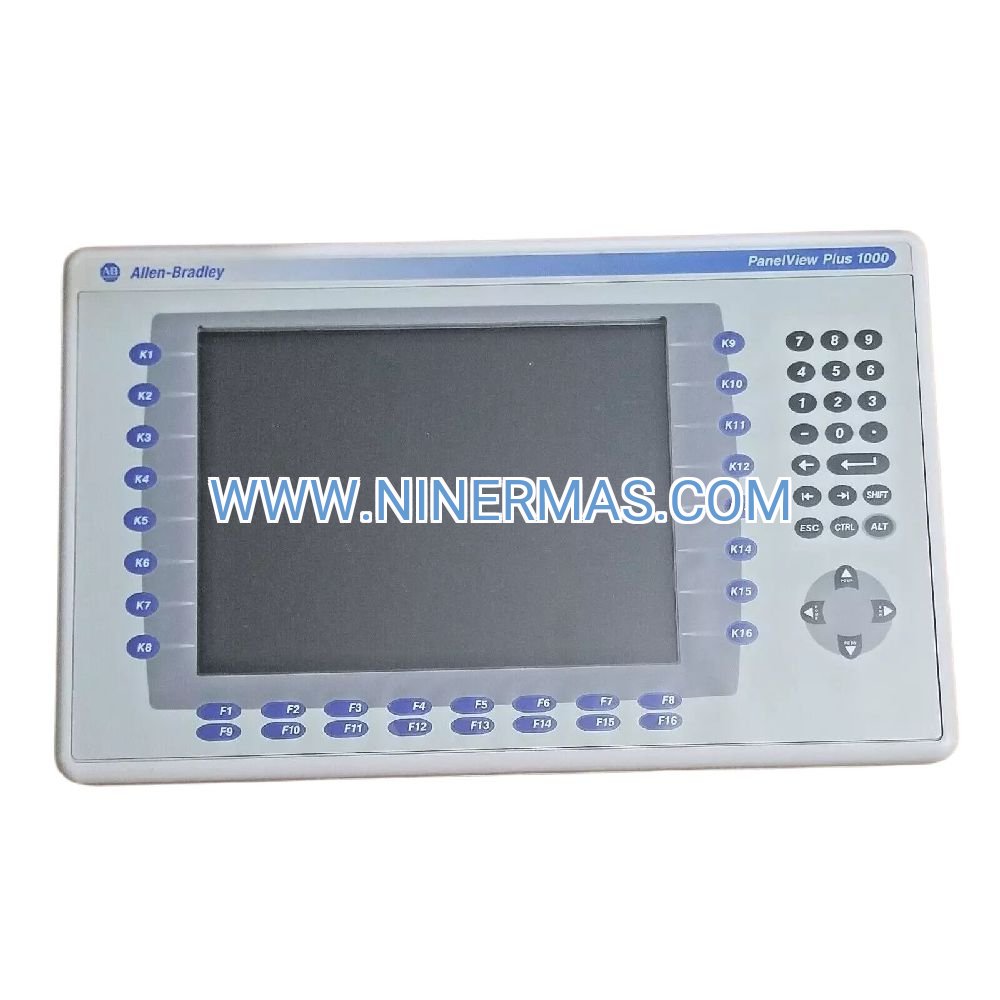

2711P-K10C4D8 PanelView Plus 1000 Keypad Terminal (Industrial-Grade Operator Interface)

The 2711P-K10C4D8 represents Allen-Bradley's proven approach to industrial visualization—a 10.4-inch keypad-based HMI terminal engineered for environments where tactile input reliability outweighs touchscreen convenience. Built on the PanelView Plus 1000 platform, this terminal delivers consistent performance in manufacturing cells, process skids, and machine control panels where operators require dependable interaction under challenging conditions.

Designed for system integrators and plant engineers managing ControlLogix, CompactLogix, or legacy PLC architectures, the 2711P-K10C4D8 bridges modern Ethernet/IP networks with traditional serial protocols. Its factory-calibrated 1000-color TFT display and physical keypad interface ensure operational continuity in gloved-hand environments, high-vibration applications, or facilities with strict contamination controls.

Whether retrofitting aging HMI infrastructure or deploying new automation projects, this terminal provides backward compatibility with existing FactoryTalk View ME applications while supporting contemporary industrial IoT integration requirements. The result: reduced commissioning time, simplified operator training, and long-term platform stability for mission-critical control systems.

Core Capabilities & Technical Advantages

→ Dual-Protocol Connectivity Architecture
Native Ethernet/IP support enables seamless integration with modern Logix controllers, while RS-232 and DH-485 ports maintain compatibility with legacy equipment—eliminating costly protocol converters and reducing cabinet complexity.

✓ Keypad-Optimized Operator Workflow
Physical button interface delivers tactile feedback for critical parameter entry, setpoint adjustments, and alarm acknowledgment—particularly valuable in food processing, pharmaceutical, and chemical environments requiring gloved operation.

✓ Industrial-Hardened Display Technology
10.4-inch TFT LCD with 1000-color palette provides clear visibility across 0-55°C operating range. NEMA 4/IP65-rated front bezel withstands washdown procedures and airborne particulates when properly installed.

→ Scalable Memory & Application Capacity
64MB RAM and 128MB Flash storage accommodate complex visualization projects with data logging, recipe management, and multi-language support—sufficient for most discrete manufacturing and batch process applications.

✓ Wide-Range DC Power Input
18-32V DC operating voltage tolerates typical industrial power fluctuations without external regulation, simplifying panel design and reducing component count.

→ FactoryTalk View ME Software Ecosystem
Leverages Rockwell's established development platform for rapid application creation, reusable graphics libraries, and centralized version control across multiple HMI deployments.

Industrial Application Scenarios

Packaging Line Control Stations
Operators manage conveyor speeds, reject mechanisms, and product counters via keypad input while monitoring real-time throughput metrics. The sealed front panel withstands frequent cleaning cycles in food-grade environments.

Water Treatment SCADA Interfaces
Municipal operators adjust chemical dosing rates, pump sequencing, and alarm setpoints through dedicated function keys. RS-232 connectivity enables integration with existing flow meters and analyzers lacking Ethernet capability.

Material Handling System Oversight
Warehouse automation systems utilize the terminal for manual mode overrides, diagnostic access, and maintenance parameter entry. Keypad navigation reduces touchscreen wear in high-cycle-count applications.

Batch Process Recipe Management
Chemical blending and pharmaceutical compounding operations benefit from numeric keypad entry for precise ingredient quantities and process timing—minimizing operator error compared to touchscreen keyboards.

Machine Tool Operator Panels
CNC and robotic work cells employ the HMI for program selection, offset adjustments, and cycle monitoring. Vibration-resistant keypad construction maintains input reliability in high-shock environments.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the 2711P-K10C4D8 when your application prioritizes tactile input reliability over touchscreen flexibility. For applications requiring larger displays or advanced graphics, consider the PanelView Plus 7 series. For basic monitoring without keypad input, evaluate touchscreen-only variants like the 2711P-T10C4A8.

Advanced Integration & Customization Options

Industrial IoT Connectivity: Ethernet/IP port supports MQTT gateway integration for cloud-based analytics and remote monitoring via FactoryTalk Analytics platforms. Enables predictive maintenance workflows when paired with Logix controller data collection.

Multi-Language Operator Interfaces: FactoryTalk View ME supports dynamic language switching for multinational facilities—store up to 8 language sets in Flash memory for shift-based operator preferences.

Custom Faceplate Overlays: Panel cutout accommodates custom-printed membrane overlays for application-specific labeling and branding—ideal for OEM machine builders requiring differentiated operator interfaces.

Redundant Network Architectures: Dual Ethernet/IP and DH-485 connections enable hot-standby controller configurations for high-availability process systems requiring <1 second failover times.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for critical downtime situations (contact sales for availability).

Custom Configuration Services: Pre-loaded application programming and network configuration available with 7-10 day lead time—reduces on-site commissioning by up to 40%.

Warranty Coverage: 12-month manufacturer's warranty covering component defects and workmanship failures. Extended 36-month coverage available for preventive maintenance contracts.

Technical Support Access: Unlimited email/phone consultation for installation planning, network troubleshooting, and FactoryTalk View application optimization. Remote diagnostic assistance available during business hours (GMT+8).

Documentation Package: Includes installation manual, wiring diagrams, FactoryTalk View ME quick-start guide, and sample application templates for common industrial scenarios.

Frequently Asked Questions

How does keypad input compare to touchscreen reliability in industrial settings?
Keypad terminals eliminate touchscreen calibration drift, accidental activation from water droplets, and glove-compatibility issues. In high-vibration or frequent-washdown environments, physical buttons provide 3-5x longer operational lifespan before requiring replacement.

Can this terminal communicate with non-Rockwell PLCs or third-party devices?
Yes—the RS-232 port supports Modbus RTU and ASCII protocols via FactoryTalk View ME driver configuration. Ethernet/IP connectivity works with any CIP-compliant device, though advanced features optimize for Allen-Bradley controllers.

What are typical power consumption requirements for panel design?
The 2711P-K10C4D8 draws 25W at nominal 24V DC operation (approximately 1.05A). Recommend sizing panel power supplies with 30% overhead—a 2A supply comfortably supports the HMI plus auxiliary devices.

Is FactoryTalk View Studio software included with the terminal purchase?
No—FactoryTalk View Studio ME requires separate licensing from Rockwell Automation. However, runtime licenses are embedded in the terminal. Contact us for software procurement assistance or trial versions.

How do I migrate applications from older PanelView Standard terminals?
FactoryTalk View ME includes conversion utilities for PanelView Standard .PBA files. Expect 60-80% automatic conversion success; remaining graphics and scripts require manual adjustment for Plus platform compatibility.

What panel cutout dimensions are required for installation?
The 2711P-K10C4D8 requires a 10.63" x 8.07" (270mm x 205mm) panel cutout with 0.5" minimum edge clearance for mounting clip access. Refer to installation manual for detailed gasket placement and torque specifications.
