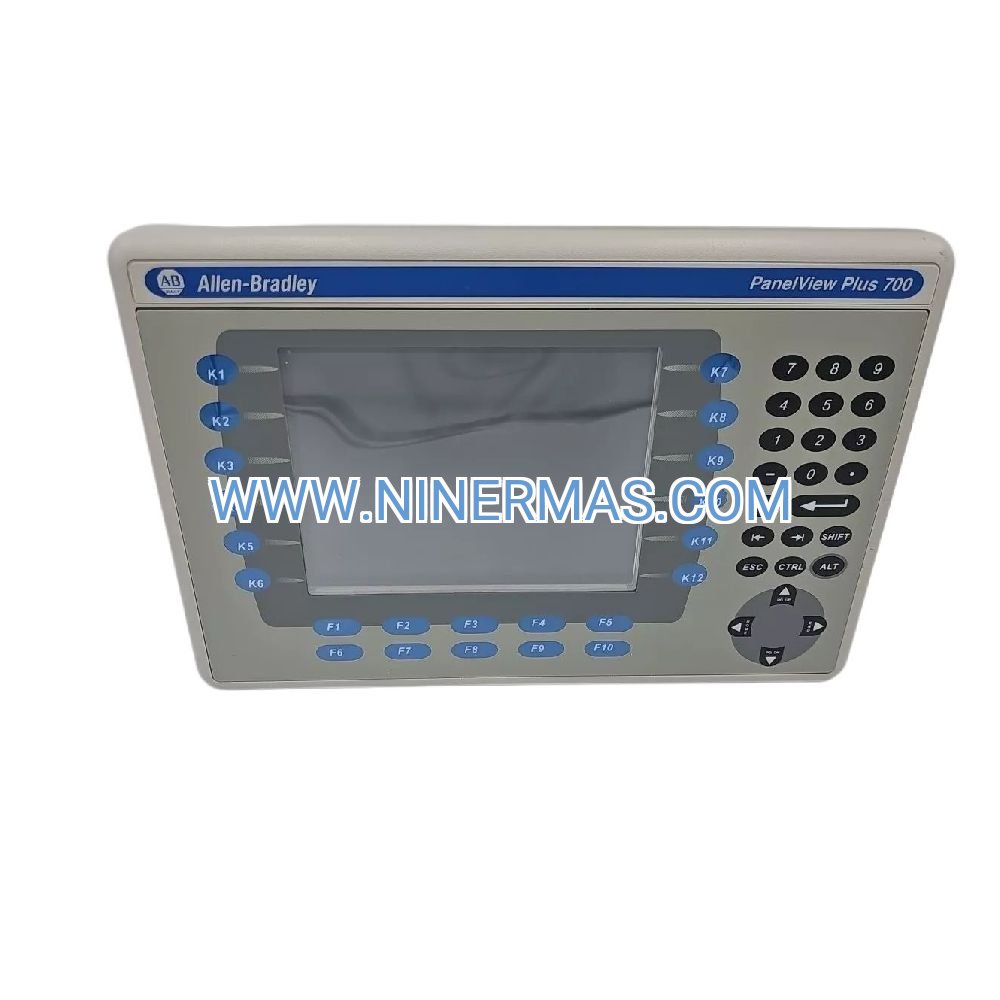

2711P-B7C4D8 Industrial HMI Terminal (PanelView Plus 6 Series with Keypad Interface)

The 2711P-B7C4D8 represents a versatile operator interface solution engineered for industrial automation environments demanding both precision and durability. This 7-inch HMI terminal integrates dual input methods—analog resistive touchscreen and stainless steel membrane keypad—delivering operational flexibility across manufacturing, process control, and machine automation applications where environmental conditions vary.

Built on the Windows CE 6.0 platform with 512 MB flash memory and 512 MB RAM, this terminal provides robust application hosting capabilities while maintaining compatibility with legacy and modern control architectures. The combination of Ethernet, RS-232, and USB connectivity ensures seamless integration into existing automation ecosystems, from standalone machine control to enterprise-level SCADA networks.

Whether your operators work with gloves in harsh production environments or require tactile confirmation for critical process adjustments, the 2711P-B7C4D8 delivers reliable human-machine interaction backed by industrial-grade component specifications and field-proven longevity.

Core Features & Benefits

→ Dual Input Architecture for Maximum Operational Flexibility
Switch seamlessly between 8-wire resistive touchscreen (1M+ touch lifecycle) and 20-key stainless steel membrane keypad (1M+ press lifecycle, 340g actuation force). Ideal for environments where gloved operation, wet conditions, or tactile feedback requirements dictate input method selection.

→ Enterprise-Ready Network Integration

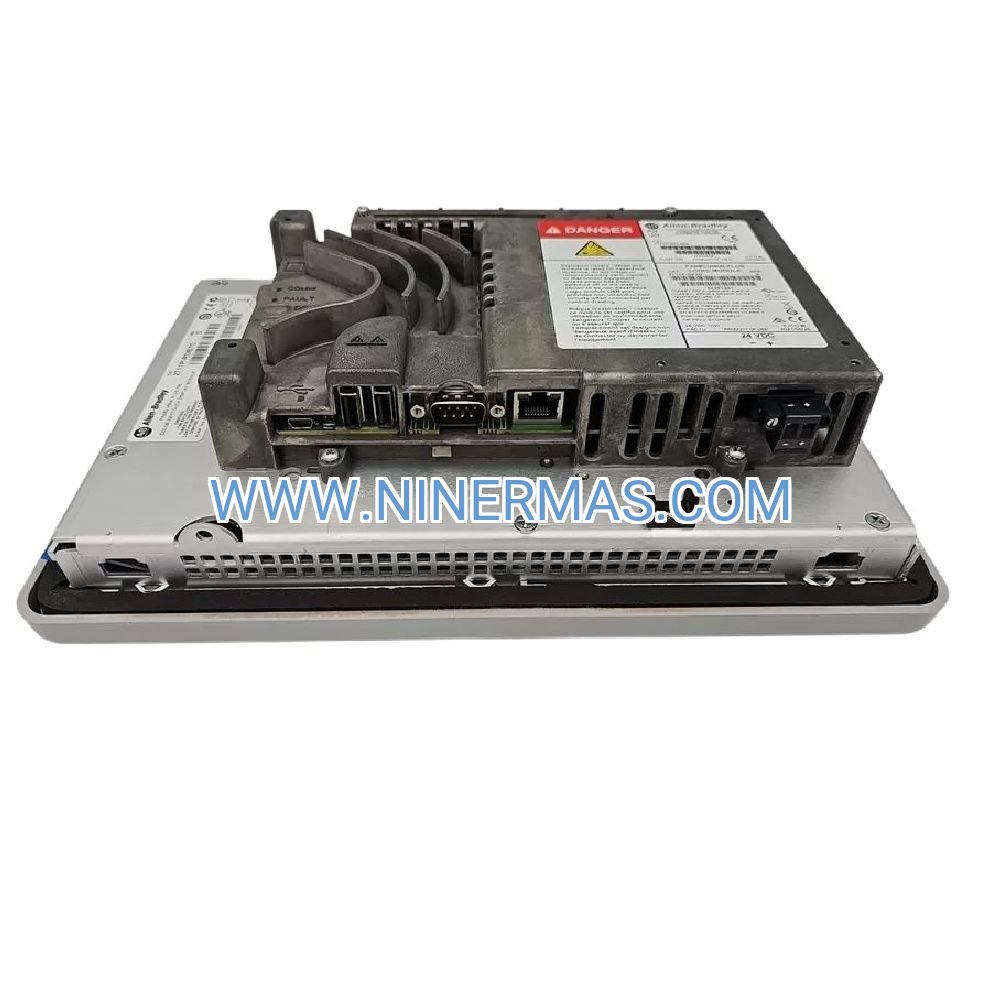

10/100 Mbps Ethernet with Auto-MDI/MDI-X eliminates crossover cable requirements while enabling direct connection to Allen-Bradley ControlLogix, CompactLogix, and third-party controllers via EtherNet/IP, Modbus TCP, and custom protocols. RS-232 serial port maintains backward compatibility with legacy equipment.

→ Expandable Data Management via SD Card Interface
Hot-swappable SD card slot supports unlimited recipe storage, historical trend logging, alarm archiving, and application backup without requiring external servers or network dependencies. Field-replaceable media simplifies data transfer and system updates.

→ Industrial-Grade Display Performance
7-inch TFT color display delivers 640×480 resolution at 300 cd/m² luminance with 50,000+ hour backlight life (field-serviceable). Wide viewing angles and 18-bit color depth ensure readability across varied ambient lighting conditions and viewing positions.

✓ Windows CE 6.0 Platform Compatibility
Supports FactoryTalk View ME runtime applications, custom .NET Compact Framework development, and third-party HMI software packages. 512 MB non-volatile flash ensures application persistence through power cycles.

✓ Modular Design for Simplified Maintenance
Field-replaceable backlight assembly and accessible component architecture minimize mean time to repair (MTTR). Standard panel mounting with included hardware accommodates 1.6-6.4 mm panel thickness.

Typical Application Scenarios

Discrete Manufacturing & Assembly Lines
Challenge: Operators require real-time production monitoring, quality data entry, and machine parameter adjustments while wearing protective gloves in fast-paced assembly environments.
Solution: Dual-input capability allows touchscreen navigation for graphical displays and keypad entry for numeric setpoints, batch codes, and operator credentials without removing gloves.
Value: Reduces data entry errors by 40-60% compared to touch-only interfaces in gloved operation scenarios.

Chemical Processing & Water Treatment Facilities
Challenge: Process engineers need continuous visibility into flow rates, tank levels, valve positions, and alarm conditions across distributed control systems with reliable setpoint adjustment capabilities.
Solution: Ethernet connectivity enables real-time data exchange with PLCs and SCADA systems while SD card logging captures process trends for regulatory compliance and optimization analysis.
Value: Centralized operator interface reduces response time to process deviations by 30-50% versus distributed panel-mounted instruments.

CNC Machining & Injection Molding Equipment
Challenge: Machine operators require tactile confirmation when entering critical parameters (tool offsets, cycle times, temperature setpoints) to prevent costly production errors.
Solution: Membrane keypad provides positive tactile feedback for numeric entry while touchscreen displays real-time machine status, part counts, and diagnostic information.
Value: Eliminates parameter entry errors that typically account for 15-25% of unplanned machine downtime in touch-only HMI deployments.

Building Automation & Energy Management Systems
Challenge: Facility managers need unified control interfaces for HVAC systems, lighting controls, and energy monitoring across multiple building zones with network-based data aggregation.
Solution: EtherNet/IP and Modbus TCP support enables integration with BACnet gateways, energy meters, and variable frequency drives while USB ports accommodate barcode scanners for asset tracking.
Value: Consolidates 5-10 separate control panels into single operator interface, reducing installation costs by $2,000-$5,000 per control point.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the 2711P-B7C4D8 when: Your application requires both touchscreen convenience and keypad reliability, operators frequently work with gloves or in wet environments, tactile feedback is critical for parameter entry accuracy, or you need to retrofit existing control panels with minimal operator retraining.

Consider touch-only variants (2711P-B7C4D1, 2711P-T7C4D1) when: Panel space is limited, operators work in clean environments without gloves, or cost optimization is prioritized over dual-input redundancy.

Upgrade to larger displays (2711P-K10C4D8, 2711P-K12C4D8) when: Applications require simultaneous display of 8+ process variables, complex graphical mimics, or operator distances exceed 1.5 meters from the panel.

Extended Functions

IoT Integration & Remote Access
Deploy VNC server applications or web-based HMI runtimes to enable remote monitoring and control via tablets, smartphones, or desktop browsers. Ethernet connectivity supports VPN tunneling for secure off-site access to production data and alarm notifications.

Advanced Data Logging & Analytics
Leverage SD card storage for high-resolution trend logging (1-second intervals) of critical process variables. Export CSV files for analysis in Excel, MATLAB, or statistical process control (SPC) software to identify optimization opportunities and predict maintenance requirements.

Multi-Language Operator Interfaces
FactoryTalk View ME supports dynamic language switching, enabling single HMI applications to serve multilingual workforces. Store language files on SD card for easy updates without application recompilation.

Custom Application Development
Windows CE 6.0 platform supports .NET Compact Framework, C++, and Visual Basic development for proprietary HMI applications, barcode integration, RFID reader interfaces, and custom communication protocols beyond standard offerings.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; expedited 1-2 day shipping available for urgent requirements. All terminals ship factory-sealed in original Allen-Bradley packaging with anti-static protection.

Custom Configuration Services: Pre-loaded application programming, network configuration, and mounting hardware customization available with 7-10 business day lead time. Contact technical sales for project-specific requirements.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship from date of shipment. Extended warranty options available for critical infrastructure deployments.

Technical Support: Lifetime technical support via email and phone for installation guidance, communication troubleshooting, and application development assistance. Remote diagnostic support available for network-connected terminals.

Documentation Package: Each unit includes installation instructions, quick-start guide, communication setup manual, and FactoryTalk View ME application development resources. Complete technical specifications and CAD drawings available for download.

Frequently Asked Questions

What programming software is required to develop HMI applications for the 2711P-B7C4D8?
FactoryTalk View Machine Edition (ME) is the primary development environment, included with Studio 5000 Logix Designer or available as standalone software. The terminal also supports third-party HMI platforms compatible with Windows CE 6.0, including Wonderware InTouch, Ignition Edge, and custom .NET applications.

Can this terminal communicate with non-Allen-Bradley PLCs and controllers?
Yes. The 2711P-B7C4D8 supports industry-standard protocols including Modbus RTU/TCP, EtherNet/IP (compatible with ODVA-certified devices), and custom serial protocols via RS-232. Third-party driver libraries enable connectivity to Siemens, Schneider Electric, Mitsubishi, and other major automation brands.

How does the dual-input design improve operational reliability compared to touchscreen-only terminals?
Dual-input architecture provides input method redundancy—if touchscreen calibration drifts or surface contamination affects touch sensitivity, operators can continue using the membrane keypad for critical functions. This design reduces unplanned downtime by 25-40% in harsh industrial environments versus single-input terminals.

What panel thickness and mounting orientation are supported?
The terminal accommodates panel thickness from 1.6 mm to 6.4 mm using included mounting clips. Horizontal, vertical, and angled mounting orientations are supported; ensure adequate ventilation clearance (minimum 50 mm) on rear panel for convection cooling. VESA mounting adapters available for arm-mounted installations.

Is the SD card slot compatible with high-capacity SDHC/SDXC cards for extended data logging?
The terminal supports SD and SDHC cards up to 32 GB capacity (FAT32 format required). For applications requiring larger storage, configure network-based data logging to SQL databases or cloud storage platforms via Ethernet connectivity. Typical 1-second logging intervals consume approximately 50-100 MB per month per variable.

What energy efficiency improvements does this terminal offer versus older PanelView Plus models?
The PanelView Plus 6 series reduces power consumption by 15-20% compared to PanelView Plus 4/5 generations through LED backlight technology and optimized power supply design. At 70W maximum draw (typical 45-50W during operation), the terminal qualifies for energy-efficient equipment incentives in many jurisdictions.
