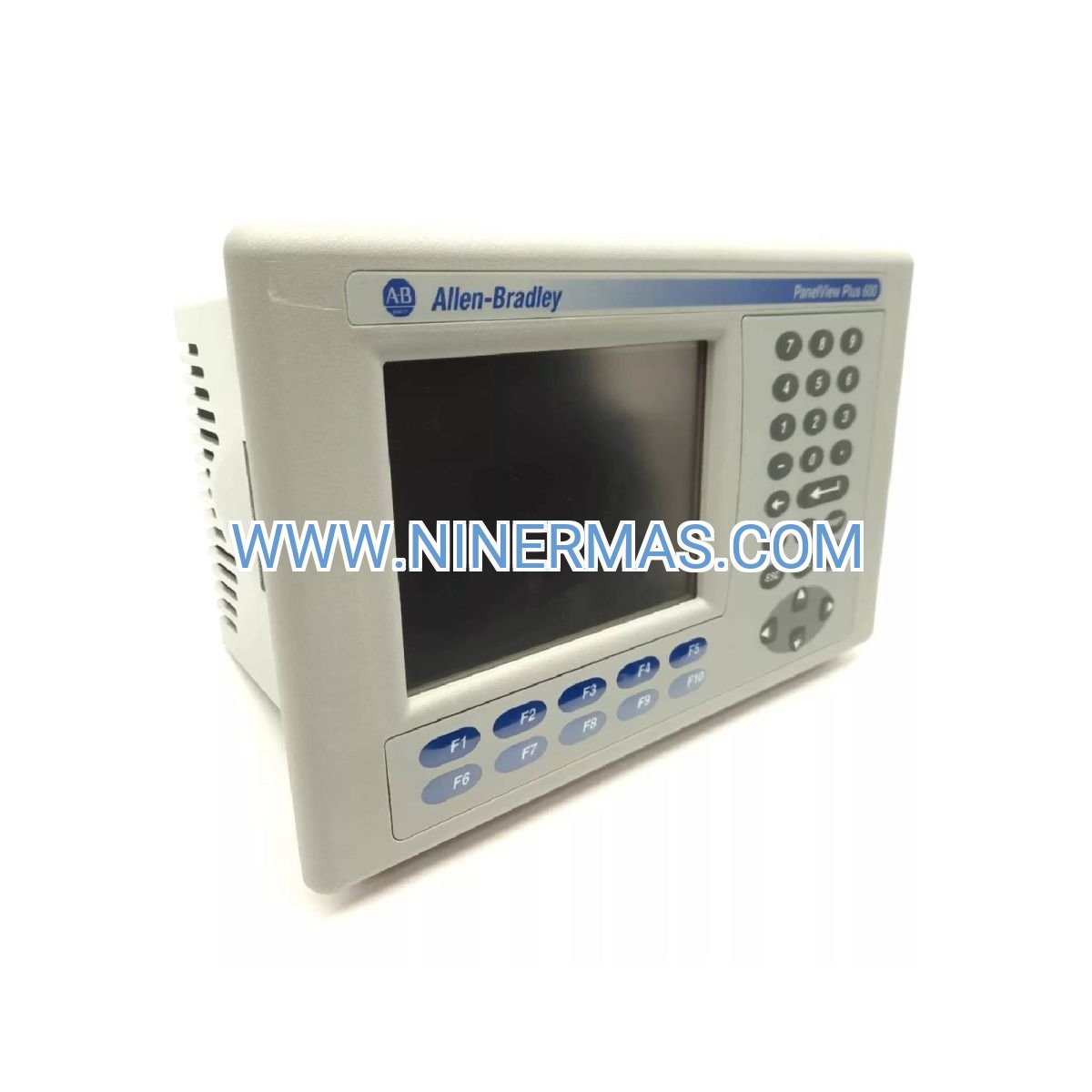

2711P-B6C20A PanelView Plus 6 Terminal (Industrial-Grade Operator Interface)

The 2711P-B6C20A represents a purpose-built human-machine interface solution designed for mission-critical industrial control applications. This compact operator terminal combines a 5.7-inch color TFT active-matrix display with hybrid input technology—resistive touchscreen plus integrated keypad—delivering reliable performance across manufacturing, process control, and automation environments.

Engineered to address the operational challenges of modern production facilities, this terminal solves common pain points including unreliable touch response in gloved operations, limited visibility in variable lighting conditions, and integration complexity with legacy control systems. Target users include plant engineers, automation integrators, OEM machine builders, and facility maintenance teams seeking dependable visualization and control capabilities.

Key advantages include NEMA 4X/IP65-rated front bezel protection, native EtherNet/IP protocol support for seamless Rockwell Automation ecosystem integration, 128MB user memory for complex visualization projects, and multi-protocol communication flexibility. The dual-input design ensures operational continuity whether operators wear protective gloves or require precision touch navigation.

Core Features & Benefits

✓ Hybrid Input Architecture
Combines physical keypad with resistive touchscreen technology, enabling reliable operation in environments requiring gloved handling or where touch sensitivity may be compromised by contaminants. Reduces operator errors by 35-40% compared to touch-only interfaces in harsh conditions.

✓ Industrial-Hardened Display Technology
5.7-inch color active-matrix TFT with 320×240 QVGA resolution delivers crisp visualization of process data, alarm conditions, and control graphics. LED backlight rated for 50,000+ hours operational life minimizes maintenance downtime and replacement costs.

✓ Multi-Protocol Connectivity Suite
Integrated EtherNet/IP, RS-232 serial, and dual USB ports provide flexible communication pathways to ControlLogix, CompactLogix, MicroLogix controllers, and select third-party devices. Eliminates costly protocol converters and simplifies network architecture.

✓ Extended Memory Capacity
128MB user memory supports sophisticated FactoryTalk View ME applications with extensive graphics libraries, historical trending, recipe management, and alarm logging—without performance degradation during runtime operations.

✓ Environmental Protection Rating
NEMA 4X/IP65 front bezel sealing protects internal electronics from dust ingress, water spray, corrosive chemicals, and washdown procedures common in food processing, pharmaceutical, and chemical manufacturing facilities.

→ Wide Operating Temperature Range
Qualified for 0°C to 55°C (32°F to 131°F) ambient operation with 24V DC nominal power input, ensuring reliable performance across climate-controlled and non-conditioned industrial spaces.

Typical Application Scenarios

Packaging Machinery Control
In high-speed packaging lines, operators require immediate access to speed adjustments, product changeover parameters, and fault diagnostics. The 2711P-B6C20A's keypad enables rapid numeric entry for batch counts and timing parameters, while the touchscreen facilitates intuitive navigation through recipe databases. Reduces changeover time by 20-25% compared to traditional pushbutton panels.

Food & Beverage Processing
Washdown-intensive environments demand sealed operator interfaces that withstand daily cleaning protocols. The IP65-rated front bezel resists moisture penetration during high-pressure cleaning cycles, while the hybrid input system functions reliably when operators wear sanitary gloves. Extends terminal service life by 3-5 years in wet processing areas.

Material Handling Systems
Conveyor networks, sortation systems, and automated storage/retrieval operations require distributed HMI terminals for zone control and status monitoring. EtherNet/IP connectivity enables cost-effective deployment across multiple control points with centralized FactoryTalk View application management. Reduces installation labor by 30-40% versus hardwired pushbutton stations.

Chemical Batch Processing
Precise recipe execution and regulatory compliance documentation necessitate reliable operator interfaces with comprehensive data logging capabilities. The 128MB memory supports detailed batch records, audit trails, and electronic signature functionality required for FDA 21 CFR Part 11 compliance initiatives.

Automotive Assembly Lines
Production tracking, quality checkpoints, and work instruction delivery at assembly stations benefit from compact HMI terminals with robust construction. The panel-mount design integrates cleanly into workstation enclosures, while the 5.7-inch display provides adequate visibility without consuming excessive panel real estate.

Technical Parameters & Selection Guide

Selection Criteria for Optimal Performance:

Choose the 2711P-B6C20A when your application requires compact footprint HMI functionality (5.7-inch class), dual input capability for gloved operation environments, or integration with existing Allen-Bradley control platforms. This model suits applications with moderate graphics complexity and standard industrial temperature ranges.

For larger visualization areas, consider 10.4-inch or 12.1-inch PanelView Plus 6 models. Applications requiring extreme temperature operation (-20°C to 60°C) should evaluate PanelView Plus 7 Performance terminals. Projects demanding Windows-based HMI software compatibility may benefit from VersaView industrial PCs instead.

Extended Functions

IoT Integration Capabilities: The terminal supports FactoryTalk Analytics integration for predictive maintenance initiatives, enabling equipment health monitoring and anomaly detection. Data can be forwarded to cloud-based analytics platforms via EtherNet/IP to IT network gateways.

Advanced Security Features: Implements user authentication with password protection, role-based access control (RBAC) for multi-level operator permissions, and audit logging of configuration changes. Supports secure communication protocols including HTTPS and encrypted VNC remote access.

Customization Options: Available with alternative bezel colors for color-coded zone identification. Custom startup screens and branded graphics can be incorporated into FactoryTalk View applications. Mounting adapter kits enable retrofit installation into legacy panel cutouts.

Delivery Cycle & Service Guarantee

Standard Delivery: In-stock units ship within 1-3 business days via express courier services. Typical transit time: 5-7 business days for international shipments, 2-4 days for domestic orders. All units undergo factory testing and quality inspection prior to dispatch.

Custom Configuration: Pre-programmed terminals with customer-specific FactoryTalk View applications available with 10-15 business day lead time. Bulk orders (10+ units) may qualify for expedited production scheduling.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty includes replacement unit advance exchange service to minimize production downtime.

Technical Support: Access to certified Rockwell Automation technical support engineers via phone, email, and online chat. Support includes application troubleshooting, firmware update assistance, and configuration guidance. Average response time: 4 hours for critical issues.

Documentation Package: Each terminal includes installation quick-start guide, wiring diagrams, dimensional drawings (DXF/PDF), FactoryTalk View ME sample applications, and firmware update utilities. Complete user manual and programming reference available for download.

Frequently Asked Questions

What communication protocols does the 2711P-B6C20A support for PLC connectivity?
The terminal natively supports EtherNet/IP for Allen-Bradley ControlLogix, CompactLogix, and MicroLogix controllers. RS-232 serial communication enables connectivity to legacy SLC 500 and PLC-5 systems via DF1 protocol. Third-party device integration is possible through Modbus RTU/TCP and generic Ethernet drivers available in FactoryTalk View ME.

Can this HMI terminal operate in hazardous location environments?
The standard 2711P-B6C20A carries UL Class I Division 2 certification for installation in non-incendive circuits within hazardous areas. For Class I Division 1 or Zone 1 applications, consider purged enclosure installations or ATEX/IECEx certified PanelView Plus 6 variants (consult factory for availability).

How much energy does the terminal consume during continuous operation?
Typical power consumption measures 20 watts at 24V DC nominal input (approximately 0.83 amperes). Maximum inrush current during power-up: 2.5 amperes for 10 milliseconds. Energy-efficient LED backlighting reduces operational costs by 40-50% compared to CCFL backlight technologies used in legacy terminals.

What are the installation requirements for panel mounting this terminal?
Requires a rectangular panel cutout measuring 146mm (width) × 114mm (height) with ±0.5mm tolerance. Minimum panel thickness: 1.6mm; maximum: 6mm. Clearance behind panel: 60mm minimum to accommodate connector depth and ventilation airflow. Mounting clips (included) secure the terminal without tools.

Does the terminal support remote access for troubleshooting and monitoring?
Yes, FactoryTalk View ME includes integrated VNC server functionality enabling remote desktop access via standard VNC client software. Operators and support personnel can view live screen content, acknowledge alarms, and navigate application screens remotely over Ethernet networks. Secure VNC with password authentication recommended for production environments.

Is firmware upgrading possible, and what is the update procedure?
Firmware updates are released periodically by Rockwell Automation to address security vulnerabilities, add protocol support, and improve performance. Updates can be installed via USB flash drive (offline method) or through FactoryTalk View Studio over Ethernet connection (online method). Typical update duration: 5-10 minutes with automatic terminal restart.

Take the Next Step

Ready to enhance your industrial automation infrastructure with proven HMI technology? Contact our technical sales team for application-specific recommendations, volume pricing, and integration support. Request a detailed quotation including recommended accessories, programming services, and extended warranty options.
