Allen-Bradley 2711-K5A5X Retrofit HMI Keypad for Legacy Systems

Allen-Bradley 2711-K5A5X Retrofit-Compatible HMI Keypad for Legacy Systems

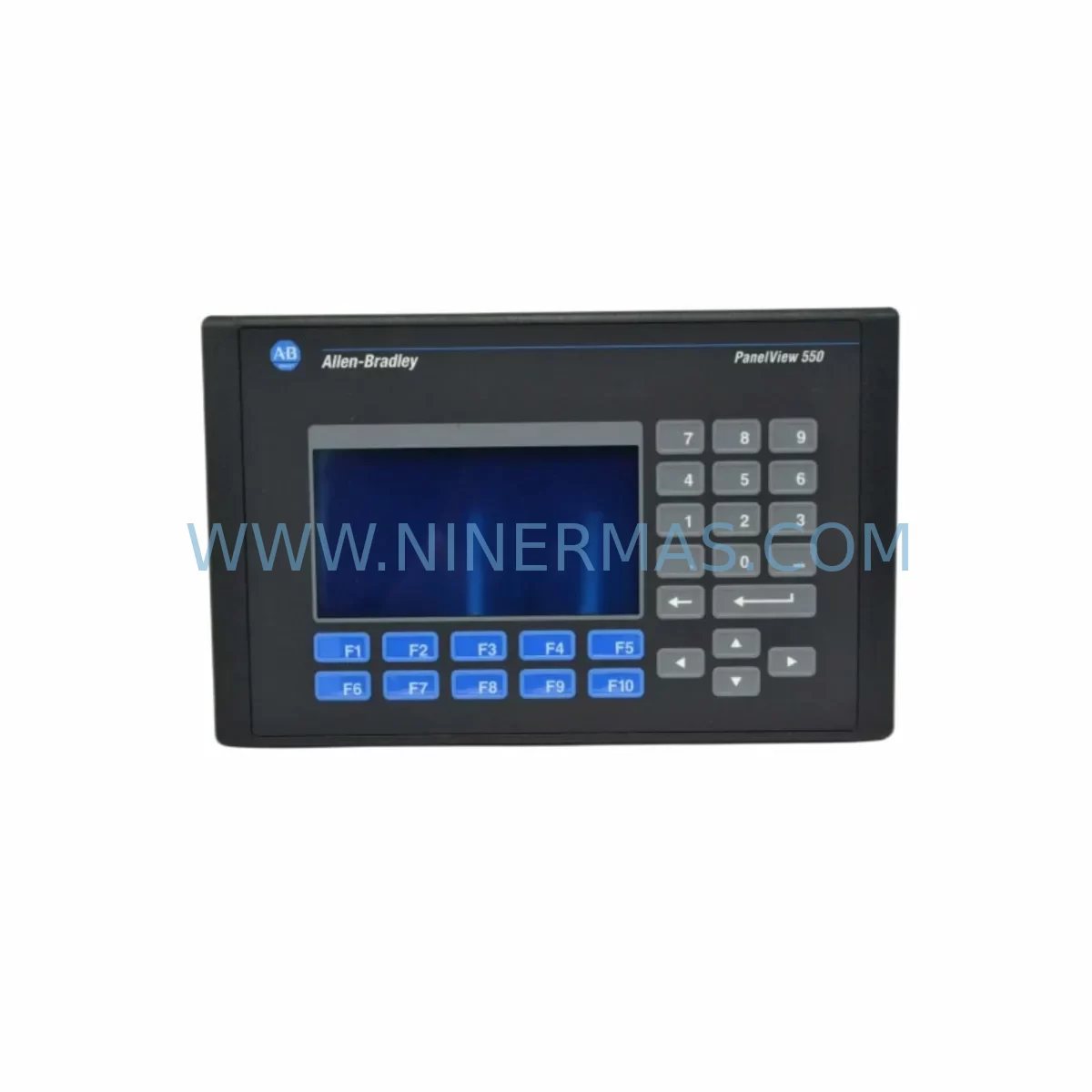

The Allen-Bradley 2711-K5A5X is a ruggedized HMI keypad module designed for the PanelView 550 series, widely deployed across legacy discrete manufacturing lines, process control panels, and material handling systems. As original equipment reaches end-of-life and spare parts become increasingly scarce, the 2711-K5A5X remains a critical component for facilities seeking to extend the operational lifespan of their existing control infrastructure without committing to a full platform migration. NINERMAS maintains verified stock of the 2711-K5A5X with full functional testing, outgoing inspection, and a 12-month warranty on every unit shipped.

For automation engineers managing aging PanelView 550 terminals, the 2711-K5A5X provides a direct mechanical and electrical replacement path. The keypad interfaces with the PanelView 550 front bezel assembly and communicates through the terminal’s internal bus, preserving existing application screens, tag databases, and DH-485 or DH+ communication links without requiring software modification. This makes it particularly valuable in retrofit scenarios where the cost and risk of rewriting HMI application logic or retraining operators is prohibitive.

When planning a retrofit around the 2711-K5A5X, engineers should verify several key parameters before committing to installation. Power supply capacity at the control panel must be confirmed — the PanelView 550 platform draws from a 24VDC regulated supply, and any degradation in the existing power module (such as an aging 1606-XLP or equivalent) can cause intermittent keypad response or display anomalies after replacement. Terminal block wiring at the rear of the PanelView enclosure should be inspected for corrosion or loose connections, particularly on communication port terminals where DH-485 signal integrity is critical. If the existing installation uses a 1747-AIC link coupler or a 1761-NET-AIC network interface converter to bridge the PanelView 550 into a broader SLC 500 or MicroLogix control network, these devices should be tested independently before the keypad swap to isolate any pre-existing communication faults.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 2711-K5A5X into an existing control system requires a structured approach that accounts for both the HMI hardware and the surrounding control architecture. In a typical SLC 500-based control cabinet, the PanelView 550 terminal sits alongside a 1746 series I/O rack, communicating with the processor — commonly a 1747-L532 or 1747-L541 — via DH-485. Before replacing the keypad module, the engineer should use RSLinx Classic or a 1784-U2DHP USB-to-DH+ adapter to verify that the processor is online and that the existing HMI application is correctly mapped to the controller’s data file structure.

In installations where the PanelView 550 is connected via Remote I/O to a PLC-5 processor such as the 1785-L40B, the rack address and I/O chassis configuration must be documented before any hardware change. The 2711-K5A5X replacement does not alter the logical I/O mapping, but a power cycle of the terminal after installation will trigger a re-initialization of the Remote I/O scanner, which may briefly interrupt communication to downstream 1771 I/O modules if the rack is not properly isolated during the swap.

For facilities running mixed communication environments — for example, where a 1761-NET-ENI Ethernet interface has been retrofitted to an older SLC 500 rack to enable remote monitoring — the 2711-K5A5X installation should be coordinated with the network administrator to avoid IP address conflicts or SCADA polling interruptions. Similarly, if the control cabinet includes a 1769-L32E CompactLogix processor as part of a phased modernization, the HMI application may need to be migrated from PanelBuilder 32 to FactoryTalk View ME to support the newer controller’s tag-based data model, though this is a separate project scope from the keypad replacement itself.

Signal isolation is another consideration in older installations. Where analog input signals from field transmitters pass through the same cabinet as the PanelView 550, the presence of a 1492-IFM or equivalent interface module helps protect the HMI communication bus from electrical noise. Engineers should also confirm that the 24VDC power supply feeding the PanelView 550 is adequately sized — a minimum of 2A dedicated capacity is recommended — and that the supply’s output voltage is within the 18–30VDC tolerance range specified for the PanelView 550 platform.

Physical installation space should be verified before ordering. The 2711-K5A5X is designed for panel-mount installation in a standard NEMA 4/4X cutout consistent with the PanelView 550 form factor. In retrofit scenarios where the original terminal has been removed and the cutout has been modified, a dimensional check against the 2711-K5A5X mounting template is essential to avoid rework. Cable routing for the communication port and power terminals should also be planned to maintain minimum bend radii and avoid routing signal cables adjacent to high-voltage conductors within the enclosure.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a critical HMI component on an active production line. For the 2711-K5A5X, the recommended approach is to pre-stage the replacement unit in the maintenance workshop, verify its functionality using a bench power supply and a known-good PanelView 550 terminal body, and confirm that the unit responds correctly to keypad inputs before scheduling the field swap.

The actual replacement procedure for the 2711-K5A5X keypad module is designed to be completed within a single planned maintenance window. With the PanelView 550 terminal de-energized and the communication cable disconnected, the keypad assembly can be separated from the terminal body, the replacement unit seated and secured, and the terminal reassembled and powered up. The existing application stored in the terminal’s battery-backed RAM is retained through the power cycle, provided the terminal’s internal battery is in good condition — battery condition should be checked as part of the pre-shutdown inspection.

After power-up, the engineer should verify that the PanelView 550 successfully establishes communication with the host controller before returning the line to production. This involves confirming the communication status indicator on the terminal, navigating to a live data screen to verify tag values are updating correctly, and performing a functional test of any alarm acknowledgment or setpoint entry functions that operators use during normal production. If the installation uses a 1747-AIC link coupler, the coupler’s termination resistor setting should be verified after the swap, as an incorrect termination can cause intermittent communication faults that are difficult to diagnose under production conditions.

For facilities where the PanelView 550 is the sole operator interface for a critical process, a temporary bypass strategy should be considered. This may involve pre-loading a backup copy of the HMI application to a laptop running PanelBuilder 32, connected via a 1747-PIC programming cable, so that operators can monitor key process variables through the programming software during the swap window. This approach adds minimal cost and significantly reduces the risk of extended downtime if unexpected complications arise during the replacement.

Retrofit Support FAQ

Q: Is the 2711-K5A5X a direct replacement for the original keypad in my PanelView 550 terminal?
A: Yes. The 2711-K5A5X is a direct mechanical and electrical replacement for the original keypad module in PanelView 550 terminals. No modification to the terminal body, wiring, or application software is required. All units supplied by NINERMAS are tested prior to shipment to confirm full keypad functionality.

Q: Will my existing HMI application and screen layouts be preserved after replacing the keypad?
A: Yes. The HMI application is stored in the PanelView 550 terminal’s battery-backed RAM, which is independent of the keypad module. Replacing the 2711-K5A5X keypad does not affect the stored application, tag mappings, or communication configuration. We recommend verifying battery condition before the swap to ensure application retention through the power cycle.

Q: What communication protocols does the 2711-K5A5X support, and will it work with my existing network?
A: The PanelView 550 platform supports DH-485, DH+, and Remote I/O communication protocols depending on the specific terminal catalog suffix. The 2711-K5A5X keypad module is compatible with all PanelView 550 communication variants. Confirm your existing terminal’s communication port type before ordering to ensure compatibility with your SLC 500, PLC-5, or MicroLogix host controller.

Q: What warranty and support does NINERMAS provide with the 2711-K5A5X?
A: Every 2711-K5A5X unit supplied by NINERMAS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. All units undergo outgoing functional testing before shipment. NINERMAS maintains inventory stock for prompt delivery, and our technical team is available to support pre-installation compatibility verification and post-installation commissioning questions.
