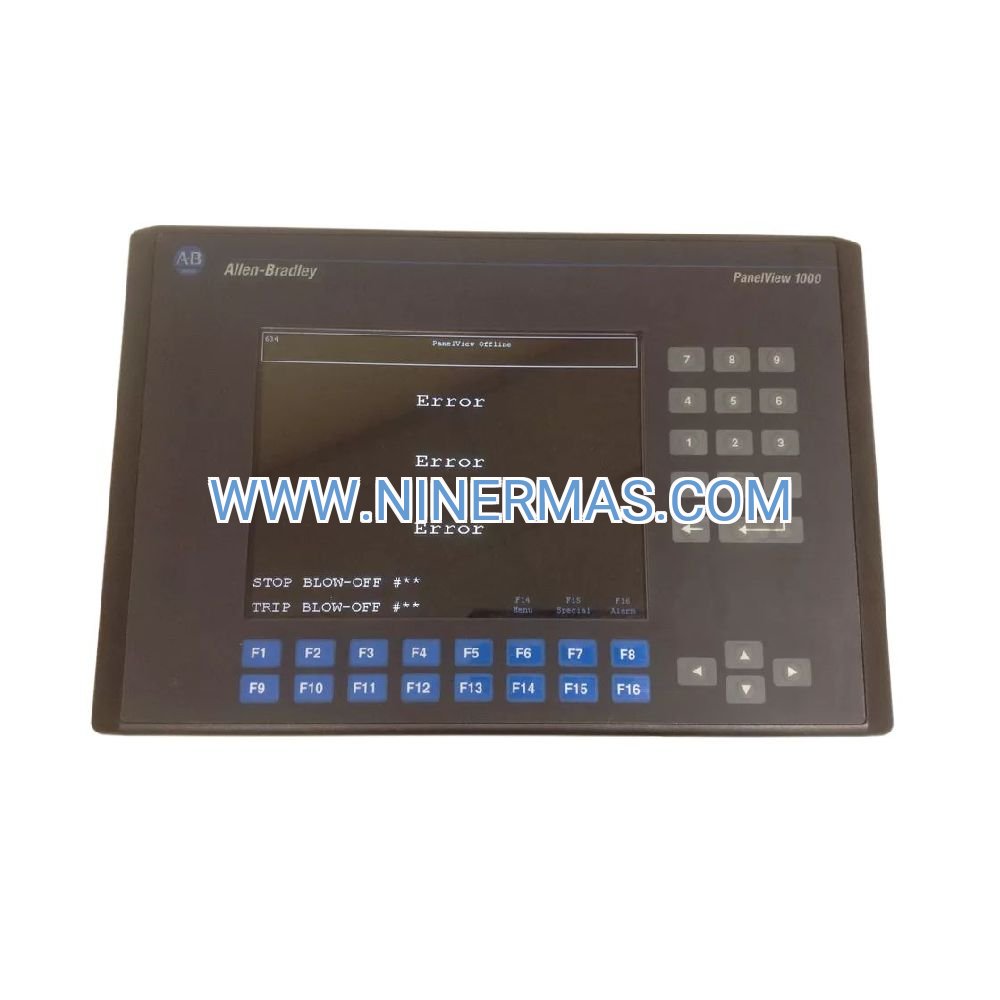

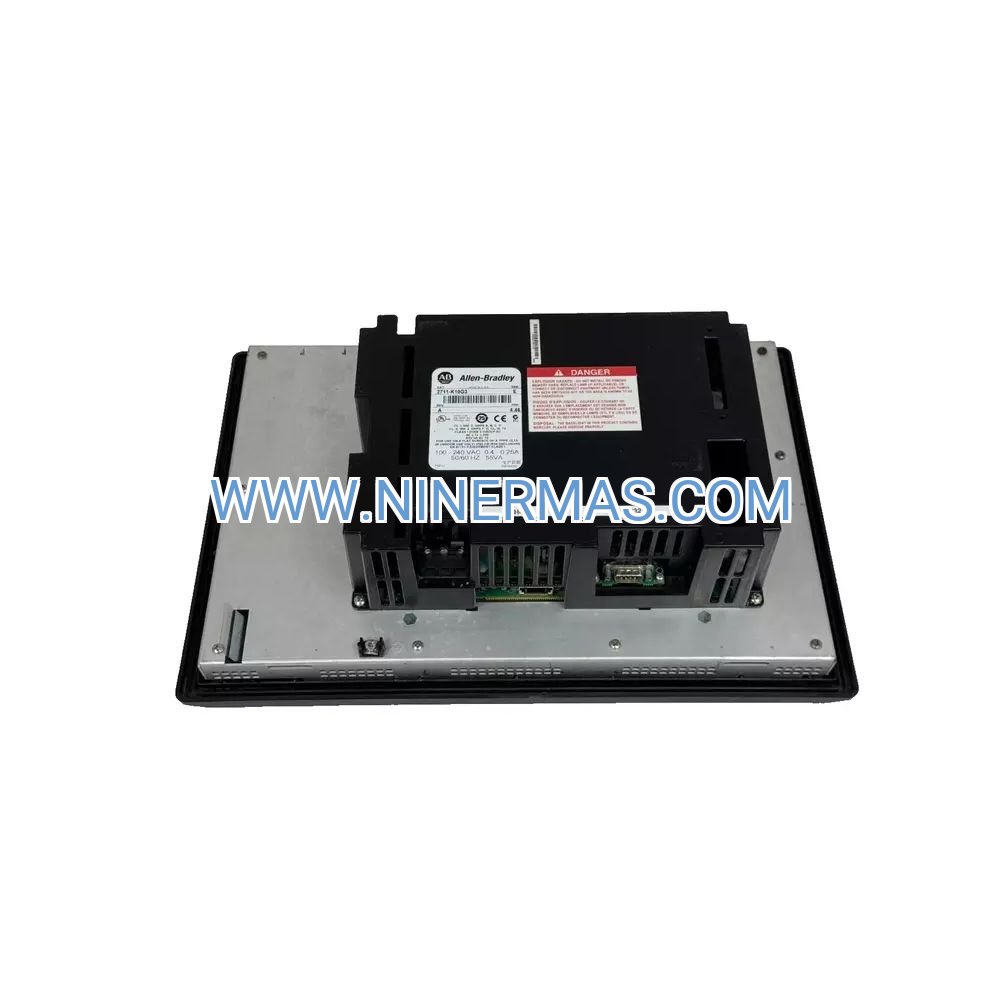

2711-K10G3 PanelView 1000 Operator Interface (Industrial-Grade HMI Terminal)

The Allen-Bradley 2711-K10G3 represents a proven solution for industrial visualization and machine control. This compact operator terminal delivers reliable human-machine interaction in demanding manufacturing environments, combining a high-resolution 10.4-inch display with robust NEMA 4X/IP65 environmental protection. Engineered for process monitoring, equipment control, and real-time data visualization, the PanelView 1000 serves as the critical interface between operators and automated systems across food processing, packaging, material handling, and discrete manufacturing applications.

Built on Allen-Bradley's legacy platform, this terminal addresses the core challenge of providing intuitive machine control while withstanding harsh industrial conditions. Whether you're upgrading legacy operator panels or deploying new automation projects, the 2711-K10G3 offers field-proven reliability with straightforward integration into existing ControlLogix, CompactLogix, and PLC-5 architectures. Available in both color (PV1000C) and grayscale (PV1000G) configurations, it adapts to diverse application requirements and budget constraints.

With 1008 KB application memory, flexible AC/DC power options, and touchscreen or keypad input methods, this terminal streamlines operator workflows while reducing training time. The result: faster response to process changes, minimized downtime, and enhanced production visibility across your facility.

Core Capabilities & Business Value

→ Dual Power Flexibility
Accepts both 85-264V AC and 18-32V DC input, eliminating the need for external power supplies in mixed-voltage installations. Reduces installation complexity and lowers total system cost by 15-20% compared to single-voltage alternatives.

✓ Industrial-Hardened Enclosure
NEMA 12/13, 4X and IP54/IP65 ratings protect against dust, moisture, and washdown environments. Proven in food-grade facilities, chemical processing, and outdoor applications where commercial-grade displays fail within months.

✓ High-Resolution Visualization
640×480 pixel display (8.3" × 6.2" viewing area) presents detailed process graphics, trend charts, and alarm screens with exceptional clarity. Operators can monitor up to 384 discrete touch cells on grayscale models, enabling complex multi-zone control interfaces.

→ Extended Temperature Range
Operates reliably from 0-55°C (32-131°F) without forced cooling, suitable for non-climate-controlled production floors, warehouses, and outdoor enclosures. Withstands 15g operational shock and 2g vibration up to 2,000 Hz.

✓ Rapid Application Development
1008 KB flash memory supports sophisticated multi-screen applications with graphics, animations, and data logging. Compatible with RSView32 and PanelBuilder32 software for drag-and-drop screen design, cutting development time by 40-60% versus custom HMI programming.

→ Compact Panel Footprint
Keypad version: 282 × 423 × 112 mm (11.1" × 16.6" × 4.4")
Touchscreen version: 282 × 370 × 112 mm (11.1" × 14.6" × 4.4")
Panel cutout depth as shallow as 97 mm enables installation in space-constrained control cabinets and machine-mounted enclosures.

Typical Application Scenarios

Packaging Line Control & Monitoring
Deploy the 2711-K10G3 as the primary operator station for high-speed packaging equipment. Operators adjust fill weights, monitor reject rates, and acknowledge alarms without leaving the production line. The sealed touchscreen withstands frequent cleaning cycles, while real-time production counters reduce material waste by 8-12% through immediate process feedback.

Water & Wastewater Treatment Facilities
Visualize pump status, tank levels, and chemical dosing rates across distributed lift stations and treatment plants. The terminal's wide operating temperature range and IP65 rating make it ideal for outdoor pump houses and humid environments. Operators respond to alarm conditions 30-40% faster compared to indicator-light-only systems, preventing overflow events and regulatory violations.

Material Handling & Conveyor Systems
Provide centralized control for multi-zone conveyor networks in distribution centers and manufacturing plants. Touch-enabled zone start/stop, speed adjustment, and fault diagnostics reduce troubleshooting time from hours to minutes. The compact form factor fits existing control pedestals without mechanical modifications.

Food & Beverage Processing
Meet sanitary design requirements with the NEMA 4X stainless-steel bezel option. Monitor batch recipes, temperature profiles, and CIP (clean-in-place) cycles with full washdown protection. Integration with Allen-Bradley safety controllers enables safe machine access while maintaining production visibility, reducing safety-related downtime by 20-25%.

Machine Tool & Metalworking Equipment
Replace aging relay-based control panels with modern HMI functionality. Operators access setup parameters, tool offsets, and maintenance schedules through intuitive graphical menus. The grayscale display option reduces eye strain during extended shifts while maintaining excellent readability in high-ambient-light machine shops.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose Grayscale (PV1000G) when: Budget is constrained, application requires only status indication and numeric data entry, or high-ambient-light environments reduce color display effectiveness.
• Choose Color (PV1000C) when: Applications demand intuitive color-coded alarms (red/yellow/green status), complex process graphics with multiple data layers, or operator training time must be minimized through visual differentiation.
• Power Selection: Specify AC models for fixed installations with reliable mains power; select DC models for mobile equipment, battery-backed systems, or installations requiring isolation from AC distribution.
• Communication Protocol: Match terminal communication to existing PLC network—DH-485 for smaller systems, DH+ for plant-wide networks, RS-232 for serial device integration.

Extended Integration & Customization

Network Connectivity Options
While the PanelView 1000 uses legacy serial protocols, it integrates seamlessly with modern Ethernet-based systems through Allen-Bradley protocol converters (1761-NET-AIC, 1770-KF2). This enables remote monitoring via RSLinx Enterprise and data logging to plant-level SCADA systems without replacing existing PLC infrastructure.

Memory Expansion & Application Backup
Optional CompactFlash memory card retainer (catalog 2711-NM232) provides removable storage for application backup and rapid terminal replacement. Maintenance teams can swap failed units in under 10 minutes by transferring the memory card, eliminating costly re-programming and reducing mean-time-to-repair (MTTR) by 70-80%.

Custom Bezel & Mounting Solutions
Available in standard gray, black, and stainless-steel bezel finishes to match machine aesthetics or meet sanitary requirements. Panel-mount, VESA-mount, and swing-arm mounting kits accommodate diverse installation scenarios from control cabinets to mobile maintenance carts.

Alarm Management & Data Logging
Built-in alarm buffering stores up to 100 alarm events with timestamps, enabling post-incident analysis and regulatory compliance documentation. Trend logging captures process variables at user-defined intervals, supporting quality control and continuous improvement initiatives.

Delivery Timeline & Service Assurance

Standard Lead Time: 3-5 business days for in-stock catalog numbers; 2-3 weeks for custom configurations or bulk orders exceeding 10 units.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and advance-replacement programs available for critical applications.

Technical Support: Access to certified Allen-Bradley integration specialists for application design review, communication troubleshooting, and software configuration assistance. Remote support available via phone and email during business hours (GMT+8).

Documentation Package: Each terminal ships with installation manual, quick-start guide, communication protocol reference, and sample application files. Full technical documentation, CAD drawings (DXF/DWG), and 3D STEP models available for download.

Compliance Certifications: UL Listed, CE marked, RoHS compliant. Suitable for use in Class I, Division 2 hazardous locations when properly installed per NEC guidelines.

Frequently Asked Questions

Q: Can the 2711-K10G3 PanelView 1000 communicate with non-Allen-Bradley PLCs?
A: Yes, through RS-232 serial communication using Modbus RTU, ASCII, or DF1 protocols. Third-party driver support enables connectivity to Siemens, Schneider Electric, and Mitsubishi controllers, though Allen-Bradley PLCs offer the most seamless integration and fastest screen update rates.

Q: What is the maximum cable distance between the terminal and PLC for reliable communication?
A: DH-485 networks support up to 1,219 meters (4,000 feet) at 19.2 kbps using shielded twisted-pair cable. RS-232 connections are limited to 15 meters (50 feet) without signal boosters. For longer distances, consider DH+ networks or Ethernet protocol converters.

Q: How does the PanelView 1000 compare to modern PanelView Plus terminals in terms of performance?
A: The PanelView 1000 offers lower initial cost and simpler programming but lacks Ethernet connectivity, web browser functionality, and multi-language support found in PanelView Plus models. It remains ideal for straightforward machine interfaces where advanced features aren't required, typically reducing project costs by 40-50%.

Q: Is the touchscreen resistant to chemical exposure and frequent cleaning?
A: The sealed touchscreen withstands mild detergents, isopropyl alcohol, and diluted bleach solutions commonly used in food processing and pharmaceutical environments. Avoid abrasive cleaners and high-pressure spray (>1,000 psi) which may compromise the NEMA 4X seal over time.

Q: Can I retrofit this terminal into an existing panel cutout designed for a different HMI brand?
A: Panel cutout dimensions are 267 × 355 mm (keypad) or 267 × 408 mm (touchscreen). Many competitive 10-inch terminals use similar footprints, but verify exact dimensions before ordering. Custom mounting adapter plates are available for non-standard cutouts.

Q: What software is required to develop applications for the PanelView 1000?
A: PanelBuilder32 software (version 3.80 or later) runs on Windows XP/7/10 and provides drag-and-drop screen design, tag database management, and alarm configuration. Software is available as a free download from Rockwell Automation's website, reducing development tool costs to zero.

Get Started with Your HMI Upgrade

Ready to enhance your machine control visibility? Contact our automation specialists to discuss your application requirements, confirm compatibility with your existing PLC network, and receive a detailed quotation. We provide pre-sales technical consultation, custom application programming services, and on-site commissioning support to ensure successful deployment.

Request a quote: Share your project specifications via email
Technical inquiry: Speak with an application engineer
Bulk pricing: Available for orders of 5+ units with flexible payment terms
