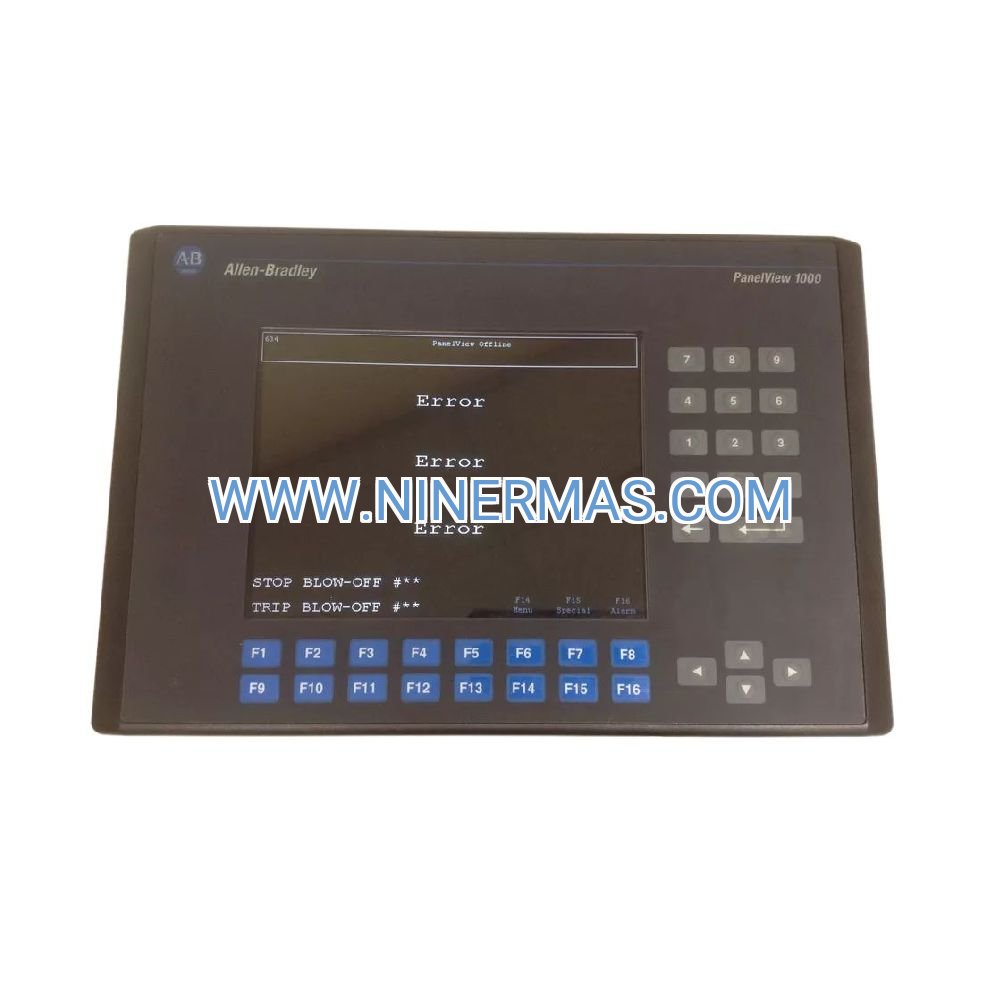

2711-K10G15 PanelView 1000 Terminal (Industrial-Grade Operator Interface)

The 2711-K10G15 represents a proven solution for industrial process visualization and machine control applications. Engineered with a 10.4-inch grayscale TFT display and ruggedized NEMA-rated enclosure, this operator terminal delivers dependable performance in manufacturing plants, processing facilities, and OEM machinery installations where environmental challenges demand robust construction.

Built for system integrators and plant engineers who require reliable human-machine communication, the PanelView 1000 series combines intuitive touch operation with flexible connectivity options. Whether you're retrofitting legacy equipment or designing new automation systems, this terminal provides the interface foundation for effective production monitoring and control.

With dual AC/DC power compatibility, wide operating temperature tolerance, and proven Allen-Bradley integration, the 2711-K10G15 minimizes installation complexity while maximizing uptime in demanding industrial environments.

Core Capabilities & Business Value

→ Ruggedized Environmental Protection
NEMA Type 12/13 and 4X ratings (IP54/IP65 equivalent) shield internal components from dust, moisture, and industrial contaminants. This protection translates to reduced maintenance interventions and extended service life in harsh factory conditions, lowering total cost of ownership.

→ Dual Power Input Flexibility
Accepts both AC (85-264V, 47-63Hz) and DC (18-32V) power sources without additional converters. Simplifies panel design, reduces component count, and accommodates diverse electrical infrastructure across global manufacturing sites.

✓ High-Resolution Grayscale Display
640×480 pixel resolution across a 10.4-inch viewing area delivers clear process data visualization. Four-shade grayscale rendering provides sufficient contrast for alarm monitoring, trend displays, and equipment status indication while maintaining cost efficiency for budget-conscious projects.

✓ Compact Panel-Mount Design

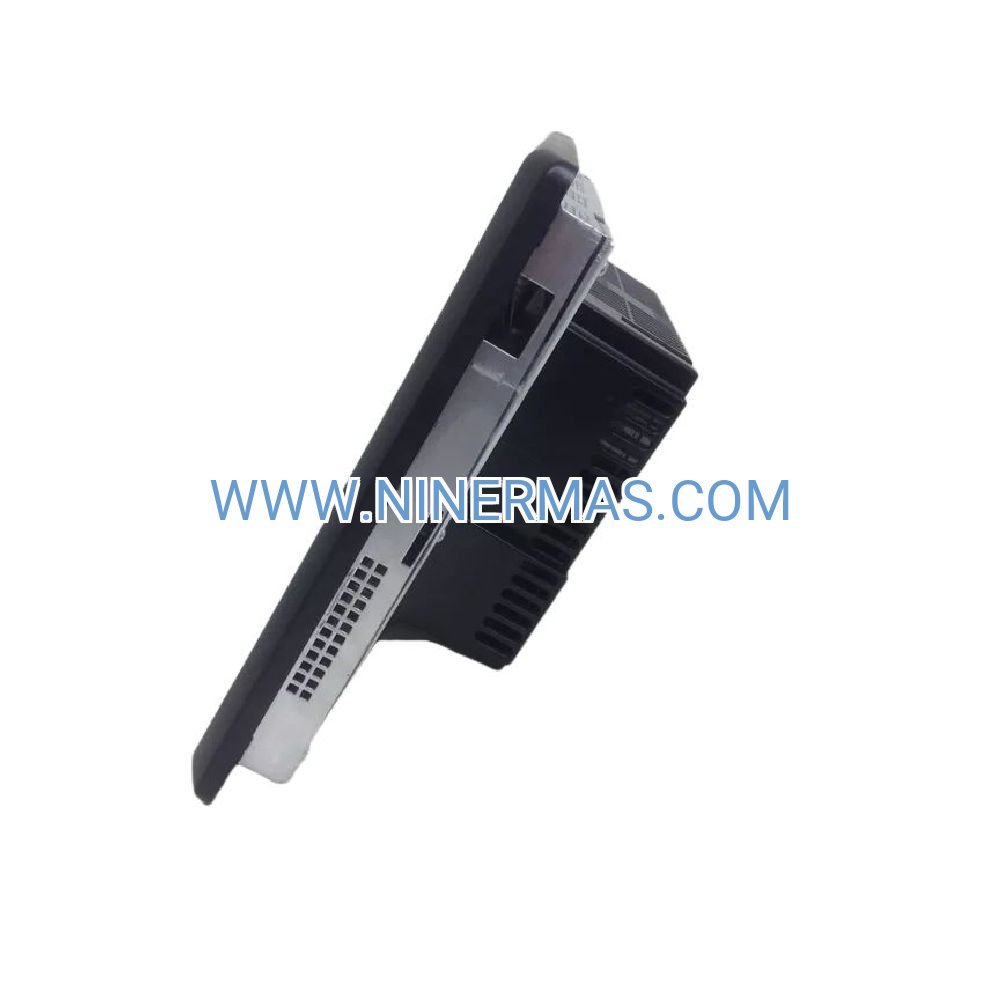

97mm installed depth (without memory card retainer) fits standard control cabinet configurations. Minimizes enclosure space requirements, allowing more room for additional control components and reducing overall panel fabrication costs.

✓ Proven Touch Interface Technology
384 touch cells (24×16 matrix) enable responsive operator interaction without mechanical wear associated with physical buttons. Reduces long-term maintenance requirements and supports intuitive navigation through multi-screen applications.

✓ Wide Operating Temperature Range
0-55°C (32-131°F) operational capability accommodates non-climate-controlled industrial environments. Eliminates need for supplemental cooling in many applications, reducing installation complexity and energy consumption.

Industrial Application Scenarios

Packaging Line Control & Monitoring
Deploy the 2711-K10G15 as the primary operator interface for packaging machinery, providing real-time visibility into line speed, product counts, and fault conditions. The grayscale display clearly presents critical production metrics while the NEMA 4X rating withstands washdown procedures common in food and beverage packaging environments. Operators gain immediate access to machine adjustments without navigating complex menu structures, reducing changeover time by 15-25%.

Water Treatment Process Visualization
Integrate this terminal into municipal or industrial water treatment systems for monitoring filtration stages, chemical dosing, and flow rates. The wide operating temperature range supports installation in pump houses and outdoor enclosures where temperature fluctuations occur. Dual power input options accommodate existing DC control systems or standard AC panel power, eliminating costly power supply modifications during system upgrades.

Material Handling System Interface
Implement the PanelView 1000 as the control point for conveyor networks, sortation systems, and automated storage/retrieval equipment. The compact footprint fits space-constrained control stations while the touch interface enables quick operator response to jam conditions or routing changes. Facilities report 30-40% reduction in operator training time compared to traditional button-based interfaces.

OEM Machine Builder Integration
Machine manufacturers specify the 2711-K10G15 for textile equipment, woodworking machinery, and industrial printing systems sold globally. The universal AC/DC power input accommodates international electrical standards without design variations, simplifying global product lines. The grayscale display meets functional requirements while maintaining competitive pricing for cost-sensitive OEM applications.

Chemical Batch Process Control
Utilize this terminal for recipe management and batch monitoring in chemical manufacturing, pharmaceutical production, and specialty materials processing. The sealed enclosure prevents ingress of airborne particulates and chemical vapors, while the display provides clear visibility of batch progress, temperature profiles, and alarm conditions. Integration with Allen-Bradley controllers enables seamless recipe download and production data logging.

Technical Parameters & Selection Guide

Selection Criteria for Your Application:

Choose the 2711-K10G15 when your project requires a cost-effective operator interface with proven reliability in moderately harsh environments. The grayscale display suits applications where color differentiation is not critical—such as simple process monitoring, equipment status displays, or alarm annunciation. If your application demands full-color graphics, multi-language support, or advanced visualization features, consider upgrading to PanelView Plus series terminals.

The dual power input capability makes this terminal ideal for retrofit projects where existing panel power may be AC or DC. For new installations, select AC or DC power based on your control cabinet's primary power distribution to minimize component count.

Extended Integration & Connectivity

The 2711-K10G15 seamlessly interfaces with Allen-Bradley programmable controllers including ControlLogix, CompactLogix, MicroLogix, and SLC 500 families. Communication protocols supported include DH+, DH-485, and RS-232/RS-422/RS-485 serial connections, providing flexibility for both new installations and legacy system upgrades.

Application development utilizes PanelBuilder32 software, offering drag-and-drop screen design, tag database management, and alarm configuration tools. RSLinx communication software establishes network connectivity and facilitates online monitoring during commissioning and troubleshooting.

For distributed control architectures, the terminal supports multi-drop serial networks, enabling a single operator interface to communicate with multiple controllers across a production line or process area. This capability reduces hardware costs in applications requiring centralized monitoring of distributed equipment.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 1-3 business days via express courier services. Typical transit time to major industrial centers ranges from 3-7 days depending on destination.

Custom Configuration: Pre-loaded application files or custom labeling requests add 5-7 business days to standard delivery timelines.

Warranty Coverage: Every 2711-K10G15 terminal includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty service includes advance replacement options to minimize production downtime.

Technical Support: Our application engineers provide pre-sale consultation for system design questions, post-sale commissioning assistance, and ongoing troubleshooting support via phone and email. Documentation packages include installation manuals, wiring diagrams, and PanelBuilder32 sample applications.

Included Documentation: User manual, quick-start guide, mounting template, wiring diagrams, and sample PanelBuilder32 application files.

Frequently Asked Questions

What communication protocols does the 2711-K10G15 support for PLC connectivity?
The terminal supports DH+, DH-485, and various serial protocols (RS-232/RS-422/RS-485) for connecting to Allen-Bradley controllers. Protocol selection depends on your specific controller model and network architecture. For Ethernet-based communication, consider upgrading to PanelView Plus series terminals with built-in Ethernet ports.

Can this operator terminal withstand outdoor installation environments?
The 2711-K10G15 carries NEMA 4X and IP65 ratings suitable for indoor use in harsh conditions. For outdoor installations, the terminal requires mounting inside a weatherproof enclosure with appropriate environmental controls. Direct exposure to sunlight, precipitation, or extreme temperature fluctuations will void warranty coverage.

How does grayscale display performance compare to color terminals for industrial applications?
Grayscale displays excel in applications requiring clear text and numeric data presentation, alarm status indication, and simple graphics. Four-shade rendering provides sufficient contrast for most process monitoring tasks. Color terminals offer advantages when applications require color-coded zones, photographic images, or complex multi-variable trend displays. Grayscale models typically cost 20-30% less than equivalent color versions.

What is the expected backlight service life and replacement procedure?
The CCF backlight system typically delivers 50,000+ operating hours under normal conditions (approximately 5-6 years of continuous operation). Actual lifespan varies based on ambient temperature and brightness settings. Backlight replacement requires factory service or authorized repair center intervention—field replacement is not supported.

Does the terminal support remote access or web-based monitoring capabilities?
The PanelView 1000 series does not include built-in remote access or web server functionality. For applications requiring remote monitoring, VNC access, or mobile device connectivity, specify PanelView Plus 7 or PanelView 5000 series terminals with integrated Ethernet and remote access features.

What software licensing is required for application development?
PanelBuilder32 software is available as a free download from Rockwell Automation. No recurring licensing fees apply for application development or runtime operation. RSLinx communication software requires a license for advanced features, though basic communication functionality is available in the free Lite version.

Request Technical Consultation

Our industrial automation specialists are available to discuss your specific application requirements, recommend optimal terminal configurations, and provide integration guidance for your control system architecture. Contact our technical sales team for project-specific quotations, volume pricing, or custom configuration services.

Ready to specify the 2711-K10G15 for your next project?
Submit your technical requirements and receive a detailed quotation within 24 hours. Our team provides application engineering support, integration assistance, and expedited delivery options for time-critical installations.
