Allen-Bradley 25B-D037N114 Retrofit-Compatible AC Drive for Legacy Systems

Allen-Bradley 25B-D037N114 Retrofit-Compatible AC Drive for Legacy Systems

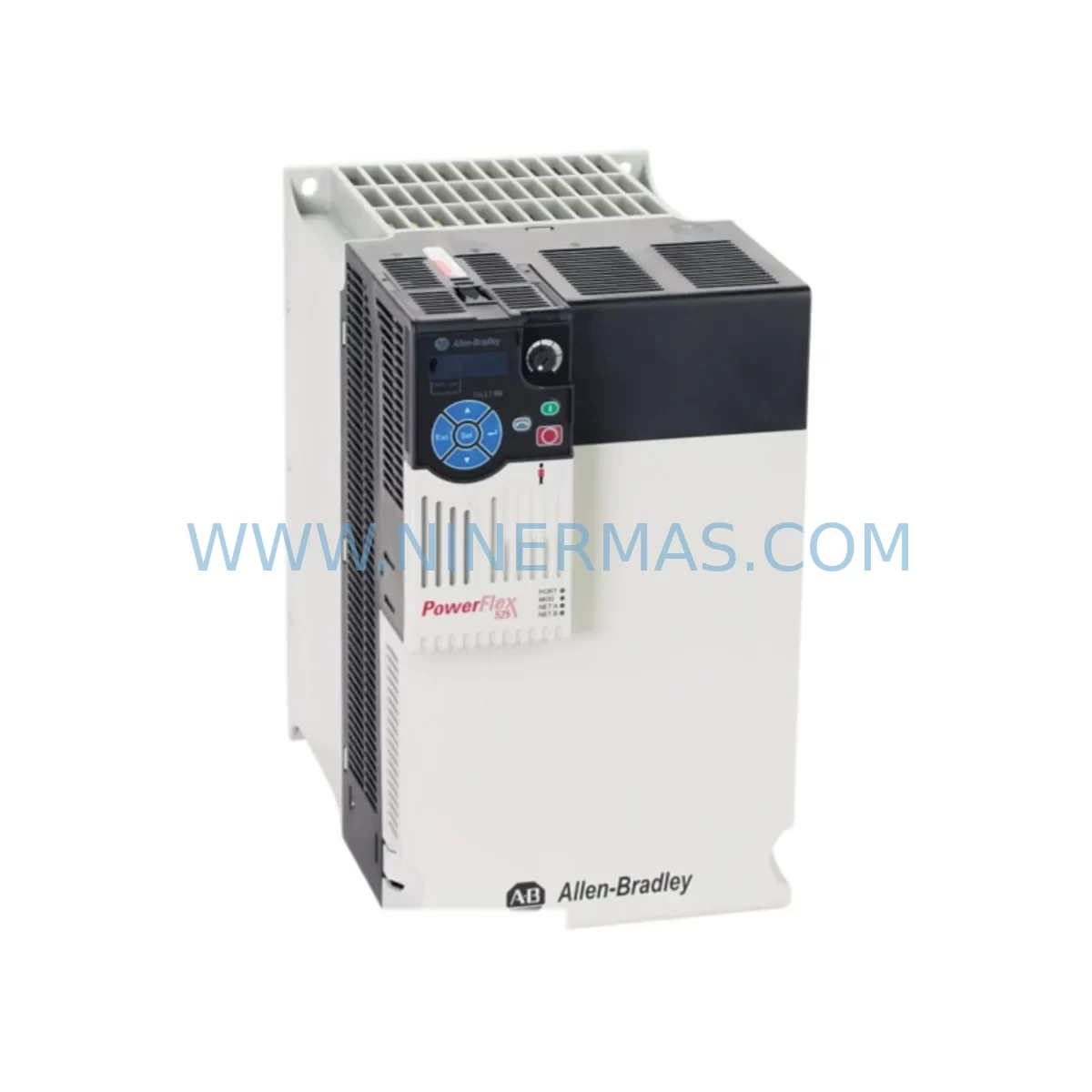

The Allen-Bradley 25B-D037N114 is a PowerFlex 525 series AC variable frequency drive rated at 37A, 480V AC, Frame D, featuring embedded EtherNet/IP communications. Designed for demanding industrial environments, this drive is a proven solution for engineers and maintenance teams undertaking legacy system retrofits, discontinued spare part replacements, and control cabinet modernization projects across manufacturing, water treatment, material handling, and process automation industries.

When an aging PowerFlex 40, PowerFlex 400, or earlier-generation 160 SSC drive reaches end-of-life, the 25B-D037N114 provides a structurally compatible and functionally superior upgrade path. Its compact Frame D footprint fits within most existing control cabinet layouts without requiring panel re-engineering, and its dual-port EtherNet/IP adapter eliminates the need for a separate 25-COMM-E2P communication module in many retrofit scenarios.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 25B-D037N114 into an existing automation system begins with a thorough pre-retrofit audit. Engineers should first verify the incoming power supply capacity — the drive requires a 480V, 3-phase source with sufficient short-circuit current rating (SCCR). If the existing panel was sized for an older PowerFlex 40 22B-D024N104 or a PowerFlex 400 22C-D030N103, the power feed and branch circuit protection (typically a 1489-M1C060 motor circuit protector) will generally carry over without modification, though fuse sizing should be re-confirmed against the 25B-D037N114 input specifications.

Terminal wiring is a critical checkpoint. The 25B-D037N114 uses a standard screw-terminal I/O block. When migrating from a legacy drive, technicians should map existing digital input assignments — particularly the Enable, Run Forward, Run Reverse, and Fault Reset signals — to the corresponding terminals on the new drive. If the original system used a 25-COMM-D DeviceNet adapter or a 25-COMM-P PROFIBUS module, the embedded EtherNet/IP port on the 25B-D037N114 may require a protocol migration plan, including updates to the PLC’s I/O tree and any associated 1756-EN2T ControlLogix EtherNet/IP bridge configuration.

For systems running on a 1769-L33ER CompactLogix or 1756-L71 ControlLogix platform, the drive’s Add-On Profile (AOP) must be imported into Studio 5000 Logix Designer. Verify that the existing ladder logic references the correct drive tags and that any speed reference scaling (in Hz or RPM) matches the motor nameplate data. If the legacy program used explicit messaging (MSG instructions) to a PowerFlex 40, those message paths will need to be re-addressed to the new drive’s EtherNet/IP node.

HMI screen updates are often overlooked during drive replacements. If the plant floor uses a 2711P-T10C21D8S PanelView Plus 7 or an older 2711-T10C8 PanelView 550, any drive parameter displays, fault code readouts, or speed setpoint entry screens linked to the old drive’s data table addresses must be remapped. Connected Components Workbench (CCW) simplifies this process for smaller standalone systems, while Studio 5000 View Designer handles larger FactoryTalk View SE installations.

Installation space confirmation is essential before ordering. The 25B-D037N114 Frame D measures approximately 185mm (W) x 270mm (H) x 172mm (D). Ensure the existing cutout or DIN rail section accommodates this footprint, and that minimum clearances (top, bottom, and sides) are maintained for proper heat dissipation. If the cabinet previously housed a 22B-D024N104 PowerFlex 40 in a Frame C slot, a panel adapter plate may be required.

Signal isolation should also be reviewed. Where analog speed references from a 4–20mA transmitter or a potentiometer are used, a 1492-AIFM8-F-5 analog input wiring system or a dedicated signal isolator may be needed to prevent ground loop interference, particularly in older cabinets with mixed AC/DC wiring. Finally, confirm that the motor cable length does not exceed the drive’s recommended maximum to avoid reflected wave issues — an output reactor or dV/dt filter may be advisable for cable runs exceeding 30 meters.

Downtime Control During System Migration

Minimizing production downtime during a drive replacement is a primary concern for any maintenance or engineering team. With the 25B-D037N114, a structured hot-swap preparation process can reduce actual panel-open time to under two hours for a straightforward one-for-one replacement.

Begin by uploading and archiving the existing drive’s parameter set using a 25-HIM-A5 Human Interface Module or via CCW before powering down. This preserves all acceleration/deceleration ramps, current limits, PID tuning values, and custom fault responses. Once the new drive is installed and wired, the parameter file can be restored directly, eliminating the need for manual re-entry of dozens of settings.

Protect the original PLC program logic by placing the controller in Program mode before disconnecting the old drive. This prevents any spurious output activations during the wiring transition. If the system uses a 1756-RM2 ControlLogix redundancy module, coordinate the switchover with the redundancy partner to maintain control continuity on the secondary chassis.

For facilities that cannot afford any unplanned stops, pre-staging the 25B-D037N114 on a test bench — complete with motor simulation, I/O loop checks, and a communications ping test to the plant network — dramatically reduces field commissioning risk. NINERMAS ships all drives with a pre-shipment functional test report, and the 12-month warranty covers both the drive hardware and any factory-confirmed defects identified during initial commissioning.

After installation, perform a controlled no-load run before reconnecting the mechanical load. Monitor output frequency, output current, and DC bus voltage on the drive’s keypad or via the PLC tag monitor. Confirm that all safety interlocks — including E-stop circuits wired to the drive’s hardware enable input — respond correctly before returning the system to automatic mode.

Retrofit Support FAQ

Q1: Is the 25B-D037N114 a direct replacement for the PowerFlex 40 22B-D024N104?
A: The 25B-D037N114 (PowerFlex 525, 37A) is a functional upgrade rather than a pin-for-pin replacement for the 22B-D024N104 (PowerFlex 40, 24A). The output current rating is slightly higher, which is acceptable for the same motor load. Terminal layouts differ, so a wiring adapter or re-termination will be required. The embedded EtherNet/IP port replaces any separately mounted 25-COMM-E adapter previously used with the PowerFlex 40.

Q2: Can I restore my old drive’s parameters to the 25B-D037N114?
A: Parameters saved from a PowerFlex 40 or PowerFlex 400 are not directly transferable due to differences in parameter numbering and feature sets. However, key values (accel/decel times, current limits, speed references) can be manually cross-referenced using Rockwell’s migration guide and re-entered via CCW or the HIM module. NINERMAS technical support can assist with parameter mapping upon request.

Q3: What communications protocols does the 25B-D037N114 support?
A: The drive features dual-port embedded EtherNet/IP as standard. Optional communication adapters (25-COMM-D for DeviceNet, 25-COMM-P for PROFIBUS DP, 25-COMM-C for CANopen) can be installed in the drive’s peripheral expansion slot if the existing plant network uses a legacy fieldbus protocol.

Q4: What does the 12-month warranty cover, and how quickly can stock be shipped?
A: NINERMAS provides a 12-month warranty from the date of shipment covering manufacturing defects and functional failures under normal operating conditions. All units undergo pre-shipment functional testing. In-stock units typically ship within 1–3 business days. For urgent retrofit projects, expedited shipping options are available — contact sale@ninermas.com or call +0086 187 5021 5667 for availability confirmation.
