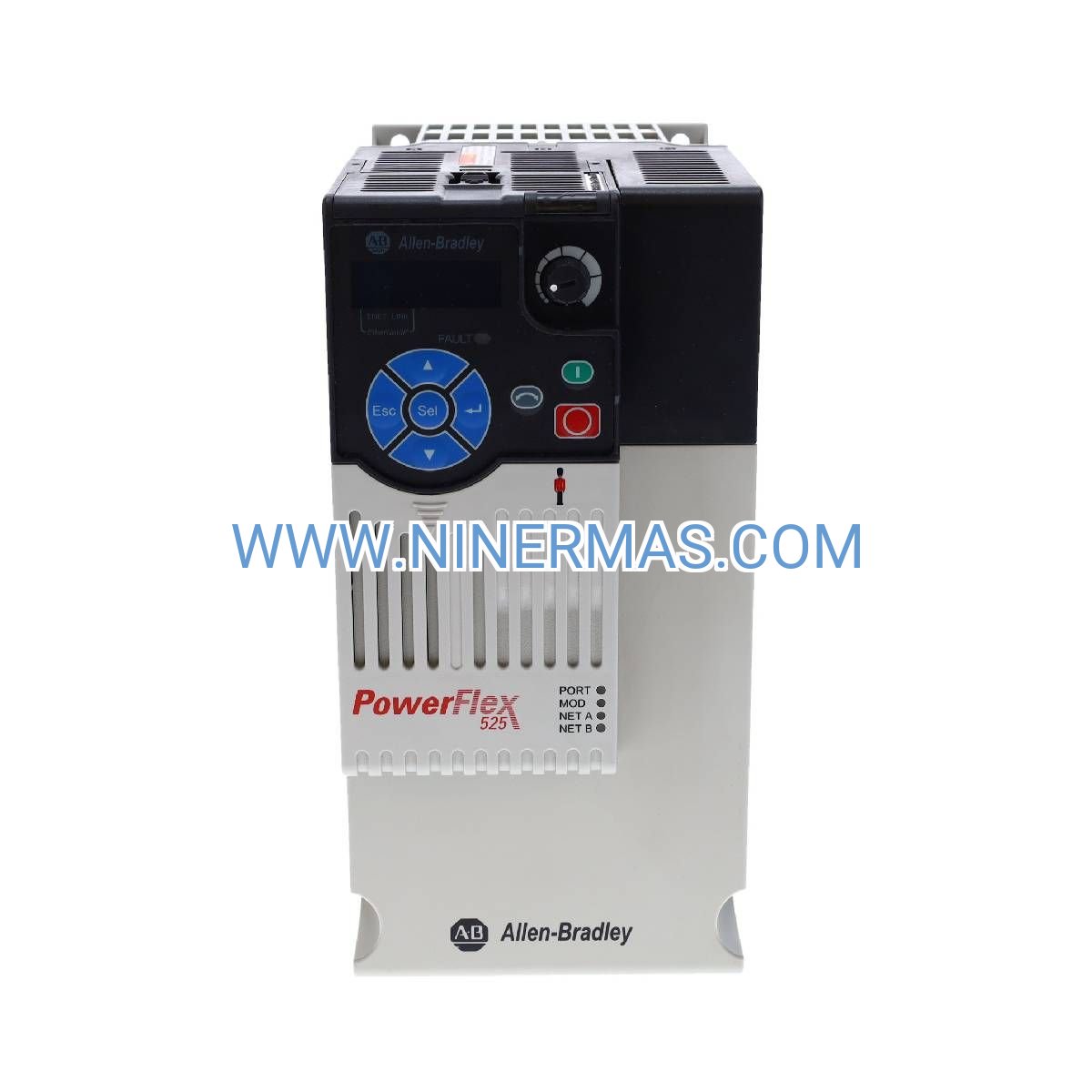

PowerFlex 525 AC Drive 25B-D017N104 — Industrial-Grade Motor Speed Controller

Engineered for precision and reliability, the 25B-D017N104 from Allen-Bradley's PowerFlex 525 series delivers robust 10HP (7.5kW) motor control in a space-saving design. This three-phase variable frequency drive transforms standard AC motors into intelligent, energy-efficient systems capable of adapting to real-time process demands across manufacturing, HVAC, and material handling operations.

Built on Rockwell Automation's field-proven platform, this VFD addresses critical challenges in industrial motor management: excessive energy consumption during partial-load operation, mechanical stress from hard starts, and limited process flexibility. Target users include facility engineers, OEM machine builders, system integrators, and maintenance teams seeking to modernize legacy motor systems or optimize new installations.

Key advantages include 40% energy savings potential through intelligent speed modulation, seamless integration with Allen-Bradley control architectures via multiple protocol options, and simplified commissioning through intuitive LCD programming interface. The compact IP20 enclosure reduces panel footprint by 30% while maintaining full 150% overload capacity for demanding start-up conditions.

Core Features & Benefits

→ Sensorless Vector Control Technology
Delivers precise torque regulation across 0-400Hz frequency spectrum without external feedback devices, reducing installation complexity and component costs while maintaining ±0.5% speed accuracy under variable load conditions.

→ Integrated Safe Torque-Off (STO) Function
Meets SIL 2 / PLd safety requirements without external relays, enabling compliant machine lockout procedures and reducing safety circuit wiring by up to 60% compared to traditional implementations.

→ Adaptive Motor Tuning Algorithm
Automatically optimizes drive parameters for connected motor characteristics within 3 minutes, eliminating manual tuning procedures and ensuring peak efficiency across motor brands and winding configurations.

✓ Multi-Protocol Communication Ready
Native Modbus RTU support with optional plug-in adapters for EtherNet/IP, DeviceNet, and Profibus networks, providing flexible integration pathways for brownfield upgrades and greenfield projects alike.

✓ Real-Time Energy Monitoring
Built-in kWh metering tracks cumulative power consumption and instantaneous efficiency metrics, supporting ISO 50001 compliance initiatives and identifying optimization opportunities without external instrumentation.

✓ Conformal Coating Option Available
Protects critical electronics in high-humidity, chemical-exposure, and washdown environments common to food processing, pharmaceutical, and coastal industrial facilities (specify coating option at order).

Application Scenarios

Centrifugal Pump Systems
Water treatment plants and chemical processing facilities achieve 35-50% energy reduction by matching pump speed to actual flow demand rather than throttling valves. The drive's sleep mode automatically idles motors during zero-demand periods, extending bearing life by 40%.

Industrial Ventilation Networks
Manufacturing environments with variable occupancy or process heat loads benefit from demand-based fan speed control. Integrated PID controller maintains precise static pressure or temperature setpoints without external controllers, reducing HVAC energy costs by $8,000-$15,000 annually per 10HP fan.

Conveyor & Material Transport
Packaging lines and distribution centers utilize soft-start acceleration profiles to eliminate product spillage and mechanical shock. Programmable S-curve ramps reduce maintenance intervals by 50% while enabling precise positioning for accumulation zones.

Mixer & Agitator Applications
Chemical batching and food processing operations leverage torque control modes to maintain consistent mixing intensity regardless of viscosity changes. Overload protection prevents motor damage during abnormal conditions while data logging captures process anomalies.

Compressor Load Management
Industrial air systems transition from fixed-speed operation to variable-displacement control, matching compressed air generation to consumption patterns. Typical installations recover drive investment within 18-24 months through reduced no-load runtime.

Technical Parameters & Selection Guide

Selection Criteria: Verify motor nameplate current does not exceed 17A continuous rating. For applications requiring frequent reversing or high-inertia loads, consider Heavy Duty rating models (25B-D013N104). Altitude installations above 1,000m require voltage derating per publication 520-AT011. Consult our technical team for harmonic analysis if multiple drives share common bus infrastructure.

Extended Functions

IoT Integration Capabilities
When paired with Allen-Bradley Stratix industrial Ethernet switches and FactoryTalk View HMI platforms, the PowerFlex 525 enables remote monitoring, predictive maintenance alerts, and centralized parameter management across distributed drive populations. MQTT protocol support (via gateway) facilitates cloud analytics integration.

Advanced Motion Profiles
Programmable logic sequences support complex start/stop patterns including timed acceleration, multi-speed presets (up to 8 speeds), and automatic restart after power loss. Flying start function allows seamless connection to spinning motors without trip faults.

Customization Services
Factory configuration services available for volume orders (25+ units) including pre-programmed parameters, custom firmware, and application-specific I/O mapping. Reduces commissioning time by 70% for multi-site deployments.

Delivery & Service Assurance

Lead Time: Stock units ship within 2-3 business days via express courier. Custom-configured drives require 7-10 business days for factory programming and testing. Expedited processing available for critical downtime situations (contact sales for emergency support).

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Extended 36-month warranty programs available for mission-critical applications. Warranty includes firmware updates and technical consultation.

Technical Support: Unlimited access to application engineers via email, phone, and remote diagnostics tools. Average response time: 4 hours for critical issues, 24 hours for general inquiries. On-site commissioning support available (additional fees apply).

Documentation Package: Each drive ships with quick-start guide, full user manual (publication 520-UM001), wiring diagrams, and calibration certificate. Digital resources include parameter spreadsheets, AutoCAD panel cutouts, and sample PLC code for common protocols.

Frequently Asked Questions

What communication protocols does the PowerFlex 525 support for remote monitoring?
Standard units include Modbus RTU (RS-485) interface supporting up to 31 devices on a single network. Optional plug-in adapters enable EtherNet/IP (25-COMM-E), DeviceNet (25-COMM-D), or Profibus DP (25-COMM-P) connectivity. All protocols support read/write access to 100+ drive parameters including real-time diagnostics.

Can this VFD handle motors with different voltage ratings or frequencies?
The drive accepts 380-480V motors within its input voltage tolerance. Output frequency is programmable from 0-400Hz, accommodating both 50Hz and 60Hz motors. For 230V motor applications, specify the 25B-D017N114 model. Always verify motor insulation rating for operation above 60Hz to prevent winding failure.

How much energy savings can I expect in typical HVAC applications?
Centrifugal fan and pump loads following affinity laws typically achieve 30-50% energy reduction when operating at 75% speed, and up to 65% savings at 50% speed compared to throttled operation. Actual savings depend on load profile, runtime hours, and local electricity rates. Our ROI calculator tool provides project-specific estimates.

What installation clearances are required for proper cooling?
Maintain minimum 100mm (4 inches) clearance above and below drive for convective airflow. Side-by-side mounting requires 10mm spacing or use of optional side-by-side mounting kit (25-SK1). Ambient temperatures exceeding 40°C require forced ventilation or current derating per manual guidelines.

Does the drive support regenerative braking for overhauling loads?
The 25B-D017N104 includes dynamic braking transistor for controlled deceleration. External braking resistor (sold separately) is required for applications with high-inertia loads or frequent stopping. Resistor sizing tool available in publication 520-AT002. For continuous regeneration, consider PowerFlex 755 series with active front-end option.

Is this drive compatible with existing PowerFlex 40 installations for retrofit projects?
Yes, the PowerFlex 525 maintains similar mounting footprint and terminal layout to PowerFlex 40 series, simplifying panel retrofits. Parameter migration utility in Connected Components Workbench software transfers settings from legacy drives. Note: communication adapter cards are not interchangeable between series.

Get Started Today

Transform your motor control strategy with proven PowerFlex technology. Our technical sales team is ready to assist with drive selection, application engineering, and integration planning. Request a detailed quotation or schedule a virtual consultation to discuss your specific requirements.
