PowerFlex 4 AC Drive – Industrial-Grade Motor Speed Control Solution

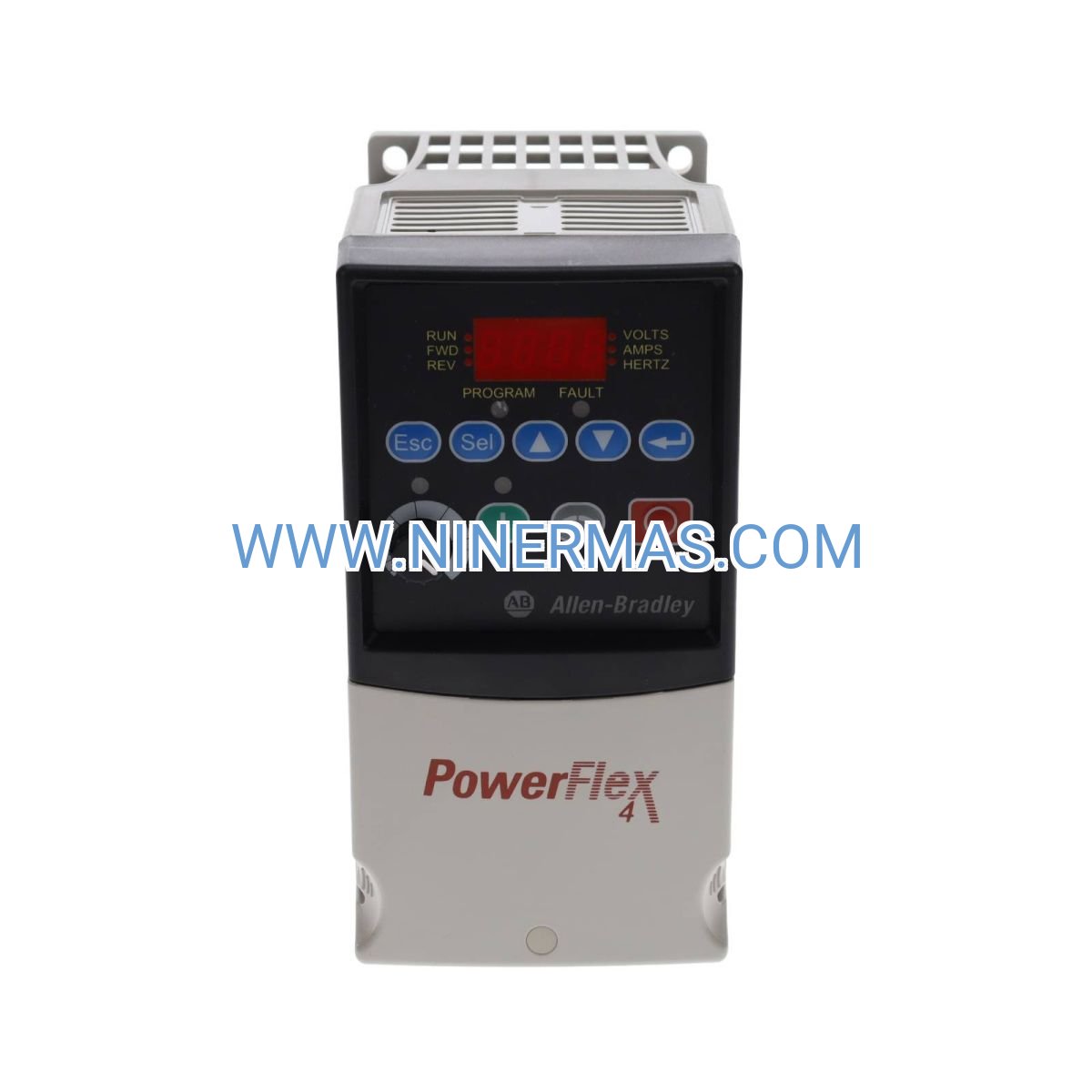

The Allen-Bradley PowerFlex 4 (22A-D2P3N104) is a compact variable frequency drive engineered for precise motor speed and torque control in industrial applications. Utilizing advanced PWM (Pulse Width Modulation) technology and V/F control algorithms, this VFD delivers smooth acceleration, deceleration, and constant speed operation for 1.1kW (1.5HP) three-phase AC motors, ensuring optimal performance across diverse operational demands.

Designed for manufacturing facilities, HVAC systems, conveyor lines, and process automation environments, the PowerFlex 4 addresses common challenges including excessive energy consumption, mechanical stress from direct-on-line starting, limited process control flexibility, and frequent motor failures. Its intelligent control architecture reduces wear on mechanical components while significantly lowering operational costs.

Through factory-calibrated parameters and intuitive configuration interface, this drive offers rapid commissioning, reliable long-term operation, and comprehensive motor protection. Ideal for OEM machine builders, system integrators, maintenance engineers, and facility managers seeking to upgrade legacy motor control systems or implement new automation projects. Contact our application engineers for customized configuration assistance and technical specifications.

Core Features & Technical Advantages

Precision Speed Regulation
Closed-loop speed control with ±0.5% accuracy maintains consistent motor performance across varying load conditions, eliminating speed fluctuations common in mechanical drive systems and ensuring repeatable process outcomes.

Significant Energy Efficiency
Optimized motor operation reduces energy consumption by up to 35% compared to fixed-speed configurations, particularly effective in variable-torque applications such as fans, pumps, and blowers where power savings scale with the cube of speed reduction.

Soft Start & Controlled Stopping
Programmable acceleration and deceleration ramps (0.1 to 999 seconds) eliminate mechanical shock, reduce peak demand charges, extend equipment service life, and prevent water hammer in pumping applications.

Comprehensive Motor Protection Suite
Integrated safeguards include electronic overload protection, phase loss detection, overvoltage/undervoltage monitoring, overtemperature shutdown, ground fault protection, and stall prevention – reducing unplanned downtime and maintenance costs by up to 40%.

Compact Design & Easy Integration
Space-saving enclosure (146mm W × 203mm H × 132mm D) with DIN rail or panel mounting options, removable terminal blocks for simplified wiring, and LED diagnostic display for quick status verification and fault troubleshooting.

Flexible Control Interface
Multiple control modes including keypad operation, external potentiometer, 0-10V analog input, 4-20mA current signal, and digital start/stop commands – compatible with PLC systems, SCADA networks, and standalone operation requirements.

Typical Application Scenarios

The PowerFlex 4 AC drive excels in environments requiring reliable motor control, energy optimization, and process flexibility:

HVAC & Building Systems
Controls fan speed in air handling units, rooftop units, and ventilation systems based on temperature or pressure demand, maintaining indoor air quality while reducing HVAC energy costs by 20-40% through demand-based operation.

Pumping & Fluid Handling
Regulates pump speed for water treatment plants, irrigation systems, chemical dosing, and industrial process loops, preventing cavitation, reducing pipe stress, and matching flow rates to actual system requirements without throttling losses.

Conveyor & Material Handling
Provides smooth belt acceleration in packaging lines, warehouse conveyors, and assembly systems, preventing product damage, enabling synchronized multi-conveyor operation, and allowing speed adjustments for different product types or throughput rates.

Machine Tool & Manufacturing Equipment
Drives spindle motors, coolant pumps, and auxiliary equipment in CNC machines, lathes, and milling centers, offering precise speed control for different materials and cutting operations while reducing tool wear and improving surface finish quality.

Food & Beverage Processing
Controls mixers, agitators, and conveyor systems in sanitary environments, providing variable speed operation for different recipes or batch sizes while meeting washdown requirements through NEMA 1 / IP20 rated enclosure (upgrade options available).

Technical Specifications & Selection Guide

To ensure optimal drive selection and system performance, please reference the following technical parameters:

Electrical Ratings

• Power Rating: 1.1kW (1.5HP) continuous duty
• Input Voltage: 480VAC, 3-phase, 50/60Hz (±10% tolerance)
• Output Voltage: 0-480VAC variable (proportional to frequency)
• Output Frequency: 0-400Hz programmable
• Output Current: 2.3A continuous, 3.5A for 60 seconds (150% overload)
• Power Factor: >0.95 at rated load

Control Specifications

• Control Method: Scalar V/F control with slip compensation
• Frequency Resolution: 0.01Hz digital setting
• Speed Regulation: ±0.5% (open loop), ±0.01% with encoder feedback option
• Carrier Frequency: 2-16kHz adjustable (reduces motor noise)
• Acceleration/Deceleration: Independent ramps, 0.1-999.9 seconds

Environmental & Mechanical

• Operating Temperature: 0°C to 50°C (32°F to 122°F), derate above 40°C
• Storage Temperature: -20°C to 65°C (-4°F to 149°F)
• Humidity: 5% to 95% RH, non-condensing
• Altitude: Up to 1000m without derating, reduce 1% per 100m above
• Enclosure Rating: NEMA 1 / IP20 (open chassis), IP54 option available
• Cooling Method: Natural convection (no fan required)
• Dimensions: 146mm (W) × 203mm (H) × 132mm (D)
• Weight: Approximately 1.8kg

Selection Considerations

When specifying the PowerFlex 4 drive for your application, please evaluate:

• Motor Nameplate Data: Verify motor voltage, current, frequency, and power rating match drive output specifications
• Load Characteristics: Constant torque (conveyors, extruders) vs. variable torque (fans, pumps) affects sizing and energy savings potential
• Duty Cycle: Continuous operation vs. intermittent use influences thermal management and overload capacity requirements
• Environmental Conditions: Ambient temperature, altitude, and contamination levels may require enclosure upgrades or derating
• Control Interface: Determine if local keypad, remote analog, or digital communication control is required
• Installation Space: Confirm adequate clearance for ventilation (minimum 100mm top/bottom, 50mm sides)

For assistance with drive selection, motor compatibility verification, or application-specific configuration, please provide your motor nameplate information, load profile, and operating environment details. Our drive specialists will recommend the optimal solution and provide detailed connection diagrams.

Advanced Configuration Options

Multi-Speed Operation
Program up to 8 preset speeds via digital inputs for automated process sequences, eliminating manual adjustments and ensuring consistent operation across shifts.

PID Process Control
Built-in PID controller maintains constant pressure, flow, or temperature by automatically adjusting motor speed based on process feedback, ideal for closed-loop applications without external controllers.

Communication Interfaces
Optional RS-485 Modbus RTU adapter enables integration with building management systems, SCADA platforms, or distributed control networks for remote monitoring and setpoint adjustment.

Brake Control Output
Dedicated relay output for mechanical brake sequencing in hoist, crane, or elevator applications, ensuring safe load holding during deceleration and stopped conditions.

Flying Start Function
Automatically detects and synchronizes with spinning motors (windmilling fans or coasting loads) to enable bumpless restart without tripping, critical for process continuity after brief power interruptions.

Delivery, Support & Quality Assurance

Lead Time & Availability
Standard catalog models ship within 3-5 business days from regional distribution centers. Custom-configured units or panel-mounted assemblies require 10-15 business days. Expedited processing available for urgent projects.

Warranty Coverage
All PowerFlex 4 drives include a comprehensive 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs and preventive maintenance contracts available through authorized service partners.

Technical Support Services
Complimentary pre-sale application engineering assistance, post-installation startup support via phone/email, and remote diagnostic troubleshooting. On-site commissioning and training services available in major metropolitan areas (quoted separately based on location).

Documentation Package
Each drive ships with complete technical documentation including: Quick Start Guide, User Manual (multi-language), electrical connection diagrams, parameter reference tables, and troubleshooting flowcharts. CAD drawings and 3D STEP files available for download.

Compliance & Certifications
UL Listed (UL508C), CE marked (Low Voltage Directive, EMC Directive), RoHS compliant, meets IEC 61800-3 Category C2 EMC standards for industrial environments. Suitable for global deployment with appropriate input voltage configuration.

Frequently Asked Questions

Q: How do I connect the PowerFlex 4 AC drive to my existing motor system?
A: The drive connects between your 480V 3-phase power supply and motor terminals. You'll need to verify motor nameplate voltage/current compatibility, install appropriately sized input circuit breaker (recommend 10A Type D), connect L1/L2/L3 input power, U/V/W motor output, and configure basic parameters (motor nameplate data, acceleration time). Detailed wiring diagrams are provided in the user manual. For motors over 50 meters from the drive, output reactors or dV/dt filters may be required to prevent cable charging current issues.

Q: What is the maximum number of motors one PowerFlex 4 drive can control?
A: One drive controls one motor. The total connected motor current must not exceed the drive's rated output current (2.3A continuous for this model). While technically possible to parallel multiple small motors, this is not recommended due to unequal current sharing and protection coordination challenges. For multi-motor applications, use individual drives or consider larger frame sizes with appropriate motor protection relays.

Q: What energy savings can I expect, and what conditions are required to achieve them?
A: Energy savings of 20-40% are typical in variable-torque applications (fans, centrifugal pumps) when average operating speed is 60-80% of maximum. Savings follow the affinity laws: reducing speed by 20% cuts power consumption by approximately 50%. Constant-torque loads (conveyors, positive-displacement pumps) see minimal energy savings but benefit from reduced mechanical wear and improved process control. Actual savings depend on load profile, duty cycle, and previous control method (bypass dampers, throttle valves, etc.).

Q: What are the installation environment requirements and protection rating?
A: Standard PowerFlex 4 units are NEMA 1 / IP20 rated, suitable for clean, dry indoor environments with 0-50°C ambient temperature. Install in ventilated enclosures away from direct sunlight, moisture, corrosive gases, and conductive dust. Maintain minimum clearances: 100mm top/bottom for airflow, 50mm sides for wiring access. For harsh environments (washdown areas, outdoor installations, high humidity), specify IP54/NEMA 12 enclosed versions or install in appropriate protective cabinets with thermal management.

Q: Can the drive be remotely monitored and controlled? What communication protocols are supported?
A: The base PowerFlex 4 model supports local control via keypad and hardwired analog/digital I/O (0-10V, 4-20mA, discrete start/stop). For remote monitoring and SCADA integration, add the optional 22-COMM-E communication adapter which provides RS-485 Modbus RTU protocol. This enables real-time monitoring of speed, current, fault status, and remote setpoint adjustment from PLC, HMI, or building management systems. EtherNet/IP and DeviceNet options available on larger PowerFlex models (PowerFlex 525, 755).

Q: What protection features prevent motor and drive damage during abnormal conditions?
A: Comprehensive protection suite includes: electronic thermal overload (I²t algorithm matching motor heating characteristics), input phase loss detection, output phase loss detection, overvoltage protection (DC bus monitoring), undervoltage protection, ground fault detection, overcurrent shutdown (instantaneous trip at 200% rated current), drive overtemperature monitoring, and stall prevention. All faults are logged with timestamp and fault code displayed on LED panel for rapid troubleshooting. Auto-restart after fault clearance can be enabled for unattended applications.

Request Technical Support & Quotation

To receive detailed application engineering support, customized configuration recommendations, or project quotations, please provide the following information to our drive specialists:

• Project name and application description
• Motor nameplate data (voltage, current, power, RPM, frequency)
• Load type and characteristics (constant/variable torque, duty cycle)
• Required speed range and control method (local/remote, analog/digital)
• Quantity required and delivery timeline
• Installation environment (temperature, altitude, enclosure requirements)
• Any special requirements (communication, safety functions, certifications)

Our application engineers will respond within 24 hours with technical recommendations, connection diagrams, and competitive pricing for your specific requirements.
