Allen-Bradley 2198-H040-ER Kinetix 5500 Servo Drive 4.0kW | EtherNet/IP Motion Control System

Allen-Bradley Kinetix 5500 Servo Drive 4.0kW (Industrial-Grade Motion Control System)

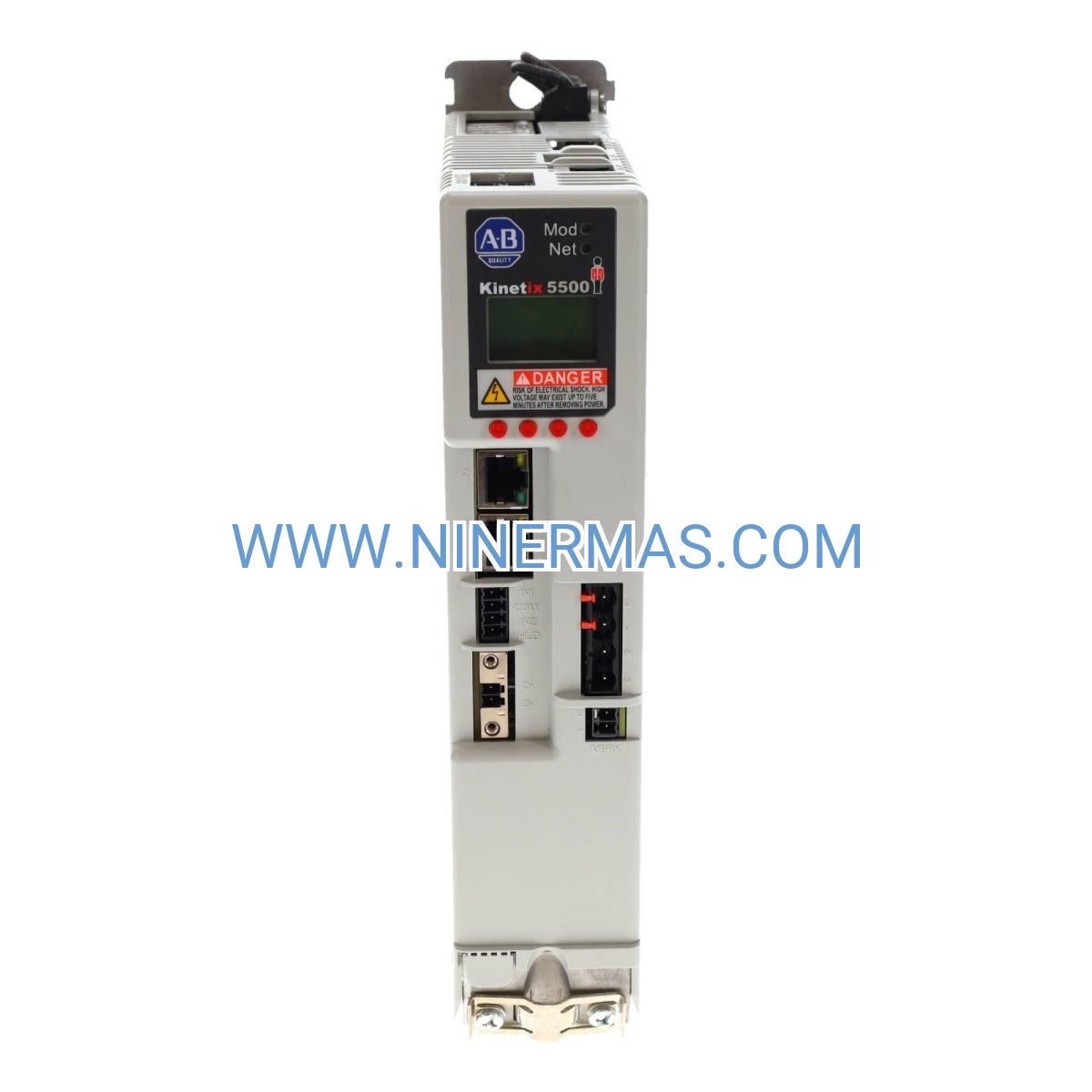

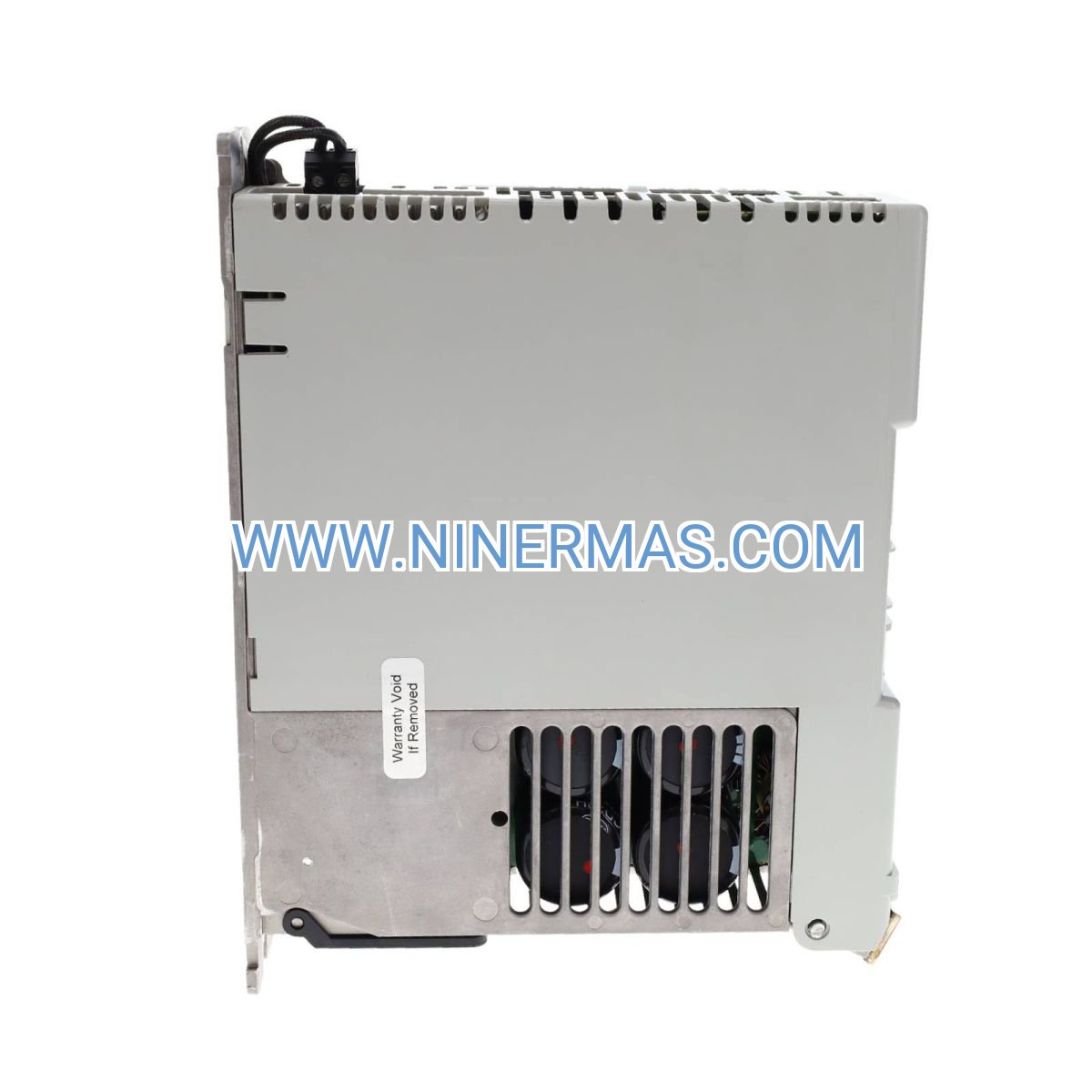

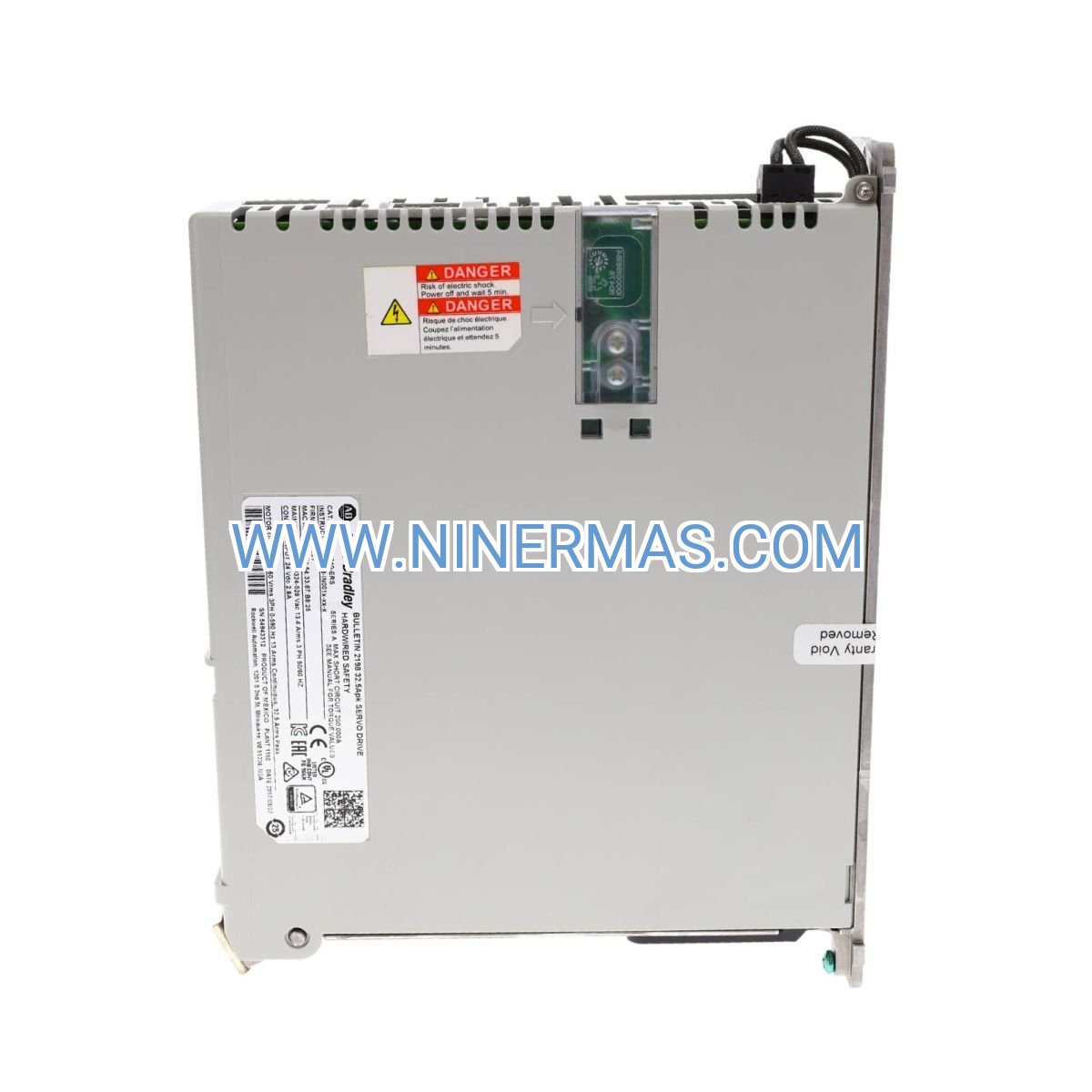

The Allen-Bradley 2198-H040-ER Kinetix 5500 Servo Drive is a high-performance single-axis motion control solution designed for demanding industrial automation applications. Leveraging advanced EtherNet/IP communication and integrated safety features, this 4.0kW servo drive delivers precise speed and position control for packaging machinery, material handling systems, robotic cells, and CNC equipment.

Engineered for manufacturers, system integrators, and OEM partners who require reliable motion control in high-speed production environments, the Kinetix 5500 series addresses common challenges including synchronization errors, network latency, excessive downtime, and complex commissioning procedures. Its modular architecture and built-in diagnostics significantly reduce installation time and maintenance costs.

With standardized configuration tools and flexible customization options, this servo drive offers seamless integration with Logix controllers, superior torque response, adaptive tuning capabilities, and comprehensive fault protection. Ideal for design engineers, automation specialists, equipment builders, and plant maintenance teams seeking to enhance productivity and system uptime. Contact our motion control engineers for application-specific sizing and technical consultation.

Core Features & Advantages

• Precision Motion Control
  Utilizes high-resolution feedback and advanced servo algorithms to achieve positioning accuracy within ±0.01mm, ensuring consistent product quality and reducing scrap rates in precision assembly and packaging operations.
• EtherNet/IP Connectivity
  Native integration with Rockwell Automation Logix platforms enables real-time synchronization across multiple axes, simplified wiring architecture, and centralized diagnostics through Studio 5000 environment, reducing commissioning time by up to 40%.
• Energy-Efficient Operation
  Regenerative braking and optimized power conversion deliver up to 25% energy savings compared to traditional DC drive systems, lowering operational costs in continuous-duty applications such as conveyor systems and material handling.
• Comprehensive Protection Suite
  Built-in safeguards against overcurrent, overvoltage, motor overtemperature, encoder loss, and short-circuit conditions minimize unplanned downtime and extend equipment service life in harsh industrial environments.
• Intuitive Configuration Interface
  Studio 5000 Logix Designer integration with pre-configured motion instructions, auto-tuning wizards, and graphical trend analysis accelerates setup and troubleshooting, enabling faster time-to-production for new installations.
• Modular & Scalable Design
  Supports single-axis to multi-axis configurations with common DC bus architecture, allowing flexible system expansion and standardized spare parts inventory across different machine platforms.

Typical Application Scenarios

The Kinetix 5500 servo drive is engineered for industrial environments demanding high precision, reliability, and network integration, particularly in:

• Packaging & Converting Machinery
  Provides synchronized motion control for form-fill-seal equipment, labeling systems, and web handling applications where registration accuracy and speed consistency directly impact production throughput and material waste reduction.
• Material Handling & Logistics Automation
  Powers conveyor systems, sortation equipment, and automated storage/retrieval systems (AS/RS) requiring precise positioning, smooth acceleration profiles, and coordinated multi-axis movements in distribution centers and warehousing facilities.
• Robotic & Assembly Systems
  Drives pick-and-place robots, SCARA arms, and gantry systems in electronics assembly, automotive component manufacturing, and pharmaceutical production where cycle time optimization and repeatability are critical performance metrics.
• CNC Machining & Metalworking
  Controls spindle drives, feed axes, and tool changers in milling centers, lathes, and grinding machines, delivering the torque response and velocity stability required for surface finish quality and dimensional tolerance compliance.
• Printing & Textile Equipment
  Ensures color registration accuracy and tension control in flexographic presses, digital printers, and weaving looms where synchronized multi-axis operation prevents defects and maintains consistent output quality.

Technical Parameters & Selection Guide

To facilitate engineering design and system specification, we provide standardized electrical and mechanical parameters. Custom configurations are available to meet specific project requirements.

Selection Recommendations: When specifying a Kinetix 5500 drive, consider the following application parameters: peak torque requirements during acceleration, duty cycle profile, ambient temperature conditions, required safety certification level, and controller platform compatibility. For applications requiring coordinated motion across multiple axes, evaluate DC bus sharing topology to optimize power utilization. Our application engineers can provide load calculation worksheets and system architecture recommendations based on your machine specifications.

Advanced Capabilities

• Integrated Safety Functions: Optional CIP Safety module supports Safe Torque-Off (STO), Safe Speed Monitor (SSM), and Safe Direction (SDI) functions, enabling compliance with ISO 13849-1 and IEC 61508 standards without external safety relays.
• Predictive Maintenance: Built-in condition monitoring tracks drive temperature, DC bus ripple, motor insulation resistance, and fan runtime, providing early warning indicators through Logix controller for scheduled maintenance planning.
• Multi-Axis Synchronization: CIP Motion profile supports electronic gearing, camming, and coordinated path control with sub-millisecond synchronization accuracy across up to 32 axes on a single EtherNet/IP network.
• Remote Diagnostics: FactoryTalk View integration enables real-time performance monitoring, alarm history logging, and remote parameter adjustment through plant-wide SCADA systems or cloud-based analytics platforms.

Delivery, Service & Quality Assurance

Lead Time: Factory-sealed units typically ship within 3-5 business days from regional distribution centers. Custom-configured systems with specialized firmware or safety options require 10-15 business days.

Warranty Coverage: All Kinetix 5500 drives include a 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs and advance replacement services are available for critical production applications.

Technical Support: Comprehensive support includes pre-sale application engineering consultation, startup commissioning assistance (remote or on-site depending on location), and access to 24/7 technical hotline for troubleshooting. Complete documentation package includes electrical schematics, wiring diagrams, parameter reference guides, and sample Logix code.

Compliance & Certifications: UL Listed, CE marked, RCM compliant. Manufactured in ISO 9001:2015 certified facilities with full traceability and quality documentation.

Frequently Asked Questions (FAQ)

Q: How do I integrate the Kinetix 5500 servo drive with my existing Allen-Bradley PLC system?
A: The drive connects via standard EtherNet/IP network to CompactLogix, ControlLogix, or Compact GuardLogix controllers. Configuration is performed through Studio 5000 Logix Designer using the Add-On Profile (AOP) available from Rockwell Automation. You'll need to confirm your controller firmware version supports CIP Motion (typically v20 or later) and allocate appropriate network bandwidth based on update rate requirements.

Q: What is the maximum number of servo drives I can control from a single controller?
A: A single Logix controller can manage up to 32 axes over EtherNet/IP, though practical limits depend on controller model, motion update rate (typically 1-8ms), and network topology. For applications exceeding 16 axes, we recommend network segmentation and bandwidth analysis to ensure deterministic performance.

Q: What energy savings can I expect compared to older servo drive technology?
A: Typical installations achieve 20-30% energy reduction through regenerative braking, optimized switching algorithms, and reduced cooling requirements. Actual savings depend on duty cycle characteristics—applications with frequent deceleration cycles (e.g., pick-and-place) see higher returns. We can provide energy audit calculations based on your specific motion profile.

Q: What are the environmental requirements for installation? Can it operate in dusty or high-humidity conditions?
A: The standard IP20 chassis is designed for controlled industrial environments (0-50°C, 5-95% RH non-condensing). For harsh environments, we recommend installing drives in NEMA 12 or IP54-rated enclosures with adequate ventilation. Conformal coating options are available for high-humidity or corrosive atmospheres.

Q: Does the drive support remote monitoring and predictive maintenance capabilities?
A: Yes, through integration with FactoryTalk Analytics or third-party SCADA systems via EtherNet/IP. The drive exposes diagnostic parameters including temperature trends, fault history, runtime hours, and power consumption data. This enables condition-based maintenance strategies and reduces unplanned downtime.

Q: What motor feedback devices are compatible with this servo drive?
A: The 2198-H040-ER supports EnDat 2.2, Hiperface DSL, BiSS-C digital protocols, plus traditional resolver interfaces. When paired with Kinetix VPC or TL-series motors, feedback is pre-configured. For third-party motors, you'll need to verify encoder compatibility and configure scaling parameters in Studio 5000.

Request Technical Consultation

To receive a customized drive selection recommendation, detailed quotation, or application engineering support, please provide the following project information: application type and industry, required motion profile (speed/torque/duty cycle), number of axes and coordination requirements, motor specifications (if already selected), input power availability, environmental conditions, and any specific safety or compliance requirements. Our motion control specialists will respond within one business day with tailored recommendations and technical documentation.
