Allen-Bradley 2198-D032-ERS4 Kinetix 5500 Retrofit Servo Drive

Allen-Bradley 2198-D032-ERS4 Kinetix 5500 Retrofit-Compatible Servo Drive for Legacy Systems

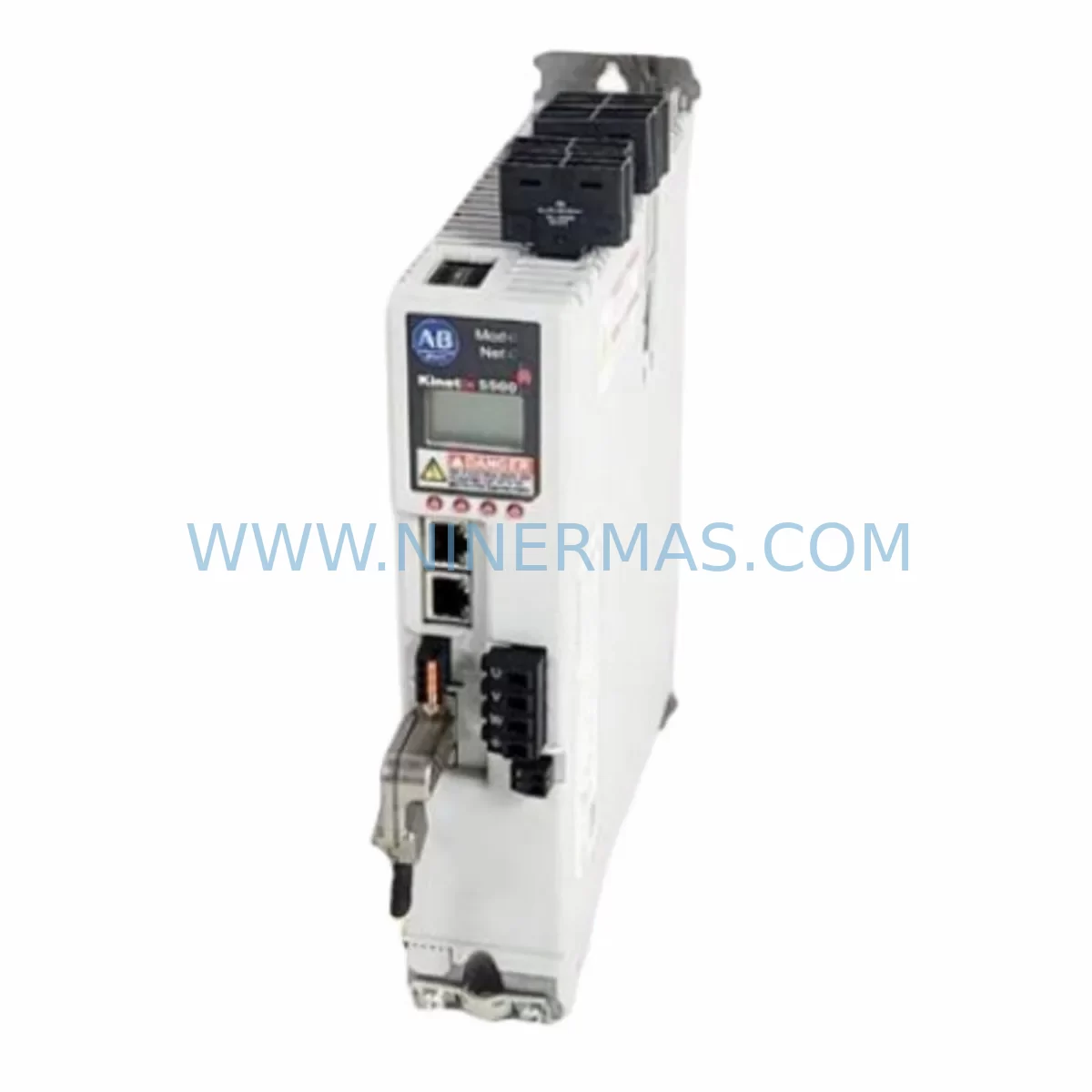

The Allen-Bradley 2198-D032-ERS4 is a single-axis EtherNet/IP servo drive module within the Kinetix 5500 series, designed for high-performance motion control in demanding industrial automation environments. As legacy Kinetix 5500 installations age and original spare parts become increasingly scarce, the 2198-D032-ERS4 remains a critical component for engineers managing retrofit projects, production line upgrades, and control cabinet modernization programs. NINERMAS maintains verified in-stock inventory of the 2198-D032-ERS4 to support planned maintenance shutdowns, emergency replacements, and long-term spare parts procurement strategies.

The 2198-D032-ERS4 is rated for a continuous output current of 32A RMS and is compatible with 400–480V AC three-phase input power. It integrates natively with the Logix 5000 control platform via EtherNet/IP, supporting CIP Motion for coordinated multi-axis control. Engineers replacing an older Kinetix 6000 or Kinetix 6500 axis module with the 2198-D032-ERS4 must carefully evaluate the differences in power rail architecture, as the Kinetix 5500 series uses a shared DC bus topology through the 2198-CAPMOD-2240 capacitor module rather than a traditional IAM/AM power structure. This distinction directly affects how the control cabinet is wired and how the DC bus is distributed across multiple axes.

When integrating the 2198-D032-ERS4 into an existing Logix-based system, the Studio 5000 Logix Designer project must be updated to include the correct drive profile. The axis properties — including motor feedback type, velocity loop gains, and torque limits — must be reconfigured to match the connected servo motor, whether that is a VPL, VPF, or MPL series motor. If the original system used a 2094-series Kinetix 6000 drive with an analog feedback interface, engineers should verify that the motor’s feedback device is compatible with the 2198-D032-ERS4’s integrated smart feedback port before proceeding with the swap.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 2198-D032-ERS4 begins well before the physical swap. Engineers should start by auditing the existing control cabinet layout to confirm that the available DIN rail space and cabinet depth can accommodate the Kinetix 5500 module’s 75mm width and required airflow clearances. In multi-axis systems, the 2198-D032-ERS4 is typically installed alongside a 2198-P031 or 2198-P070 power supply module, which provides the shared DC bus voltage. If the existing system used a standalone Kinetix 6000 IAM module such as the 2094-BC04-M05-S, the entire power section of the drive system must be replaced, not just the axis module.

Terminal wiring is another critical checkpoint. The 2198-D032-ERS4 uses a specific motor power connector pinout that differs from the 2094-series connector layout. Engineers must prepare new motor power cables or use appropriate adapter harnesses to avoid miswiring the U, V, W motor phases and the PE ground terminal. The motor brake circuit, if present, must also be rewired to the dedicated brake connector on the 2198-D032-ERS4 rather than routed through the legacy drive’s integrated brake relay.

On the communication side, migrating from a SERCOS fiber ring (used in Kinetix 6000 systems) to the EtherNet/IP network required by the 2198-D032-ERS4 involves installing a managed Ethernet switch — such as a Stratix 5700 — within the control cabinet and running Cat5e or Cat6 cabling to each drive node. The ControlLogix or CompactLogix controller, such as a 1756-L85E or 1769-L36ERM, must have its motion group reconfigured in Studio 5000 to replace the SERCOS axis tags with EtherNet/IP axis objects. All axis parameters, including electronic gearing ratios, cam profiles, and registration inputs, must be re-entered and verified against the original program documentation.

For systems that include an HMI — such as a PanelView Plus 7 or a legacy PanelView 1000 — the operator screens displaying axis status, fault codes, and jog controls must be reviewed and updated to reflect the new drive’s fault code structure and status word bit mapping. The 2198-D032-ERS4 uses a different set of CIP Motion fault codes compared to the Kinetix 6000, so any HMI alarm pages that reference specific fault numbers will need to be remapped. Signal isolators or I/O interface modules, such as the 1492-AIFM series analog interface modules, may also need to be reconfigured if the original system used analog speed references or torque commands that are now handled digitally through CIP Motion.

Where the retrofit involves I/O expansion — for example, adding new safety interlocks or position sensors — the 1734 POINT I/O or 1756 ControlLogix I/O modules already present in the system can typically be retained without modification, provided the controller firmware is updated to support the new drive profile. The 2198-D032-ERS4 also supports integrated safe torque-off (STO) via a hardwired safety input, which can be connected directly to a safety relay or a GuardLogix safety controller, simplifying the safety circuit compared to older external STO wiring schemes.

Downtime Control During System Migration

Minimizing production downtime during a Kinetix 5500 retrofit requires a structured pre-commissioning strategy. Before the scheduled maintenance window, engineers should complete all Studio 5000 program modifications — including axis configuration, motion group updates, and HMI screen revisions — in an offline project file. The updated program should be fully simulated using the Logix Designer offline emulator and reviewed against the original motion sequence documentation to confirm that all move instructions, cam profiles, and registration routines behave as expected.

During the physical installation window, the recommended sequence is: de-energize and lock out the control cabinet, remove the legacy drive module, install the 2198-D032-ERS4 and its associated 2198-CAPMOD-2240 capacitor module, complete all motor power and feedback wiring, restore control power, download the updated Logix program, and perform a no-load axis tune before reconnecting the mechanical load. This structured sequence reduces the risk of wiring errors and ensures that the drive’s internal firmware is correctly matched to the Studio 5000 project version before any motion commands are issued.

NINERMAS pre-tests all 2198-D032-ERS4 units prior to shipment, including power-on verification and communication interface checks, to reduce the risk of receiving a non-functional unit during a time-critical maintenance window. Units are shipped with full documentation and are backed by a 12-month warranty, giving maintenance teams confidence that the replacement component will perform reliably from the first power-on. For customers managing multi-site spare parts programs, NINERMAS can support blanket purchase orders and reserved inventory allocations to ensure that critical Kinetix 5500 spare parts are available on demand without lead-time risk.

Retrofit Support FAQ

Q1: Can the 2198-D032-ERS4 directly replace a 2094-BC04-M05-S Kinetix 6000 axis module without rewiring?
No. The 2198-D032-ERS4 (Kinetix 5500) and the 2094-BC04-M05-S (Kinetix 6000) use different power architectures, communication protocols, and connector pinouts. A direct drop-in replacement is not possible. The retrofit requires replacing the power supply section, rewiring motor power and feedback cables, migrating from SERCOS to EtherNet/IP, and updating the Studio 5000 project. NINERMAS can provide pre-sales technical guidance to help plan the scope of the retrofit before ordering.

Q2: What commissioning steps are required after installing the 2198-D032-ERS4?
After physical installation and wiring, the axis must be configured in Studio 5000 Logix Designer with the correct motor catalog number, feedback type, and motion group assignment. A motor self-test (MST) and motor feedback self-test (MFST) should be run to verify wiring integrity. Velocity and position loop auto-tuning should then be performed with the mechanical load connected. Finally, all motion sequences should be tested at reduced speed before returning the system to full production speed.

Q3: Does NINERMAS test the 2198-D032-ERS4 before shipment, and what warranty is provided?
Yes. All 2198-D032-ERS4 units supplied by NINERMAS are powered on and tested for communication interface functionality and basic drive operation before dispatch. Each unit is covered by a 12-month warranty from the date of shipment. In the event of a warranty claim, NINERMAS provides a replacement unit to minimize production downtime. Contact sale@ninermas.com for warranty registration and support.

Q4: Can NINERMAS support long-term spare parts inventory programs for the Kinetix 5500 series?
Yes. NINERMAS specializes in long-lifecycle spare parts supply for industrial automation systems, including the full Kinetix 5500 drive family. We support blanket purchase orders, reserved stock allocations, and multi-site procurement programs for customers managing aging automation infrastructure. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 to discuss your spare parts requirements and lead-time commitments.
