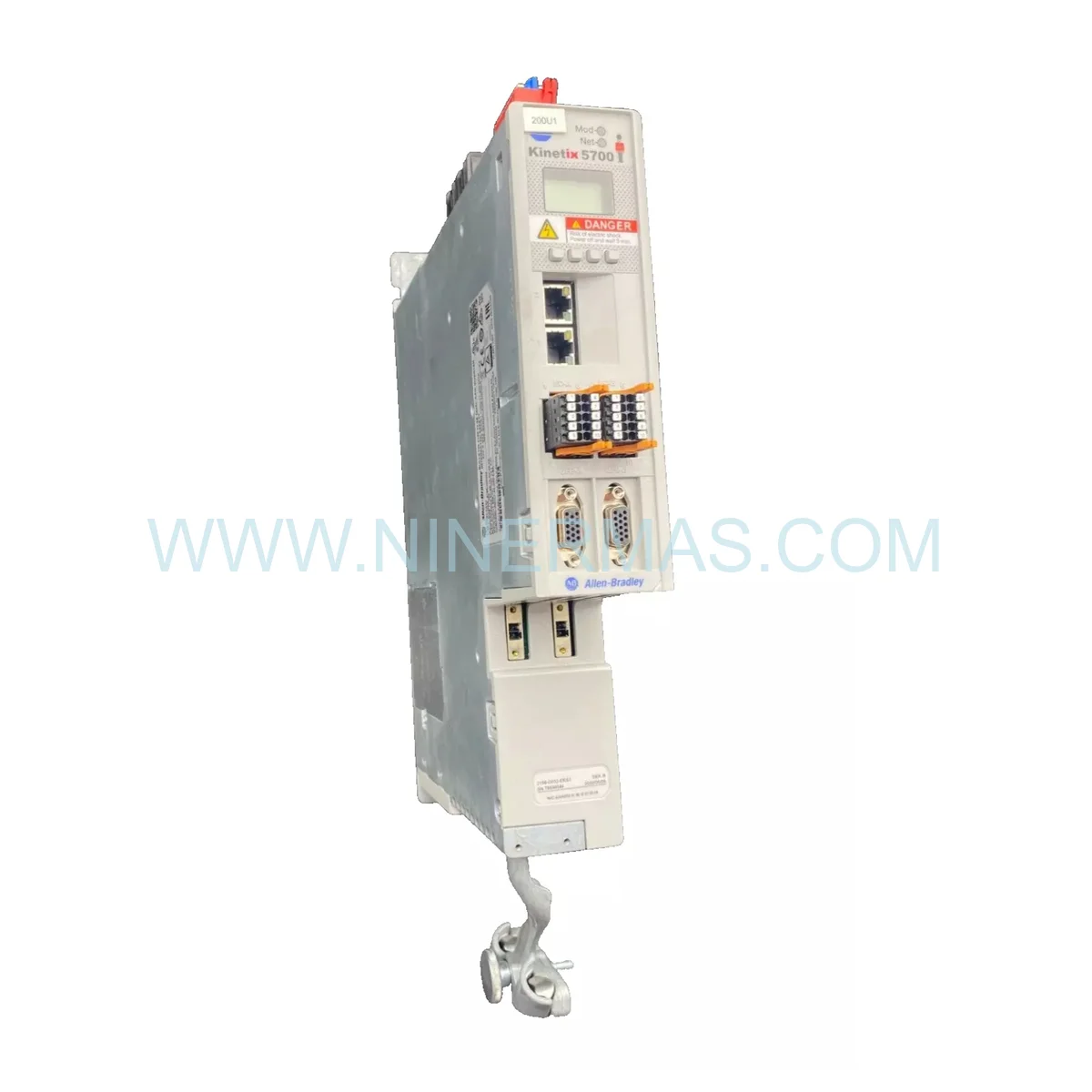

Allen-Bradley 2198-D032-ERS3 Kinetix 5700 Dual-Axis Servo Drive | Retrofit Ready

Allen-Bradley 2198-D032-ERS3 — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial automation upgrades across global manufacturing facilities, I consistently identify the Allen-Bradley 2198-D032-ERS3 as a cornerstone component in motion system modernization. This Kinetix 5700 dual-axis inverter power module delivers 12.5A continuous output per axis, enabling factories to achieve measurable Performance Enhancement without dismantling their entire control architecture. Whether you are migrating from aging Kinetix 6000/6500 platforms or extending the operational life of a legacy servo system, the 2198-D032-ERS3 provides the technical bridge that reduces project risk and accelerates commissioning timelines.

A critical advantage of this module in any Retrofit Solution strategy is its native EtherNet/IP with CIP Motion integration — a protocol already embedded in most modern Allen-Bradley ControlLogix and CompactLogix controllers. This Legacy Compatibility means existing PLC programs require minimal rework, dramatically lowering the engineering hours needed for a full System Migration. The shared DC bus architecture further simplifies panel redesign by allowing multiple Kinetix 5700 modules to coexist on a single power rail.

From a cost-of-migration perspective, deploying the 2198-D032-ERS3 as part of a phased Hardware Upgrade plan reduces capital expenditure by preserving compatible infrastructure — motor cables, feedback wiring, and existing safety circuits — while delivering a modern, future-proof drive platform. The result is a lower total cost of ownership and a faster return on investment compared to full system replacement.

Upgrade Highlights & Compatibility

✅ Seamless Integration — Native EtherNet/IP / CIP Motion eliminates gateway hardware; plug directly into existing ControlLogix or CompactLogix architectures.
Dual-Axis Efficiency — Control two servo axes from a single module, cutting panel footprint and wiring complexity by up to 50% versus legacy single-axis drives.
? Legacy Compatibility — Compatible with TL-Series, MP-Series, and VPL-Series Allen-Bradley servo motors; supports both absolute and incremental encoder feedback without external adapters.
Performance Enhancement — Current loop bandwidth exceeding 1.6 kHz delivers superior dynamic response for high-speed, high-precision retrofit applications.
? Future-Proofing — Integrated Safe Torque-Off (STO) rated SIL 3 / PLe meets current and anticipated IEC 62061 / ISO 13849 safety standards, protecting your retrofit investment.
Energy Recovery — Shared DC bus enables regenerative power sharing between axes, reducing energy consumption in multi-axis retrofit installations.

Modernization Use Cases & Success Stories

DCS-Integrated Packaging Line Retrofit: A beverage manufacturer replaced twelve aging Kinetix 6500 single-axis drives with six 2198-D032-ERS3 dual-axis modules. The result: a 38% reduction in panel space, elimination of legacy fiber-optic SERCOS cabling, and a 22% improvement in throughput — all achieved within a two-week scheduled maintenance window.

Turbine Supervisory Instrumentation (TSI) Auxiliary Drive Upgrade: In a combined-cycle power plant, auxiliary feed pump positioning drives were migrated from a discontinued third-party servo platform to the Kinetix 5700 ecosystem using the 2198-D032-ERS3. The EtherNet/IP backbone enabled direct integration with the plant’s existing DCS historian, providing real-time diagnostics that were previously unavailable on the legacy system.

Automotive Assembly Retrofit: A Tier-1 automotive supplier upgraded a body-in-white welding cell by replacing obsolete motion controllers with a ControlLogix + 2198-D032-ERS3 architecture. Adaptive auto-tuning reduced commissioning time by 40%, and the integrated STO function eliminated the need for external safety relays, simplifying the machine safety validation process.

Pharmaceutical Filling Line Modernization: A sterile filling operation required a servo upgrade that maintained existing motor and cable infrastructure to avoid re-validation costs. The 2198-D032-ERS3’s broad motor compatibility and single-cable technology option allowed the retrofit to proceed with zero motor replacements, preserving validated process parameters while delivering modern drive performance.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every 2198-D032-ERS3 unit is sourced as genuine Allen-Bradley product, factory sealed and traceable to authorized distribution channels. No refurbished or counterfeit components — critical for retrofit projects where reliability and warranty validity are non-negotiable.

Expedited Global Logistics: We maintain strategic inventory to support urgent retrofit and emergency replacement scenarios. Express air freight to major industrial hubs in North America, Europe, Southeast Asia, and the Middle East is available with same-day dispatch on confirmed orders.

Technical Support for Obsolete & Legacy Hardware: Our engineering team specializes in cross-referencing discontinued drive models and identifying compatible Kinetix 5700 replacements. We provide parameter migration guidance, wiring diagram adaptation, and Studio 5000 project file review to ensure your retrofit proceeds without costly delays.

Documentation Package: Each shipment includes the original Allen-Bradley installation manual, dimensional drawings, and a retrofit compatibility checklist tailored to common legacy drive replacement scenarios.

Retrofit FAQ — Upgrade Guide

Q1: Will the 2198-D032-ERS3 physically fit in the same panel space as my existing Kinetix 6500 drives?
A: The Kinetix 5700 series uses a different mechanical form factor than the Kinetix 6500. Panel layout redesign is typically required. However, because the 2198-D032-ERS3 controls two axes in a single module, the net panel footprint often decreases significantly — many retrofit projects report 30-50% space savings after migration.

Q2: Can the 2198-D032-ERS3 communicate with my existing legacy DCS or SCADA system?
A: Yes. The drive’s EtherNet/IP interface supports standard CIP messaging, enabling integration with most modern DCS and SCADA platforms via OPC-UA gateways or direct EtherNet/IP adapters. For older serial-based SCADA systems, a protocol converter is recommended — our technical team can advise on the appropriate gateway solution.

Q3: What is the recommended replacement path if my current servo drive model is discontinued (EOL)?
A: For EOL Kinetix 6000 or Kinetix 6500 systems, the 2198-D032-ERS3 is a validated migration target. Rockwell Automation provides official migration guides (Migration Guide publication 2198-UM001) detailing parameter mapping and wiring changes. Our team can assist with site-specific adaptation of these guides.

Q4: Can I reuse my existing servo motors and feedback cables during the retrofit?
A: In most cases, yes. The 2198-D032-ERS3 supports Allen-Bradley TL-Series, MP-Series, and VPL-Series motors with standard feedback connectors. Motor cable reuse depends on connector compatibility and cable condition. Single-cable motor technology is available for new motor installations, further reducing future wiring costs.

Q5: How long does a typical dual-axis retrofit commissioning take with this drive?
A: With Studio 5000 Logix Designer v21+ and the Motion Analyzer tool, a dual-axis retrofit can typically be commissioned in 4-8 hours per axis pair, depending on application complexity. The drive’s adaptive auto-tuning reduces manual tuning iterations, and pre-configured axis templates in Studio 5000 further accelerate the process.

Q6: Is the 2198-D032-ERS3 suitable for use in safety-rated retrofit applications?
A: Absolutely. The integrated Safe Torque-Off (STO) function is rated SIL 3 / PLe per IEC 62061 and ISO 13849, making it suitable for Category 3 and Category 4 safety architectures. This eliminates the need for external safety contactors in many retrofit designs, simplifying the safety validation process and reducing BOM cost.
