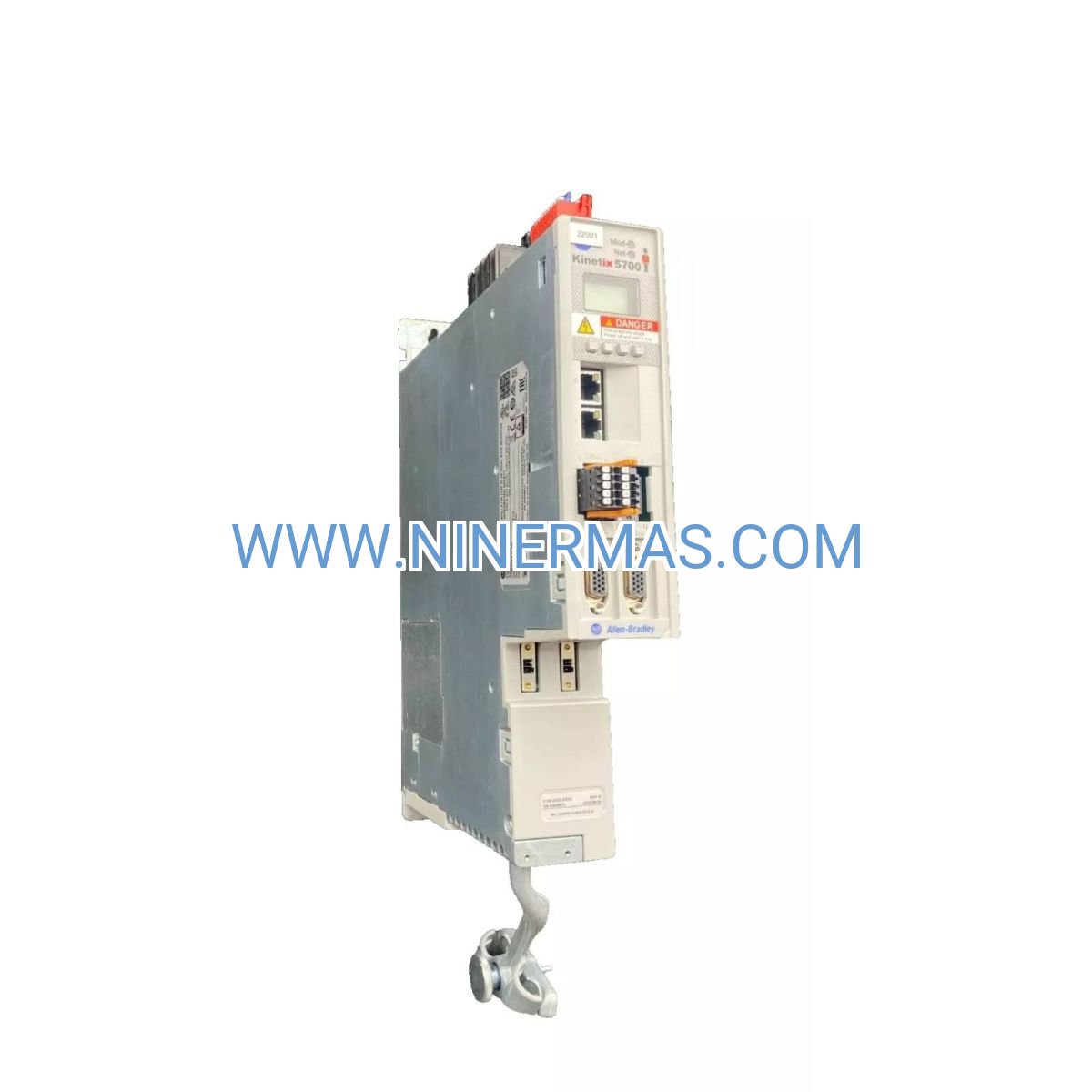

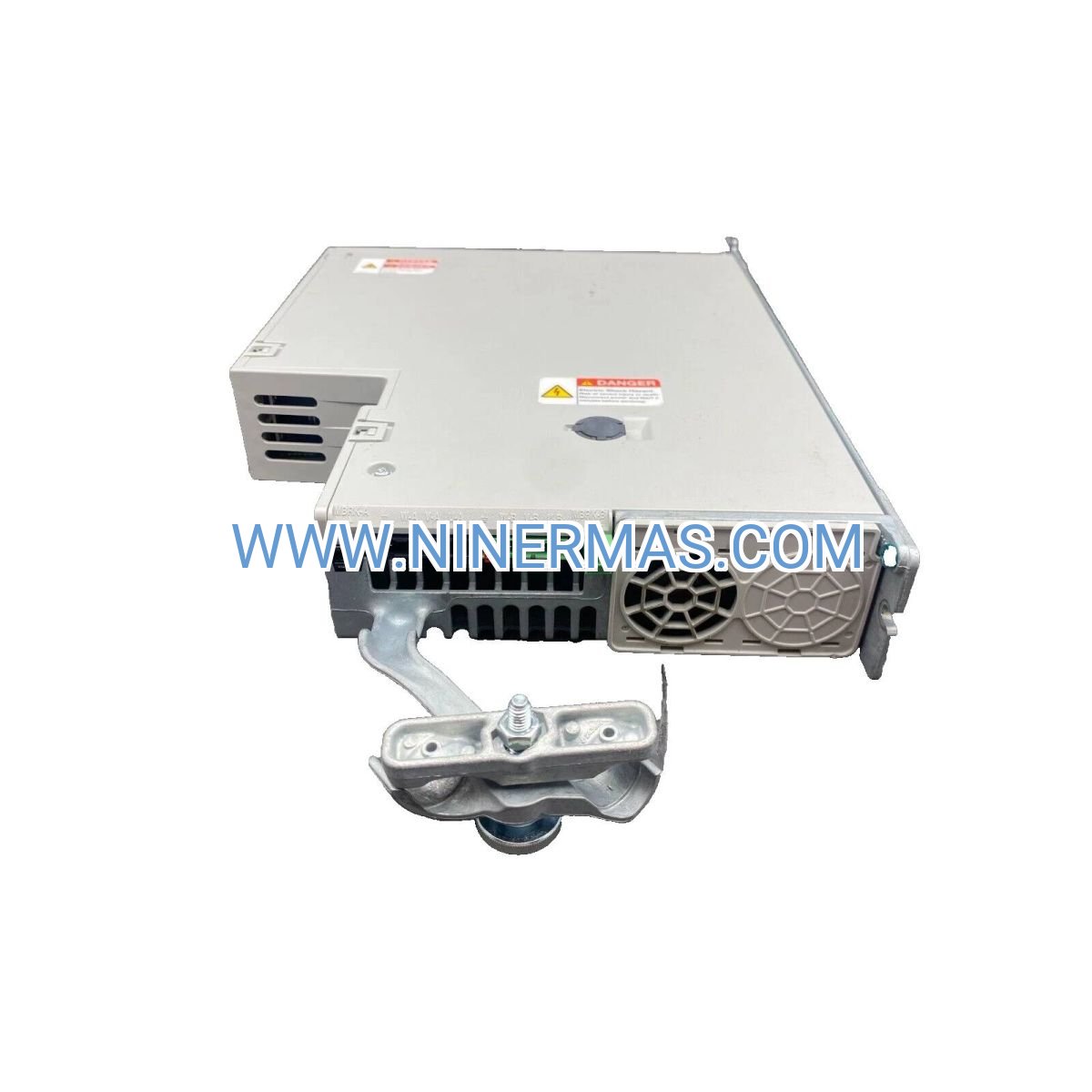

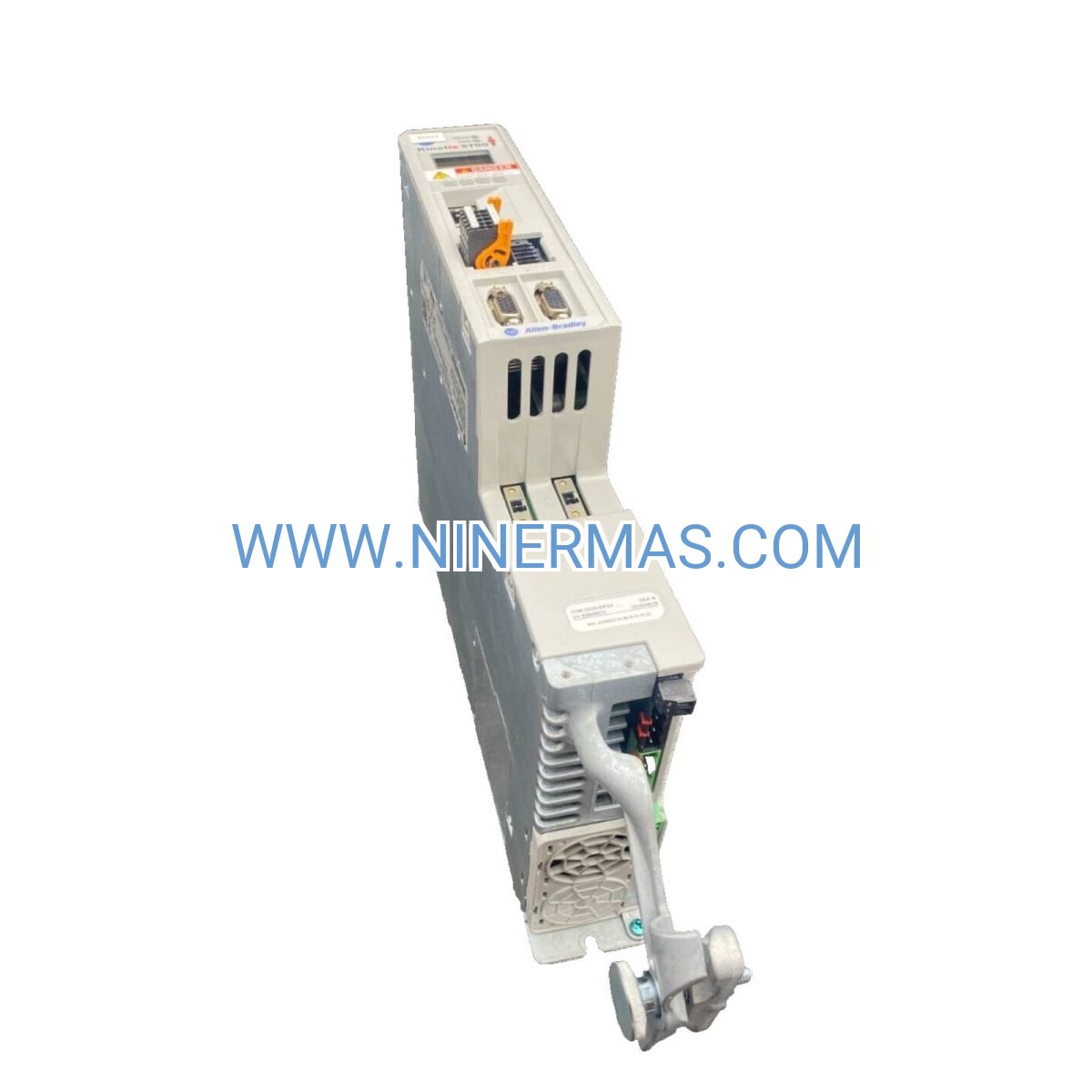

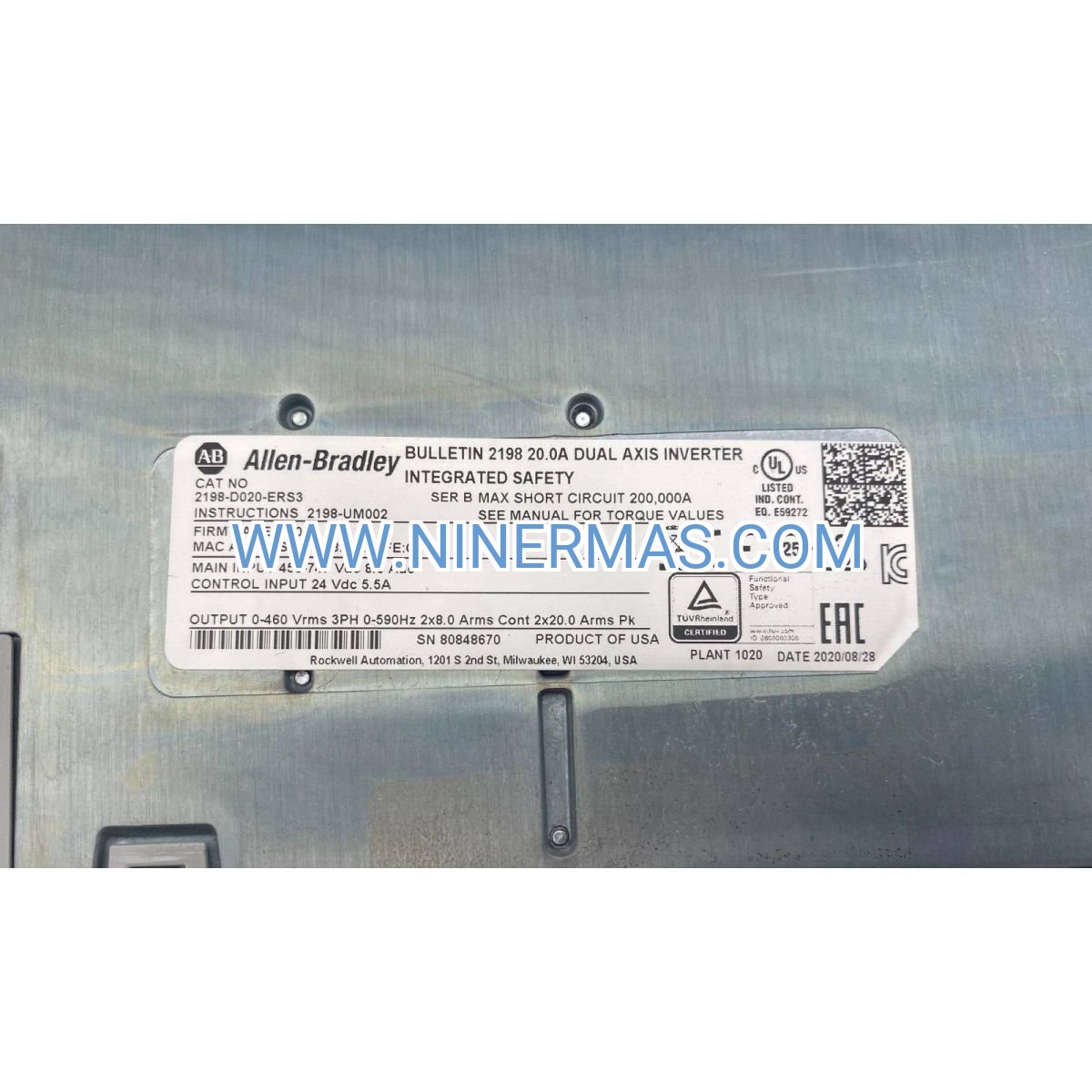

Allen-Bradley 2198-D020-ERS Kinetix 5700 Dual-Axis Servo Drive (Industrial Motion Control Solution)

The Allen-Bradley 2198-D020-ERS Kinetix 5700 is a high-performance dual-axis servo drive engineered for precision motion control applications. Through integrated EtherNet/IP communication and advanced servo algorithms, it delivers synchronized multi-axis positioning, velocity control, and torque regulation with microsecond-level response accuracy.

Designed for demanding industrial environments including packaging machinery, robotic assembly lines, CNC machining centers, and material handling systems, this drive addresses critical challenges such as motion synchronization errors, network latency issues, complex wiring requirements, and limited diagnostic capabilities in legacy control architectures.

With factory-calibrated parameters, modular configuration options, and comprehensive safety features, the 2198-D020-ERS is ideal for OEM machine builders, system integrators, automation engineers, and plant maintenance teams. Contact our technical specialists for application-specific configuration guidance and competitive quotations.

Core Features & Technical Advantages

• Dual-Axis Integrated Control
  Manages two independent servo motors from a single compact drive unit, reducing panel space by up to 40% compared to separate single-axis drives while ensuring precise electronic gearing and cam profiling between axes.
• EtherNet/IP Industrial Networking
  Native support for EtherNet/IP protocol enables seamless integration with Allen-Bradley ControlLogix, CompactLogix PLCs and Studio 5000 programming environment, with deterministic communication cycles down to 250 microseconds for time-critical applications.
• 8.0A Continuous Current Output
  Delivers 8.0A continuous / 16.0A peak current per axis at 230VAC input, compatible with Kinetix VP-Series and MP-Series servo motors ranging from 0.5kW to 2.0kW, covering 80% of typical industrial motion requirements.
• Advanced Motion Control Algorithms
  Incorporates adaptive tuning, load observer compensation, and vibration suppression technologies to achieve ±0.01° positioning accuracy and 5ms settling time, even under varying load conditions.
• Comprehensive Protection & Diagnostics
  Built-in safeguards against overcurrent, overvoltage, undervoltage, motor overtemperature, encoder fault, and ground fault conditions. Real-time diagnostic LEDs and web-based monitoring interface reduce troubleshooting time by 60%.
• Flexible Configuration & Scalability
  Supports multiple feedback types (incremental encoder, absolute encoder, resolver), configurable I/O mapping, and firmware upgradability via Studio 5000, ensuring long-term system adaptability and investment protection.

Typical Application Scenarios

The 2198-D020-ERS servo drive is engineered for applications demanding high precision, reliability, and network integration, particularly in:

• Packaging & Converting Machinery
  Synchronizes cutting, sealing, and labeling axes in flow wrappers, cartoners, and form-fill-seal equipment, maintaining registration accuracy within ±0.5mm at speeds up to 200 packages/minute.
• Robotic Assembly & Pick-and-Place Systems
  Coordinates multi-axis SCARA and delta robots for electronics assembly, pharmaceutical handling, and food sorting applications, with cycle times reduced by 25% through optimized motion profiles.
• CNC Machining & Metal Fabrication
  Drives X-Y gantry systems, rotary tables, and tool changers in milling centers, laser cutters, and press brakes, achieving surface finish quality of Ra 0.8μm through vibration damping algorithms.
• Material Handling & Conveyor Systems
  Controls belt conveyors, roller transfers, and sortation diverters in distribution centers and automotive plants, ensuring smooth acceleration profiles and preventing product damage during high-speed transfers.
• Textile & Printing Equipment
  Manages tension control, registration correction, and web guiding in digital printers, coating lines, and weaving looms, maintaining tension variance below ±2% across production runs.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide standardized electrical and mechanical parameters. Custom configurations are available based on specific project requirements.

Selection Recommendations: When specifying this drive, consider: (1) Total inertia ratio (motor + load) should not exceed 30:1 for optimal tuning; (2) Cable length between drive and motor should be ≤50m for standard feedback, ≤100m for fiber-optic feedback; (3) Ambient temperature and altitude affect current derating—consult derating curves for installations above 1000m or 40°C; (4) Ensure PLC firmware compatibility (ControlLogix v20+ or CompactLogix v20+ recommended). Our application engineers can review your motor datasheets, load calculations, and duty cycle profiles to confirm suitability and recommend optimal tuning parameters.

Extended Functionality & Integration Options

• Safe Torque-Off (STO) Compliance: Integrated SIL 2 / PLd safety function meets EN ISO 13849-1 requirements, eliminating need for external safety relays in most applications.
• Regenerative Power Handling: Built-in brake chopper and optional external brake resistor dissipate regenerative energy during deceleration, protecting DC bus and extending capacitor lifespan.
• Studio 5000 Integration: Add-On Profile (AOP) enables drag-and-drop configuration, automatic tag generation, and real-time axis status monitoring within Logix Designer environment.
• Web-Based Diagnostics: Embedded web server provides oscilloscope-style waveform capture, parameter backup/restore, and firmware update capabilities via standard Ethernet connection—no proprietary software required.
• Third-Party Device Connectivity: Generic EtherNet/IP adapter mode allows integration with non-Rockwell controllers (Siemens, Schneider, Omron) using standard CIP motion objects.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from our regional distribution centers. Custom-configured units (special voltage, extended temperature, conformal coating) require 10-15 business days.

Warranty Coverage: All drives include a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty plans (24/36 months) are available for critical production equipment.

Technical Support: Our certified Rockwell Automation specialists provide remote commissioning assistance, parameter optimization, and troubleshooting support via phone, email, and remote desktop sessions. On-site startup services are available in major industrial regions (quoted separately based on location).

Documentation Package: Each drive ships with complete electrical schematics, terminal wiring diagrams, dimensional drawings (DXF/PDF), quick-start guide, and full user manual (English/Chinese). Studio 5000 AOP files and sample ladder logic programs are downloadable from our technical resource portal.

Quality Standards: Products are sourced through authorized Rockwell Automation distribution channels, with full traceability to manufacturing batch codes. Each unit undergoes incoming inspection, functional testing, and firmware verification before shipment. Certificates of conformity and test reports are provided upon request.

Frequently Asked Questions (FAQ)

Q: How does the Allen-Bradley 2198-D020-ERS dual-axis servo drive integrate with existing ControlLogix systems?
A: The drive connects via standard Ethernet cable to your ControlLogix or CompactLogix controller's EtherNet/IP network. After installing the Add-On Profile (AOP) in Studio 5000 Logix Designer, the drive appears as a motion axis object with automatic tag generation. Configuration typically takes 15-30 minutes for experienced programmers. The drive supports CIP Sync for time-stamped coordination across multiple drives.

Q: What is the maximum number of servo motors this drive can control simultaneously?
A: This dual-axis model controls exactly two independent servo motors. Each axis has dedicated power stage, feedback interface, and motion processor. For applications requiring more axes, multiple drives can be networked on the same EtherNet/IP segment—a single ControlLogix controller can coordinate up to 32 Kinetix drives (64 axes) with deterministic synchronization.

Q: What energy savings can be achieved compared to traditional AC motor systems?
A: Servo drives typically reduce energy consumption by 30-50% versus fixed-speed AC motors with mechanical gearing, due to: (1) Elimination of continuous motor operation during idle periods; (2) Optimized acceleration/deceleration profiles reducing peak power demand; (3) Regenerative braking returning energy to DC bus. Actual savings depend on duty cycle—applications with frequent start/stop cycles see greatest benefit. Payback period averages 18-24 months in multi-shift operations.

Q: What are the environmental requirements for installation? Is IP65 protection available?
A: Standard units are IP20 rated for clean, climate-controlled panel environments (0-55°C, 5-95% RH non-condensing). For harsh environments, we offer: (1) Conformal-coated PCBs for humidity/dust resistance; (2) IP65-rated connector kits for sealed cable entry; (3) Extended temperature models (-10°C to +60°C). Installations near welding equipment or heavy EMI sources may require additional line filters and shielded motor cables.

Q: Can this drive support remote monitoring and data collection for Industry 4.0 applications?
A: Yes, through multiple pathways: (1) Native EtherNet/IP connectivity allows direct data exchange with SCADA/MES systems via FactoryTalk View or third-party HMI platforms; (2) Embedded web server provides RESTful API for custom dashboards and mobile apps; (3) Integration with FactoryTalk Analytics LogixAI enables predictive maintenance based on current waveform analysis and thermal modeling. Supported protocols include Modbus TCP (via gateway), OPC UA (via FactoryTalk Linx), and MQTT (via edge gateway).

Q: What is the typical lifespan of this servo drive, and what are the maintenance requirements?
A: Design life exceeds 10 years (87,600 operating hours) under rated conditions. Electrolytic capacitors are the primary wear component—expected replacement interval is 5-7 years depending on ambient temperature and load cycling. Preventive maintenance includes: (1) Quarterly inspection of cooling fan and air filters; (2) Annual torque verification of power terminals; (3) Firmware updates as released by Rockwell (typically 1-2 per year). No lubrication or mechanical adjustments required. Mean Time Between Failures (MTBF) is rated at 250,000 hours per MIL-HDBK-217F.

Request Technical Consultation & Quotation

To receive a detailed application review, configuration recommendation, and competitive pricing, please provide the following information to our engineering team:

• Project name and application type (packaging, robotics, CNC, etc.)
• Number of axes required and motion profile (point-to-point, continuous, cam-driven)
• Servo motor specifications (manufacturer, model, rated power, inertia)
• Load characteristics (inertia, friction, external forces, duty cycle)
• Required positioning accuracy and repeatability
• Controller platform (ControlLogix model, CompactLogix model, or third-party PLC)
• Environmental conditions (temperature range, IP rating, altitude)
• Quantity required and target delivery schedule

Our certified motion control specialists will respond within 24 hours with a tailored solution proposal, including drive sizing calculations, recommended tuning parameters, cable specifications, and total system cost.
