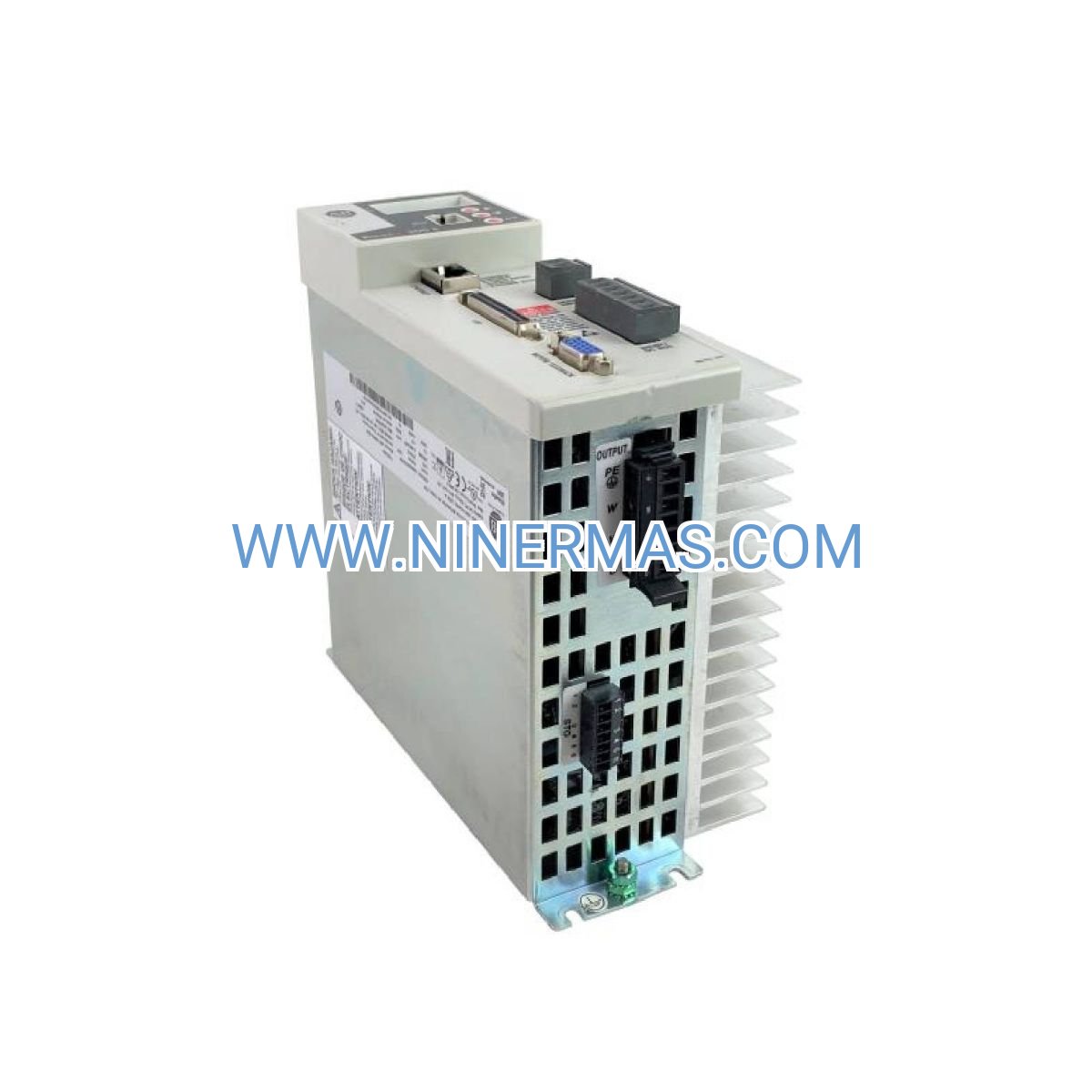

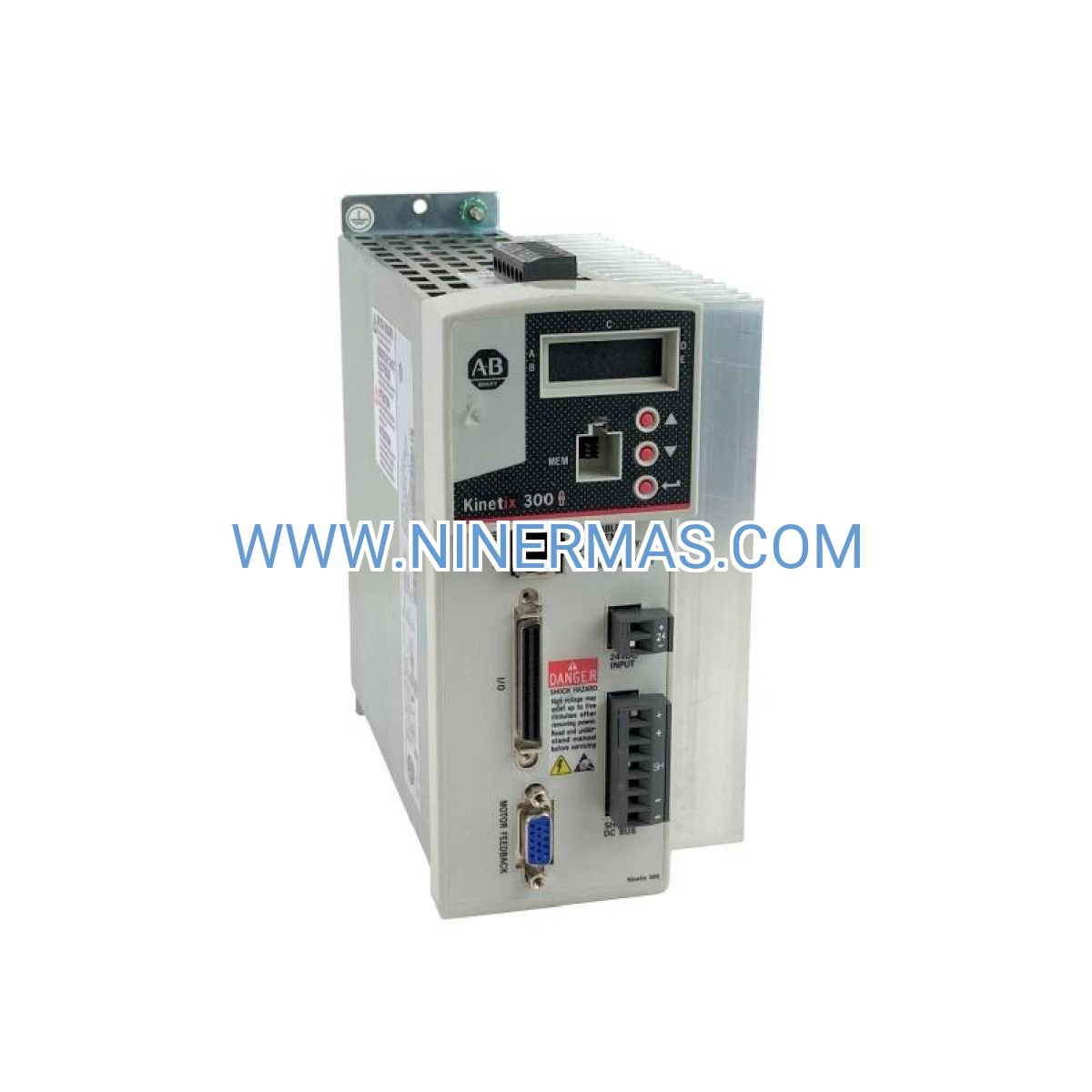

2097-V34PR5 Kinetix 300 Servo Drive (Industrial-Grade Motion Controller)

The 2097-V34PR5 represents Allen-Bradley's commitment to delivering robust, field-proven motion control technology for industrial environments. This compact servo drive combines 2.0 kW continuous power delivery with native EtherNet/IP protocol support, enabling seamless integration into Rockwell Automation's Integrated Architecture ecosystem. Designed for applications demanding precise velocity regulation, accurate positioning, and reliable torque control, this drive serves as the critical link between your control system and servo motor.

Manufacturing facilities worldwide rely on the Kinetix 300 platform to power mission-critical motion axes in packaging lines, material handling systems, and automated assembly cells. Whether you're retrofitting legacy equipment or designing new machinery, the 2097-V34PR5 delivers the performance consistency and diagnostic depth required for modern industrial operations.

With built-in web server access, comprehensive fault logging, and Studio 5000 integration, this drive reduces commissioning time while providing the real-time visibility needed for predictive maintenance strategies. The result: higher equipment availability, lower total cost of ownership, and simplified troubleshooting when issues arise.

Core Capabilities & Technical Advantages

→ 2.0 kW Continuous Power Output
Delivers consistent torque across the full speed range, with peak power capability for acceleration demands. Thermal management design ensures rated performance even in elevated ambient temperatures up to 40°C.

→ Native EtherNet/IP Connectivity
Eliminates the need for gateway devices or protocol converters. Direct integration with ControlLogix, CompactLogix, and GuardLogix controllers enables deterministic motion control with sub-millisecond update rates.

→ Multi-Feedback Compatibility
Supports incremental encoders (differential line driver), absolute encoders (Hiperface, EnDat), and resolver feedback devices. Automatic feedback device recognition simplifies setup and reduces configuration errors.

✓ Advanced Diagnostic Framework
Embedded web server provides browser-based access to real-time drive parameters, waveform capture, and historical fault data. LED status indicators offer at-a-glance health monitoring without requiring laptop connection.

✓ Regenerative Energy Management
Internal braking resistor handles regenerative energy during deceleration cycles, eliminating external resistor requirements for most applications. Reduces panel space and simplifies electrical design.

✓ Studio 5000 Ecosystem Integration
Single software environment for drive configuration, motion programming, and system diagnostics. Electronic data sheets (EDS files) enable automatic device discovery and parameter population.

Industry Applications & Use Cases

Packaging & Converting Machinery
Drives registration systems, flying shear mechanisms, and rotary knife applications where precise speed matching and electronic gearing are essential. Handles rapid start-stop cycles in intermittent motion applications like form-fill-seal equipment.

Automated Material Handling
Powers conveyor positioning systems, sortation diverters, and lift-transfer mechanisms in distribution centers. Provides the velocity control needed for smooth product transitions and accumulation zones.

Robotic Assembly Systems
Controls auxiliary axes on SCARA and articulated robots, including tool changers, part feeders, and vision system positioning stages. Synchronizes with robot controllers via EtherNet/IP for coordinated motion sequences.

CNC Machine Tool Integration
Operates rotary tables, tailstocks, and automatic tool changers on machining centers. Delivers the positioning accuracy required for indexed operations and the torque control needed for clamping applications.

Test & Measurement Equipment
Enables precise speed control for dynamometers, environmental chambers, and automated test stands. Programmable acceleration profiles support repeatable test protocols.

Technical Specifications & Selection Guide

Selection Considerations: Verify that your servo motor's continuous current rating falls within the drive's output capability. For applications requiring higher power, consider the 2097-V34PR6 (3.0 kW) or 2097-V34PR7 (5.5 kW) models. Ensure adequate panel ventilation to maintain ambient temperature within specification.

Extended Functionality & Integration Options

Safety Integration: When paired with GuardLogix safety controllers, the drive supports Safe Torque-Off (STO) functionality for SIL 2/PLd safety applications. Safety I/O connections enable integration with safety door switches, light curtains, and emergency stop circuits.

Multi-Axis Coordination: Supports electronic camming, gearing, and coordinated motion profiles across up to 32 axes within a single controller. Ideal for applications requiring synchronized motion between multiple drives.

Custom Motion Profiles: Programmable S-curve acceleration profiles minimize mechanical stress and reduce settling time. User-definable position, velocity, and torque limits protect machinery from damage.

Remote Monitoring: EtherNet/IP connectivity enables integration with FactoryTalk View HMI systems and FactoryTalk Analytics for condition-based monitoring. MQTT protocol support allows data streaming to cloud-based analytics platforms.

Delivery, Warranty & Technical Support

Standard Lead Time: In-stock units ship within 1-2 business days via express courier. Custom configurations or volume orders may require 2-3 weeks for factory fulfillment.

Warranty Coverage: All drives include Allen-Bradley's standard 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available upon request.

Technical Assistance: Our application engineers provide pre-sales sizing support, commissioning guidance, and troubleshooting assistance. Access to Studio 5000 project files, wiring diagrams, and configuration templates included with purchase.

Documentation Package: Each drive ships with installation manual, quick start guide, and safety documentation. Electronic versions of user manuals, EDS files, and firmware updates available via download portal.

Frequently Asked Questions

Q: What network infrastructure is required for EtherNet/IP communication?
A: The drive requires a standard Ethernet switch (10/100 Mbps) with support for multicast traffic. For deterministic motion control, use managed switches with IGMP snooping enabled. Fiber optic media converters can extend network distances beyond 100 meters.

Q: Can this drive operate motors from other manufacturers?
A: Yes, the 2097-V34PR5 is compatible with any servo motor that matches the drive's voltage and current ratings. Motor auto-tuning routines optimize performance for non-Rockwell motors. Ensure motor feedback device is supported (incremental encoder, resolver, or compatible absolute encoder protocol).

Q: What energy savings can be achieved with regenerative braking?
A: Applications with frequent deceleration cycles (such as material handling and packaging) typically see 15-30% reduction in energy consumption compared to drives using dissipative braking. Actual savings depend on duty cycle, inertia ratios, and deceleration rates.

Q: How do I size the drive for my application?
A: Calculate the RMS torque over your machine cycle, including acceleration, constant velocity, and deceleration phases. Ensure the drive's continuous current rating exceeds the motor's RMS current requirement by 10-15% margin. Peak torque events must remain within the drive's 2-second overload rating.

Q: Is remote firmware updating supported?
A: Yes, firmware updates can be performed via EtherNet/IP using Studio 5000 Logix Designer or ControlFLASH utility. No physical access to the drive is required, enabling remote updates across distributed facilities.

Q: What mounting clearances are required for proper cooling?
A: Maintain 50 mm (2 inches) clearance above and below the drive for adequate airflow. Side-by-side mounting is permitted with no spacing required. For ambient temperatures above 40°C, forced ventilation or panel air conditioning is recommended.
