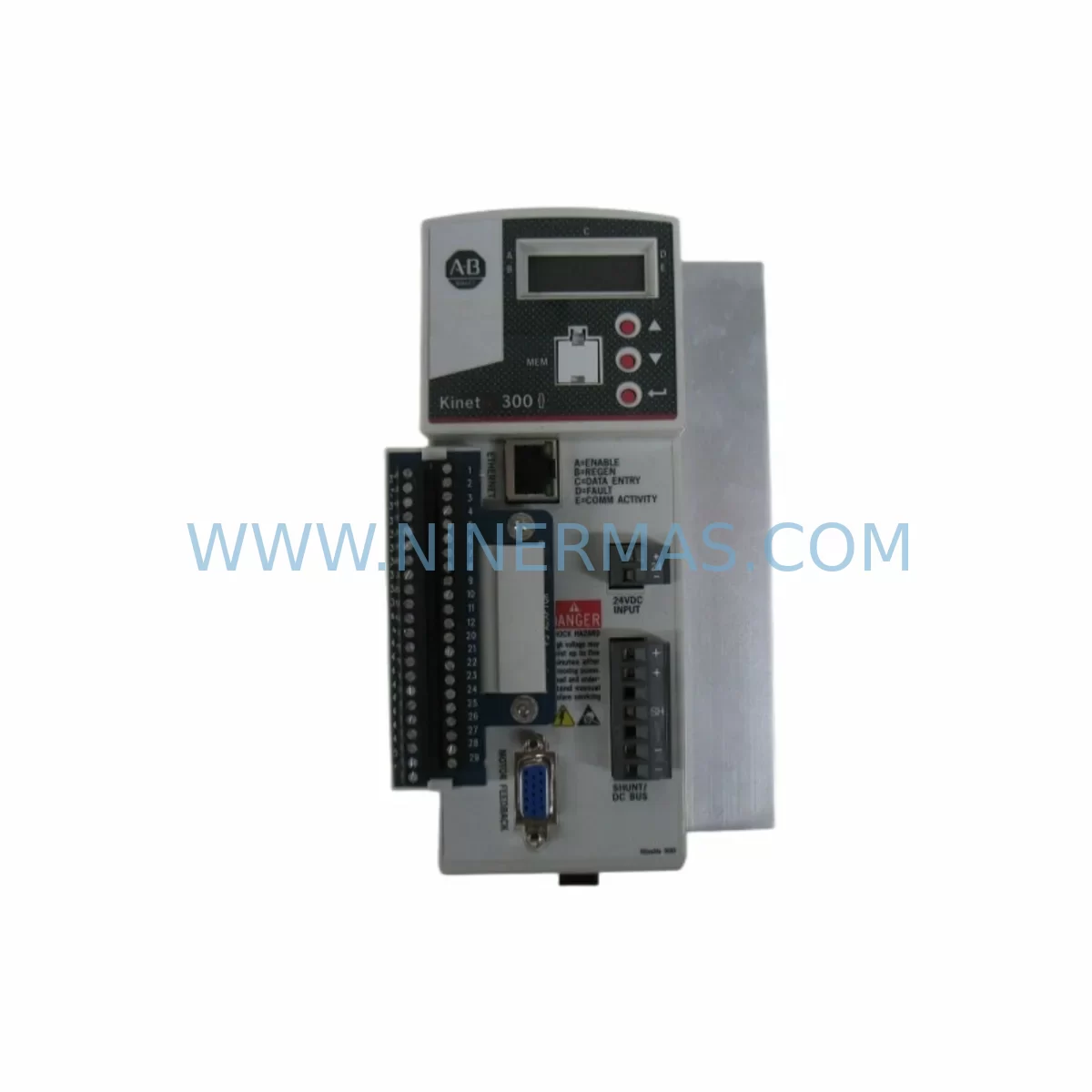

The Allen-Bradley 2097-V33PR5 is a Kinetix 300 series single-axis indexing servo drive engineered for demanding industrial environments. As legacy automation systems age and original spare parts become increasingly scarce, the 2097-V33PR5 stands out as a proven retrofit solution for engineers and maintenance teams tasked with modernizing aging control architectures without full system replacement. Whether you are managing a brownfield upgrade, replacing a discontinued drive module, or extending the operational life of an existing servo axis, this unit delivers the performance and compatibility your application demands.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 2097-V33PR5 into an existing production line begins well before the drive arrives on site. Engineers should start by auditing the current control cabinet layout to confirm available panel space, DIN rail positions, and proximity to the 1606-XLP power supply or equivalent 24VDC control power source. The 2097-V33PR5 draws its logic power from the control bus, so verifying that the existing power supply can handle the additional load is a critical first step — particularly in cabinets already populated with 1769-L33ER CompactLogix controllers, 1734 POINT I/O modules, and multiple axis drives.

Terminal wiring is one of the most common sources of commissioning delays during a drive retrofit. The 2097-V33PR5 uses a specific connector pinout for motor power (U, V, W), brake control, and encoder feedback. If the existing installation used an older 2097-V31PR2 or a third-party servo drive, the terminal assignments will differ. Always pull the current wiring diagram from the cabinet documentation package and cross-reference it against the 2097-V33PR5 installation manual before disconnecting any conductors. Pay particular attention to the SFD (Single Feedback Device) encoder cable — using an incompatible cable assembly between the drive and a 2090-series servo motor can result in faults at startup.

On the communication side, the 2097-V33PR5 connects natively over EtherNet/IP, which simplifies integration with a 1769-L33ER or 1756-L75 ControlLogix processor. If the legacy system used a legacy serial or DeviceNet link to the previous drive, a protocol migration step is required. This typically involves adding an EtherNet/IP-capable managed switch port, updating the I/O tree in Studio 5000, and importing or rebuilding the drive’s Add-On Instruction (AOI). Teams working with 1756-EN2T or 1756-EN3TR communication modules should confirm firmware compatibility with the controller revision before going live.

For applications involving a 2090-XXNFMF-S motor or similar Kinetix-compatible servo motor, the 2097-V33PR5 supports auto-tuning routines through the Kinetix 300 Motion Control Commissioning Tool, which significantly reduces manual gain adjustment time. If the existing motor is from a different manufacturer, a custom motor file may need to be created in the drive’s configuration utility. In multi-axis systems, also verify that the 2097-V33PR5 backplane address does not conflict with other modules sharing the same rack or network node.

Finally, if the retrofit involves replacing a drive that was connected to a 2711P PanelView Plus HMI, the drive’s tag database in the FactoryTalk View project will need to be updated to reflect the new drive’s EtherNet/IP address and any renamed parameters. Skipping this step is a common cause of HMI alarm mismatch and operator confusion during the first production run after changeover.

Downtime Control During System Migration

Minimizing unplanned downtime is the top priority for any drive replacement project. With the 2097-V33PR5, the recommended approach is a staged swap: first, upload and archive the existing controller program from the 1769-L33ER or equivalent processor using RSLogix 5000 or Studio 5000 before any hardware is touched. Store a verified backup on both the engineering workstation and a removable USB drive kept with the machine documentation. This ensures that even if the replacement drive requires a full re-commission, the original motion profiles, cam tables, and axis parameters are preserved and can be reloaded without reverse-engineering the machine logic.

During the physical swap, label every wire before removal using numbered ferrules or adhesive tags. Photograph the existing terminal block layout with a mobile device and attach the images to the work order. This simple step has saved countless hours during re-wiring when a terminal strip is accidentally disturbed. Once the 2097-V33PR5 is mounted and wired, perform a continuity check on all motor power conductors and the encoder cable shield before applying power.

On first power-up, the drive will enter a fault state if the motor parameters have not been configured. Use the Kinetix 300 commissioning tool to load the motor data file, set the axis scaling, and run the auto-tune sequence with the load disconnected if possible. After auto-tune, jog the axis at low speed to verify direction and encoder feedback polarity before returning the machine to automatic mode. For systems with safety circuits tied to a 440C-CR30 safety relay or GuardLogix controller, confirm that the drive’s STO (Safe Torque Off) input is correctly wired and tested before resuming production. A complete migration from power-down to first production cycle typically takes four to eight hours for a single-axis replacement when pre-planning steps are followed.
