Allen-Bradley 2097-V31PR2-LM Retrofit Servo Drive: Legacy-Compatible Motion Control Upgrade

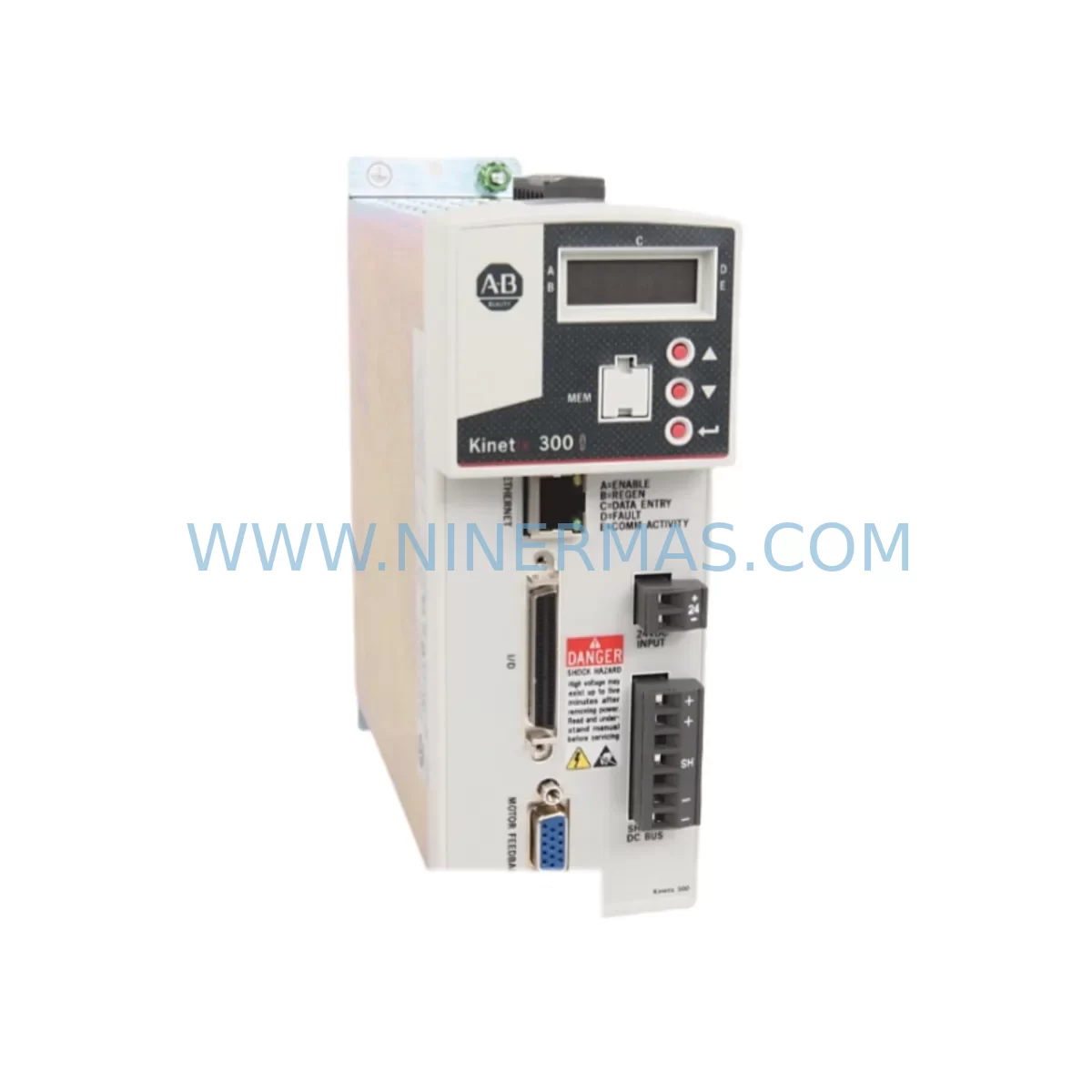

The Allen-Bradley 2097-V31PR2-LM is a single-axis servo drive from the Kinetix 300 series, designed for embedded EtherNet/IP motion control in compact machine architectures. As legacy Kinetix 2000 and Ultra 3000 servo systems reach end-of-life, the 2097-V31PR2-LM has become a primary retrofit target for OEMs and end-users seeking to modernize motion axes without full panel redesigns. NINERMAS maintains verified stock of the 2097-V31PR2-LM with pre-shipment functional testing and a 12-month warranty, supporting planned maintenance windows and emergency replacement scenarios across processing, packaging, and material handling industries.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a legacy servo axis with the 2097-V31PR2-LM requires a structured assessment of the existing control architecture. In most Kinetix 2000 installations, the servo drive is powered through a shared 2094-BC01-MP5 power rail or an equivalent integrated axis module, which must be evaluated for compatibility with the standalone Kinetix 300 power topology. The 2097-V31PR2-LM operates independently with its own AC input, so the existing shared DC bus arrangement will not apply — each axis requires its own branch circuit and line filter.

On the controller side, the migration from a SERCOS-based motion group to an EtherNet/IP motion group in Studio 5000 requires re-tagging all axis parameters. Engineers should export the existing motion configuration from the CompactLogix L3x or ControlLogix L6x controller before beginning the retrofit, preserving tuning values such as velocity feedforward, position error tolerance, and acceleration limits for re-entry into the new axis profile. If the system uses a 1756-M02AE or 1756-M08SE SERCOS interface module, that module will be decommissioned as part of the migration — the 2097-V31PR2-LM communicates directly over the standard EtherNet/IP backplane network.

Feedback wiring is a common source of retrofit delay. The 2097-V31PR2-LM supports Hiperface and EnDat absolute encoder protocols, which are standard on MPL and VPL servo motor families. If the existing installation uses an older resolver-based motor such as the 1326AB series, a motor replacement — typically to an MPL-A310P or MPL-A320P — will be required alongside the drive swap. Confirm motor frame size, shaft diameter, and mounting flange dimensions against the existing mechanical coupling before ordering.

Panel space planning should account for the 2097-V31PR2-LM’s footprint and required air clearances. The drive requires a minimum 50mm clearance above and below for convective cooling. If the existing panel houses a 2098-DSD-HV030X or similar Ultra 3000 drive in a tight enclosure, a panel layout review is recommended before committing to the retrofit. In some cases, a supplementary 1606-XLP power supply or 1783-US5T unmanaged switch may need to be added to support the EtherNet/IP network segment within the control cabinet.

Signal isolation should be reviewed where the legacy system used analog ±10V velocity references from a 1756-OF8 analog output module. In the new architecture, these analog references are replaced by EtherNet/IP motion commands, but any remaining analog I/O used for process feedback — such as load cell signals or pressure transducer inputs routed through a 1769-IF4 compact I/O module — should be verified for ground loop isolation to prevent noise interference on the servo feedback circuit. A 9300-ENA signal isolator or equivalent may be appropriate in high-noise environments.

Before energizing the retrofitted axis, verify that the 24VDC control power supply — often a 1606-XLP95E or equivalent — is correctly sized for the combined load of the drive’s logic supply, the STO safety circuit, and any connected 800F pushbutton or 440C safety relay in the E-stop chain. Undersized control power is a frequent cause of nuisance faults during initial commissioning of retrofitted servo axes.

Downtime Control During System Migration

Minimizing production downtime during a servo drive retrofit requires pre-staging all replacement components and completing as much configuration work as possible offline. The 2097-V31PR2-LM can be configured and tuned in Studio 5000 before the maintenance window begins, using the offline axis properties dialog to enter motor catalog numbers, feedback type, and initial tuning parameters derived from the legacy drive’s commissioning records.

During the cutover window, the recommended sequence is: de-energize the axis, disconnect and label all motor power, feedback, and I/O wiring at the legacy drive terminals, remove the old drive, mount and wire the 2097-V31PR2-LM, restore control power, verify EtherNet/IP node address assignment, download the updated Logix program, and perform a manual jog test at reduced speed before returning the axis to automatic mode. This sequence typically requires 2–4 hours per axis for an experienced technician, depending on wiring complexity and panel access.

To protect the original program logic, always create a versioned backup of the Logix project — including all motion group configurations, HMI tag cross-references, and alarm definitions — before making any online edits. If the system uses a PanelView Plus 7 or PanelView 800 HMI, update the motion axis faceplates to reflect the new axis name and tag structure after the Logix download is complete. Failure to synchronize HMI tags with the updated controller program is a common source of post-retrofit operator interface errors.

For multi-axis systems where only one axis is being replaced, the remaining axes on the SERCOS ring or EtherNet/IP network should be verified for continued communication integrity after the retrofit. A temporary 1783-US5T switch can be used to isolate the new EtherNet/IP segment during commissioning without disrupting the broader plant network. Once the retrofitted axis passes functional verification — including full-speed jog, position loop closure, and STO function test — the axis can be returned to the production program and the maintenance window closed.

Retrofit Support FAQ

Q: Is the 2097-V31PR2-LM a direct drop-in replacement for the 2097-V31PR1-LM?
A: The 2097-V31PR2-LM is the revised hardware version of the 2097-V31PR1-LM and is functionally equivalent in most applications. The PR2 revision incorporates updated firmware and minor PCB changes. In most cases it can be substituted directly; however, confirm the firmware version compatibility with your Studio 5000 project revision before installation. NINERMAS can provide the specific firmware revision of the unit prior to shipment on request.

Q: What pre-shipment testing does NINERMAS perform on the 2097-V31PR2-LM?
A: Each unit undergoes power-on functional verification, communication interface check, and output stage integrity testing before dispatch. Units are shipped with a test report confirming pass status. The 12-month warranty covers functional failure under normal operating conditions from the date of delivery.

Q: Can the 2097-V31PR2-LM be used with motors other than Allen-Bradley MPL/VPL series?
A: The drive supports third-party motors when configured as a generic servo axis in Studio 5000, provided the motor’s feedback interface is Hiperface or EnDat compatible. Motor parameters — including continuous stall current, peak current, back-EMF constant, and thermal model coefficients — must be entered manually into the axis configuration. NINERMAS recommends consulting Rockwell Automation’s Motion Analyzer tool to verify drive-motor pairing before committing to a non-catalog motor selection.

Q: What is the lead time and stock availability for the 2097-V31PR2-LM?
A: NINERMAS maintains ready stock of the 2097-V31PR2-LM for immediate dispatch. Standard lead time for in-stock units is 3–5 business days to most destinations. For urgent requirements, expedited shipping options are available. Contact our team to confirm current inventory levels and delivery timelines for your location.
