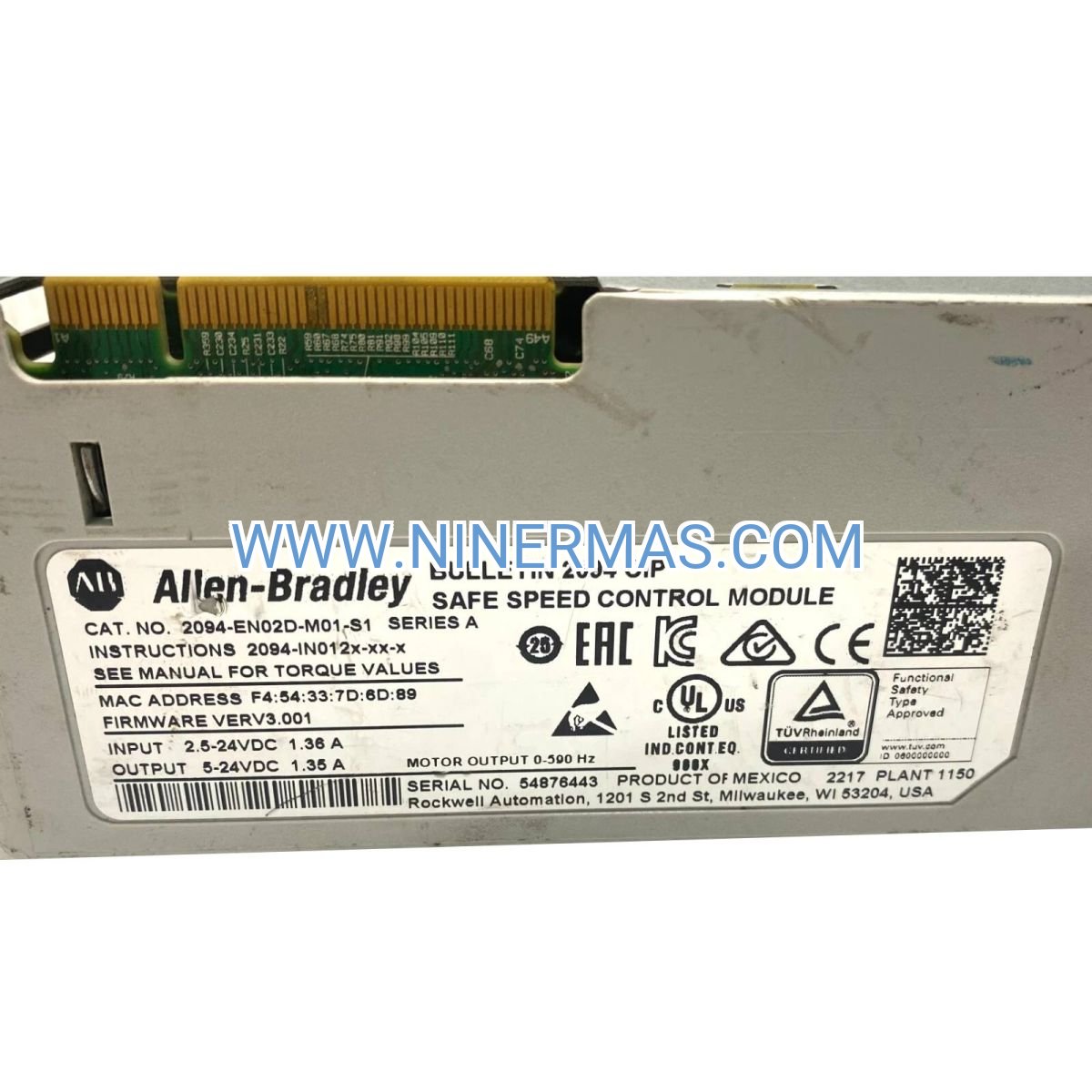

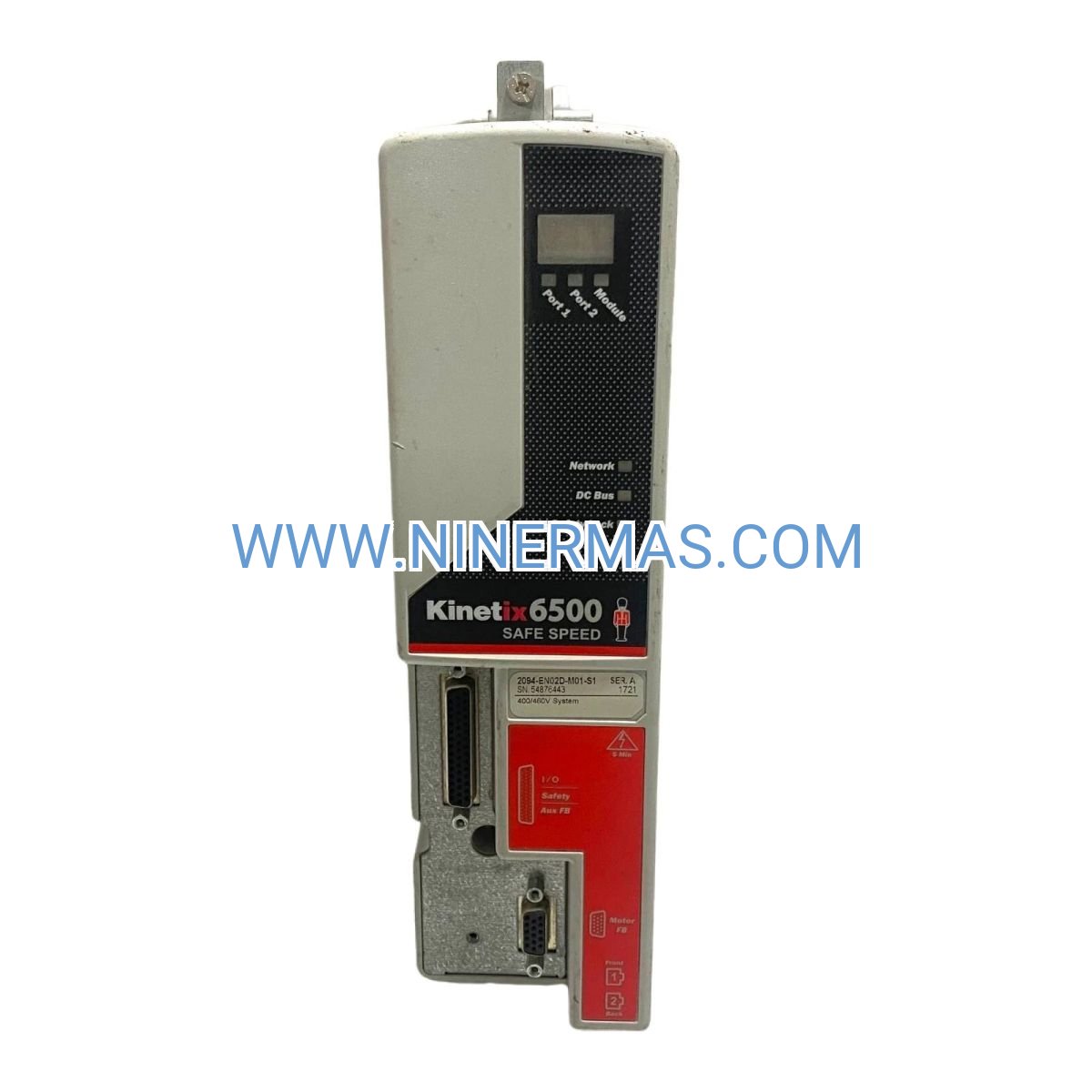

Allen-Bradley 2094-EN02D-M01-S1 Kinetix 6500 Safe Speed Module (Industrial Safety Control System)

The Allen-Bradley 2094-EN02D-M01-S1 is a professional-grade safe speed monitoring module designed for Kinetix 6500 servo drive systems. Through integrated EtherNet/IP safety protocol and real-time speed feedback technology, it delivers precise safe speed monitoring (SLS), safe stop supervision (SS1/SS2), and safe torque-off (STO) functions, ensuring operator safety and equipment protection in automated production environments.

Ideal for applications requiring functional safety compliance—including packaging machinery, material handling systems, robotic work cells, CNC machine tools, and automotive assembly lines—this module addresses critical challenges such as inadequate safety response speed, complex wiring for traditional safety relays, difficulty integrating multi-axis coordination, and lack of real-time diagnostics for safety circuits.

Featuring certified SIL 2 / PLd safety integrity, plug-and-play EtherNet/IP CIP Safety architecture, and seamless integration with Studio 5000 programming environment, the 2094-EN02D-M01-S1 is the preferred choice for design engineers, system integrators, OEM manufacturers, and end-user facilities. Contact our application engineers for customized safety configuration schemes and technical quotations.

Core Functions & Advantages

Certified Functional Safety Performance
Complies with IEC 61508 SIL 2 and ISO 13849-1 PLd Category 3 standards, with TÜV certification. Provides legally compliant safety protection for personnel access zones, reducing liability risks and ensuring audit readiness.

Real-Time Safe Speed Monitoring (SLS)
Continuously monitors actual motor speed against configurable safety thresholds. Triggers safe stop sequence when limits are exceeded, preventing hazardous motion during maintenance or operator intervention, with response time under 10 ms.

Integrated EtherNet/IP CIP Safety Protocol
Eliminates dedicated safety wiring by transmitting safety I/O over standard Ethernet infrastructure. Reduces installation costs by approximately 35% compared to hardwired safety relay systems, while enabling centralized diagnostics and remote monitoring.

Multi-Function Safety Control
Supports Safe Torque-Off (STO), Safe Stop 1 (SS1), Safe Stop 2 (SS2), Safely-Limited Speed (SLS), Safe Direction (SDI), and Safe Brake Control (SBC). Single module handles comprehensive safety requirements for complex motion profiles.

Seamless Kinetix Ecosystem Integration
Native compatibility with Kinetix 6500 servo drives, 2090-series feedback cables, and Studio 5000 Logix Designer. Pre-configured Add-On Instructions (AOIs) accelerate commissioning, reducing programming time by up to 50% versus custom safety logic development.

Advanced Diagnostic & Maintenance Features
Built-in self-test routines, safety function test logging, and predictive fault alerts accessible via Connected Components Workbench or FactoryTalk View HMI. Minimizes unplanned downtime and simplifies compliance documentation for safety audits.

Typical Application Scenarios

This module is engineered for motion control systems where safety integrity, network flexibility, and diagnostic transparency are paramount:

Packaging & Palletizing Machinery
Ensures safe speed limits during format changeovers and jam clearance operations. Protects operators working near high-speed conveyors, case erectors, and robotic pick-and-place units in food, beverage, and pharmaceutical packaging lines.

Material Handling & Intralogistics Systems
Monitors conveyor belt speeds, AGV motion zones, and automated storage/retrieval systems (AS/RS). Prevents collisions and enables safe human-machine collaboration in warehouses, distribution centers, and cross-docking facilities.

Robotic Workcells & Collaborative Applications
Implements speed and separation monitoring (SSM) for collaborative robots (cobots) and industrial articulated arms. Allows safe reduced-speed operation when personnel enter defined safety zones, complying with ISO/TS 15066 requirements.

CNC Machine Tools & Metalworking Equipment
Provides safe axis monitoring for multi-spindle lathes, machining centers, and grinding machines. Enables safe door-open operation at reduced speeds for part loading/unloading, while maintaining full-speed production during automatic cycles.

Automotive & Electronics Assembly Lines
Coordinates safety functions across synchronized conveyor systems, press-fit stations, and test equipment. Supports zone-based safety architectures where different production areas require independent speed monitoring and emergency stop logic.

Technical Parameters & Selection Guide

To facilitate engineering design and product selection, we provide standardized electrical, communication, and environmental specifications. Custom configurations are available based on project-specific safety requirements.

Key Specifications:

• Safety Rating: SIL 2 per IEC 61508 | PLd Category 3 per ISO 13849-1 | TÜV certified
• Communication Protocol: EtherNet/IP with CIP Safety extensions | Dual-port embedded switch topology
• Compatible Drives: Kinetix 6500 servo drives (2094-Bxxx, 2094-Axxx series)
• Safety Functions: STO, SS1, SS2, SLS, SDI, SBC | Configurable via Studio 5000 safety task
• Input Voltage: 24V DC nominal (18-30V DC operating range) | Isolated safety input circuits
• Response Time: < 10 ms for SLS function | < 5 ms for STO activation
• Feedback Compatibility: Supports Hiperface DSL, EnDat 2.2, BiSS-C absolute encoders via 2090-series cables
• Diagnostic Interface: Integrated web server, Studio 5000 online monitoring, FactoryTalk Logix Echo integration
• Operating Temperature: 0°C to 55°C (32°F to 131°F) | Conformal coating available for harsh environments
• Enclosure Rating: IP20 standard | IP65/67 variants available for washdown applications
• Mounting: DIN rail (35 mm) or panel mount | Modular design for cabinet space optimization
• Certifications: UL, cUL, CE, TÜV, EAC, RCM | Compliant with ATEX/IECEx for hazardous locations (optional)

Selection Recommendations:
When specifying this module, consider the following system parameters: maximum axis speed and acceleration profiles, required safety integrity level (SIL/PL), number of monitored axes per safety zone, existing network architecture (star vs. linear topology), environmental conditions (temperature, vibration, contamination), and integration with existing GuardLogix or CompactLogix safety controllers. For assistance with safety calculations, risk assessment documentation, or multi-vendor system integration, our certified functional safety engineers can provide complimentary application reviews and recommend optimal configurations.

Extended Capabilities

Scalable Safety Architecture
Supports daisy-chain configuration for monitoring up to 16 axes on a single CIP Safety network segment. Enables cost-effective expansion of safety coverage across large production cells without additional safety PLCs.

Integrated Safety I/O Mapping
Direct mapping of safety-rated input devices (e-stops, light curtains, safety interlocks) and output devices (safety contactors, indicator lights) via EtherNet/IP safety I/O modules, eliminating traditional safety relay panels.

Predictive Safety Diagnostics
Machine learning-enhanced fault prediction algorithms analyze safety circuit performance trends, providing early warning of potential component degradation before safety function failure occurs.

Cybersecurity Hardening
Supports CIP Security extensions with device-level authentication, encrypted safety data transmission, and role-based access control, protecting against unauthorized safety parameter modification in connected factory environments.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from regional distribution centers. Custom-configured modules with specific firmware versions or extended certifications require 10-15 business days.

Warranty Coverage: 18-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Complimentary pre-sales application engineering consultation, including safety circuit design review, network bandwidth calculations, and Studio 5000 programming templates. Post-sales support includes remote diagnostics assistance, firmware update guidance, and on-site commissioning services (subject to geographic availability and service agreement terms).

Documentation Package: Each module ships with complete electrical schematics, safety function validation test procedures, EtherNet/IP object model reference, Studio 5000 Add-On Instruction library, and TÜV certification documentation. CAD models (STEP, DXF) and EPLAN macros available for download from product support portal.

Compliance & Traceability: All units undergo 100% functional safety testing with serialized test reports. Full material traceability and conflict minerals declarations provided for OEM quality management system requirements.

Frequently Asked Questions (FAQ)

Q: How does the 2094-EN02D-M01-S1 safe speed module integrate with existing Kinetix 6500 servo systems?
A: The module connects via standard EtherNet/IP infrastructure using dual RJ45 ports with embedded switch functionality. It communicates directly with Kinetix 6500 drives over the CIP Safety protocol layer, requiring no additional safety PLC for basic SLS/STO functions. Configuration is performed through Studio 5000 Logix Designer safety task editor, with pre-built Add-On Instructions simplifying integration. Verify that your Kinetix 6500 drive firmware is version 2.x or later for full compatibility.

Q: What is the maximum number of axes one module can monitor simultaneously?
A: A single 2094-EN02D-M01-S1 module monitors one servo axis. For multi-axis applications, deploy one module per axis and network them via EtherNet/IP CIP Safety. The system supports up to 16 modules on a single safety network segment, with coordinated safety logic managed by a GuardLogix or CompactLogix safety controller.

Q: What energy savings can be achieved, and what conditions are required?
A: While this is a safety module rather than an energy optimization device, implementing safe reduced-speed operation (SLS) instead of full emergency stops can reduce energy consumption by 15-25% in applications with frequent operator interventions. Savings are maximized in systems with high-inertia loads (conveyors, rotary tables) where controlled deceleration via SS1/SS2 functions recovers kinetic energy, compared to immediate STO activation which dissipates energy through braking resistors.

Q: What are the environmental installation requirements? What is the IP protection rating?
A: Standard modules are rated IP20 for control cabinet mounting in clean industrial environments (0-55°C ambient, < 95% RH non-condensing). For applications requiring washdown capability or exposure to dust/moisture, specify IP65 or IP67 conformal-coated variants. Ensure adequate ventilation (minimum 50mm clearance above/below module) and avoid installation near high-frequency VFDs or welding equipment without proper EMI shielding.

Q: Can the module support remote monitoring and data acquisition? Which protocols are supported?
A: Yes. The module provides comprehensive diagnostics via EtherNet/IP explicit messaging, accessible through FactoryTalk View HMI, SCADA systems, or custom OPC-UA clients. Safety status data (active safety functions, speed monitoring values, fault logs) can be published to cloud platforms using FactoryTalk Edge Gateway or third-party IoT gateways supporting EtherNet/IP-to-MQTT/REST API translation. For cybersecurity compliance, implement network segmentation and encrypted tunnels when exposing safety data to enterprise IT networks.

Q: Is this module compatible with non-Rockwell safety controllers or third-party servo drives?
A: The module is optimized for Rockwell Automation's Integrated Architecture and requires Kinetix 6500 drives for full functionality. However, safety I/O signals can be hardwired to third-party safety PLCs (Siemens, Pilz, Schmersal) using the module's isolated relay outputs for STO/SS1 functions. For multi-vendor system integration, consult our application engineering team to validate interoperability and ensure compliance with safety standards.

Request Technical Support & Quotation

To receive a detailed configuration proposal, pricing quotation, or application-specific technical consultation, please provide the following project information: application type and industry sector, number of monitored axes and motion profiles, required safety integrity level (SIL/PL rating), existing control platform (GuardLogix, CompactLogix, or third-party), network topology and cable distances, environmental conditions (temperature, IP rating, certifications), and project timeline. Our certified functional safety engineers will deliver a comprehensive solution recommendation within 24-48 hours.
