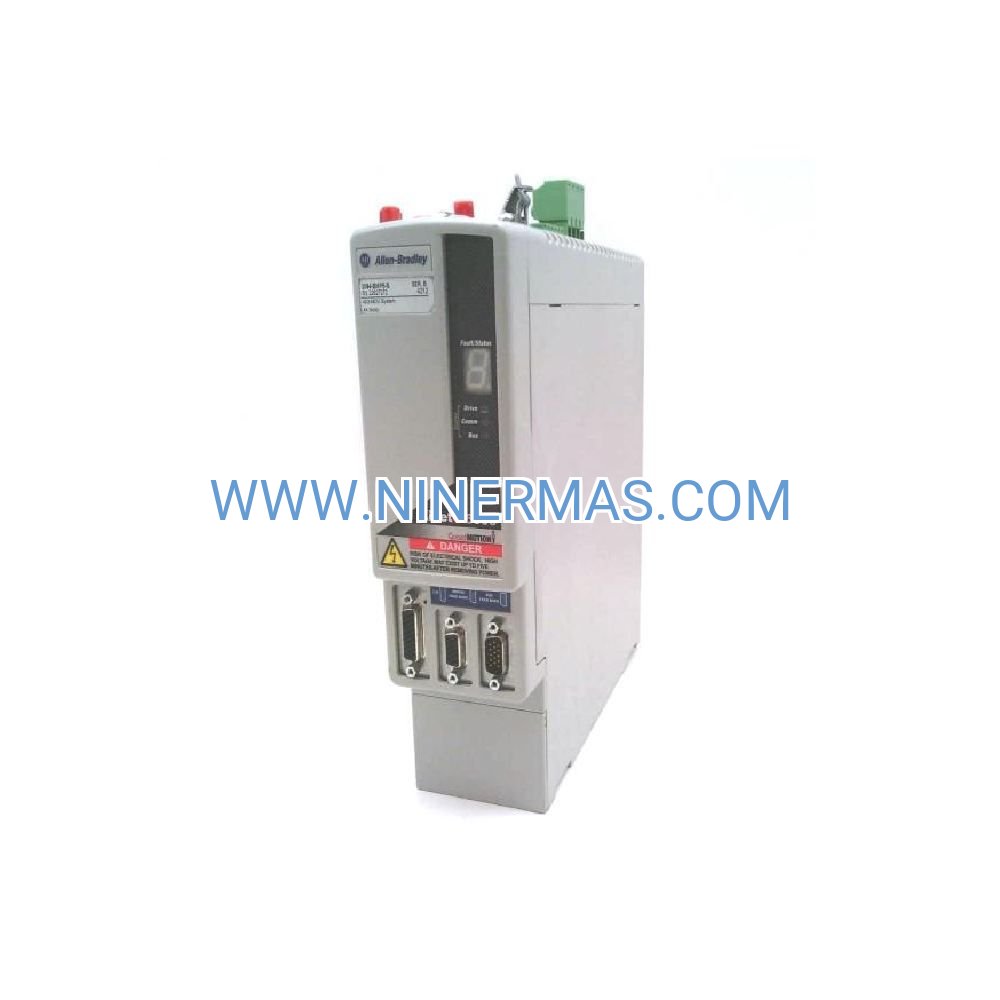

2094-BMP5-S Active Module Inverter (Industrial-Grade Servo Power Solution)

The 2094-BMP5-S represents a critical power conversion component within Allen-Bradley's Kinetix 6000 multi-axis servo architecture. Engineered for 460V three-phase industrial environments, this AM (Active Module) inverter transforms incoming AC power into regulated DC bus voltage, enabling synchronized control of up to eight integrated axis modules. Designed for manufacturers demanding sub-millisecond response times and coordinated motion profiles, this module addresses the core challenge of scalable, energy-efficient servo power distribution in automated production systems.

Target users include automation engineers specifying packaging lines, material handling systems, and precision manufacturing equipment where multiple servo axes must operate in perfect synchronization. The module's regenerative capability and shared DC bus topology deliver measurable energy savings while reducing cabinet footprint compared to standalone drive architectures.

Key advantages include SERCOS fiber-optic integration for deterministic communication, comprehensive diagnostic feedback through RSLogix 5000 programming environment, and proven reliability in 24/7 production environments across automotive, food processing, and converting industries.

Core Features & Benefits

→ Scalable Multi-Axis Architecture
Supports up to 8 IAM modules on a single shared DC bus, enabling flexible system expansion without proportional increases in cabinet space or AC input requirements. Reduces engineering time and component count for complex motion systems.

→ Regenerative Energy Management
Built-in regeneration capability returns braking energy to the AC line, cutting energy consumption by 15-30% in applications with frequent acceleration/deceleration cycles. Eliminates or reduces dynamic braking resistor requirements.

→ High Current Capacity
34.6A continuous output with 69.2A peak capability (2-second rating) provides headroom for demanding applications. Thermal management design ensures stable performance across 0-55°C ambient temperature range.

✓ SERCOS Fiber-Optic Communication
Deterministic, high-speed network ensures synchronized motion control with sub-microsecond jitter. Immunity to electrical noise in harsh industrial environments maintains signal integrity.

✓ Integrated Diagnostics
Real-time monitoring of bus voltage, current, temperature, and fault conditions through RSLogix 5000 software. Predictive maintenance alerts reduce unplanned downtime.

✓ Compliance & Safety Certifications
CE, UL, cUL certified with API 670 conformity. Meets international safety standards for industrial machinery applications.

Application Scenarios

High-Speed Packaging Lines
In pharmaceutical blister packaging or beverage filling operations, the 2094-BMP5-S powers synchronized servo axes controlling product feeding, forming, sealing, and cutting stations. The shared DC bus architecture enables energy sharing between accelerating and decelerating axes, reducing peak power demand by up to 40%. Typical installations achieve line speeds exceeding 300 packages per minute with ±0.1mm positioning accuracy.

Automated Material Handling Systems
Distribution centers deploying high-speed sortation conveyors utilize this module to coordinate multiple diverter and merge axes. Regenerative braking during package deceleration returns energy to the facility, while SERCOS communication ensures collision-free operation across 20+ coordinated axes. Reduces energy costs while maintaining 99.9% sorting accuracy.

CNC Machining Centers
Multi-axis milling and turning centers leverage the 2094-BMP5-S for simultaneous control of X, Y, Z, and rotary axes. The module's high peak current capability supports rapid acceleration during non-cutting moves, reducing cycle times by 12-18%. Shared bus topology simplifies cabinet design in space-constrained machine tool applications.

Web Handling & Converting Equipment
Flexographic printing presses and laminating lines require precise tension control across multiple unwind, process, and rewind zones. This AM module provides stable DC bus voltage for coordinated torque control, maintaining web tension within ±2% across speed changes from 50 to 1,200 feet per minute. Eliminates web breaks and registration errors.

Robotic Assembly Cells
Automotive and electronics assembly systems integrate the 2094-BMP5-S to power multi-robot work cells with coordinated pick-place-assemble sequences. Shared regeneration across robot axes during simultaneous braking events reduces AC input requirements by 25-35%, enabling higher robot density per electrical service.

Technical Parameters & Selection Guide

Selection Criteria:

Calculate total continuous current requirement by summing all connected IAM module ratings. Ensure the 2094-BMP5-S continuous output (34.6A) exceeds this total with 15-20% margin for thermal derating and future expansion. For applications requiring higher current, consider the 2094-BMP7-S (52A) or parallel AM module configurations. Verify input voltage matches facility power distribution (460V models are NOT compatible with 230V systems). Applications with frequent regeneration exceeding 20% of motor power should include appropriately sized dynamic braking resistors or verify AC line impedance supports regenerative current flow.

Extended Functions

IoT Integration & Remote Monitoring
When paired with Allen-Bradley ControlLogix controllers and FactoryTalk View HMI systems, the 2094-BMP5-S enables cloud-connected predictive maintenance. Real-time data on bus voltage ripple, thermal performance, and regeneration efficiency can be streamed to analytics platforms for trend analysis and anomaly detection.

Advanced Motion Profiles
Supports electronic camming, gearing, and coordinated motion applications through RSLogix 5000 Motion Analyzer tools. Custom motion profiles can be developed for specialized applications including flying shear, registration control, and synchronized product transfer.

Customization Options
Conformal coating available for harsh environments (chemical exposure, high humidity). Extended temperature range variants (-25°C to 60°C) available for outdoor installations or extreme climate applications. Consult factory for custom bus voltage configurations or specialized certifications (ATEX, IECEx for hazardous locations).

Delivery & Service Assurance

Lead Time:
• Standard Configuration: 3-5 business days (in-stock items)
• Custom Configurations: 4-6 weeks (factory lead time applies)

Warranty Coverage:
12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service to minimize production downtime.

Technical Support:
Dedicated application engineers provide pre-sales system sizing, configuration assistance, and post-installation troubleshooting. Support includes RSLogix 5000 programming guidance, SERCOS network diagnostics, and thermal analysis for cabinet design.

Documentation Package:
Each module ships with installation manual, quick-start guide, wiring diagrams, and RSLogix 5000 Add-On Instruction (AOI) library. Downloadable resources include 3D CAD models (STEP format), thermal dissipation curves, and sample application code.

Frequently Asked Questions

What input protection is required for the 2094-BMP5-S servo inverter module?
Install a three-phase AC line reactor (3% impedance minimum) or DC bus choke to reduce harmonic distortion and protect against voltage transients. Circuit protection should be sized for 125% of maximum input current (typically 50-60A breaker for this module). Surge protection devices (SPD) rated for 460V systems are recommended in areas with frequent lightning activity.

How do I determine if a dynamic braking resistor is necessary for my application?
Calculate regenerative energy using the formula: E = 0.5 × J × (ω₁² - ω₂²), where J is total inertia and ω represents angular velocities. If regenerative power exceeds 20% of motor rating or deceleration cycles occur more frequently than every 10 seconds, external braking resistors are required. The module's internal regeneration circuit can handle intermittent regeneration up to 10% of continuous rating.

Can this module operate in ambient temperatures exceeding 55°C?
The standard 2094-BMP5-S is rated for 0-55°C ambient. Above 40°C, derate continuous current by 2.5% per degree Celsius. For sustained operation above 55°C, specify the extended temperature variant or implement additional forced-air cooling to maintain module baseplate temperature below maximum limits. Thermal monitoring through RSLogix 5000 provides real-time alerts.

What is the maximum cable distance between the AM module and connected IAM modules?
DC bus cable length should not exceed 10 meters (33 feet) to minimize voltage drop and ensure proper fault protection coordination. Use appropriately sized bus bars or cables (minimum 50mm² copper for this current rating). SERCOS fiber-optic communication supports distances up to 100 meters between modules without signal degradation.

Is the 2094-BMP5-S compatible with non-Allen-Bradley servo motors?
The AM module provides DC bus power and does not directly interface with motors. Connected IAM modules (which control individual motors) support Allen-Bradley MPL, MPF, and TL-series servo motors. Third-party motors may be used if electrical and mechanical specifications match, but Allen-Bradley does not provide technical support for non-standard configurations.

How does regenerative braking reduce overall system energy consumption?
During motor deceleration or overhauling loads, kinetic energy is converted back to electrical energy and returned to the AC supply line (if utility infrastructure permits) or shared with accelerating axes on the same DC bus. In typical packaging applications with 40% duty cycle deceleration, regeneration reduces net energy consumption by 18-25% compared to resistive braking systems.
