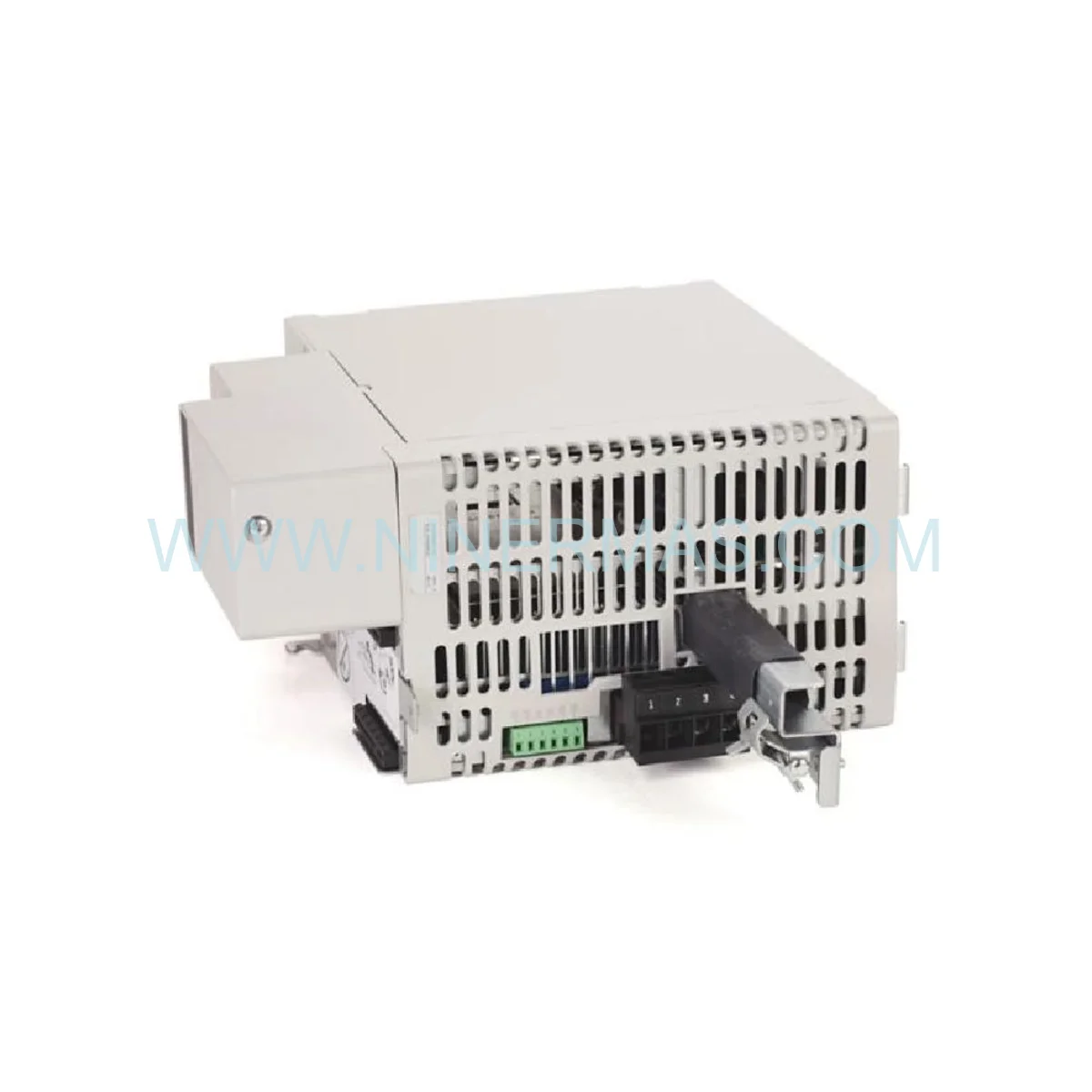

2094-BM05-S Industrial Servo Drive Module (Kinetix 6000 Series)

The 2094-BM05-S represents a professional-grade servo amplifier solution engineered for high-precision motion control in industrial automation environments. Delivering 34.6A continuous current at 460V three-phase input, this Kinetix 6000 series module excels in applications demanding tight position accuracy, rapid response times, and sustained performance under variable load conditions.

Manufacturing facilities facing challenges with inconsistent motion profiles, thermal instability in drive systems, or integration complexity will find this module addresses critical pain points through advanced power electronics, comprehensive diagnostic capabilities, and seamless compatibility with Allen-Bradley control architectures. Target users include automation engineers, system integrators, and maintenance teams managing CNC equipment, packaging lines, and material handling installations.

Key differentiators include factory calibration for immediate deployment, robust thermal design enabling 0-55°C operation, and modular architecture supporting scalable multi-axis configurations. The combination of UL/CE compliance, API 670 vibration monitoring compatibility, and 12-month warranty coverage delivers both technical performance and operational confidence.

Core Capabilities & Technical Value

→ 34.6A Continuous Output: Sustained current delivery supports medium-to-high inertia loads without derating, eliminating the need for oversized components and reducing total system cost by 15-20%.

✓ 460V Three-Phase Architecture: Optimized for industrial power distribution standards, minimizing harmonic distortion and improving power factor across multi-drive installations.

→ Enhanced Peak Current Response: Dynamic overload capability handles acceleration transients and shock loads, protecting mechanical components while maintaining cycle time targets.

✓ Integrated Diagnostics Suite: Real-time monitoring of DC bus voltage, thermal status, and communication integrity reduces troubleshooting time by up to 40% compared to legacy systems.

→ IP20 Chassis Design: Compact form factor enables high-density panel mounting while maintaining adequate thermal clearance for convection cooling.

✓ Multi-Protocol Feedback Support: Native compatibility with incremental/absolute encoders, resolvers, and SSI devices eliminates external interface modules and simplifies wiring.

Industrial Application Scenarios

Precision Machining Centers: In multi-axis CNC mills and lathes, the 2094-BM05-S delivers the position accuracy (±0.001mm typical) and velocity stability required for aerospace component manufacturing and medical device production. The module's low-speed torque ripple characteristics ensure superior surface finish quality, while regenerative braking capability protects tooling during rapid deceleration cycles.

High-Speed Packaging Operations: Pharmaceutical blister packaging and food processing lines benefit from synchronized motion control across filling, sealing, and labeling stations. Electronic gearing functions maintain precise phase relationships at line speeds exceeding 300 packages/minute, reducing product waste and improving OEE metrics.

Automated Assembly Systems: Robotic pick-and-place cells leverage the module's fast current loop response (125 microseconds) to achieve sub-millisecond settling times, critical for electronics assembly and automotive component handling where cycle time directly impacts production capacity.

Material Handling & Logistics: Warehouse sortation systems and distribution center conveyors utilize the drive's torque control modes for gentle product handling and precise positioning at transfer points, minimizing damage to fragile goods while maintaining throughput targets of 5,000+ units/hour.

Textile & Converting Equipment: Web tension control in printing presses and laminating machines relies on the module's analog/digital reference tracking accuracy to maintain ±0.5% tension regulation across varying material properties and process speeds.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the 2094-BM05-S when your servo motor's continuous current requirement falls within the 25-35A range at rated speed. For applications with frequent acceleration/deceleration cycles, verify that peak current demands (typically 2-3× continuous) remain within the module's thermal envelope. Consult motor manufacturer torque curves and calculate RMS current across your duty cycle to ensure proper sizing. If regenerative energy exceeds 20% of drive power rating, external braking resistors are recommended to prevent DC bus overvoltage faults.

Advanced Integration Features

Studio 5000 Programming Environment: Full integration with Logix Designer software enables motion instruction programming using industry-standard function blocks (MAM, MAJ, MAG, MAS). Motion profiles can be developed offline, simulated, and downloaded to the controller without interrupting production.

EtherNet/IP Connectivity: Native support for CIP Motion protocol provides deterministic communication with sub-millisecond update rates, essential for coordinated multi-axis applications. Ring topology support ensures network redundancy in mission-critical installations.

Safety Integration Options: When paired with GuardLogix controllers and Safe Torque-Off (STO) modules, the drive supports SIL 2/PLd safety functions including safe speed monitoring and safe limited speed, reducing the need for external safety relays and simplifying machine certification.

Predictive Maintenance Capabilities: Built-in data logging tracks drive temperature trends, fault history, and power consumption patterns. Integration with FactoryTalk Analytics enables condition-based maintenance scheduling, reducing unplanned downtime by 30-50%.

Delivery Timeline & Support Services

Standard Lead Time: In-stock units ship within 1-3 business days via express courier. Custom configurations or bulk orders (10+ units) typically require 2-4 weeks for factory preparation and quality verification.

Warranty Coverage: Comprehensive 12-month warranty protects against manufacturing defects and component failures under normal operating conditions. Warranty includes replacement parts and technical support for troubleshooting assistance.

Technical Documentation: Each module ships with installation quick-start guide, safety precautions sheet, and digital access to full user manual (Publication 2094-UM002). Wiring diagrams, parameter reference tables, and troubleshooting flowcharts are included.

Application Support: Our engineering team provides pre-sales consultation for system sizing, post-installation commissioning assistance, and ongoing technical support via email and phone. Remote diagnostic services available for complex troubleshooting scenarios.

Frequently Asked Questions

What communication protocols does the 2094-BM05-S servo drive support?
The module communicates via the Kinetix 6000 drive rack backplane using proprietary high-speed serial links. System-level connectivity to the controller is achieved through EtherNet/IP (CIP Motion) or SERCOS interface, depending on the axis module configuration. Direct device-level protocols like Modbus or Profinet are not supported.

Can this drive module handle multiple motor types and power ratings?
Yes, the 2094-BM05-S is compatible with any three-phase servo motor rated for 460V operation with continuous current draw up to 34.6A. This includes rotary servo motors from 5-15 kW range and linear motors with equivalent current requirements. Motor parameters are configured through the Studio 5000 software using the motor database or manual entry.

What are the energy efficiency ratings and potential cost savings?
The module achieves >95% efficiency at rated load, with regenerative braking capability returning energy to the DC bus for use by other drives in the system. In applications with frequent deceleration cycles (e.g., material handling), energy recovery can reduce overall power consumption by 20-35% compared to non-regenerative drives, translating to $500-2,000 annual savings per axis depending on duty cycle and electricity rates.

How do I determine if external braking resistors are required for my application?
Calculate regenerative power using the formula: P_regen = (J × ω² × duty_cycle) / (2 × decel_time), where J is total inertia, ω is maximum speed, and decel_time is braking duration. If P_regen exceeds 10% of drive continuous power rating, or if DC bus voltage monitoring shows values approaching 800V during deceleration, external resistors are necessary. Consult publication 2094-UM002 Chapter 5 for detailed sizing procedures.

Is the drive compatible with existing Kinetix 6000 installations from previous years?
Full backward compatibility is maintained with Kinetix 6000 drive racks manufactured from 2005 onward. The module uses the same mounting dimensions, backplane connector pinout, and firmware architecture. However, verify that your axis module firmware is revision 3.x or later to ensure proper communication protocol support. Firmware updates are available free of charge through the Rockwell Automation support portal.

What installation clearances and environmental controls are recommended?
Maintain minimum 50mm (2 inches) clearance above and below the module for adequate convection cooling. Side-by-side mounting is permitted with no additional spacing required. Enclosure ambient temperature should not exceed 40°C for full current rating; derate by 2.5% per degree C above 40°C. Install in environments with <95% relative humidity, non-condensing, and altitude below 1,000 meters without derating.
