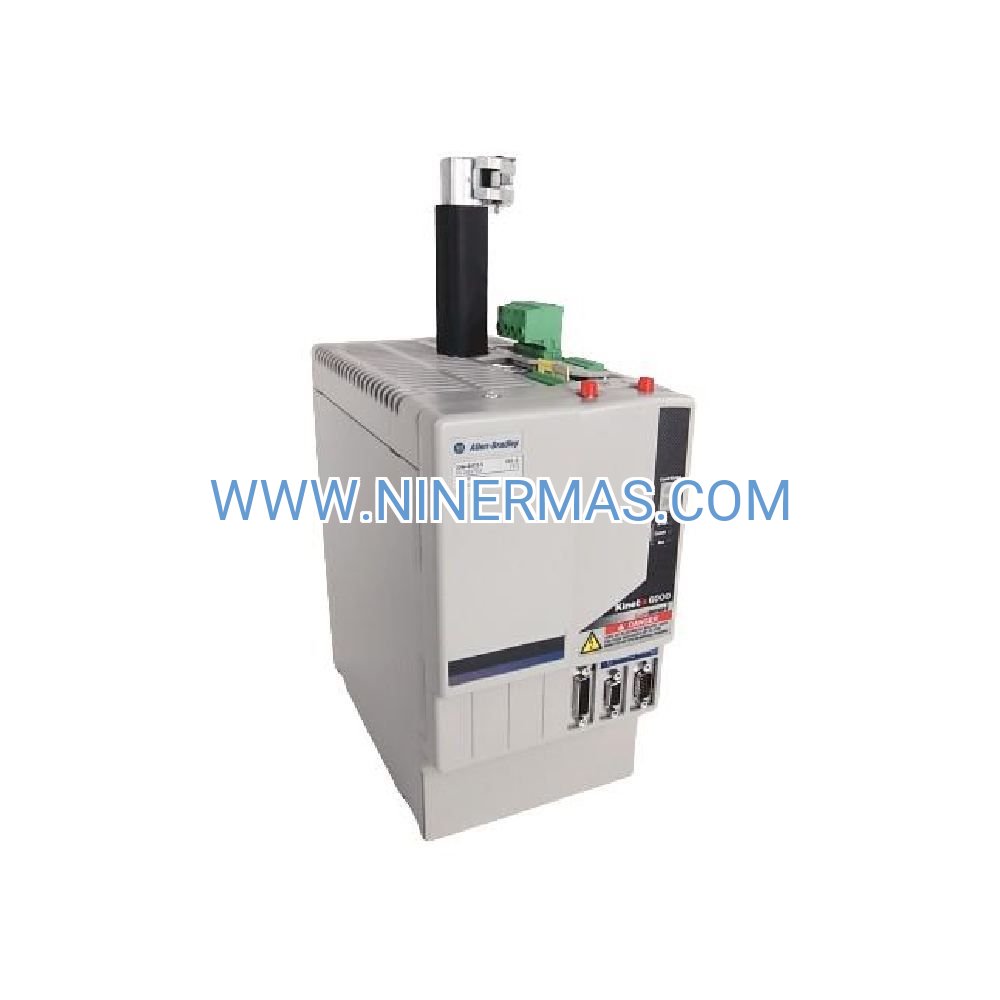

2094-BM03-S Industrial Servo Inverter (460V Three-Phase Power Module)

The 2094-BM03-S represents a professional-grade servo drive solution within the Kinetix 6000 platform, engineered to deliver 21.2 amperes of continuous output at 460-volt three-phase input. This power module addresses critical motion control requirements in automated manufacturing, where precision positioning, rapid response times, and sustained torque delivery define operational success.

Designed for integration into complex multi-axis systems, this inverter module solves synchronization challenges in high-speed production lines, eliminates positioning drift in CNC operations, and provides the thermal headroom necessary for continuous-duty applications. Target users include automation engineers, system integrators, and maintenance teams managing Allen-Bradley control architectures in pharmaceutical packaging, automotive assembly, and material handling installations.

Key advantages include factory-verified calibration for immediate deployment, modular construction enabling 15-minute field replacement, integrated safety circuitry meeting SIL 2 standards, and native compatibility with Studio 5000 programming environments—reducing commissioning time by up to 40% compared to legacy drive systems.

Core Capabilities & Business Impact

→ Precision Torque Regulation: Maintains ±0.5% speed accuracy across 0-100% load range, eliminating product defects caused by velocity variation in web handling and converting applications.

→ Thermal Intelligence: Embedded temperature sensors trigger automatic current derating at 85°C junction temperature, preventing nuisance trips while extending IGBT lifespan by 30% in high-ambient environments.

→ Regenerative Energy Recovery: Captures deceleration energy back to DC bus, reducing HVAC cooling loads by 12-18% in facilities with frequent start-stop cycles.

→ Diagnostic Transparency: Real-time fault logging via EtherNet/IP provides millisecond-resolution event timestamps, cutting troubleshooting time from hours to minutes during production incidents.

✓ Plug-Compatible Architecture: Shares common mounting footprint with 2094-BM01 through BM07 series, allowing capacity upgrades without mechanical redesign.

✓ Safe Torque-Off Integration: Hardware-based STO function eliminates need for external safety relays, reducing panel space and wiring complexity by 25%.

Industry Applications & Problem Resolution

CNC Machining Centers: Drives spindle motors and axis servos in 5-axis mills where positioning repeatability within ±5 microns determines part tolerance compliance. Solves thermal drift issues common in 8+ hour production runs.

Pharmaceutical Blister Packaging: Controls rotary die-cutting and sealing stations requiring phase-locked synchronization across 6-12 axes. Eliminates registration errors that cause material waste exceeding $2,000/hour.

Automated Warehousing: Powers high-bay stacker cranes and shuttle systems where 3-meter/second acceleration rates and millimeter-level positioning enable 120+ picks/hour throughput. Addresses voltage sag sensitivity in long cable runs.

Textile Winding Systems: Manages tension control in fiber processing lines where constant torque mode prevents yarn breakage during 1,500-meter spool changes. Reduces downtime from tension-related faults by 60%.

Injection Molding Robotics: Operates pick-and-place manipulators in clean-room environments where IP20-rated enclosures and conformal-coated PCBs withstand humidity and particulate exposure.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the 2094-BM03-S when continuous motor current falls between 18-21A and peak torque events require 150-200% overload capacity. For applications with 10-18A requirements, consider the BM02-S variant; systems exceeding 24A continuous should evaluate the BM05-S (34.6A) model. Verify motor voltage rating matches 460V nominal to avoid field weakening operation below base speed.

Advanced Integration Features

Network Connectivity: Supports dual-channel EtherNet/IP and SERCOS III protocols for deterministic motion synchronization across distributed axes. Ring topology capability ensures <5ms failover in redundant network configurations.

Adaptive Tuning: Built-in auto-tune algorithms measure motor inductance and resistance in <30 seconds, automatically calculating optimal PI gains for 95% of servo motor pairings without manual commissioning.

Custom Motion Profiles: Stores up to 16 user-defined S-curve acceleration profiles in non-volatile memory, enabling application-specific jerk limiting for fragile product handling or high-speed indexing.

Predictive Maintenance: Tracks cumulative operating hours, thermal cycles, and overload events—triggering maintenance alerts when component stress exceeds 80% of rated lifecycle, preventing unplanned downtime.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 24-48 hours via DHL/FedEx with tracking. Typical transit to North America: 5-7 business days; Europe: 6-9 days; Asia-Pacific: 3-5 days.

Custom Configuration: Factory programming for specific motor parameters or firmware versions requires 10-15 business days. Expedited 5-day service available for critical replacements.

Warranty Coverage: 12-month comprehensive warranty covers component defects, firmware issues, and workmanship failures. Advance replacement program ships substitute units within 48 hours for qualified customers.

Technical Support: Unlimited email/phone consultation during installation and commissioning. Remote diagnostic assistance via AnyDesk/TeamViewer for parameter optimization and fault analysis.

Documentation Package: Includes installation manual (PDF), wiring diagrams (AutoCAD DWG), Studio 5000 Add-On Profile (L5K), and quick-start configuration guide in English.

Frequently Asked Questions

Can this module interface with non-Allen-Bradley PLCs?
Yes, when paired with a 2094-Bxx control module supporting generic Modbus RTU or CANopen protocols. Native EtherNet/IP integration requires ControlLogix or CompactLogix processors.

What motor frame sizes are compatible with 21.2A continuous rating?
Typically NEMA 34-42 frame servo motors or IEC 90-130mm flange motors rated 3-7 kW at 460V. Consult motor nameplate current at rated speed to verify compatibility.

Does the module include dynamic braking resistors?
No, external braking resistors must be sized separately based on deceleration energy. The DC bus supports connection of 10-50Ω resistors via optional 2094-BM-RES kit.

How does ambient temperature affect current capacity?
Output current derates linearly above 40°C: 19.5A at 45°C, 18A at 50°C, 16.5A at 55°C maximum. Forced air cooling or heat sinks can maintain full 21.2A rating up to 50°C.

Is firmware upgradable in the field?
Yes, via USB connection to the paired control module using ControlFLASH utility within Studio 5000. Firmware updates address bug fixes and add features like enhanced vibration suppression.

What cable length limitations apply to motor connections?
Shielded motor cables up to 100 meters (328 feet) are supported with 4kHz PWM. Longer runs require reduced switching frequency or output reactors to limit dV/dt stress on motor insulation.

Start Your Motion Control Upgrade

Ready to eliminate positioning errors and reduce energy costs in your automation system? Contact our application engineers for motor compatibility verification, system sizing calculations, and volume pricing. Request a technical datasheet or schedule a 15-minute consultation to discuss your specific motion control challenges.
