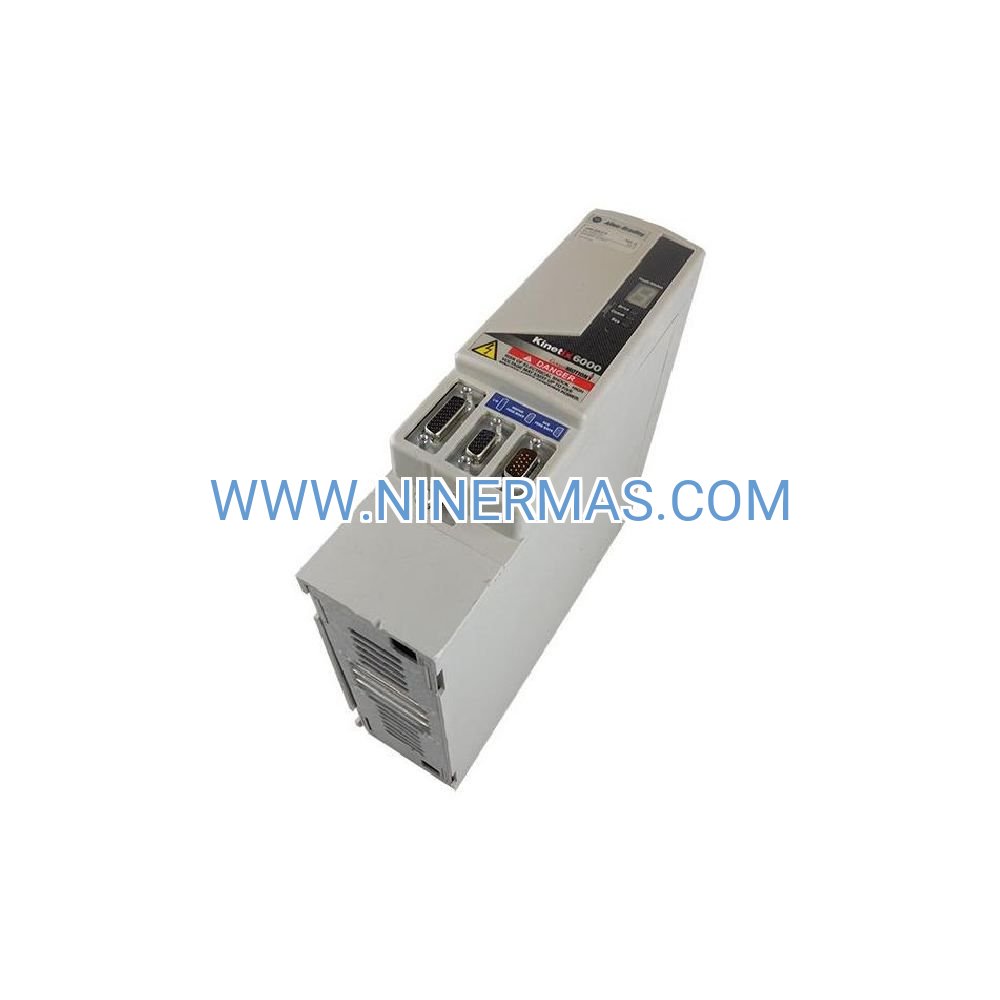

2094-BM02-S Axis Inverter Module (Industrial-Grade Servo Control)

The 2094-BM02-S represents a critical component in modern industrial motion architectures—a dedicated axis inverter module designed for Allen-Bradley's Kinetix 6000 multi-axis servo platform. Engineered to deliver 10.3A continuous output at 460V three-phase input, this module transforms electrical power into precisely controlled motor drive signals for demanding positioning, synchronization, and velocity regulation tasks.

Manufacturing facilities worldwide rely on this inverter to solve complex motion challenges: eliminating mechanical cam systems in packaging lines, achieving sub-millimeter registration in printing operations, and coordinating dozens of axes in automated assembly cells. The module's vector control algorithm maintains consistent torque delivery from zero speed through maximum velocity, while its 200% overload rating handles transient peak demands without thermal shutdown.

Whether you're retrofitting legacy machinery with modern servo technology or designing greenfield automation systems, the 2094-BM02-S provides the power density, control precision, and system integration capabilities that separate reliable production equipment from constant maintenance headaches. Compatible with RSLogix 5000 programming environments and SERCOS fiber-optic networks, it bridges the gap between control strategy and mechanical execution.

Typical Application Scenarios

→ Packaging Line Synchronization
In form-fill-seal operations and cartoning systems, the 2094-BM02-S drives product transport conveyors, rotary fillers, and sealing jaws that must maintain phase-locked coordination at speeds exceeding 200 packages per minute. The module's deterministic communication cycle (250 microseconds) ensures registration accuracy within ±0.5mm across temperature variations and load changes, preventing product rejection and material waste.

→ Web Processing Equipment
Flexographic printing presses, label converters, and coating machines use multiple 2094-BM02-S modules to control unwind/rewind tension zones, print cylinder drives, and dancer arm positioning. Shared DC bus architecture allows energy recovery during web deceleration, reducing electrical consumption by 20-30% compared to resistive braking systems while maintaining constant web tension across speed changes.

→ Automated Assembly Stations
Robotic pick-and-place cells, screw-driving systems, and press-fit operations demand rapid point-to-point motion with minimal settling time. The 2094-BM02-S delivers peak torque during 50-millisecond acceleration ramps, then holds position with ±5 arc-second accuracy under varying load conditions—critical for maintaining assembly quality in high-mix production environments.

→ Material Handling Systems
Automated storage/retrieval systems (AS/RS) and sortation conveyors require precise stop positioning to align products with transfer mechanisms. The module's encoder feedback processing (up to 8.4 million counts per revolution) enables positioning repeatability better than ±0.01mm, ensuring reliable handoffs between conveyor zones operating at different speeds.

→ Machine Tool Auxiliary Axes
CNC machining centers use the 2094-BM02-S for tool changer rotation, pallet shuttle drives, and tailstock positioning where coordinated motion with primary cutting axes prevents collision and maintains cycle time efficiency. The module's safe torque-off compatibility (M-variant) integrates with machine safety systems to meet ISO 13849-1 PLd requirements.

Core Functions & Business Value

✓ Scalable Power Architecture – Modular design allows mixing BM01 through BM05 sizes on common DC bus, right-sizing each axis independently while sharing regenerated energy across the system. Reduces cabinet space requirements by 40% versus standalone drive configurations.

✓ Advanced Vector Control – Maintains rated torque from standstill through base speed, then delivers constant power in field-weakening range. Eliminates the torque ripple and cogging effects that cause vibration in direct-drive applications requiring smooth motion profiles.

✓ Fiber-Optic Determinism – SERCOS interface provides immunity to electrical noise in harsh industrial environments while supporting update rates down to 250 microseconds. Enables coordinated motion across 32+ axes without cumulative timing errors that degrade synchronization accuracy.

✓ Integrated Diagnostics – Real-time monitoring of DC bus voltage, motor current, thermal state, and encoder health through RSLogix 5000 interface. Predictive maintenance alerts identify cooling fan degradation and capacitor aging before failures occur, reducing unplanned downtime by 60%.

✓ Auto-Tuning Capability – Motion Analyzer software measures system inertia and friction characteristics, then calculates optimal PID gains automatically. Reduces commissioning time from hours to minutes while achieving better dynamic response than manual tuning methods.

✓ Thermal Management – Forced-air cooling with temperature-compensated current limiting maintains full output capacity across 0-50°C ambient range. Overload protection allows 200% rated current for 2-second intervals during acceleration without nuisance trips.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 2094-BM02-S when your servo motor requires 5.5-7.5 kW continuous power at 460V. Verify that peak torque demands during acceleration don't exceed 200% rated current for more than 2 seconds. For applications requiring Safe Torque-Off (STO) functionality, specify the 2094-BM02-M variant which provides SIL 2/PLd safety rating. If your system operates on 230V three-phase power, select the equivalent 2094-AM02-S model instead.

Extended Functions

IoT Integration & Remote Monitoring
When paired with Allen-Bradley's FactoryTalk View or third-party SCADA systems, the 2094-BM02-S exposes operational data through EtherNet/IP gateways. Monitor drive temperature, cumulative energy consumption, and fault history from centralized dashboards. Configure email/SMS alerts for critical events like over-temperature warnings or encoder signal loss.

Energy Optimization
The module's regenerative capability feeds braking energy back to the DC bus where other accelerating axes can consume it. In multi-axis systems with reciprocating motion profiles, this reduces grid power consumption by 15-35% compared to resistive braking. Optional DC bus capacitor modules extend ride-through capability during brief power interruptions.

Custom Motion Profiles
RSLogix 5000's Motion Analyzer tool allows programming of complex cam profiles, electronic gearing ratios, and coordinated path motion. Import CAD-generated motion data or define custom S-curve acceleration profiles that minimize mechanical stress while maximizing throughput. Store up to 32 motion programs for quick recipe changeovers.

Delivery & Service Assurance

Lead Time: Stock units ship within 24-48 hours via express courier (DHL/FedEx). Custom configurations with specific firmware versions or extended temperature ratings require 2-3 weeks factory lead time. Expedited processing available for emergency replacement scenarios.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship under normal operating conditions. Warranty includes free firmware updates and technical support via phone/email. Extended 36-month warranty programs available for critical production equipment.

Technical Support: Pre-sales application engineering assistance includes motor sizing verification, system architecture review, and control strategy consultation. Post-installation support covers parameter configuration, tuning optimization, and troubleshooting via remote desktop sessions. On-site commissioning services available in major industrial regions.

Documentation Package: Each module ships with installation manual, quick-start guide, wiring diagrams, and certification documents (UL/CE/C-Tick). Downloadable resources include RSLogix 5000 Add-On Profiles (AOP), Motion Analyzer templates, and application notes for common machine types.

Frequently Asked Questions

What motor brands are compatible with the 2094-BM02-S inverter module?
The module is optimized for Allen-Bradley MP-Series (rotary/linear), TL-Series (low-inertia), and VP-Series (direct-drive) servo motors. Third-party motors from manufacturers like Bosch Rexroth, Siemens, or Yaskawa can be used if they provide compatible encoder feedback (incremental/absolute) and meet voltage/current ratings. Motor parameter files may require manual entry for non-AB motors.

Can I retrofit this module into an existing Kinetix 6000 system without downtime?
Yes, the 2094-BM02-S uses hot-swap design allowing replacement while the DC bus remains energized (other axes continue operating). Power down only the specific axis being serviced, disconnect motor and feedback cables, remove the module, install replacement, reconnect cables, and restore power. Total downtime typically under 15 minutes for trained technicians.

How does the module handle encoder signal loss during operation?
The drive immediately executes a controlled deceleration to standstill using last-known velocity estimate, then triggers a fault condition and disables output. Configurable fault response options include: coast to stop, ramp to stop at defined deceleration rate, or attempt encoder re-initialization. Safety-rated applications should use the 2094-BM02-M variant with redundant safe motion monitoring.

What network topology works best for systems with 10+ axes?
SERCOS ring topology provides the highest reliability—if one fiber cable breaks, communication continues in the opposite direction. For systems exceeding 16 axes, implement dual-ring architecture with separate control zones to maintain deterministic update rates. Line topology is acceptable for smaller systems but creates a single point of failure at any cable break.

Does the module require periodic calibration or maintenance?
No calibration is needed—the module maintains accuracy throughout its service life. Preventive maintenance includes quarterly inspection of cooling fan operation (listen for bearing noise), annual verification of DC bus capacitor health using built-in diagnostics, and cleaning of air intake filters every 6 months in dusty environments. Replace cooling fans every 40,000 operating hours or when predictive alerts indicate degraded airflow.

Can I use this module in outdoor or high-humidity environments?
The standard 2094-BM02-S is rated for indoor use in controlled environments (IP20 enclosure rating). For outdoor installations or high-humidity areas, mount the module inside a NEMA 4X/IP65 enclosure with climate control. Conformal coating options are available for extreme environments—consult factory for part number suffixes and lead times.

Ready to Upgrade Your Motion Control System?

The 2094-BM02-S axis inverter module delivers the precision, reliability, and integration capabilities that modern industrial automation demands. Whether you're designing a new machine or upgrading legacy equipment, our motion control specialists are ready to verify your application requirements and recommend the optimal configuration.
