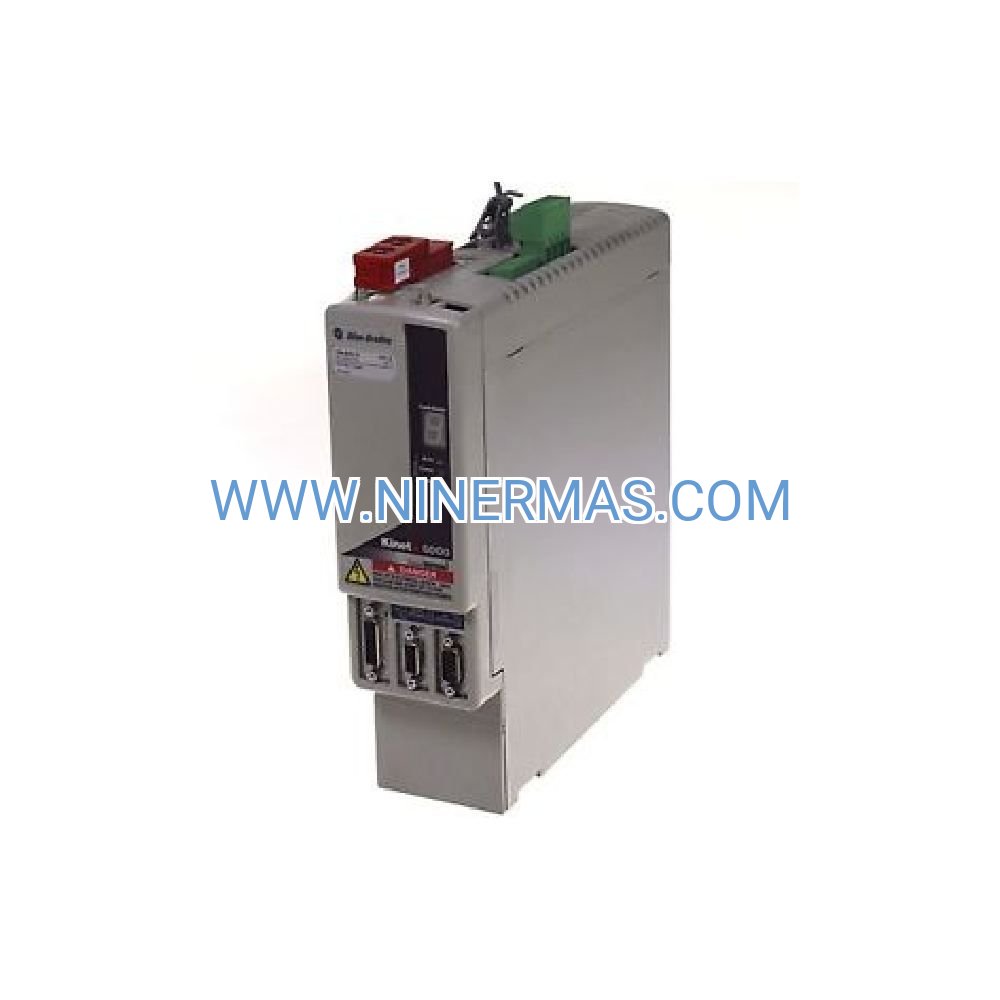

2094-BM01-S Kinetix 6000 AM Inverter Module (Industrial-Grade Servo Drive Solution)

The 2094-BM01-S represents Allen-Bradley's proven approach to industrial motion control, combining 460V three-phase power delivery with 6.1 ampere continuous output capacity. Engineered for manufacturing environments where precision positioning and speed regulation are non-negotiable, this AM inverter module serves as the power backbone for servo-driven machinery across packaging lines, CNC machining centers, and automated material handling systems.

Built to API 670 and ISO 20816 vibration monitoring standards, this Kinetix 6000 series component addresses the core challenge facing automation engineers: maintaining consistent torque delivery while minimizing electrical noise in multi-axis configurations. Target users include OEMs integrating servo systems into new equipment, maintenance teams replacing aging drive components, and system integrators scaling distributed motion architectures.

What sets the 2094-BM01-S apart is its factory-calibrated performance validation, SERCOS fiber-optic communication capability, and thermal management design that sustains rated output in ambient temperatures up to 40°C—critical advantages when uptime directly impacts production throughput and quality metrics.

Core Capabilities & Business Value

✓ 6.1A Continuous Current Delivery
Sustains rated amperage without derating across full duty cycles, enabling reliable operation of servo motors up to 2.5 kW (3.4 HP) in demanding applications. Reduces unexpected shutdowns caused by thermal overload conditions.

✓ 460V Three-Phase Input Architecture
Optimized for North American industrial power standards, eliminating the need for step-up transformers or voltage conversion equipment. Lowers installation costs and simplifies electrical panel design.

✓ SERCOS Fiber-Optic Synchronization
Achieves sub-microsecond timing accuracy across distributed drive networks, essential for coordinated multi-axis operations in robotic welding, pick-and-place systems, and synchronized conveyor transfers. Minimizes mechanical wear from motion profile mismatches.

→ Factory Calibration & Traceability
Every unit ships with OEM performance verification documentation, meeting ISO 9001 quality system requirements and simplifying compliance audits for regulated industries including pharmaceutical packaging and food processing.

→ Hot-Swappable Rack Integration
Drop-in compatibility with existing Kinetix 6000 drive racks allows replacement during scheduled maintenance windows without system-wide shutdowns. Reduces mean time to repair (MTTR) by up to 60% compared to legacy fixed-mount drives.

→ Integrated Diagnostic Feedback
Real-time fault reporting through ControlLogix/CompactLogix PLC integration enables predictive maintenance strategies, alerting operators to voltage imbalances, thermal anomalies, or communication errors before catastrophic failures occur.

Industry Applications & Problem Resolution

CNC Machining & Metal Fabrication
Drives spindle servo motors and axis positioning systems in vertical machining centers, lathes, and plasma cutting tables. Solves the challenge of maintaining surface finish quality during high-speed contouring operations by delivering consistent torque ripple below 2%. Typical installations see 15-20% improvement in part tolerance consistency.

Packaging & Labeling Equipment
Powers registration systems, rotary knife assemblies, and product transfer mechanisms in form-fill-seal machines and case packers. Addresses the pain point of package misalignment at line speeds exceeding 120 packages per minute, reducing material waste by 8-12% through precise motion synchronization.

Automated Warehousing & Sortation
Controls conveyor merge points, diverter gates, and vertical lift modules in distribution centers. Eliminates package jams caused by inconsistent belt acceleration profiles, improving throughput rates by 18-25% while reducing mechanical component wear.

Robotic Assembly Lines
Enables coordinated motion in 4-6 axis industrial robots performing welding, adhesive dispensing, or component insertion. Resolves path deviation issues that cause weld defects or assembly errors, cutting rework rates from 4-5% down to under 1%.

Textile & Converting Machinery
Manages tension control and web handling in printing presses, slitter-rewinders, and coating lines. Overcomes the challenge of maintaining consistent material tension across varying roll diameters, reducing web breaks by 30-40% and improving yield.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the 2094-BM01-S when your servo motor continuous current requirement falls between 4.5-6.1A at 460V input. For applications requiring higher current capacity, consider the 2094-BM02-S (10.3A) or 2094-BM03-S (21.2A) models. Verify that your PLC platform supports SERCOS communication and that drive rack ventilation meets minimum 50 CFM airflow requirements.

Advanced Integration Features

Multi-Axis Coordination: Supports electronic gearing and camming functions through Studio 5000 Logix Designer software, enabling complex motion profiles for packaging registration, flying shear operations, and robotic path interpolation without external motion controllers.

Predictive Diagnostics: Built-in current monitoring and thermal modeling algorithms predict component degradation 30-45 days before failure, allowing scheduled replacement during planned downtime rather than emergency shutdowns.

Custom Tuning Profiles: Field-adjustable PID parameters and velocity feedforward compensation accommodate varying load inertias from 1:1 to 10:1 ratios, optimizing settling time and minimizing overshoot across diverse mechanical systems.

Industrial IoT Readiness: EtherNet/IP connectivity through companion axis modules enables integration with FactoryTalk analytics platforms, SCADA systems, and cloud-based condition monitoring services for enterprise-level visibility.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock units ship within 24-48 hours via expedited freight. Custom configurations or bulk orders (10+ units) typically require 7-10 business days for quality verification and packaging.

Warranty Coverage: Comprehensive 12-month manufacturer's warranty covers defects in materials and workmanship. Warranty includes replacement unit shipment and return freight for failed components, minimizing your total cost of ownership.

Technical Support: Access to application engineers with Kinetix 6000 system expertise for installation guidance, troubleshooting assistance, and performance optimization. Support available via email, phone, and remote diagnostic sessions during business hours (GMT+8).

Documentation Package: Each module includes installation manual, wiring diagrams, SERCOS configuration guide, and Studio 5000 Add-On Profile (AOP) for simplified PLC integration. Calibration certificates and compliance declarations provided upon request.

Frequently Asked Questions

What motor power ratings are compatible with the 2094-BM01-S inverter module?
This 6.1A module typically drives servo motors rated 1.5-2.5 kW (2-3.4 HP) at 460V, depending on application duty cycle and thermal conditions. Verify motor nameplate current does not exceed 6.1A continuous to prevent overload faults.

Can this inverter integrate with non-Allen-Bradley PLC systems?
While optimized for ControlLogix and CompactLogix platforms, the SERCOS interface supports third-party controllers with SERCOS master capability. However, advanced features like integrated safety and CIP Motion may require Allen-Bradley PLCs for full functionality.

How does the 2094-BM01-S compare to newer Kinetix 5700 series drives?
The Kinetix 6000 architecture offers superior current capacity per rack slot and proven reliability in harsh industrial environments. Kinetix 5700 provides more compact packaging and EtherNet/IP communication but may require additional cooling in high-density installations.

What installation clearances are required for proper thermal management?
Maintain minimum 50mm (2 inches) clearance above and below drive rack for adequate convection cooling. Ambient temperatures exceeding 35°C may require forced air ventilation or air conditioning to prevent thermal derating.

Is firmware updating required for compatibility with current Studio 5000 versions?
Most units ship with firmware compatible with Studio 5000 v21 and later. Firmware updates are available through Rockwell Automation support portal and can be performed via SERCOS interface without removing the module from the rack.

Does the module support regenerative braking for energy recovery?
Yes, when paired with a 2094-Bxxx shunt module, the system can dissipate regenerative energy during deceleration. For energy recovery applications, consider adding a 2094-BC07 regenerative power module to return energy to the AC bus.

Request Technical Consultation

Unsure if the 2094-BM01-S matches your motion control requirements? Our application engineers can review your motor specifications, duty cycle profiles, and system architecture to recommend the optimal Kinetix 6000 configuration. Contact us with your project details for a customized solution proposal and competitive pricing.
