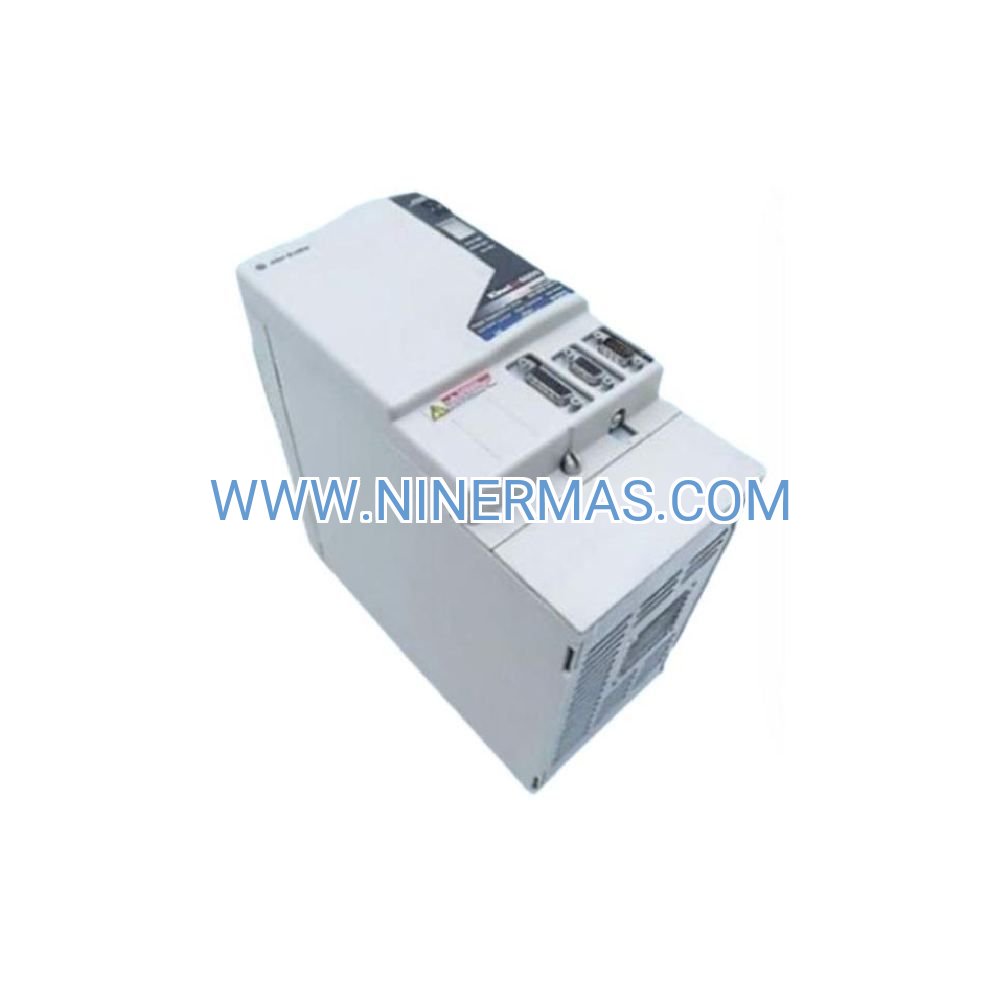

2094-BC07-M05-S High-Performance Servo Power Module (Industrial-Grade Solution)

The 2094-BC07-M05-S represents a cutting-edge power conversion solution engineered for mission-critical servo drive applications in modern industrial automation. This Integrated Axis Module delivers robust 460V three-phase power management with 71A continuous output capacity, combining exceptional energy efficiency with enterprise-grade reliability for demanding motion control environments.

Designed for manufacturers requiring precision positioning and synchronized multi-axis coordination, this power module addresses the core challenges of industrial motion systems: voltage stability under dynamic loads, regenerative energy management, and thermal performance in harsh operating conditions. Whether you're upgrading legacy drive systems or designing new automation cells, the 2094-BC07-M05-S provides the foundation for reliable, high-performance motion control.

With 95% conversion efficiency and intelligent thermal management, this module reduces operational costs while delivering the power density and response characteristics essential for packaging lines, CNC machining centers, material handling systems, and precision manufacturing equipment.

Core Capabilities & Performance Benefits

→ High-Capacity Power Delivery: 71A continuous output current with 142A intermittent capability supports demanding acceleration profiles and sustained high-torque operations, eliminating power bottlenecks in multi-axis systems.

→ Wide Input Voltage Tolerance: Accepts 324-528V RMS three-phase input, providing immunity to line voltage fluctuations common in industrial facilities while maintaining stable 650V DC bus output for consistent servo performance.

→ Advanced Regenerative Protection: Integrated 28.75Ω shunt resistor with 22.3kW peak dissipation capacity safely manages regenerative energy during rapid deceleration, protecting downstream components and extending system lifespan.

→ Superior Energy Efficiency: 95% conversion efficiency minimizes heat generation and reduces facility cooling requirements, lowering total cost of ownership while supporting sustainability initiatives.

✓ Compact Footprint Design: Space-optimized architecture delivers 45kW continuous power in a reduced form factor, enabling higher power density in control cabinets and reducing installation costs.

✓ Common Bus Architecture Support: Functions as bus follower in shared DC bus configurations, enabling efficient power distribution across multiple axes and reducing component count in complex motion systems.

Industrial Application Scenarios

Automated Packaging & Filling Systems
High-speed packaging lines demand precise synchronization between multiple servo axes for filling, capping, labeling, and case packing operations. The 2094-BC07-M05-S delivers the power stability and response time required for maintaining registration accuracy at speeds exceeding 300 packages per minute, while its regenerative handling capability manages the frequent start-stop cycles inherent to batch processing operations.

CNC Machining & Metal Fabrication
Precision machining centers require consistent torque delivery across varying cutting loads and rapid axis repositioning between operations. This power module provides the current capacity for heavy cutting operations while maintaining position accuracy within microns, addressing the dual challenges of power delivery and motion precision in modern CNC applications.

Material Handling & Conveyor Systems
Automated distribution centers and manufacturing facilities rely on coordinated conveyor networks for product flow management. The module's wide voltage tolerance and thermal robustness ensure reliable operation in environments with electrical noise and temperature variations, while supporting the dynamic load changes characteristic of variable-speed conveyor applications.

Web Processing & Converting Equipment
Printing, laminating, and converting machinery require precise tension control and registration accuracy across multiple web zones. The 2094-BC07-M05-S enables tight speed regulation and coordinated axis control essential for maintaining web tension within ±0.5% tolerance, preventing material waste and quality defects.

Robotic Assembly & Pick-Place Operations
High-throughput robotic cells demand rapid acceleration and precise positioning for assembly operations. This power module supports the dynamic current requirements of multi-axis robots while providing the regenerative capacity needed for energy-efficient operation in continuous-duty applications.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 2094-BC07-M05-S when your application requires 45-90kW peak power capacity with 460V input. For systems with total servo power demand between 30-45kW continuous, this module provides optimal sizing with headroom for acceleration peaks. Consider common bus architecture when coordinating 3+ axes to maximize efficiency and reduce component costs.

Extended Integration Capabilities

Network Connectivity: Integrates seamlessly with Kinetix 6000 drive systems via high-speed backplane communication, enabling real-time parameter monitoring, diagnostic data access, and coordinated motion control through standard industrial protocols including EtherNet/IP and DeviceNet.

Predictive Maintenance Support: Built-in diagnostics monitor critical parameters including DC bus voltage, input current, thermal status, and shunt activation events, providing early warning indicators for preventive maintenance scheduling and reducing unplanned downtime.

Scalable Architecture: Common bus design allows parallel connection of multiple power modules for applications exceeding 45kW capacity, with automatic load sharing and redundancy options for mission-critical installations.

Custom Configuration Services: Factory configuration options available for specialized voltage requirements, extended temperature ratings, and application-specific protection settings to meet unique operational demands.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 1-2 business days via express courier with full tracking and insurance coverage. Typical delivery time to major industrial centers: 3-5 business days.

Custom Configuration: Factory-configured units with specialized settings or extended testing require 2-3 weeks lead time, including comprehensive documentation of configuration parameters and test results.

Warranty Coverage: 12-month comprehensive warranty covering materials, workmanship, and performance specifications. Extended warranty programs available for critical applications requiring enhanced coverage.

Technical Support: Direct access to application engineers with expertise in motion control system design, troubleshooting, and optimization. Support includes installation guidance, parameter configuration assistance, and system integration consulting.

Documentation Package: Each module ships with complete technical documentation including installation manual, wiring diagrams, parameter reference guide, and compliance certifications (CE, UL, cUL, RoHS).

Frequently Asked Questions

What input voltage configuration is required for the 2094-BC07-M05-S power module?
The module requires 460V three-phase AC input (324-528V RMS operating range) at 47-63 Hz, plus separate 230V single-phase control power (95-264V RMS range). The wide input tolerance accommodates typical industrial voltage variations without requiring additional regulation equipment.

How does the integrated shunt resistor protect against regenerative overvoltage conditions?
The internal 28.75Ω shunt automatically activates when DC bus voltage reaches 805V, dissipating regenerative energy at up to 22.3kW peak capacity until voltage drops to 755V. This protects the power module and connected drives during rapid deceleration or emergency stop events without requiring external braking resistors for most applications.

Can this module support multiple servo axes in a common bus configuration?
Yes, the 2094-BC07-M05-S functions as a common bus follower, allowing multiple servo drives to share a single DC bus. This architecture reduces component count, improves energy efficiency through regenerative power sharing between axes, and lowers total system cost compared to individual power modules per axis.

What thermal management considerations are necessary for reliable operation?
The module dissipates 44-177W depending on load (20-80% of rated capacity). Ensure adequate cabinet ventilation to maintain ambient temperature below 40°C for full rated output. Above 40°C, derate current capacity per manufacturer specifications. Minimum clearances: 50mm top/bottom, 25mm sides.

Is the 2094-BC07-M05-S compatible with existing Kinetix 6000 drive installations?
Fully compatible with all Kinetix 6000 series servo drives and amplifiers. The module integrates via standard backplane connection and supports both standalone and common bus architectures. Firmware compatibility should be verified for systems installed before 2015; contact technical support for legacy system integration guidance.

What diagnostic capabilities are available for system monitoring and troubleshooting?
Real-time diagnostics include DC bus voltage monitoring, input current measurement, thermal status, shunt activation logging, and fault code reporting. Data accessible via drive programming software or network interface for integration with plant-wide monitoring systems and predictive maintenance platforms.

Start Your Motion Control Upgrade Today

Ready to enhance your automation system with industrial-grade power management? Our technical team is available to discuss your specific application requirements, provide sizing calculations, and recommend optimal configuration for your motion control needs. Contact us for detailed technical specifications, application notes, or to request a formal quotation.
