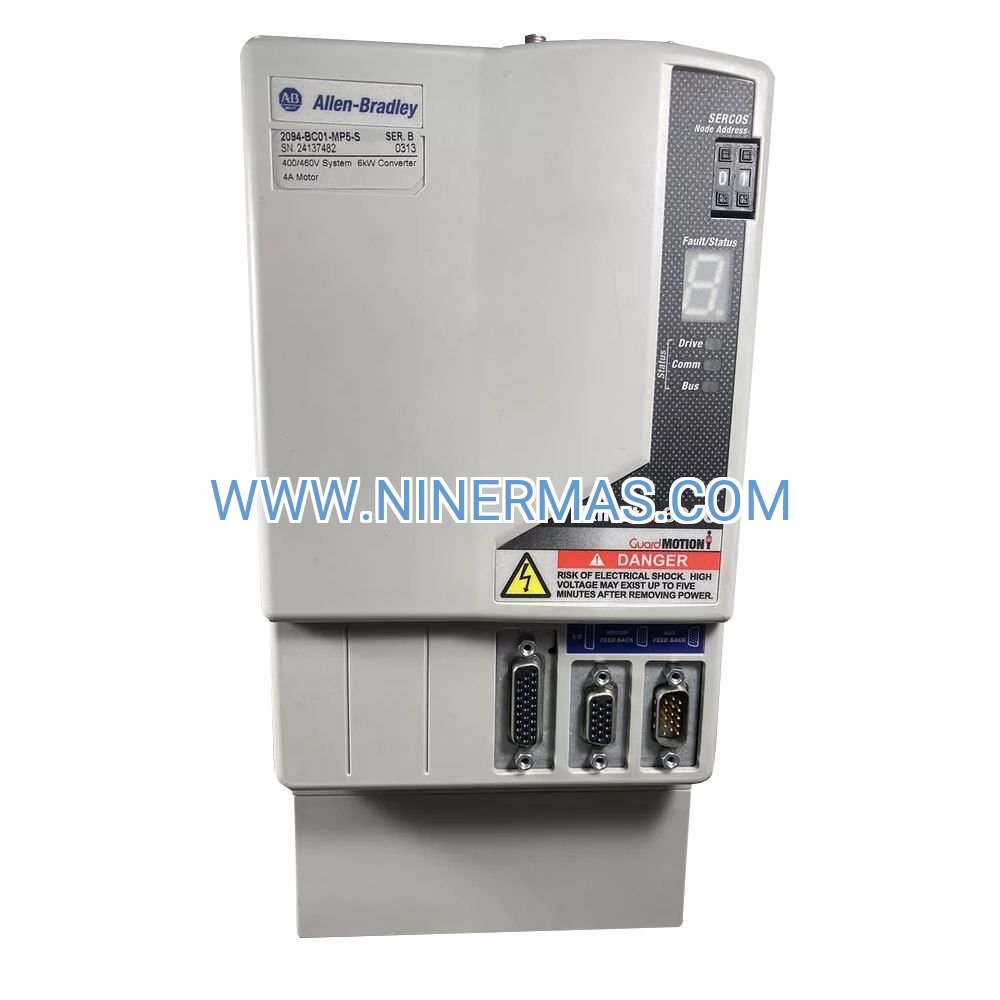

2094-BC01-MP5-S Integrated Axis Module (Industrial-Grade Servo Drive Solution)

The 2094-BC01-MP5-S represents a breakthrough in compact servo drive architecture, merging power conversion, axis control, and safety functions into a single industrial-grade module. Engineered for the Kinetix 6000 platform, this 460V integrated axis module (IAM) delivers 10A continuous current with 200% peak overload capacity, enabling precise multi-axis coordination in packaging, converting, material handling, and assembly automation environments.

Built on SERCOS III deterministic communication technology, the module achieves 31.25 μs cycle times with sub-microsecond jitter, ensuring synchronized motion across up to 32 axes. The shared DC bus architecture enables regenerative energy transfer between accelerating and decelerating axes, reducing total system power consumption by 25% while maintaining SIL 3 functional safety certification.

Whether you're upgrading legacy distributed drive systems or designing new high-performance motion platforms, the 2094-BC01-MP5-S delivers the integration density, energy efficiency, and diagnostic intelligence required for Industry 4.0 manufacturing operations.

Core Features & Technical Advantages

→ Unified Power & Control Architecture
Integrates AC-to-DC rectification, inverter stage, and axis controller in a 50mm-wide package, reducing panel footprint by 40% compared to modular drive systems while eliminating inter-component wiring and potential failure points.

→ Deterministic SERCOS III Communication
Fiber optic ring topology provides 100 Mbps bandwidth with guaranteed 31.25 μs update cycles, enabling electronic camming, coordinated interpolation, and electronic line shaft applications with ±0.5 mm registration accuracy at 300 cycles/minute.

→ Regenerative Energy Sharing
Common DC bus architecture allows energy from braking axes to power accelerating axes in real-time, eliminating external regeneration resistors in most applications and reducing utility demand charges by 20-30%.

→ Embedded SIL 3 Safety Functions
Integrated Safe Torque Off (STO), Safe Stop 1 (SS1), and Safe Direction (SDI) certified to IEC 61800-5-2 and ISO 13849-1 PLe eliminate external safety relays and reduce safety circuit complexity.

✓ Adaptive Auto-Tuning Algorithms
Intelligent commissioning routines automatically optimize velocity loop gains, notch filter frequencies, and load observer parameters based on measured system inertia and compliance, reducing setup time from hours to minutes.

✓ 95%+ Conversion Efficiency
Advanced PWM algorithms and low-loss IGBT technology deliver industry-leading efficiency across the entire load range, minimizing heat generation and extending component service life beyond 150,000 hours MTBF.

Typical Application Scenarios

Packaging & Form-Fill-Seal Machinery
Challenge: Synchronize film advance, sealing jaws, and product feed across varying package sizes without mechanical changeover.
Solution: Electronic camming with 256-segment profiles enables recipe-based format changes in <30 seconds, while coordinated motion maintains ±0.3 mm seal registration at speeds exceeding 120 packages/minute.
Value: 40% reduction in changeover time, 15% increase in OEE, elimination of mechanical cam wear.

Web Converting & Printing Systems
Challenge: Maintain constant web tension across unwind, process zones, and rewind while compensating for roll diameter changes.
Solution: Electronic line shaft with programmable gear ratios and load observer-based tension control maintains ±2% tension accuracy across 10:1 diameter ratios without dancer rolls.
Value: 25% reduction in material waste, improved print registration, simplified mechanical design.

Robotic Pick-and-Place Cells
Challenge: Achieve 0.05-second cycle times with ±0.02 mm repeatability in delta robot and SCARA applications.
Solution: 800 Hz velocity loop bandwidth and coordinated linear/circular interpolation enable aggressive acceleration profiles (5g+) while maintaining path accuracy through vibration suppression filters.
Value: 30% throughput increase, reduced product damage, extended mechanical component life.

Multi-Station Rotary Indexers
Challenge: Coordinate rotary table motion with linear actuators for assembly, inspection, and packaging operations.
Solution: Master/slave electronic gearing with 1:1,000,000 ratio resolution synchronizes up to 16 slave axes to rotary master with <0.1° position error.
Value: Elimination of mechanical gearboxes, flexible station configuration, predictive maintenance capabilities.

Food Processing & Washdown Environments
Challenge: Deploy servo drives in IP65-rated enclosures for slicing, portioning, and filling equipment.
Solution: Compact form factor enables installation in stainless steel NEMA 4X enclosures with optional conformal coating for enhanced corrosion resistance.
Value: Compliance with FDA/USDA sanitation requirements, reduced contamination risk, simplified cleaning procedures.

Technical Parameters & Selection Guide

Motor Compatibility: Optimized for Allen-Bradley MP-Series (rotary), TL-Series (low-inertia), and VP-Series (direct-drive) servo motors from 0.5-5 kW. Consult motor selection guide for inertia matching (recommended ratio 1:1 to 10:1 load:motor inertia).

Sizing Criteria: Select drive current rating ≥ motor rated current. For applications with frequent acceleration/deceleration, verify RMS current calculation accounts for duty cycle. Peak current must not exceed 200% for more than 2 seconds per cycle.

Extended Functions & System Integration

IoT & Predictive Maintenance Integration
Built-in diagnostics monitor DC bus capacitor ESR, cooling fan runtime, IGBT junction temperature, and encoder signal quality. Data streams via SERCOS to ControlLogix/CompactLogix for integration with FactoryTalk Analytics or third-party CMMS platforms, enabling condition-based maintenance scheduling.

Advanced Motion Profiles
Supports S-curve, modified trapezoid, and custom polynomial velocity profiles for jerk-limited motion. Electronic cam editor in Studio 5000 enables graphical cam design with automatic velocity/acceleration limit checking and simulation before deployment.

Multi-Axis Coordination
Coordinated Motion Instructions (MAM, MAJ, MCLM) enable linear, circular, and helical interpolation across up to 8 axes simultaneously. Path planning algorithms optimize trajectory for minimum cycle time while respecting individual axis velocity and acceleration constraints.

Customization Options
Factory-configurable options include conformal coating for harsh environments, extended temperature range (-25°C to 60°C), and custom firmware for OEM-specific motion algorithms. Minimum order quantities and lead times apply.

Delivery Timeline & Service Guarantee

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for critical applications (additional fees apply).

Custom Configuration: 2-3 weeks for factory programming, conformal coating, or extended temperature testing; consult technical sales for project-specific timelines.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Warranty includes advance replacement service with 24-hour shipment for qualifying failures.

Technical Support: Unlimited phone and email support during commissioning phase. Remote diagnostic assistance via Studio 5000 screen sharing. On-site startup support available (travel and per-diem charges apply).

Documentation Package: Includes installation manual, quick-start guide, wiring diagrams, SERCOS configuration files, sample ladder logic, and CAD models (STEP, DXF formats). Downloadable from product support portal.

Frequently Asked Questions

Q: How do I connect the 2094-BC01-MP5-S to my ControlLogix PLC?
A: Install a 2094-SE02F-M00-S0 SERCOS interface module in your ControlLogix chassis. Connect the IAM to the SERCOS fiber optic ring using 62.5/125 μm multimode fiber cables. Configure the axis in Studio 5000 using the Add-On Profile for Kinetix 6000. The interface module handles all real-time communication; no additional gateway hardware required.

Q: What is the maximum system capacity for multi-axis applications?
A: A single SERCOS ring supports up to 32 IAMs with mixed current ratings (3A to 75A). Total system power limited by DC bus module rating (2094-BM series). For applications exceeding 32 axes, deploy multiple SERCOS rings with separate interface modules.

Q: How much energy savings can I expect from regenerative operation?
A: Typical savings range from 20-30% in applications with balanced acceleration/deceleration cycles (packaging, material handling). Applications with continuous regeneration (web winding, vertical axis lowering) may achieve 40%+ savings. Actual results depend on duty cycle, inertia ratios, and cycle time.

Q: What are the installation requirements for optimal performance?
A: Mount vertically with 50mm clearance above/below for airflow. Install line reactor (3% impedance minimum) on AC input for power quality. Use shielded motor cables ≤50m length. Ground cable shields at drive end only (360° shield termination). Maintain ambient temperature ≤40°C for full current rating.

Q: Can I monitor drive status remotely for predictive maintenance?
A: Yes. Drive diagnostic data (bus voltage, output current, temperature, fault history) is accessible via SERCOS communication. Map diagnostic tags to ControlLogix/CompactLogix controller, then publish to FactoryTalk View HMI, FactoryTalk Analytics, or third-party SCADA systems via OPC-UA or MQTT protocols.

Q: What safety certifications does the integrated STO function hold?
A: The Safe Torque Off (STO) function is certified to IEC 61800-5-2 (SIL 3), IEC 62061 (SIL 3), and ISO 13849-1 (PLe, Category 3). Suitable for emergency stop circuits, safety gate interlocks, and light curtain integration. Requires dual-channel safety input wiring per certification requirements.

Take the Next Step

Ready to upgrade your motion control system with integrated axis technology? Our application engineers are available to review your specifications, recommend optimal drive/motor combinations, and provide budget quotations within 24 hours.

Contact our technical sales team:
? Email: sale@ninermas.com
? Phone: +0086 187 5021 5667
? Technical Resources: https://ninermas.com

Request a detailed application worksheet to calculate RMS current, verify regeneration capacity, and size DC bus modules for your specific machine requirements.
